Kapro 962 Manual de usuario
Prolaser Multi Beam
Orbital laser
Model No. 962
165'/50m
Up to 50m/165'
4 AA
INCLUDED
User Manual
Manual del usuario
Manuel d'utilisation
Руководство по эксплуатации
2
Thank you for purchasing Kapro’s 962 Prolaser®Multi Beam
Orbital laser. You now own one of the most advanced laser
tools available. This manual will show you how to get the
most out of your laser tool.
APPLICATIONS
The 962 Prolaser®Multi Beam Orbital laser is an Indoor /
Outdoor laser level with 3 laser diodes that emits a horizontal
circular line, vertical line and two plumb dots. The laser is
innovatively designed for a very broad range of Professional
and DIY jobs, including:
• Hanging cabinets and shelves.
• Setting oor and wall tiles
• Drywall and acoustic ceilings installation.
• Framing and aligning windows and doors
• Leveling electrical outlets, plumbing and studs
• Leveling slopes for stairs, rails, roofs and more (manual
mode).
NOTE
Keep this user manual for future reference.
EN
165'/50m
Up to 50m/165'
4 AA
INCLUDED
3
CONTENTS
• Features 4
• Safety instructions 5-6
• Battery installation & Safety 7-8
• Overview 9
• Operating instructions 10-12
• Maintenance 13
• Field calibration test 14-23
• Specications 24
• Warranty 25
4
FEATURES
• This laser emits 1 horizontal 360° and 1 vertical beams,
that intersect on the wall in front of the device, as well as
two plumb laser dots - on the oor and on the ceiling.
• Self-leveling in automatic mode when the laser is
positioned within its self-leveling range which is ±3º
• Visual warning when the laser level is out of leveling
range.
• Pulse mode emits pulses that can be detected by a
detector.
• Max. indoor working range - 30m (100')
• The max. detectable range of the laser in pulse mode is
50m (165').
• For optimal vertical line viewing : position the laser at
least 2 meters from the wall.
• Manual mode allows angular layout/marking.
• IP65 Rated for water and dust protection.
• Locking mechanism to protect the pendulum during
transportation.
• 1/4" tripod thread (5/8" thread on the mount)
• Shock resistant rubber over molded casing.
• Multi-purpose magnetic mount.
NOTE
This device contains precision components
sensitive to external shock, impact or falls
that may compromise its functionality. Handle
with care to maintain its accuracy.
5
SAFETY INSTRUCTIONS
WARNING
This product emits radiation classied as Class
II according to EN 60825 -1
The laser radiation can cause serious eye injury
• Do not stare into the laser beam
• Do not position the laser beam so that it unintentionally
blinds you or others.
• Do not operate the laser level near children or let
children operate the laser level.
• Do not look into a laser beam using magnifying optical
devices such as binoculars or a telescope,since it will
increase the level of eye injury.
WARNING: This product contains lead in soldered
joints and certain Electrical parts contain chemicals
which are known to the State of California to cause
cancer, birth defects or other reproductive harm.
(California Health & Safety Code Section 25249.6- Proposition 65)
6
• Do not remove or deface warning labels on the laser level.
• Do not disassemble the laser level, laser radiation can
cause serious eye injury.
• Do not drop the unit.
• Do not use solvents to clean the laser unit.
• Do not use in temperatures below -10°C or above 45°C
(14°F to 113°F)
• Do not operate the laser in explosive atmospheres such
as ammable liquids, gases or dust. Sparks can cause
ignition.
• When not in use remove the battery, engage the
pendulum lock and place the laser in the carrying pouch.
• Make sure the pendulum lock mechanism is engaged
before transporting the laser.
NOTE
If the Pendulum lock mechanism is not
engaged before transportation, internal
mechanical damage may occur.
7
The 962 Prolaser®Multi Beam Orbital laser®uses 4 standard
AA batteries.
Installation
1. Press down the ledge of the battery cover.
2. Insert 4 new AA batteries of the same brand according to
the polarity diagram on the battery cover.
3. Reclose the battery cover.
BATTERY INSTALLATION & SAFETY
8
Replace the batteries if the beam/battery indicator (b) starts
to ash instead of emitting a steady light.
WARNING: Battery can deteriorate, leak or explode and
can cause injury or re.
1. Do not shorten the battery terminals.
2. Do not dispose of battery into household waste.
3. Do not dispose of battery in re.
4. Defective or dead batteries must be disposed according
to local regulations.
5. Keep the batteries out of children's reach.
9

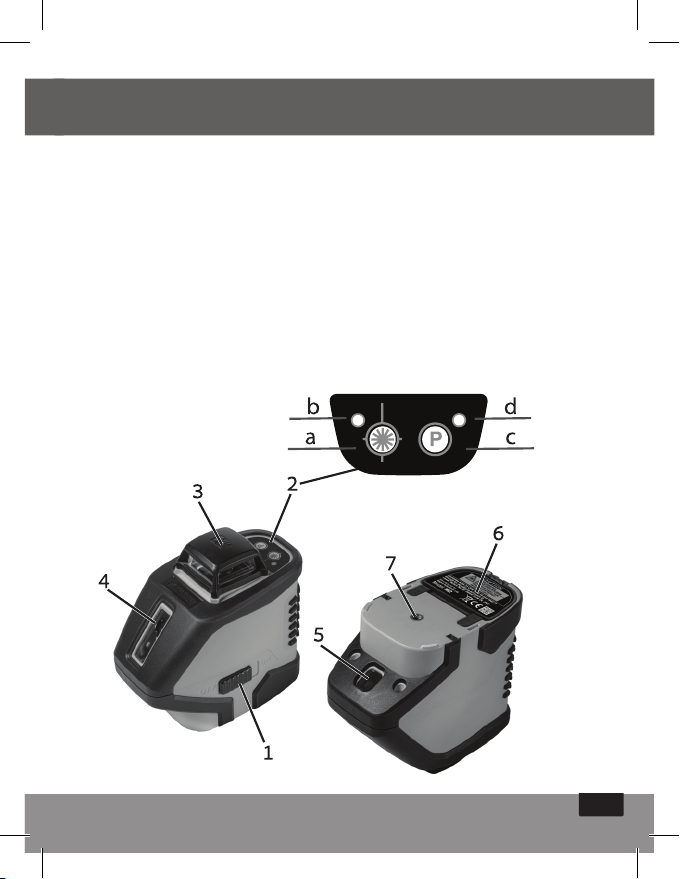

1. On/Off Locking Switch
2. Keypad
a. Beam Selector/Manual mode button
b. Beam / Battery indicator
c. Pulse Mode button
d. Pulse Mode indicator
3. Horizontal laser beam window
4. Forward vertical laser beam window
5. Down plumb dot window
6. Battery cover
7. 1/4” tripod mount
OVERVIEW
10
OPERATING INSTRUCTIONS
Working in Automatic mode (self-leveling):
In automatic mode the laser level will level itself in ± 3°
range and will project horizontal 360° beam, vertical beam
and 2 plumb dots.
1. Remove the laser level from the case and place it on a
solid, at, vibration free surface or on a tripod.
2. Push the locking switch #1 to the ON position. The laser
level will project all the beams: a 360° horizontal beam,
vertical beam and 2 plumb dots. The beam indicator (b)
will turn on.
3. Press the beam selector button (a) to choose the required
laser beams by cycle:
All beams => Horizontal beam only => Vertical beam
only => Horizontal + Vertical beams => Plumb dots only
=> All beams.
4. If the initial inclination of the laser level is beyond ± 3°
and the automatic mode is activated, the laser beams will
ash. In this case reposition the laser level on a more
level surface.
5. Before moving the laser level, turn the locking switch
#1 to the OFF position, this will lock the pendulum and
protect your laser level.
