Küppersbusch IGV 699 Manual de usuario

5600 054 071 (8301)

IGV 699

Operating instructions

Dish washer

en Index

Safety instructions 4. . . . . . . . .

Getting to know your dishwasher 6

Before using your appliance

for the first time 7. . . . . . . . . . . .

Filling with salt 8. . . . . . . . . . . .

Setting up the water softener 9

Filling with rinse aid 10. . . . . . . .

Unsuitable dishes 11. . . . . . . . .

Arranging crockery, glasses, etc.

in the dishwasher 12. . . . . . . . . .

Detergents 15. . . . . . . . . . . . . . .

Opening and closing the door 17

Adjusting the appliance 18. . . . .

Programme overview 19. . . . . .

Selecting options/standard settings 20

Maintenance and care 25. . . . . .

Fault finding 27. . . . . . . . . . . . . .

Customer Service 30. . . . . . . . .

Notes 30. . . . . . . . . . . . . . . . . . . .

Installation 31. . . . . . . . . . . . . . . .

Safety instructions

Delivery

Immediately check the packaging and

dishwasher for any damage which may

have been caused in transit. Do not use

a damaged appliance, but consult your

supplier.

Please dispose of packaging material

properly.

The corrugated cardboard consists

mainly of waste paper.

The polystyrene moulded parts have

been foamed without any CFCs.

The polyethylene film (PE) consists

partly of secondary raw material.

The wooden frames (if fitted) are made

of residual wood and are untreated.

The hoops (if fitted) consist of

polypropylene (PP).

Installation

Install and connect the appliance

according to the installation and

assembly instructions.

The dishwasher must NOT be

connected to the power supply during

installation.

Ensure that the protective conductor

system of the domestic electricity

supply has been installed correctly.

Electrical connection conditions must

correspond with the specifications on

the rating plate of the dishwasher.

Built-under and built-in appliances

should always be installed under a

continuous work surface which is

attached to the adjacent cupboards, in

order to ensure that the appliance is

entirely stable.

After the appliance has been installed,

the mains plug should still be easily

accessible.

Not on all models:

The plastic housing on the water input

contains an electrically operated valve.

The connecting wires are inside the

inlet hose. Do not cut through this hose

and do not immerse the plastic housing

in water.

Warning

For safety reasons, if the appliance is not

fitted in a recess, thereby making a side

wall accessible, the door hinge area

should be covered at the side.

(Risk of injury)

Covers are available as optional

accessories from customer services or

specialist stores.

During normal use

Warning

Knives and other utensils with sharp points

must be loaded in the basket with their

points down or in a horizontal position.

Use the dishwasher solely in a

domestic environment and for its

designated purpose: washing

household tableware and other utensils.

Do not place any heavy objects or

stand on the door when it is open. The

appliance could tip forward.

The water inside the dishwasher is not

suitable for drinking.

Do not use solvents of any kind inside

your dishwasher. They could cause an

explosion.

Open the door very carefully if the

dishwasher is operating. There is a risk

of water squirting out.

If your family includes children

Do not permit small children to play with

or operate the dishwasher.

Keep children away from detergents

and rinse-aids.

Keep small children away from the

open door of the dishwasher. There

could still be some detergent left inside.

If a fault occurs

Repairs or other work on the

dishwasher should only be carried out

by a qualified specialist.

The dishwasher must be disconnected

from the electricity supply before any

repairs or other work are started. Pull

the mains plug out of the wall socket or

switch off at the fuse box. Grasp the

plug to remove it from the socket; do

not tug on the cable. Turn the water off

at the tap.

When disposing of old

appliances

Appliances that have reached the end

of their service life should be rendered

inoperable in order to exclude the

possibility of subsequent accidents. Pull

the mains plug out of the wall socket,

cut through the connecting cable and

disable the door lock.

Take the appliance to a designated

waste disposal centre.

Warning

Children could get locked in the appliance

(risk of suffocation) or get stuck in other

positions.

Therefore: Remove the mains plug, cut the

mains wire and set aside. Damage the

door lock so that the door can no longer

be closed.

Getting to know your

dishwasher

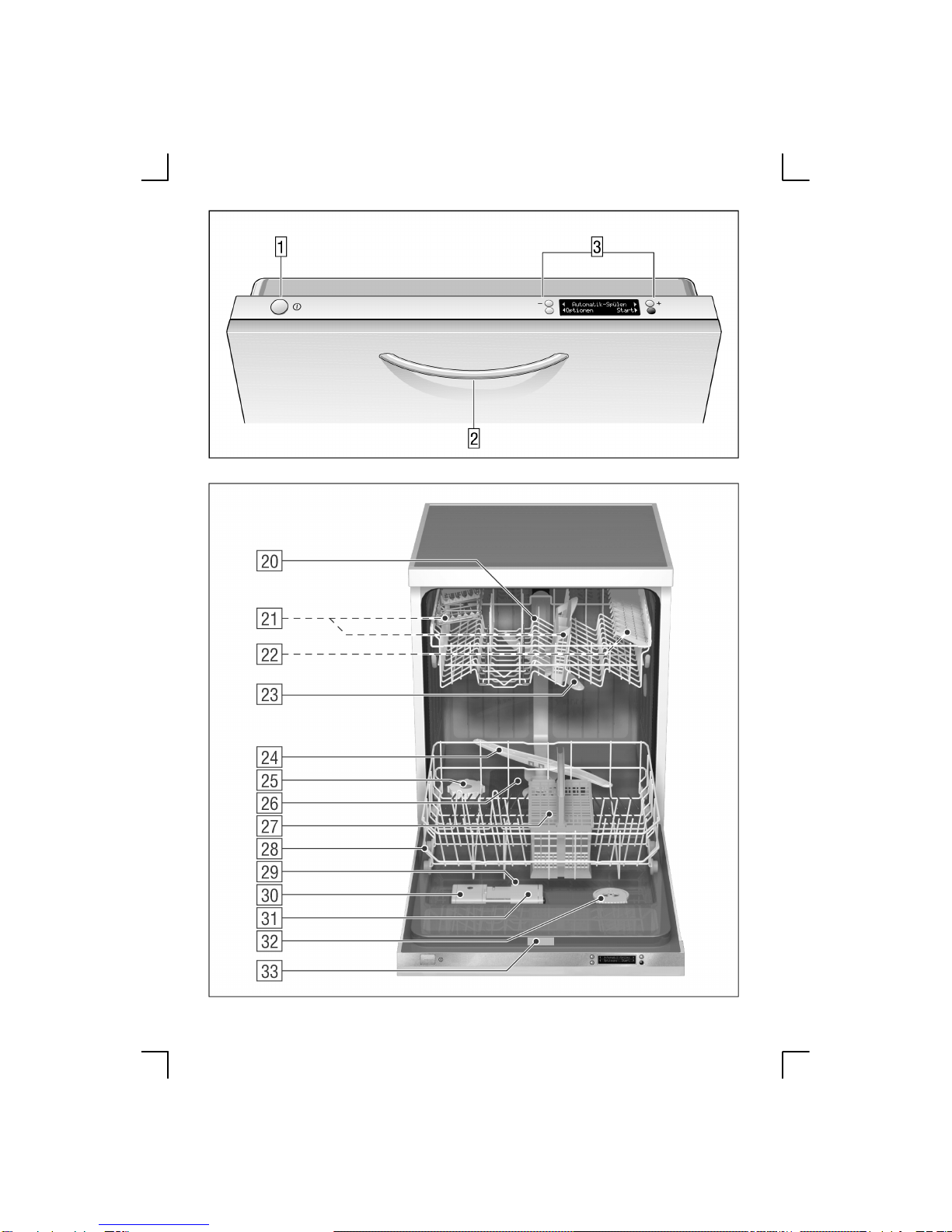

Diagrams of the control panel and the

interior of the appliance can be found

in the envelope at the front.

Individual positions are referred to in

the text.

Control panel

1Main switch

2Door opener

3Display with buttons (see chapter

“Operating principle, display with

buttons”)

Appliance interior

20 Upper utensils basket

21 Additional cutlery basket * for the

top basket

22 Additional cup rack *

23 Upper spray arm

24 Lower spray arm

25 Dispenser for salt

26 Filters

27 Cutlery basket

28 Lower utensils basket

29 Lock

30 Dispenser for rinse aid with refill

display

31 Detergent dispenser

32 Optical limescale sensor

33 Rating plate

* some models

Operating principle, display

with buttons

Auto Wash

Options Start

The display indicates in clear text the

programmes, options and settings which

are to be selected as well as the

executable operations.

The illuminated arrows identify the buttons

which you can press.

If a button is pressed which is not

indicated by an arrow, a buzzer is emitted.

You can select programmes and settings

by pressing the and buttons.

You can execute operations which are

displayed in clear text next to the buttons

by pressing the and buttons, i.e.

Press the button: Select options,

Press the button: Start the selected

programme or acknowledge the

selected setting.

Before using your appliance

for the first time

Before you can use your appliance for the

first time, you must select the language.

When the appliance has been switched

on, the following display is output:

DE EN FR NL IT EL

Deutsch Ok

“Deutsch” is displayed and the

language code DE flashes. If you would

like to select another language, depress

repeatedly or until the code of

the desired language flashes.

Acknowledge the selected language

with “ok” .

All subsequent clear text displays will now

be displayed in the selected language.

Incorrect language set

Return to language selection:

1. Switch off the appliance.

2. Switch on the appliance, holding

down the main switch until the display

is lit.

3. Select the language and acknowledge.

Providing operating materials

To operate the dishwasher you will require

salt (only for appropriate water

hardness, see chapter “Adjusting

the softening system”),

rinse aid,

detergent.

Only use products which are suitable

for the dishwasher.

Before using the appliance for the first time

and after selecting the language, fill with

salt (if required) and rinse aid and adjust

the softening system. Proceed as

described in the chapters “Filling with salt”,

“Filling with rinse aid” and “Adjusting the

softening system”.

Filling with salt

Note

If the degree of hardness of your

tap water corresponds with value

on the appliance (see chapter

“Adjusting the softening

system”), it is not necessary to fill

the dispenser with salt, as salt is

not used during operation of the

dishwasher. Salt is required for

values to .

During the washing process the salt is

automatically washed into the softener

and dissolves the calcification.

The calcareous solution is pumped out of

the dishwasher. The softening system is

then reset to standby.

This regeneration sequence does not

function until the salt has dissolved in the

water.

When the appliance is switched on,

low salt is indicated by “Refill salt”. (This

display is no longer indicated as soon as

you have set the value for the softening

system to ).

Open the screw cap on the dispenser

25 .

Before switching on the appliance for

the first time, pour approx. 1 litre of

water into the salt dispenser.

Use the enclosed salt filler.

Refill with salt (do not use edible salt)

until the salt dispenser is full (max. 1.5 kg).

When the salt dispenser is being refilled,

water is displaced and drains away.

Therefore always refill the salt dispenser

immediately before switching on the

dishwasher (to prevent corrosion). As a

result, the overflowing salt solution will be

immediately diluted and rinsed out. Then

remove salt residue from the filler area and

screw on the dispenser cover, ensuring

that it is not fitted askew.

As soon as the salt concentration is

adequately high, the “Refill salt” display

goes out.

If you do not want to wait for the display

to go out before washing, acknowledge

that salt has been added by pressing the

“Acknowledge” button .

If you do not want to add any salt at the

moment, you can skip the “Refill salt”

display by pressing the “Acknowledge”

button .

Do not pour detergent into the

container for special salt. This

would destroy the water

softener.

Setting up the water

softener

In order to provide satisfactory rinsing

results, the dishwasher requires soft water,

i.e., containing little or no lime, otherwise

water stains will be left behind on the

dishes and interior containers.

If the tap water exceeds a certain level of

hardness, it must be softened, i.e.,

decalcified, so that it can be used in the

dishwasher.

This is achieved by adding a special salt

to the water softener inside the

dishwasher.

The water softener, that is the required

amount of salt, is set up according to how

hard the tap water is.

The limescale absorption capacity of the

water softening system is limited. When

the water softening system is exhausted, it

must be regenerated, i.e. refreshed with

salt.

The optical limescale sensor determines

the degree of hardness and controls the

water softening system when “Hardness

auto” is selected.

The “Hardness auto” factory setting does

not require any adjustments when the

appliance is switched on for the first time

or if the water hardness varies.

If you would nevertheless like to set

the water softening system manually,

proceed as follows:

Find out the degree of hardness of your

tap water. Your water supply company

or customer service will assist you.

Switch on the appliance with the main

switch 1. The main menu is

displayed (if switching on the appliance

for the first time, only when a language

has been selected and dispensers

have been filled with salt (if required)

and rinse aid).

Auto Wash

Options Start

Press the “Options” button until the

“Hardness auto” setting is displayed.

Using the buttons or , select the

set value between 0 and 7 which

corresponds with the degree of

hardness of your tap water in the

following table. “Hardness auto”

has been preset at the factory.

Press the button. The set value has

been saved and you are returned to the

Start menu.

If the set value is “0”, the water softening

system is switched off. A low salt level will

not be displayed.

Filling with rinse aid

Rinse aid is used in washing mode to

ensure that glasses are sparkling and

utensils are stain-free.

When the appliance is switched on, low

rinse aid level is indicated by ”Refill rinse

aid”. You can add rinse aid either when the

appliance door is completely open or – for

a more comfortable posture – when the

door is half open.

Open the rinse aid dispenser 30 by

pressing the button on the dispenser

cover and open the cover. When the

door is half open, also pull out the

hinged filling aid until it locks into

position.

Add rinse aid slowly and do not overfill.

Adequate rinse aid has been added

when the door is completely open and

the level indicator on the dispenser is

dark and the “Refill rinse aid” display is

no longer lit.

Close the cover on the dispenser until

it ”clicks” into position. If required, the

filling aid is automatically re-inserted.

If you would like to add rinse aid at a later

time, you can skip the “Refill rinse aid”

display by pressing the “Acknowledge”

button .

If required, you can change the amount of

rinse aid which is dosed during operation.

Select the Rinse aid dosage option on the

appliance as described in the chapter

“Adjusting the appliance” under “Selecting

options/standard settings”.

rinse–aid control

Fill when door is fully open.

Filling when the door is half open.

Note

Use only rinse aid for domestic

dishwashers. Spilt rinse aid

may result in excessive foam

formation in the next rinse

cycle. Therefore, remove any

spilt rinse aid with a cloth.

Otros manuales para IGV 699

Tabla de contenidos

Otros manuales de Lavavajillas de Küppersbusch

Küppersbusch

Küppersbusch IGV 449.3 Manual de usuario

Küppersbusch

Küppersbusch IGV659.2 Manual de usuario

Küppersbusch

Küppersbusch IGV 459 Series Manual de usuario

Küppersbusch

Küppersbusch IGVS 659 Manual de usuario

Küppersbusch

Küppersbusch IGV 457.2 Manual de usuario

Küppersbusch

Küppersbusch IGV 668.0 Manual de usuario

Küppersbusch

Küppersbusch IGV 655.1 Manual de usuario

Küppersbusch

Küppersbusch IGV 658.0 Manual de usuario

Küppersbusch

Küppersbusch IGV6507.1 Manual de usuario

Küppersbusch

Küppersbusch IGV 459 Series Manual de usuario

Küppersbusch

Küppersbusch IGV 6507.0 Manual de usuario

Küppersbusch

Küppersbusch Dishwasher Manual de usuario

Küppersbusch

Küppersbusch IGV 657.1 Manual de usuario

Küppersbusch

Küppersbusch IGV 458.3 Guía de configuración rápida

Küppersbusch

Küppersbusch IGV 643.4 Manual de usuario

Küppersbusch

Küppersbusch IGV 689.1 Guía de configuración rápida

Küppersbusch

Küppersbusch IGV 645.2 Manual de usuario

Küppersbusch

Küppersbusch IGV 699 Manual de usuario

Küppersbusch

Küppersbusch IGV4408 Manual de usuario

Küppersbusch

Küppersbusch Dishwasher Manual de usuario

Küppersbusch

Küppersbusch IGV 458.4 Manual de usuario

Küppersbusch

Küppersbusch IGV6509 Manual de usuario

Küppersbusch

Küppersbusch IGVS6506 Manual de usuario

Küppersbusch

Küppersbusch IGV6504.0 Manual de usuario

Manuales populares de Lavavajillas de otras marcas

Electrolux

Electrolux ESI5211LOX Manual de usuario

KitchenAid

KitchenAid KUDB230B Manual de usuario

Brandt

Brandt BDJ424DB Manual de usuario

Asko

Asko DSD767UXXL.AU Manual de usuario

Beko

Beko DFN26210W Manual de usuario

NEFF

NEFF S153ITX00E Hoja de especificaciones

Midea

Midea SV 4.45 wi Manual de usuario

LG LDF7932 Manual de usuario

Gorenje

Gorenje GV63214 Manual de usuario

Hotpoint

Hotpoint HDA1100ZWH Manual de servicio

Blomberg

Blomberg LDFN2240W Manual de usuario

AEG

AEG FFB83836PM Manual de usuario

Cylinda

Cylinda DM3220RFD Manual de usuario

Atag

Atag DW8214MB Manual de usuario

GE GLD8000 Series Manual de usuario

Siemens

Siemens SN23HI02KE Hoja de especificaciones

Omega

Omega ODW717X Manual de usuario

BORETTI

BORETTI BVW-683 Manual de usuario
