Küppersbusch IGV 449.3 Manual de usuario

5600 047 551 (8205)

IGV 449.3

Operating instructions

Dish washer

en Index

Safety instructions 4. . . . . . . . .

Getting to know your appliance 5

Water softener 6. . . . . . . . . . . .

Filling the special salt container 7

Filling the rinse-aid container 8

Unsuitable dishes 9. . . . . . . . .

Arranging crockery, glasses,

etc. in the dishwasher 10. . . . . .

Detergents 12. . . . . . . . . . . . . . .

Programme overview 14. . . . . .

Washing dishes 15. . . . . . . . . . .

Maintenance and care 16. . . . . .

Fault finding 18. . . . . . . . . . . . . .

Customer Service 20. . . . . . . . .

Importantinformation 21. . . . . . .

Installation 22. . . . . . . . . . . . . . . .

Safety instructions

Delivery

Immediately check the packaging and

dishwasher for any damage which may

have been caused in transit. Do not use

a damaged appliance, but consult your

supplier.

Please dispose of packaging material

properly.

The corrugated cardboard consists

mainly of waste paper.

The polystyrene moulded parts have

been foamed without any CFCs.

The polyethylene film (PE) consists

partly of secondary raw material.

The wooden frames (if fitted) are made

of residual wood and are untreated.

The hoops (if fitted) consist of

polypropylene (PP).

Installation

Install and connect the appliance

according to the installation and

assembly instructions.

The dishwasher must NOT be

connected to the power supply during

installation.

Ensure that the protective conductor

system of the domestic electricity

supply has been installed correctly.

Electrical connection conditions must

correspond with the specifications on

the rating plate of the dishwasher.

Built-under and built-in appliances

should always be installed under a

continuous work surface which is

attached to the adjacent cupboards, in

order to ensure that the appliance is

entirely stable.

After the appliance has been installed,

the mains plug should still be easily

accessible.

Not on all models:

The plastic housing on the water input

contains an electrically operated valve.

The connecting wires are inside the

inlet hose. Do not cut through this hose

and do not immerse the plastic housing

in water.

Warning

For safety reasons, if the appliance is not

fitted in a recess, thereby making a side

wall accessible, the door hinge area

should be covered at the side.

(Risk of injury)

Covers are available as optional

accessories from customer services or

specialist stores.

During normal use

Warning

Knives and other utensils with sharp points

must be loaded in the basket with their

points down or in a horizontal position.

Use the dishwasher solely in a

domestic environment and for its

designated purpose: washing

household tableware and other utensils.

Do not place any heavy objects or

stand on the door when it is open. The

appliance could tip forward.

The water inside the dishwasher is not

suitable for drinking.

Do not use solvents of any kind inside

your dishwasher. They could cause an

explosion.

Open the door very carefully if the

dishwasher is operating. There is a risk

of water squirting out.

If your family includes children

Do not permit small children to play with

or operate the dishwasher.

Keep children away from detergents

and rinse-aids.

Keep small children away from the

open door of the dishwasher. There

could still be some detergent left inside.

If a fault occurs

Repairs or other work on the

dishwasher should only be carried out

by a qualified specialist.

The dishwasher must be disconnected

from the electricity supply before any

repairs or other work are started. Pull

the mains plug out of the wall socket or

switch off at the fuse box. Grasp the

plug to remove it from the socket; do

not tug on the cable. Turn the water off

at the tap.

When disposing of old

appliances

Appliances that have reached the end

of their service life should be rendered

inoperable in order to exclude the

possibility of subsequent accidents. Pull

the mains plug out of the wall socket,

cut through the connecting cable and

disable the door lock.

Take the appliance to a designated

waste disposal centre.

Warning

Children could get locked in the appliance

(risk of suffocation) or get stuck in other

positions.

Therefore: Remove the mains plug, cut the

mains wire and set aside. Damage the

door lock so that the door can no longer

be closed.

Getting to know your

appliance

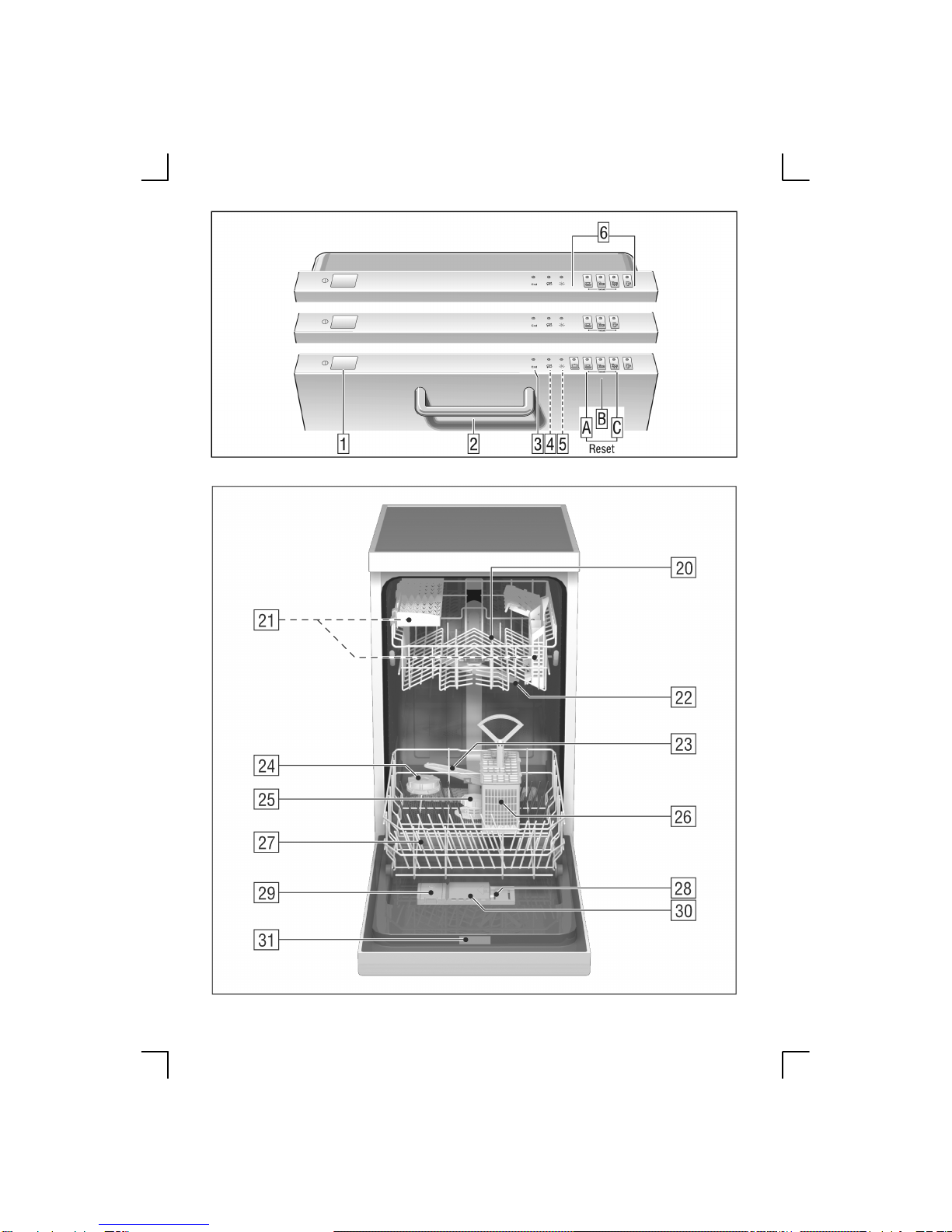

Diagrams of the control panel and the

interior of the appliance can be found

in the envelope at the front.

Individual positions are referred to in

the text.

Control panel

1Main switch

2Door handle

3PROGRAMME END indicator

4LOW SALT indicator *

5LOW RINSE-AID indicator *

6Programme buttons

* on applicable models

Appliance interior

20 Upper basket with 2-tiered cup rack

21 Additional cutlery basket for the top

basket *

22 Upper spray arm

23 Lower spray arm

24 Container for special salt with level

indicator *

25 Filters

26 Cutlery basket

27 Lower basket

28 Locking mechanism

29 Container for rinse-aid, with level

indicator

30 Detergent compartment

31 Nameplate

* not on all models

You will need to purchase the

following before using the

dishwasher for the first time:

– special salt for use in dishwashers

– detergent

– rinse-aid

Only use products, which are suitable for

dishwashers.

Water softener

In order to rinse dishes and glasses

satisfactorily, the dishwasher requires soft

water, i.e. containing little or no lime,

otherwise water stains will be left behind

on crockery and glasses, etc.

If the tap water exceeds a certain level of

hardness, it must be softened, i.e.

decalcified, so that it can be used in the

dishwasher.

This is achieved by adding a special salt

to the water softener inside the

dishwasher.

The water softener, that is the required

amount of salt, is set up according to how

hard the tap water is.

Setting up the water softener

Determine the level of hardness of your

tap water. Your local water company or

service agent can help you with this.

Identify setting from the following water

hardness table.

Hold down the programme button B

and switch on the main switch 1,

then release the buttons.

The display 4flashes and buttons

Aand Billuminate.

(Hardness value 2 was set at the

factory).

To change the setting: Press

programme button B.

Each depression of the button

increases the set value by one (0–3).

If buttons A, Band Cilluminate,

the maximum hardness value has been

reached.

If the hardness value is now increased

again, the illuminated buttons go out

and the hardness value is set to 0 (no

buttonsilluminated).

Switch off the mains switch 1.

The set value is stored in the appliance.

Approx. 4 litres of water are required for

regenerating the water softening system.

The overall water consumption per load

can therefore be increased by between 0

and a maximum of 4 litres according to the

water hardness setting.

Water hardness table

_dh _Clarke mmol/

_fH ABC

0–6

17–21

7–16

22–35

Reset

0–11

30–37

12–29

38–60

0–8

21–26

9–20

27–44

0–1,1

3,0–3,7

1,2–2,9

3,8–6,2

Filling the special salt

container

How the salt works

While washing is taking place, salt is

automatically rinsed out of the salt

container into the water softener where it

dissolves the lime in the water.

The dissolved lime is pumped out of the

dishwasher. The water softening system is

then ready for the next load.

This process of regeneration can only

function when the salt is dissolved in

water.

Unscrew the lid on the salt container 24 .

Before you use the dishwasher for the first

time, pour approx. 1 litre of water into the

salt container.

Use the enclosed salt filler.

Refill with salt (do not use edible salt)

until the salt dispenser is full (max. 1.5 kg).

When the salt dispenser is being refilled,

water is displaced and drains away.

Therefore always refill the salt dispenser

immediately before switching on the

dishwasher (to prevent corrosion). As a

result, the overflowing salt solution will be

immediately diluted and rinsed out. Then

remove salt residue from the filler area and

screw on the dispenser cover, ensuring

that it is not fitted askew.

*on applicable models

The LOW SALT indicator 4on the front

panel will light up initially but will extinguish

again after a short period when the salt

solution has become sufficiently

concentrated.

If the switch is set to ”0”, it is

not necessary to add any salt,

as none is consumed while the

dishwasher is operating. If the

switch is set between ”1” and

”4”, then salt must be added.

Do not pour detergent into the

container for special salt. This

would destroy the water

softener.

LOW SALT indicator

Salt should be added as soon as the LOW

SALT indicator 4in the fascia panel

illuminates. For models that do not have

an indicator in the fascia panel, salt should

be added as soon as the coloured dot in

the lid on the salt container 24 is no

longer visible.

Filling the rinse-aid

container

The purpose of a rinse-aid is to prevent

the formation of water marks on tableware

and utensils, and to ensure that glasses

are clean and sparkling. The rinse-aid is

consumed during the washing process.

Fold back the lid on the rinse-aid

container 29 .

To open the lid, press the mark on

the rinse-aid lid and simultaneously lift

the lid off the lug .

Pour the rinse-aid into the filler hole

until the level indicator turns dark.

Close the lid, ensuring that you hear it

snap closed.

Note

Use only rinse aid for domestic

dishwashers. Spilt rinse aid

may result in excessive foam

formation in the next rinse

cycle. Therefore, remove any

spilt rinse aid with a cloth.

Adjusting the amount of

rinse-aid

The amount of rinse-aid added to the

water can be varied by adjusting the

stepless control. The rinse-aid control has

been set to ”4” in the factory.

Do not alter the setting of the rinse-aid

control unless streaks (turn knob towards

”–”) or water marks (turn knob towards ”+”)

are left on the dishes.

rinse–aid control

LOW RINSE–AID indicator

As long as the LOW RINSE-AID indicator

on the front panel 5or on the

dispenser 29 is dark, there is sufficient

rinse-aid in the dishwasher.

LOW RINSE-AID indicator

Unsuitable dishes

You should not clean the

following items in your

dishwasher:

Cutlery and dishes made of wood. They

will leach out and become unsightly; the

utilised adhesives are also not suitable

for the dishwasher temperatures.

Delicate décor glasses, craft dishes and

vases, special antique or irreplaceable

dishes. These décor items are not

dishwasher-safe.

Plastic parts, copper and tin dishes

sensitive to hot water are not suitable

either. Overglazed patterns, aluminium

and silver parts tend to become

discoloured and fade during the rinsing

cycle. Even some types of glass (e.g.

crystal glass objects) may become cloudy

after many rinse cycles. Completely

absorbent materials, such as sponges and

cloths must not be cleaned in the

dishwasher either.

Recommendation:

In future buy only dishes which are

identified as dishwasher-safe.

Note

Dishes which are soiled with

ash, wax, lubricating grease or

ink must not be cleaned in the

dishwasher.

Damage to glassware and other

dishes

Possible causes:

type of glass or manufacturing process

chemical composition of detergent

water temperature and duration of

dishwasher programme.

Suggested remedy:

Use glassware or porcelain dishes that

have been marked ’dishwasher–proof’

by the manufacturer.

Use a mild detergent that is described

as ’kind to dishes’. If necessary, seek

further information from detergent

manufacturers.

Select a programme with as low a

temperature and as short a duration as

possible.

To prevent damage, take glass and

cutlery out of the dishwasher as soon

as possible after the programme has

ended.

Tabla de contenidos

Otros manuales de Lavavajillas de Küppersbusch

Küppersbusch

Küppersbusch IGV 457.2 Manual de usuario

Küppersbusch

Küppersbusch IGV659.2 Manual de usuario

Küppersbusch

Küppersbusch IGV 456.1 Manual de usuario

Küppersbusch

Küppersbusch IGV 699 Manual de usuario

Küppersbusch

Küppersbusch IGV 445.0 Manual de usuario

Küppersbusch

Küppersbusch IGV 655.1 Manual de usuario

Küppersbusch

Küppersbusch IGV 689.1 Guía de configuración rápida

Küppersbusch

Küppersbusch IGV 699 Manual de usuario

Küppersbusch

Küppersbusch IGV 645.2 Manual de usuario

Küppersbusch

Küppersbusch IGV 657.1 Manual de usuario

Küppersbusch

Küppersbusch IGV4408 Manual de usuario

Küppersbusch

Küppersbusch IGV6507.1 Manual de usuario

Küppersbusch

Küppersbusch Dishwasher Manual de usuario

Küppersbusch

Küppersbusch IGV 458.3 Guía de configuración rápida

Küppersbusch

Küppersbusch Dishwasher Manual de usuario

Küppersbusch

Küppersbusch IGVS 659 Manual de usuario

Küppersbusch

Küppersbusch IGV 643.4 Manual de usuario

Küppersbusch

Küppersbusch IGV 649 Manual de usuario

Küppersbusch

Küppersbusch IGV6504.0 Manual de usuario

Küppersbusch

Küppersbusch IGV 6507.0 Manual de usuario

Küppersbusch

Küppersbusch IGV 668.0 Manual de usuario

Küppersbusch

Küppersbusch IGV 656.1 Manual de usuario

Küppersbusch

Küppersbusch IGV6509 Manual de usuario

Küppersbusch

Küppersbusch IGV 458.4 Manual de usuario

Manuales populares de Lavavajillas de otras marcas

Electrolux

Electrolux ESI5211LOX Manual de usuario

KitchenAid

KitchenAid KUDB230B Manual de usuario

Brandt

Brandt BDJ424DB Manual de usuario

Asko

Asko DSD767UXXL.AU Manual de usuario

Beko

Beko DFN26210W Manual de usuario

NEFF

NEFF S153ITX00E Hoja de especificaciones

Midea

Midea SV 4.45 wi Manual de usuario

LG LDF7932 Manual de usuario

Gorenje

Gorenje GV63214 Manual de usuario

Hotpoint

Hotpoint HDA1100ZWH Manual de servicio

Blomberg

Blomberg LDFN2240W Manual de usuario

AEG

AEG FFB83836PM Manual de usuario

Cylinda

Cylinda DM3220RFD Manual de usuario

Atag

Atag DW8214MB Manual de usuario

GE GLD8000 Series Manual de usuario

Siemens

Siemens SN23HI02KE Hoja de especificaciones

Omega

Omega ODW717X Manual de usuario

BORETTI

BORETTI BVW-683 Manual de usuario
