Juniper MX960 Manual de usuario

MX960 3D Universal Edge Router

Quick Start

January 2015

Part Number: 530-040795

Revision 01

This document describes how to install the Juniper Networks®MX960 3D Universal Edge

Router.

Contents MX960QuickStartDescription.........................................3

Step 1: Prepare the Site for MX960 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Rack-MountingRequirements......................................4

Tools Required to Unpack and Prepare the MX960 Router for

Installation ..................................................5

Step2:InstalltheMountingHardware...................................6

Install the Mounting Hardware in a Four-Post Rack or Cabinet . . . . . . . . . . . . 6

Install the Mounting Hardware in an Open-Frame Rack . . . . . . . . . . . . . . . . . . 7

Step3:InstalltheRouter..............................................9

RemoveComponents.............................................9

InstalltheRouterUsingaLift......................................10

ReinstallComponents............................................12

Step4:ConnecttheGroundingCable...................................13

Step 5: Connect External Devices and Line Card Cables . . . . . . . . . . . . . . . . . . . . . 14

Connect to a Network for Out-of-Band Management . . . . . . . . . . . . . . . . . . . 14

ConnectaManagementConsole...................................14

ConnecttheLineCardCables......................................15

Step6:ConnectPowerCables.........................................16

Connect Power to an AC Router with Normal-Capacity Power Supplies . . . . 16

Connect Power to an AC Router with High-Capacity Power Supplies . . . . . . 16

Connect Power to a DC Router with Normal-Capacity Power Supplies . . . . . 20

Connect Power to a DC Router with High-Capacity Power Supplies . . . . . . . . 21

Step 7: Perform Initial Software Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

EnterConfigurationMode.........................................26

Configure User Accounts and Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

ConfigureSystemAttributes.......................................27

CommittheConfiguration........................................27

SafetyWarnings....................................................29

ComplianceStatementsforNEBS.....................................30

Compliance Statements for EMC Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Canada........................................................31

EuropeanCommunity............................................31

Israel..........................................................31

Japan .........................................................31

UnitedStates...................................................31

Junos Documentation and Release Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

RequestingTechnicalSupport.........................................33

Self-Help Online Tools and Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

OpeningaCasewithJTAC........................................34

RevisionHistory....................................................34

MX960 3D Universal Edge Router Quick Start

MX960 Quick Start Description

This Quick Start contains information you need to install and configure the router quickly.

For complete installation instructions, see the MX960 3D Universal Edge Router Hardware

Guide at http://www.juniper.net/techpubs/.

WARNING: This Quick Start contains a summary of safety warnings in “Safety

Warnings” on page 29. For a complete list of warnings for this router, including

translations, see the MX960 3D Universal Edge Router Hardware Guide at

http://www.juniper.net/techpubs/.

The MX960 3D Universal Edge Router with the standard cable manager is 16 rack units

(U) tall, or 21 U with the extended cable manager. Three routers with the standard cable

manager, or two routers with the extended cable manager, can be stacked in a single

floor-to-ceiling rack, for increased port density per unit of floor space.

The router provides 14 slots that can be populated with up to 12 Dense Port Concentrators

(DPCs) or Modular Port Concentrators (MPCs), six Flexible PIC Concentrators (FPCs),

and two Switch Control Boards (SCBs) in nonredundant fabric configurations.

Several types of DPCs are available. Each DPC includes either two or four Packet

Forwarding Engines. Each Packet Forwarding Engine enables a throughput of 10 Gbps.

Up to two PICs can be installed in each FPC. Fully populated, the MX960 router supports

up to 12 PICs.

Up to two Modular Interface Cards (MICs) can be installed in each MPC. Fully populated,

the MX960 router supports up to 24 MICs.

For a list of the supported DPCs, FPCs, MPCs, MICs, and PICs, see the MX Series Interface

Module Reference.

The router is shipped in a cardboard box strapped securely to a wooden pallet. Plastic

straps secure the top and bottom in place. The router chassis is bolted to this pallet.

Quick Start installation instructions and a cardboard accessory box are also included in

the shipping container.

MX960 Quick Start Description

Step 1: Prepare the Site for MX960 Installation

•Rack-Mounting Requirements on page 4

•Tools Required to Unpack and Prepare the MX960 Router for Installation on page 5

Rack-Mounting Requirements

•You can install the router in a four-post rack or cabinet or an open-frame rack.

•The rack rails must be spaced widely enough to accommodate the router chassis's

external dimensions: 27.75 in. (70.49 cm) high, 23.0 in. (58.42 cm) deep, and

17.37 in. (44.11 cm) wide. The outer edges of the mounting brackets extend the width

to 19 in. (48.3 cm).

•The rack must be strong enough to support the weight of the fully configured router,

up to 350 lb (158.76 kg). If you stack three fully configured routers in one rack, it must

be capable of supporting about 1,050 lb (476.3 kg).

•For service personnel to remove and install hardware components, there must be

adequate space at the front and back of the router. Allow at least 30 in. (76.2 cm) in

front of the router and 24 in. (61 cm) behind the router.

•The rack or cabinet must have an adequate supply of cooling air.

•Ensure that the cabinet allows the chassis hot exhaust air to exit from the cabinet

without recirculating into the router.

•The router must be installed into a rack that is secured to the building structure.

•Mount the router at the bottom of the rack if it is the only unit in the rack.

•When mounting the router in a partially filled rack, load the rack from the bottom to

the top with the heaviest component at the bottom of the rack.

MX960 3D Universal Edge Router Quick Start

Figure 1: MX960 Rack Clearance and Router Dimensions

Tools Required to Unpack and Prepare the MX960 Router for Installation

To unpack the router and prepare for installation, you need the following tools:

•A mechanical lift—recommended

•Phillips (+) screwdrivers, numbers 1 and 2

•2.5 mm flat-blade (–) screwdriver

•7/16-in. (11 mm) torque-controlled driver or socket wrench

•1/2-in. or 13-mm open-end or socket wrench to remove bracket bolts from the shipping

pallet

•Electrostatic discharge wrist strap

•Antistatic mat

Proceed to “Step 2: Install the Mounting Hardware” on page 6.

Tools Required to Unpack and Prepare the MX960 Router for Installation

Step 2: Install the Mounting Hardware

•Install the Mounting Hardware in a Four-Post Rack or Cabinet on page 6

•Install the Mounting Hardware in an Open-Frame Rack on page 7

Install the Mounting Hardware in a Four-Post Rack or Cabinet

1. On the front rack rails, install cage nuts in the holes specified in the MX960 3D Universal

Edge Router Hardware Guide for the large shelf and the spacer bars.

2. On the front of each front rack rail, partially insert a mounting screw into the hole

containing the lowest cage nut.

3. Install the large shelf on the front rack rails. Rest the bottom slot of each ear on a

mounting screw.

4. Partially insert a mounting screw into the top hole in each ear of the large shelf.

5. Tighten all the screws completely.

6. On the rear rack rails, install cage nuts in the holes specified in the MX960 3D Universal

Edge Router Hardware Guide for the small shelf.

7. On the back of each rear rack rail, partially insert a mounting screw into the hole

containing the lowest cage nut.

8. Install the small shelf on the back rack rails. Rest the bottom slot of each ear on a

mounting screw. The small shelf installs on the back of the rear rails, extending toward

the center of the rack. The bottom of the small shelf should align with the bottom of

the large shelf.

9. Partially insert screws into the open holes in the ears of the small shelf.

10. Tighten all the screws completely.

MX960 3D Universal Edge Router Quick Start

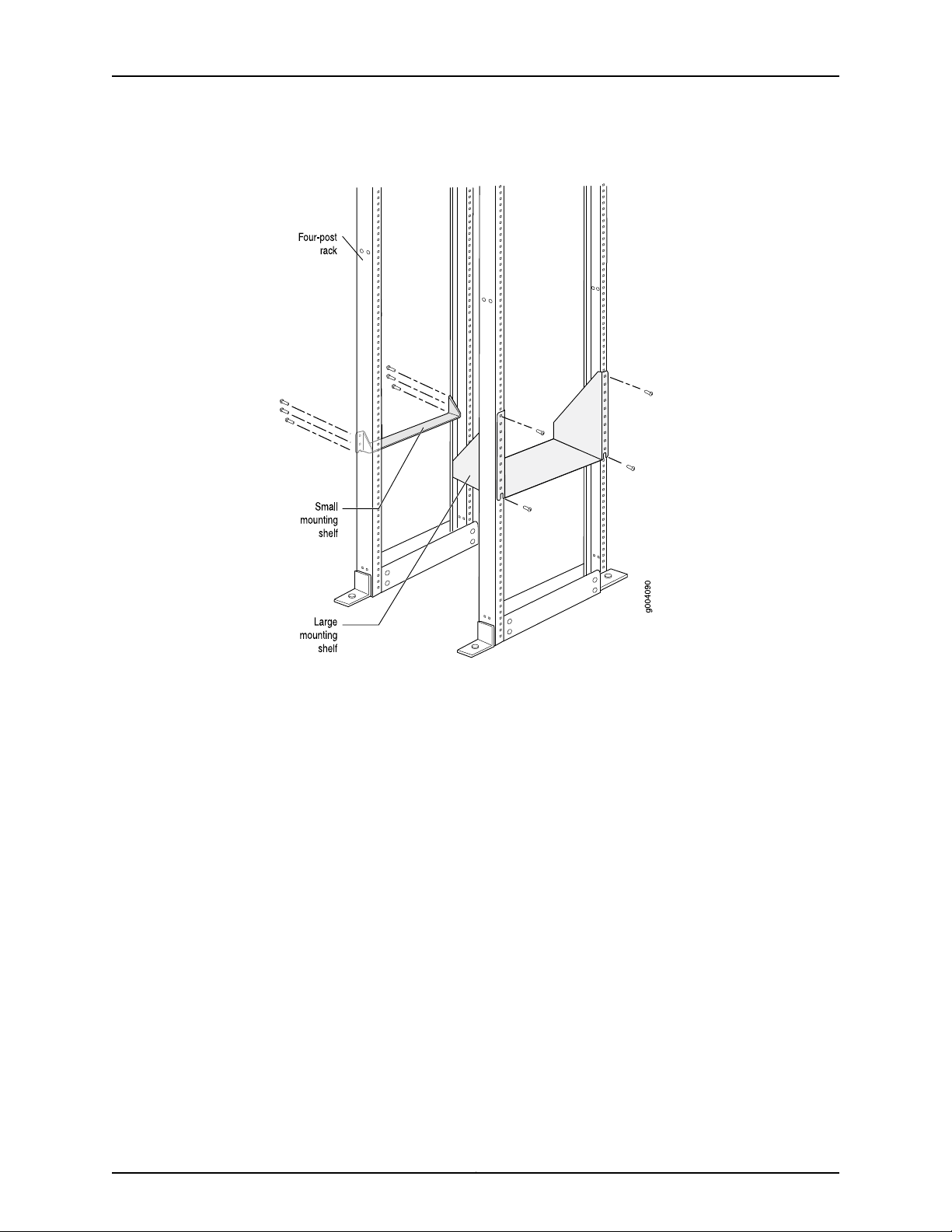

Figure 2: Mount Hardware for a Four-Post Rack or Cabinet

Install the Mounting Hardware in an Open-Frame Rack

1. On the rear of each rack rail, partially insert a mounting screw into the highest hole

specified in the MX960 3D Universal Edge Router Hardware Guide for the large shelf.

2. Install the large shelf on the rack. Hang the shelf over the mounting screws using the

keyhole slots located near the top of the large shelf flanges.

3. Partially insert screws into the open holes in the ears of the large shelf.

4. Tighten all the screws completely.

Install the Mounting Hardware in an Open-Frame Rack

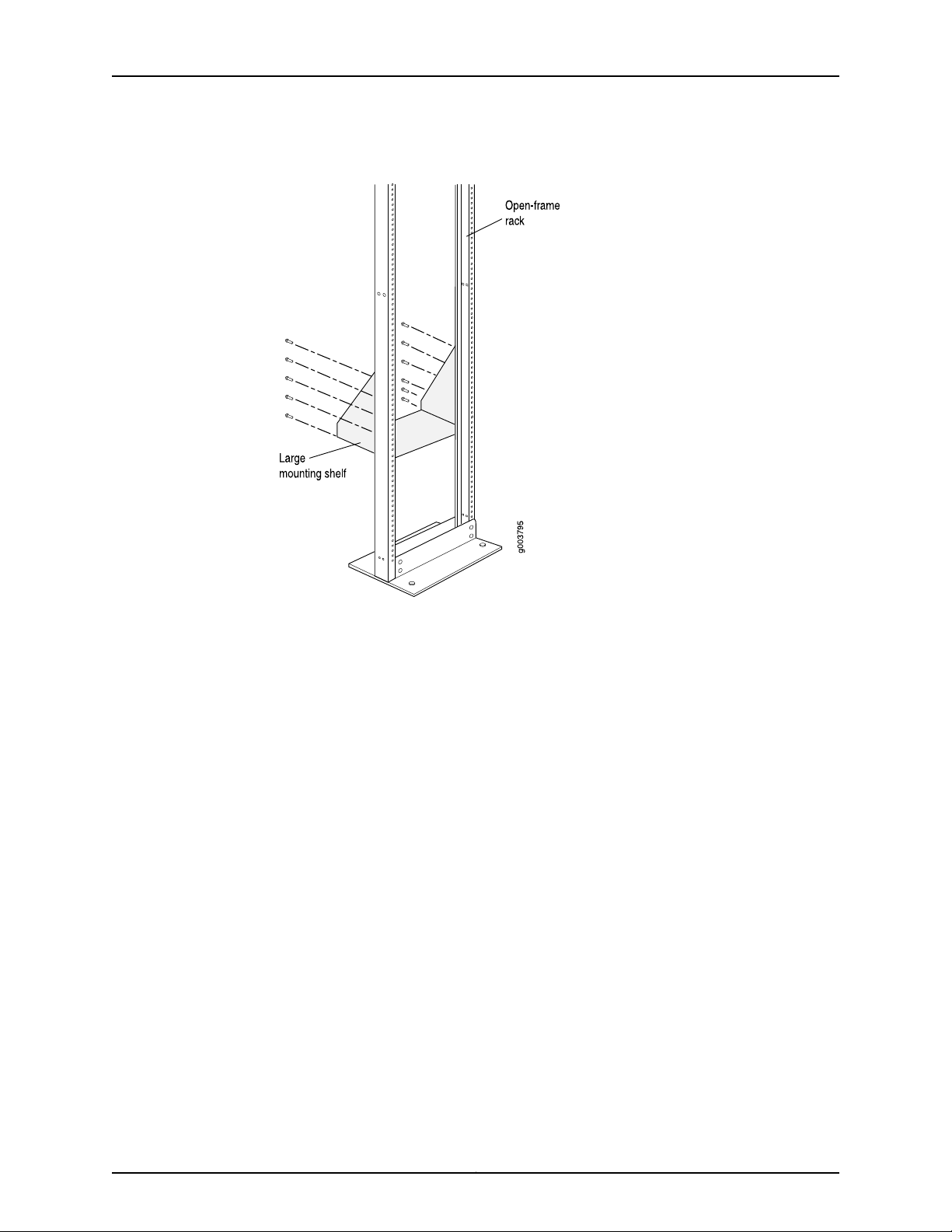

Figure 3: Mount Hardware for an Open-Frame Rack

MX960 3D Universal Edge Router Quick Start

Step 3: Install the Router

•Remove Components on page 9

•Install the Router Using a Lift on page 10

•Reinstall Components on page 12

Remove Components

Figure 4: Components to Remove from the Front of the MX960 Router

g004091

Figure 5: Components to Remove from the Rear of the MX960 Router

Step 3: Install the Router

Before installing the router, you must remove the following components:

•Power supplies

•Switch Control Boards (SCBs)

•Cable management system

•Routing Engines

•Air filter

•Fan trays

•Line cards:

•Dense Port Concentrators (DPCs)

•Flexible PIC Concentrators (FPCs)

•Physical Interface Cards (PICs)

•Modular Port Concentrators (MPCs)

•Modular Interface Cards (MICs)

To remove the components from the router:

1. Slide each component out of the chassis evenly so that it does not become stuck or

damaged.

2. Label each component as you remove it so you can reinstall it in the correct location.

3. Immediately store each removed component in an electrostatic bag.

4. Do not stack removed components. Lay each one on a flat surface.

NOTE: For complete instructions on removing router components, see the

MX960 3D Universal Edge Router Hardware Guide.

Install the Router Using a Lift

Before installing the router, you must remove all components (see “Remove Components”

on page 9). To install the router using a lift:

1. Ensure that the rack is in its permanent location and is secured to the building. Ensure

that the installation site allows adequate clearance for both airflow and maintenance.

For details, see the MX960 3D Universal Edge Router Hardware Guide.

2. Load the router onto the lift, making sure it rests securely on the lift platform (see

Figure 6 on page 11).

MX960 3D Universal Edge Router Quick Start

Otros manuales para MX960

Tabla de contenidos

Otros manuales de Enrutador de red de Juniper

Juniper

Juniper PTX10001-20C Manual de usuario

Juniper

Juniper MX2020 Instrucciones de instalación

Juniper

Juniper EX4500 Series Manual de usuario

Juniper

Juniper JCS 1200 Manual de usuario

Juniper

Juniper ACX1000 Instrucciones de instalación

Juniper

Juniper OCX1100 Instrucciones de instalación

Juniper

Juniper M7i Manual de usuario

Juniper

Juniper ACX1100 Manual de usuario

Juniper

Juniper ACX500 Instrucciones de instalación

Juniper

Juniper MX204 Instrucciones de instalación

Juniper

Juniper T1600 Instrucciones de instalación

Juniper

Juniper TX MATRIX Instrucciones de instalación

Juniper

Juniper MX10008 Instrucciones de instalación

Juniper

Juniper ACX5448-D Instrucciones de instalación

Juniper

Juniper ACX4000 Manual de usuario

Juniper

Juniper ACX Series Manual de usuario

Juniper

Juniper LN2600 Manual de usuario

Juniper

Juniper ACX500 Manual de usuario

Juniper

Juniper J-Series Manual de usuario

Juniper

Juniper TX MATRIX PLUS Manual de usuario

Juniper

Juniper ERX - RELEASE 11.1.X MODULE GUIDE 4-6-2010 Manual de usuario

Juniper

Juniper MX240 Instrucciones de instalación

Juniper

Juniper T Series Instrucciones de instalación

Juniper

Juniper E SERIES BROADBAND SERVICES ROUTERS 11.3.X - E120 AND E320 MODULE GUIDE REV... Manual de usuario

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

Billion

Billion BIPAC 5102 Series Manual de usuario

TP-Link

TP-Link TD-8817 Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

Cisco

Cisco NCS 540 Manual

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

NETGEAR

NETGEAR FS526T - Switch Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

Cisco

Cisco ASR 1000 Series Manual del operador

EnGenius

EnGenius ESR-9710 Manual de usuario

Cisco

Cisco 805 Series Instrucciones de funcionamiento y seguridad
