M320 Multiservice Edge Router

Quick Start

June 2016

Part Number: 530-071202

Revision 1

This document describes how to install the Juniper Networks M320 Multiservice Edge

Router.

Contents M320QuickStartDescription..........................................3

Step 1: Prepare the Site for M320 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

M320Rack-MountingRequirements.................................4

Tools Required to Unpack and Prepare the M320 Router for Installation . . . . 5

Step2:InstalltheMountingHardware...................................6

Install the Four-Post or Cabinet Mounting Hardware . . . . . . . . . . . . . . . . . . . . 6

Install the Mounting Hardware for a Four-Post Rack or Cabinet

(Front-Mount Only) .......................................7

InstallCageNuts,IfNeeded....................................8

Install the Large Mounting Shelf and the Spacer Bars . . . . . . . . . . . . . . . . 8

InstalltheSmallMountingShelf................................8

Install the Mounting Hardware in an Open-Frame Rack . . . . . . . . . . . . . . . . . . 9

InstallCageNuts,IfNeeded....................................10

InstalltheLargeMountingShelf................................10

InstalltheSmallMountingShelf................................11

Remove the Mounting Hardware From the Chassis . . . . . . . . . . . . . . . . . . 11

Step3:InstalltheRouter.............................................12

Install the Router Using a Mechanical Lift . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

InstalltheInstallationHandle..................................12

InstalltheRouterUsingaLift...................................12

Install the Router Without a Mechanical Lift . . . . . . . . . . . . . . . . . . . . . . . . . . 13

RemoveComponents.........................................14

LifttheRouterintotheRack...................................15

Reinstall Components ........................................17

Task4:ConnecttheGroundingCable...................................18

Step 5: Connect External Devices and PIC Cables . . . . . . . . . . . . . . . . . . . . . . . . . 19

ConnectaManagementConsole...................................19

Connect to a Network for Out-of-Band Management . . . . . . . . . . . . . . . . . . 20

ConnectthePICCables..........................................20

Step 6: Install Cable Guards and Cable Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

InstalltheCableGuards..........................................21

InstalltheCableCover...........................................22

Step7:ProvidingPowertotheRouter...................................24

ConnectACPower..............................................24

ConnectDCPower..............................................24

Step 8: Perform Initial Software Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

EnteringConfigurationMode......................................26

Configuring User Accounts and Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

ConfiguringSystemAttributes.....................................27

CommittingtheConfiguration.....................................28

SafetyWarnings ....................................................31

ComplianceStatementsforNEBS.....................................35

Compliance Statements for EMC Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Canada .......................................................35

EuropeanCommunity............................................35

Israel .........................................................35

Japan.........................................................36

United States ..................................................36

Junos OS Documentation and Release Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

RequestingTechnicalSupport........................................36

Self-Help Online Tools and Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

OpeningaCasewithJTAC........................................37

Revision History ....................................................37

M320 Multiservice Edge Router Quick Start

M320 Quick Start Description

This Quick Start contains information you need to install and configure the router quickly.

For complete installation instructions, see the M320 Multiservice Edge Router Hardware

Guide at http://www.juniper.net/techpubs/hardware/.

WARNING: This Quick Start contains a summary of safety warnings in “Safety

Warnings” on page 31. For a complete list of warnings for this router, including

translations, see the M320 Multiservice Edge Router Hardware Guide at

http://www.juniper.net/techpubs/hardware/.

The router is shipped in a wooden crate. A wooden pallet forms the base of the crate.

The router chassis is bolted to this pallet. The shipping crate contains:

•One accessory box (the box to which this Quick Start is taped)

•One Juniper Networks router

•One Quick Start (this document)

M320 Quick Start Description

Step 1: Prepare the Site for M320 Installation

•M320 Rack-Mounting Requirements on page 4

•Tools Required to Unpack and Prepare the M320 Router for Installation on page 5

M320 Rack-Mounting Requirements

•You can install the router in many types of racks or cabinets.

•The rack rails must be spaced widely enough to accommodate the router chassis's

external dimensions: 35.00 in. (88.9 cm) high, 25.64 in. (65.1 cm) deep, and 17.43 in.

(44.3 cm) wide. The mounting brackets extend the width to fit into standard 19 in.

(48.3 cm) racks.

•For service personnel to remove and install hardware components, there must be

adequate space at the front and back of the router. At least 24 in. (61.0 cm) both in

front of and behind the rack or cabinet is required. However, NEBS GR-63 recommends

at least 30 in. in front of the rack or cabinet. See Figure 1 on page 5.

•The rack must be strong enough to support the weight of the fully configured router,

up to about 439 lb (199.6 kg).

•The rack or cabinet must have an adequate supply of cooling air.

•In a closed cabinet, there must be a minimum of 6 in. (15.2 cm) of unobstructed airflow

behind the router, or airflow baffles must be installed to prevent recirculation of hot

air and overheating.

•The router should be mounted at the bottom of the rack if it is the only unit in the rack.

•When mounting the router in a partially filled rack, load the rack from the bottom to

the top with the heaviest component at the bottom of the rack.

M320 Multiservice Edge Router Quick Start

Figure 1: Rack Clearances and Router Dimensions

Tools Required to Unpack and Prepare the M320 Router for Installation

•A mechanical lift – recommended

•1/2-in. or 13-mm open-end or socket wrench to remove bracket bolts from the shipping

pallet

•Phillips screwdriver, number 2

•Electrostatic discharge wrist strap

•Antistatic mat

Tools Required to Unpack and Prepare the M320 Router for Installation

Step 2: Install the Mounting Hardware

•Install the Four-Post or Cabinet Mounting Hardware on page 6

•Install the Mounting Hardware in an Open-Frame Rack on page 9

Install the Four-Post or Cabinet Mounting Hardware

NOTE: To install the adjustable center-mounting hardware for a four-post

rack or cabinet, see the M320 Multiservice Edge Router Hardware Guide.

To install the front-mounting hardware for a four-post rack or cabinet:

•Install the Mounting Hardware for a Four-Post Rack or Cabinet (Front-Mount

Only) on page 7

•Install Cage Nuts, If Needed on page 8

•Install the Large Mounting Shelf and the Spacer Bars on page 8

•Install the Small Mounting Shelf on page 8

M320 Multiservice Edge Router Quick Start

Install the Mounting Hardware for a Four-Post Rack or Cabinet (Front-Mount

Only)

Figure 2: Mount Hardware for a Four-Post Rack or Cabinet

Table 1: Four-Post Rack and Cabinet Mounting Holes

Small ShelfSpacer BarsLarge ShelfDistance Above “U” DivisionHole

x16.8629.51 in. (74.9 cm)51

-x-13.86 U24.26 in. (61.6 cm)42

-x-10.86 U19.01 in. (48.3 cm)33

--x9.86 U17.26 in. (43.8 cm)30

-x-7.86 U13.76 in. (34.9 cm)24

Install the Mounting Hardware for a Four-Post Rack or Cabinet (Front-Mount Only)

Table 1: Four-Post Rack and Cabinet Mounting Holes (continued)

Small ShelfSpacer BarsLarge ShelfDistance Above “U” DivisionHole

-x-4.86 U8.51 in. (21.6 cm)15

-x-1.86 U3.26 in. (8.3 cm)6

x--.86 U1.51 in. (3.8 cm)3

x-x.5 U0.88 in. (2.2 cm)2

x--.14 U0.25 in. (0.6 cm)1

Install Cage Nuts, If Needed

For racks without threaded holes, you must install cage nuts in the mounting holes

specified in Table 1 on page 7:

1. On the front rack rail, install cage nuts for the large shelf and spacer bars.

2. On the back rack rail, install the cage nuts for the small shelf.

Install the Large Mounting Shelf and the Spacer Bars

1. On the front of the front rack rails, partially insert a mounting screw into the lowest

hole specified in Table 1 on page 7 for the large shelf.

2. Install the large shelf on the front of the front rack rails. Rest the bottom slot in each

flange on one of the mounting screws.

3. Partially insert a mounting screw into the top hole in each flange of the large shelf.

4. Tighten all the screws completely.

5. Place one spacer bar over a flange of the large shelf.

6. Partially insert a mounting screw into each of the nonthreaded holes in the recesses

of the spacer bar.

7. Tighten all the screws completely.

8. Repeat Steps 5 through 7 for the other spacer bar.

Install the Small Mounting Shelf

1. On the back of the rear rack rails, partially insert a mounting screw into the lowest

hole specified in Table 1 on page 7 for the small shelf.

2. Install the small shelf on the back of the rear rack rails. Rest the bottom slot on each

flange on one of the mounting screws.

3. Partially insert screws into the open holes in the ears of the small shelf.

4. Tighten all the screws completely.

M320 Multiservice Edge Router Quick Start

Install the Mounting Hardware in an Open-Frame Rack

To install the mounting hardware for an open-frame rack:

•Front-mount: Install the large mounting shelf and remove the adjustable

center-mounting brackets.

•Center-mount: Install the large mounting shelf and small mounting shelf.

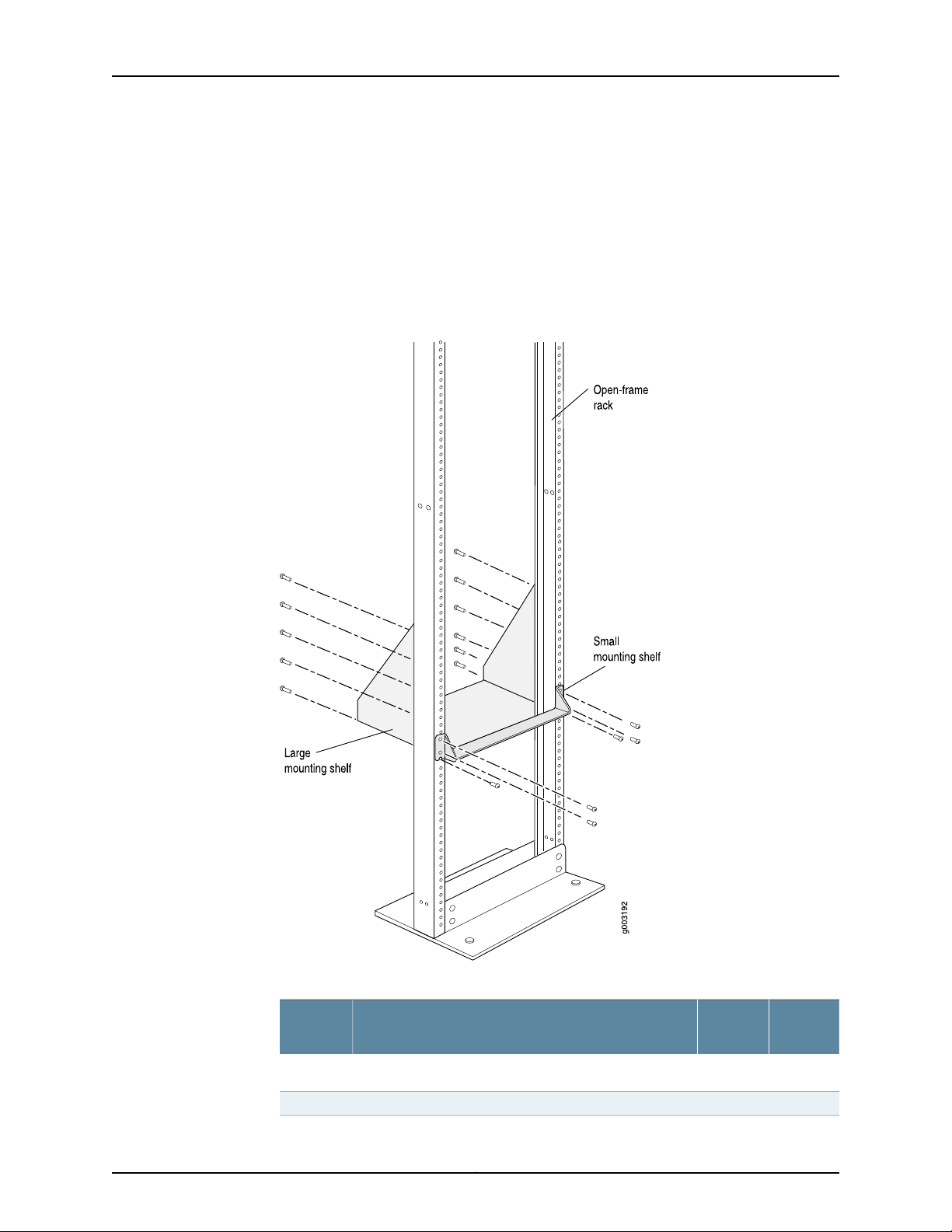

Figure 3: Center-Mount Hardware

Table 2: Open-Frame Rack Mounting Holes

Small

Shelf

Large

ShelfDistance Above “U” DivisionHole

-x9.86 U17.26 in. (43.8 cm)30

-x8.86 U15.51 in. (39.4 cm)27

Install the Mounting Hardware in an Open-Frame Rack

Table 2: Open-Frame Rack Mounting Holes (continued)

Small

Shelf

Large

ShelfDistance Above “U” DivisionHole

-x7.86 U13.76 in. (34.9 cm)24

-x6.86 U12.01 in. (30.5 cm)21

-x5.86 U10.26 in. (26.00 cm)18

--4.86 U8.51 in. (21.6 cm)15

-x3.86 U6.76 in. (17.1 cm)12

-x4.86 U5.01 in. (12.7 cm)9

-x1.86 U3.26 in. (8.3 cm)6

xx0.86 U1.51 in. (3.8 cm)3

xx.5 U0.88 in. (2.2 cm)2

x-.14 U0.25 in. (0.6 cm)1

•Install Cage Nuts, If Needed on page 10

•Install the Large Mounting Shelf on page 10

•Install the Small Mounting Shelf on page 11

•Remove the Mounting Hardware From the Chassis on page 11

Install Cage Nuts, If Needed

For racks without threaded holes, you must install cage nuts in the mounting holes

specified in Table 2 on page 9:

•On the front of each rack rail, install cage nuts for the large shelf and spacer bars.

•On the back of each rack rail, install the cage nuts for the small shelf.

Install the Large Mounting Shelf

1. On the back of each rack rail, partially insert a mounting screw in the lowest hole

specified in Table 2 on page 9 for the large shelf.

2. Install the large shelf on the rack on the back of each rack rail. Rest the bottom slot

in each flange on one of the installed mounting screws.

3. Partially insert screws into the open holes in the ears of the large shelf.

4. Tighten all the screws completely.

M320 Multiservice Edge Router Quick Start

Otros manuales para M320

Tabla de contenidos

Otros manuales de Enrutador de red de Juniper

Juniper

Juniper MX10008 Instrucciones de instalación

Juniper

Juniper PTX3000 Hoja de especificaciones

Juniper

Juniper CTP2000 Series Manual del operador

Juniper

Juniper SSR1200 Instrucciones de instalación

Juniper

Juniper NFX150-S1 Manual de usuario

Juniper

Juniper EX9200 Series Hoja de especificaciones

Juniper

Juniper ACX7348 Instrucciones de instalación

Juniper

Juniper E-Series Instrucciones de instalación

Juniper

Juniper QFX5100-48SH Manual de usuario

Juniper

Juniper PTX5000 Manual de usuario

Juniper

Juniper M40 Guía del usuario

Juniper

Juniper MX5 Instrucciones de instalación

Juniper

Juniper ACX4000 Manual de usuario

Juniper

Juniper T Series Manual de usuario

Juniper

Juniper SRX240 Series Instrucciones de instalación

Juniper

Juniper ERX-1410 Manual de usuario

Juniper

Juniper MX2020 Instrucciones de instalación

Juniper

Juniper M10i Manual de usuario

Juniper

Juniper ACX1000 Instrucciones de instalación

Juniper

Juniper T640 Instrucciones de instalación

Juniper

Juniper EX9200 Series Hoja de especificaciones

Juniper

Juniper ACX2000 Manual de usuario

Juniper

Juniper Internet Router M160 Instrucciones de instalación

Juniper

Juniper EX2500 Manual de usuario

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

Billion

Billion BIPAC 5102 Series Manual de usuario

TP-Link

TP-Link TD-8817 Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

Cisco

Cisco NCS 540 Manual

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

NETGEAR

NETGEAR FS526T - Switch Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

Cisco

Cisco ASR 1000 Series Manual del operador

EnGenius

EnGenius ESR-9710 Manual de usuario

Cisco

Cisco 805 Series Instrucciones de funcionamiento y seguridad
