Juniper SRX550 Manual de usuario

Quick Start Guide

SRX550 High Memory Services Gateway

IN THIS GUIDE

SRX550 High Memory Services Gateway Overview | 1

SRX550 High Memory Front Panel and Rear Panel | 2

Factory-Default Settings | 3

Install the Device in a Rack | 5

Connect the Grounding Cable | 6

Power On the Device | 8

Configure Root Authentication | 10

Plug and Play | 11

Configure Using J-Web | 12

Next Steps | 13

Reference | 14

SRX550 High Memory Services Gateway Overview

The SRX550 High Memory Services Gateway is a large branch office gateway that combines security, routing, switching,

and WAN interfaces with next-generation firewall and advanced threat mitigation capabilities for cost-effective, secure

connectivity across distributed enterprise locations. The services gateway simplifies network complexity, protects and

prioritizes network resources, and improves user and application experience.

The SRX550 High Memory Services Gateway comes with 4 GB of DRAM memory and 8 GB of flash memory.

Package Contents

The SRX550 High Memory Services Gateway is shipped with the following parts:

•RJ-45 cable with DB-9 adapter

•AC or DC power supply

•Power cable (for AC power supply only)

•USB cable

•Mounting brackets and screws

•Documentation Roadmap and Product Warranty

•End User License Agreement

addition or change to the installation base or if the installation base is moved. Juniper Networks will not be held accountable

for not meeting the hardware replacement service-level agreement for products that do not have registered serial numbers

or accurate installation base data.

Update your installation base at https://www.juniper.net/customers/csc/management/updateinstallbase.jsp.

SRX550 High Memory Front Panel and Rear Panel

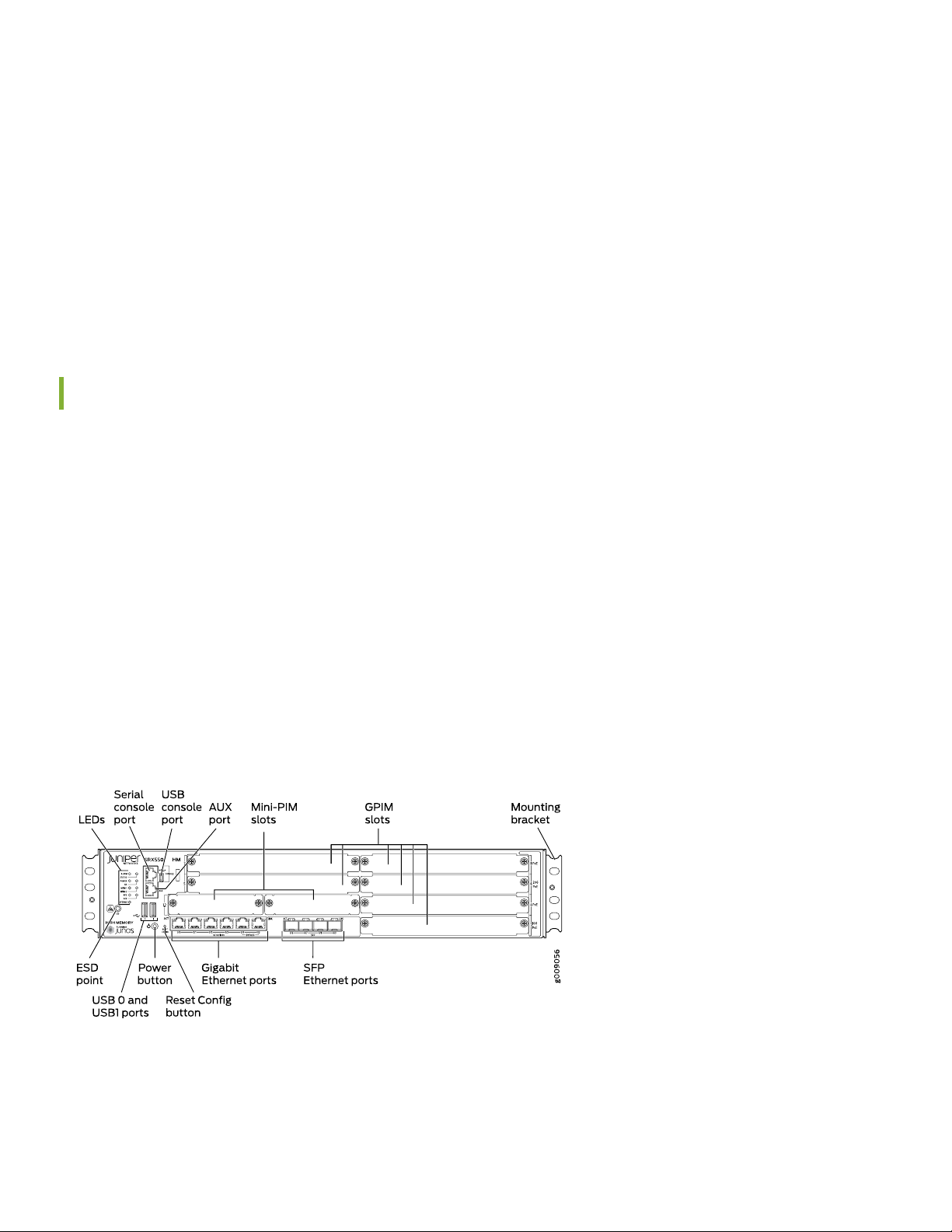

Figure 1: Front Panel Components

Figure 2: Rear Panel Components

g007818

Power supply

slot 1

Power supply

slot 0 ACE slot

Grounding point

Air filter cover

ESD pointStorage slot

NOTE: Check the parts in the shipment against the items on the packing list. If anything is missing or damaged,

contact your Juniper Networks customer service representative.

Specifications

SRX550 HMSpecification

3.5 in. x 17.5 in. x 18.2 in.

(8.89 cm x 44.45 cm x 46.23 cm)

Dimensions (D x W x H)

21.96 lb (9.96 kg)Chassis weight

85 WAverage power consumption

238 BTU/hrAverage heat dissipation

5% to 90%, noncondensingRelative humidity

Factory-Default Settings

The SRX550 High Memory device is shipped with the following factory-default settings:

Table 1: Security Policies

Policy ActionDestination ZoneSource Zone

permittrusttrust

permituntrusttrust

Table 2: NAT Rules

Policy ActionDestination ZoneSource Zone

Source NAT to untrust zone interfaceuntrusttrust

Table 3: Ethernet Interfaces

IP AddressDHCP StateSecurity ZoneInterfacePort Label

UnassignedClientuntrustge-0/0/0 and ge-0/0/90/0 and 0/9

192.168.1.1/24Servertrustge-0/0/10/1

192.168.2.1/24Servertrustge-0/0/20/2

192.168.3.1/24Servertrustge-0/0/30/3

192.168.4.1/24Servertrustge-0/0/40/4

192.168.5.1/24Servertrustge-0/0/50/5

Table 4: LTE Interfaces

IP AddressSecurity ZoneInterface

N/AN/Acl-1/0/0

ISP assigned*untrustdl0 (logical)

Only if the LTE Mini-PIM is present

The SRX550 High Memory device is shipped with the following services and protocols enabled by default:

Table 5: Services, Protocols, and Startup Mode

Device Startup ModeProtocolsServices

SwitchingRSTP (all interfaces)SSH

HTTPS

NETCONF over SSH

To provide secure traffic, a basic set of screens are configured on the untrust zone.

Install the Device in a Rack

Before you begin the installation, review General Safety Guidelines and Warnings. Make sure you have someone available

to help you do the installation. You will need to provide your own rack mount screws and a number two Phillips (+)

screwdriver.

1. Wrap and fasten one end of the electrostatic discharge (ESD) grounding strap around your bare wrist, and connect the

other end to a site ESD point.

2. Position a mounting bracket on each side of the chassis. Use a number two Phillips (+) screwdriver to install the screws

that secure the mounting brackets to the chassis. Use either the front mount position or the center mount position.

Figure 3: Securing the Mounting Brackets (Front-Mount)

Figure 4: Securing the Mounting Brackets (Center-Mount)

3. Lift the device and position it in the rack. Line up the bottom hole in each mounting bracket with a hole in each mounting

rail, making sure the device is level.

4. While you are holding the device in place, have a second person insert and tighten the rack mount screws to secure

the mounting brackets to the rack. Make sure to tighten the screws in the two bottom holes first and then tighten the

screws in the two top holes next.

Figure 5: Securing the Chassis to the Rack

g009064

5. Check that the mounting brackets on each side of the rack are lined up with each other.

Connect the Grounding Cable

1. Attach an ESD strap to an ESD point and place the other end of the strap around your bare wrist.

2. Connect the grounding cable to a proper earth ground. Place the grounding cable lug over the grounding point on the

upper rear of the chassis.

NOTE: The device should be permanently connected to ground during normal operation. A licensed electrician

must attach a cable lug to the grounding cable. A cable with an incorrectly attached lug can damage the

device.

3. Secure the grounding cable lug to the grounding point with the screws.

Figure 6: Connecting the Grounding Cable

Power On the Device

NOTE: Before connecting the device to the power supply, attach an ESD strap to an ESD point and place the

other end of the strap around your bare wrist.

1. If you are using the AC model, perform the following steps:

a. Connect the power supply adapter to the power supply point on the device and to a power source. We recommend

using a surge protector. You must allow the device between five and seven minutes to boot after you power it on.

Figure 7: Connecting the Power Cable

b. Secure the power cord to the cable tie holder using a tie-wrap.

2. If you are using the DC model, perform the following steps:

WARNING: Before performing the following procedure, ensure that there is no power in the DC

circuit. To ensure that all power is cut off, locate the circuit breaker on the panel board that services

the DC circuit, switch the circuit breaker to the OFF (0) position, and tape the switch handle of the

circuit breaker in the OFF position.

a. Ensure that the voltage across the DC power source cable leads is 0 V and that the cable leads do not become

active while you are connecting DC power.

b. Verify that the DC power cables are correctly labeled before making connections to the power supply. In a typical

power distribution scheme where the return is connected to chassis ground at the battery plant, you can use a

multimeter to verify the resistance of the -48V and RTN DC cables to chassis ground:

•The cable with very high resistance (indicating an open circuit) to chassis ground will be connected to the V-

(input) DC power input terminal.

•The cable with very low resistance (indicating a closed circuit) to chassis ground will be connected to the V+

(return) DC power input terminal.

c. Remove the clear plastic cover from the terminal studs on the faceplate.

d. Remove the screws on the terminals by using a Phillips (+) screwdriver, number 2.

e. Secure each positive (+) DC source power cable lug to a RTN (return) terminal. Secure each negative (–) DC source

power cable lug to a -48V (input) terminal.

f. Replace the clear plastic cover over the terminal studs on the faceplate.

g. Remove the tape from the switch handle of the circuit breaker on the panel board that services the DC circuit and

switch the circuit breaker to the ON (|) position.

3. Turn on the power to the AC power receptacle.

4. Note the following LED indications. Wait until the STATUS LED is solid green before proceeding to the next step.

Table 6: LED States

StateLED

•Solid green (receiving power).POWER

•Solid green (operating normally).STATUS

•Amber (operating normally–the LED might glow amber if a rescue configuration is

not set. This is not a panic condition).

ALARM

•Off (Mini-PIM not present or not detected).

•Solid green (Mini-PIM is operating normally).

•Red (Mini-PIM hardware failure or counterfeit check failed).

MPIM-1 and MPIM-2

•Off (HA not enabled).

•Solid green (all HA links are available).

•Solid green (redundant power supply is operating normally).RPS

The ACE LED is not functional.ACE

•Solid green (the services gateway is transferring data to or from the optional storage

device).

STORAGE

Configure Root Authentication

To configure root authentication:

1. Connect any of the network ports numbered 0/1 through 0/5 on the services gateway to the Ethernet port on the

management device, using an RJ-45 cable.

Figure 8: Connecting the Management Device

2. Ensure that the management device acquires an IP address. The IP address should be on the corresponding IP subnet

for the interface you connected to in step 1. The device functions as a DHCP server and will assign an IP address to

the management device.

For example, if you are connected to port 0/1, then the IP address of the management device should be from the

192.168.1.x network. If an IP address is not assigned to the management device, manually configure an IP address.

You can use the ipconfig (or ifconfig for Macintosh or Linux users) command to verify the IP address.

NOTE: Do not assign the 192.168.1.1 IP address to the management device, as this IP address is assigned

to the device.

Refer to Table 3 for information on the subnet for each interface.

3. Open a browser and type https://192.168.1.1 (if connected to port 0/1). For ports other than 0/1, access the services

gateway using the URL https://192.168.x.1, where x is the port number. Refer to the Interfaces table on page 2.

The J-Web Setup wizard opens on your screen.

4. Click Skip in the upper-right corner of the Setup wizard.

5. Set a root authentication password and click OK.
