SRX3600 Services Gateway Getting

Started Guide

January 2011

Part Number: 530-038205

Revision 01

Contents AboutThisGuide....................................................3

Step 1: Prepare the Site for SRX3600 Services Gateway Installation . . . . . . . . . . . 5

RackMountingRequirements......................................5

Tools Required to Unpack and Prepare the SRX3600 Services Gateway for

Installation ..................................................5

Step 2: Install the Mounting Hardware in a Four-Post Rack or Cabinet or an

Open-FrameRack................................................6

Step3:InstalltheServicesGateway.....................................7

Install the Services Gateway Using a Mechanical Lift . . . . . . . . . . . . . . . . . . . . 8

Install the Device Without Using a Mechanical Lift . . . . . . . . . . . . . . . . . . . . . 10

Remove Components ........................................10

LifttheChassisintotheRack...................................12

ReinstallComponents........................................13

Step4:ConnecttheGroundingCable...................................13

Step 5: Connect the External Devices and IOC Cables . . . . . . . . . . . . . . . . . . . . . . 14

Connect to a Network for Out-of-Band Management . . . . . . . . . . . . . . . . . . . 14

ConnectaManagementConsole...................................15

ConnecttheIOCCables..........................................16

Step6:ConnectPowerCables.........................................16

Connect Power to an AC-Powered Services Gateway . . . . . . . . . . . . . . . . . . . 17

Connect Power to a DC-Powered Services Gateway . . . . . . . . . . . . . . . . . . . . 18

Step 7: Perform the Initial Software Configuration . . . . . . . . . . . . . . . . . . . . . . . . . 20

EnterConfigurationMode........................................20

Configure User Accounts and Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

ConfigureSystemAttributes.......................................21

CommittheConfiguration........................................22

SafetyWarnings....................................................24

SRX3600 Services Gateway Compliance Statements for EMC Requirements . . 26

Canada .......................................................26

EuropeanCommunity............................................26

Japan.........................................................26

UnitedStates...................................................27

SRX3600 Services Gateway NEBS and ETSI Compliance . . . . . . . . . . . . . . . . . . . 27

SRX3600 Services Gateway NEBS and ETSI Standards . . . . . . . . . . . . . . . . . 27

SRX3600 Services Gateway NEBS and ETSI Configuration

Requirements...............................................27

SRX Series Documentation and Release Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

RequestingTechnicalSupport........................................29

RevisionHistory....................................................30

SRX3600 Services Gateway Getting Started Guide

About This Guide

This guide contains information that you need to install and configure the SRX3600

Services Gateway quickly. For complete installation instructions and instructions on

installing additional modules such as cards and power supplies, see the SRX3600 Services

Gateway Hardware Guide at http://www.juniper.net/techpubs/ .

WARNING: This guide contains a summary of safety warnings in “Safety

Warnings” on page 24. For a complete list of warnings for this device, including

translations, see the SRX3600 Services Gateway Hardware Guide at

http://www.juniper.net/techpubs/ .

The SRX3600 Services Gateway is a high-performance, scalable, carrier-class security

device with multiprocessor architecture. The services gateway has a capacity of up to

30 gigabits per second (Gbps), full duplex. The services gateway is 5 rack units (U) tall.

Nine services gateways can be stacked in a single floor-to-ceiling rack, for increased port

density per unit of floor space. The services gateway provides 12 Common Form-factor

Module (CFM) slots that can be populated with up to seven Services Processing Cards

(SPCs), up to three Network Processing Cards (NPCs), and up to six I/O cards (IOCs).

The services gateway also has one dedicated slot for the Switch Fabric Board (SFB), one

slots for a Routing Engine, one slot for an SRX Clustering Module (SCM), four slots for

power supplies, and one slot for the fan tray and air filter.

Figure 1 on page 3 and Figure 2 on page 4 show the front and rear of the SRX3600

Services Gateway.

Figure 1: Front View of the SRX3600 Services Gateway

g036035

Cooling

air exhaust

ESD

point

IOC in

slot 1

Slot

number

guide

CFM slots

for IOCs

and SPCs

SFB

USB

ports

Console

port

Management

Ethernet port

About This Guide

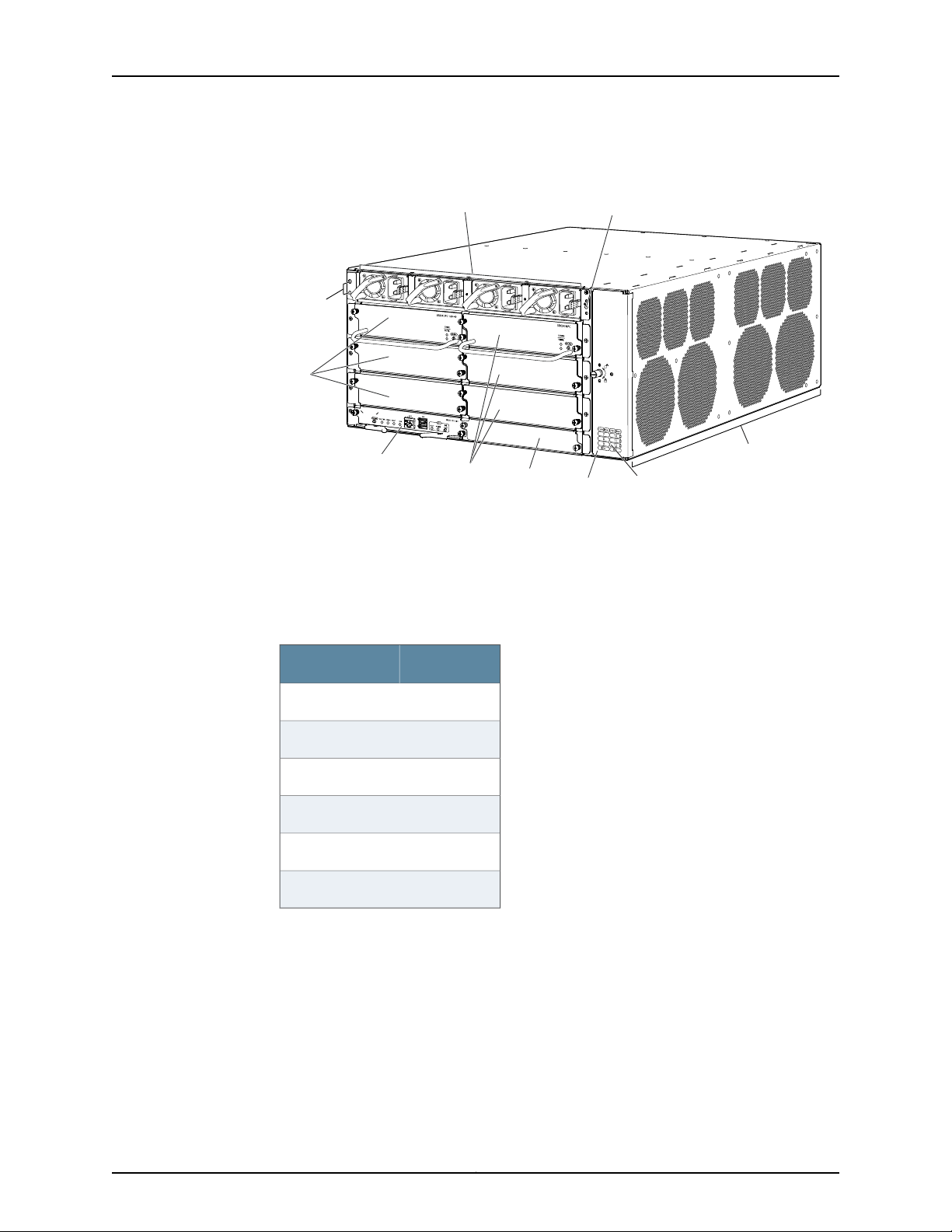

Figure 2: Rear View of the SRX3600 Services Gateway

g036105

ESD

point

Chassis

grounding

point

Fan tray

door

CFM

slots for

SPCs

Cooling

air inlets

Routing Engine

in slot RE0

Power

supplies

Slot

number

guide

CFM slots

for NPCs

and SPCs

Slot RE1

for SCM

By installing different combinations of IOCs and SPCs, you can tailor both the number

of network ports and the maximum security processing capacity to suit your network.

Table 1 on page 4 describes the minimum system configuration for the SRX3600 Services

Gateway.

Table 1: Minimum System Configuration

MinimumComponent

1SFB

1SPC

1NPC

1Routing Engine

2Power supply

1Fan tray

Three types of IOC interface cards are available:

•16-port copper Ethernet/Fast Ethernet/Gigabit Ethernet (10/100/1000 Mbps) card

•16-port small form-factor pluggable (SFP) Gigabit Ethernet card

•2-port 10-gigabit small form-factor pluggable (XFP) Ethernet card

You can install any combination of IOC types in the services gateway.

SRX3600 Services Gateway Getting Started Guide

The services gateway is shipped in a cardboard carton. A printed copy of this document

and an accessory box are also included in the shipping container.

Step 1: Prepare the Site for SRX3600 Services Gateway Installation

•Rack Mounting Requirements on page 5

•Tools Required to Unpack and Prepare the SRX3600 Services Gateway for

Installation on page 5

Rack Mounting Requirements

•You can install the services gateway in a four-post rack or cabinet or a two-post rack.

WARNING: When you install the services gateway in a two-post rack, you

must attach the mounting brackets at the middle of each chassis side, as

shown in Figure 3 on page 6. Do not attempt to install the services gateway

in a two-post rack with the mounting brackets attached at the front of the

chassis. Such an installation might overstress either the brackets or the

rack, causing the chassis to fall and inflict injury.

•The rack rails must be spaced widely enough to accommodate the external dimensions

of the services gateway chassis: 8.75 in. (22.2 cm) high, 25.5 in. (64.8 cm) deep, and

17.5 in. (44.5 cm) wide. The outer edges of the mounting brackets extend the width to

19 in. (48.3 cm).

•The rack must be strong enough to support the weight of the fully configured services

gateway, up to 116 lb (52.6 kg). If you stack five fully configured services gateways in

one rack, it must be capable of supporting about 579 lb (263 kg).

•For service personnel to remove and install hardware components, there must be

adequate space at the front and back of the services gateway. Allow at least

30 in. (76.2 cm) in front of the services gateway and 24 in. (61 cm) behind the services

gateway.

•The rack or cabinet must have an adequate supply of cooling air.

•Ensure that the cabinet allows the chassis hot exhaust air to exit the cabinet without

recirculating into the services gateway.

•The services gateway must be installed in a rack that is secured to the building structure.

•The services gateway should be mounted at the bottom of the rack if it is the only unit

in the rack.

•When mounting the services gateway in a partially filled rack, load the rack from the

bottom to the top, with the heaviest component at the bottom of the rack.

Tools Required to Unpack and Prepare the SRX3600 Services Gateway for Installation

To unpack the services gateway and prepare for installation, you need the following

tools:

Step 1: Prepare the Site for SRX3600 Services Gateway Installation

•A mechanical lift—recommended

•Phillips screwdrivers, numbers 1 and 2

•Electrostatic discharge (ESD) wrist strap

•Antistatic mat

Proceed to “Step 2: Install the Mounting Hardware in a Four-Post Rack or Cabinet or an

Open-Frame Rack” on page 6.

Step 2: Install the Mounting Hardware in a Four-Post Rack or Cabinet or an Open-Frame

Rack

The specific mounting hardware required depends on the type of rack being used. Use

the appropriate procedure steps to install the mounting hardware for your type of rack.

To install the mounting hardware:

1. Locate the rack mount brackets in the accessory kit.

2. Use the screws provided to secure the rack mount brackets to the sides of the chassis:

•For a two-post rack, mount the brackets at the mid-mount holes, as shown in Figure

3 on page 6.

•For a four-post rack, mount the brackets near the front edge of the chassis, as shown

in Figure 4 on page 7.

Figure 3: Attaching Mounting Hardware for Two-Post Rack

g036042

SRX3600 Services Gateway Getting Started Guide

Figure 4: Attaching Mounting Hardware for Cabinet or Four-Post Rack

g036093

3. For installation in a four-post rack or a cabinet, install the support shelf on the rear

posts as shown in Figure 5 on page 7.

Figure 5: Attaching Four-Post and Cabinet Support Shelf

Rear rack uprights

g036094

Step 3: Install the Services Gateway

Because of the services gateway’s size and weight, we recommend that you install the

services gateway using a mechanical lift. The procedure for installing the services gateway

depends on whether you use a mechanical lift:

•Install the Services Gateway Using a Mechanical Lift on page 8

•Install the Device Without Using a Mechanical Lift on page 10

Step 3: Install the Services Gateway

Install the Services Gateway Using a Mechanical Lift

1. Ensure that the rack is in its permanent location and is secured to the building. Ensure

that the installation site allows adequate clearance for both airflow and maintenance.

For details, see the SRX3600 Services Gateway Hardware Guide.

2. Load the services gateway onto the lift, making sure it rests securely on the lift platform

(see Figure 6 on page 8).

Figure 6: Load the Device onto the Lift

g030262

3. Using the lift, position the device in the rack:

•For two-post rack mounting, align the bottom hole in each mounting bracket with

a hole in each rack rail.

•For four-post rack or cabinet mounting, position the device so that the bottom rear

edge of the chassis rests on the support shelf that you installed earlier, as shown

in Figure 5 on page 7.

4. Install a mounting screw into each of the two aligned holes, as shown in Figure 7 on

page 9 (two-post rack) or Figure 8 on page 9 (four-post rack). Use a number-2

Phillips screwdriver to tighten the screws.

SRX3600 Services Gateway Getting Started Guide

Figure 7: Installing the Device in a Two-Post Rack

g036043

Figure 8: Installing the Device in a Four-Post Rack

g036096

5. Install the remaining screws in each mounting bracket.

6. Move the lift away from the rack.

7. Visually inspect the alignment of the services gateway. If the services gateway is

installed properly in the rack, all the mounting screws on one side of the rack should

be aligned with the mounting screws on the opposite side, and the services gateway

should be level.

Proceed to “Step 4: Connect the Grounding Cable” on page 13.

Install the Services Gateway Using a Mechanical Lift

Install the Device Without Using a Mechanical Lift

To install the services gateway without a mechanical lift:

•Remove Components on page 10

•Lift the Chassis into the Rack on page 12

•Reinstall Components on page 13

Remove Components

To make the services gateway light enough to install manually, you first remove most of

the components from the chassis, as shown in Figure 9 on page 10 and Figure 10 on

page 11:

•Power supplies

•Switch Fabric Board (SFB)

•Routing Engine

•I/O Cards (IOCs)

•Network Processing Cards (NPCs)

•Services Processing Cards (SPCs)

•Fan tray

Figure 9: Components to Remove from the Front of the Services Gateway

g030265

SFB

Cards in

CFM slots

SRX3600 Services Gateway Getting Started Guide

Otros manuales para SRX3600

Tabla de contenidos

Otros manuales de Puerta de Juniper

Juniper

Juniper SSG20 Manual de usuario

Juniper

Juniper SRX240 Series Manual de usuario

Juniper

Juniper SRX1500 Instrucciones de instalación

Juniper

Juniper SSG20 Manual de usuario

Juniper

Juniper SRX345 Guía de configuración

Juniper

Juniper SRX 210 Instrucciones de instalación

Juniper

Juniper SSG 500M Series Manual de usuario

Juniper

Juniper SSG 500M Series Manual de usuario

Juniper

Juniper SRX5600 Manual de usuario

Juniper

Juniper SRX-4600 Instrucciones de instalación

Juniper

Juniper SRX100B Manual de usuario

Juniper

Juniper SRX240B Manual de usuario

Juniper

Juniper SRX5600 Manual de usuario

Juniper

Juniper SRX5600 Manual de usuario

Juniper

Juniper SRX240 Series Instrucciones de instalación

Juniper

Juniper SRX 210 Manual de usuario

Juniper

Juniper SRX550 Manual de usuario

Juniper

Juniper SRX320 Instrucciones de instalación

Juniper

Juniper SRX 5800 Manual de usuario

Juniper

Juniper SRX3400 Instrucciones de instalación

Juniper

Juniper SRX220 Manual de usuario

Juniper

Juniper SRX110 Manual de usuario

Juniper

Juniper SRX3400 Instrucciones de instalación

Juniper

Juniper SRX210HE2 Manual de usuario

Manuales populares de Puerta de otras marcas

LST

LST M500RFE-AS Manual de usuario

Kinnex

Kinnex Media Gateway Manual de usuario

2N Telekomunikace

2N Telekomunikace 2N StarGate Manual de usuario

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manual de usuario

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Manual de usuario

Telsey

Telsey CPVA 500 - SIP Manual de usuario

RTA

RTA 460A-NNA4 Hoja de especificaciones

Shaw

Shaw Gateway HDPVR Manual de usuario

ABB

ABB VSN900 Guía de inicio rápido

Commander

Commander Pulse Manual de usuario

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manual de usuario

NETGEAR

NETGEAR C6300BD Manual de usuario

Amit

Amit CDW531AM Manual de usuario

HMS

HMS Netbiter EasyConnect EC150 Manual de usuario

Huawei

Huawei EchoLife HG620 Manual de usuario

AT&T

AT&T U-verse 3801 Manual de uso y cuidado

Logic IO

Logic IO RTCU MX2 turbo Manual de usuario

Suttle

Suttle MediaMAX MXM-521 Manual de usuario
