SRX 3400 Services Gateway Getting Started Guide

About This Guide

This guide contains information you need to install and configure the SRX 3400

services gateway quickly. For complete installation instructions, and instructions on

installing additional modules such as cards and power supplies, see the SRX 3400

Services Gateway Hardware Guide at http://www.juniper.net/techpubs/.

WARNING: This guide contains a summary of safety warnings in “Safety

Warnings”on page 22. For a complete list of warnings for this device, including

translations, see the SRX 3400 Services Gateway Hardware Guide at

http://www.juniper.net/techpubs/.

The SRX 3400 services gateway is a high-performance, scalable, carrier-class security

device with multi-processor architecture. The services gateway has a capacity of up

to 20 gigabits per second (Gbps), full duplex. The device is 3 rack units (U) tall. Sixteen

devices can be stacked in a single floor-to-ceiling rack, for increased port density per

unit of floor space. The device provides seven Common Form-factor Module (CFM)

slots that can be populated with up to four Services Processing Cards (SPCs), up to

two Network Processing Cards (NPCs), and up to four I/O cards (IOCs). The device

also has one dedicated slot for the Switch Fabric Board (SFB), two slots for Routing

Engines, two slots for power supplies, and one slot for the fan tray and air filter.

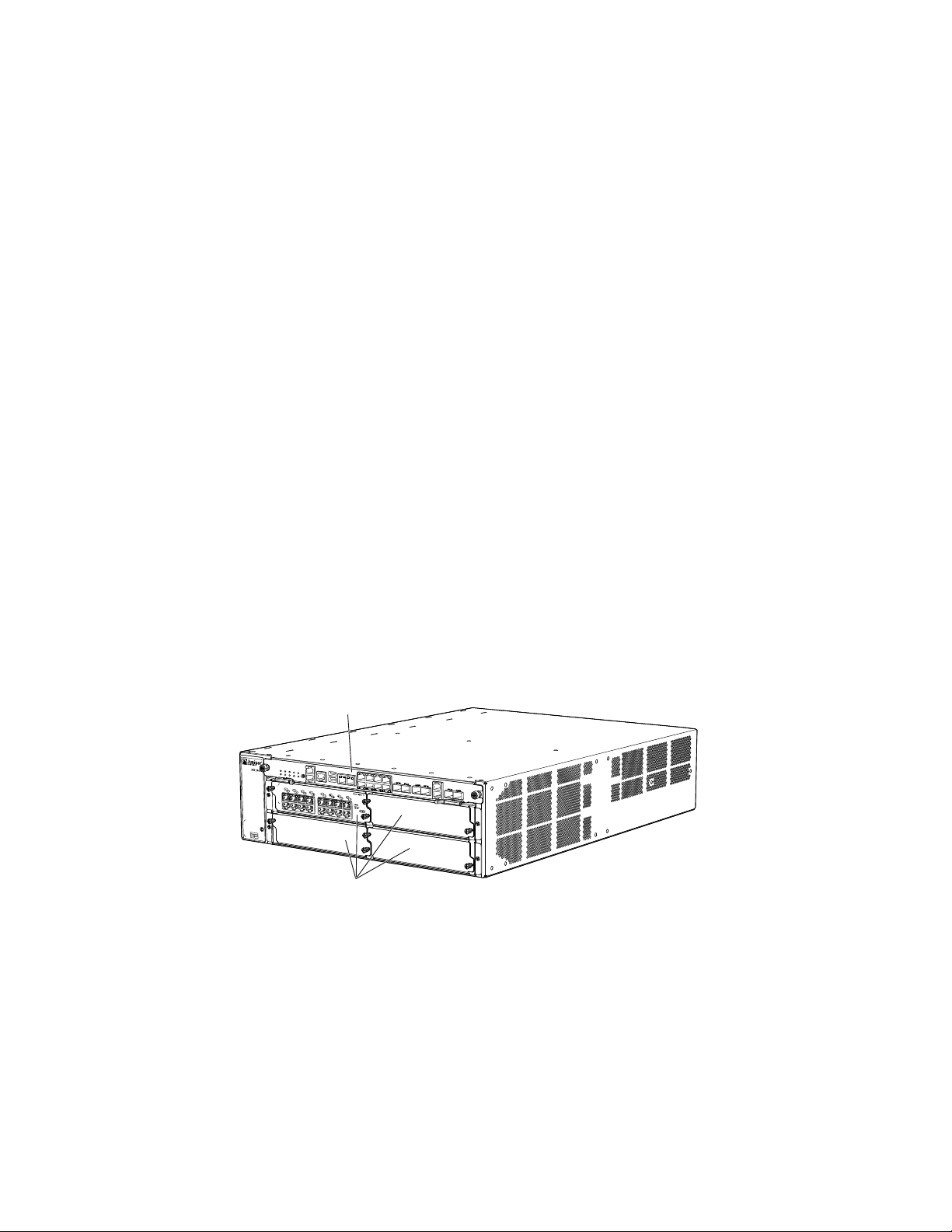

Figure 1: Front View of the SRX 3400 Services Gateway

Cooling

air exhaust

ESD

point

IOC in

slot 1

SFB

USB

ports

Console

ports

g036000

Slot

number

guide CFM slots

for IOCs

and SPCs

About This Guide ■3

About This Guide

Figure 2: Rear View of the SRX 3400

g036001

ESD

point

Power

supplies

Routing

Engine

Chassis

grounding

point

Fan tray

door

Cooling

air inlets

Slot

number

guide

CFM slots

for SPCs

and NPCs

By installing different combinations of IOCs and SPCs, you can tailor both the number

of network ports and the maximum security processing capacity to suit your network.

Table 1 on page 4 describes the minimum system configuration for the SRX 3400.

Table 1: Minimum System Configuraton

MinimumComponent

1SFB

1SPC

1NPC

1Routing Engine

1Power Supply

1Fan Tray

Three types of IOC interface cards are available:

■16-port copper Ethernet/Fast Ethernet/Gigabit Ethernet (10/100/1000 Mbps) card

■16-port SFP Gigabit Ethernet card

■2-port XFP 10 Gigabit Ethernet card

You can install any combination of IOC types in the services gateway.

4■About This Guide

SRX 3400 Services Gateway Getting Started Guide

NOTE: Some combinations of CFMs installed in the device may exceed the power

supply capacity if the device is powered by one or even two DC power supplies. If

the device configuration exceeds the available power, the power management feature

disables one or more of the CFMs to prevent damage to the device or power supplies.

See the SRX 3400 Services Gateway Hardware Guide for information about supported

configurations.

The services gateway is shipped in a cardboard carton. Quick start installation

instructions and an accessory box are also included in the shipping container.

Step 1: Prepare the Site

Rack-Mounting Requirements

■You can install the device in a four-post rack or cabinet or a two-post rack.

CAUTION: When installing the device in a two-post rack, you must install the

mounting brackets in the chassis center holes as shown in Figure 3 on page 6.

■The rack rails must be spaced widely enough to accommodate the external

dimensions of the device chassis: 5.25 in. (13.3 cm) high, 25.5 in. (64.8 cm)

deep, and 17.5 in. (44.5 cm) wide. The outer edges of the mounting brackets

extend the width to 19 in. (48.3 cm).

■The rack must be strong enough to support the weight of the fully configured

device, up to 75 lbs (34.1 kg). If you stack five fully configured devices in one

rack, it must be capable of supporting about 375 lb (170 kg).

■For service personnel to remove and install hardware components, there must

be adequate space at the front and back of the device. Allow at least

30 in. (76.2 cm) in front of the device and 24 in. (61 cm) behind the device.

■The rack or cabinet must have an adequate supply of cooling air.

■Ensure that the cabinet allows the chassis hot exhaust air to exit the cabinet

without recirculating into the device.

■The device must be installed in a rack that is secured to the building structure.

■The device should be mounted at the bottom of the rack if it is the only unit in

the rack.

■When mounting the device in a partially filled rack, load the rack from the bottom

to the top with the heaviest component at the bottom of the rack.

Required Tools

To unpack the services gateway and prepare for installation, you need the following

tools:

■A mechanical lift—recommended

Step 1: Prepare the Site ■5

Step 1: Prepare the Site

■Phillips screwdrivers, numbers 1 and 2

■Electrostatic discharge (ESD) wrist strap

Step 2: Install the Mounting Hardware

The specific mounting hardware required depends on the type of rack being used.

Use the appropriate procedure steps to install the mounting hardware for your

situation.

To install the mounting hardware:

1. Locate the rack mount brackets in the accessory kit.

2. Use the screws provided to secure the rack mount brackets to the sides of the

chassis:

■For a two-post rack, mount the brackets at the mid-mount holes as shown

in Figure 3 on page 6.

■For a four-post rack, mount the brackets near the front edge of the chassis

as shown in Figure 4 on page 6.

Figure 3: Attaching Mounting Hardware for Two-Post Rack

g030257

Figure 4: Attaching Mounting Hardware for Cabinet or Four-Post Rack

g036007

6■Step 2: Install the Mounting Hardware

SRX 3400 Services Gateway Getting Started Guide

3. For installation in a four-post rack or a cabinet, install the support shelf on the

rear posts as shown in Figure 5 on page 7.

Figure 5: Attaching Four-Post and Cabinet Support Shelf

Rear rack uprights

g036094

Step 3: Install the Device

Because of the device's size and weight, we recommend you install the device using

a mechanical lift. The procedure for installing the device depends on whether you

use a mechanical lift:

■Install the Device Using a Lift on page 7

■Install the Device Without a Mechanical Lift on page 10

Install the Device Using a Lift

1. Ensure the rack is in its permanent location and is secured to the building. Ensure

that the installation site allows adequate clearance for both airflow and

maintenance. For details, see the SRX 3400 Services Gateway Hardware Guide.

2. Load the device onto the lift, making sure it rests securely on the lift platform

(see Figure 6 on page 8).

Step 3: Install the Device ■7

Step 3: Install the Device

Figure 6: Load the Device onto the Lift

g030261

3. Using the lift, position the device in the rack:

■For two-post rack mounting, align the bottom hole in each mounting bracket

with a hole in each rack rail.

■For four-post rack or cabinet mounting, position the device so that the bottom

rear edge of the chassis rests on the support shelf you installed earlier as

shown in Figure 5 on page 7.

4. Install a mounting screw into each of the two aligned holes as shown in

Figure 7 on page 9 (two-post rack) or Figure 8 on page 9 (four-post rack). Use

a number-2 phillips screwdriver to tighten the screws.

8■Step 3: Install the Device

SRX 3400 Services Gateway Getting Started Guide

Figure 7: Installing the Device in a Two-Post Rack

g030258

Figure 8: Installing the Device in a Four-Post Rack

g036095

Rear shelf

5. Install the remaining screws in each mounting bracket.

6. Move the lift away from the rack.

7. Visually inspect the alignment of the device. If the device is installed properly in

the rack, all the mounting screws on one side of the rack should be aligned with

the mounting screws on the opposite side, and the device should be level.

Step 3: Install the Device ■9

Step 3: Install the Device

Install the Device Without a Mechanical Lift

To install the device without a mechanical lift:

■Remove Components on page 10

■Lift the Chassis into the Rack on page 11

■Reinstall Components on page 12

Remove Components

To make the services gateway light enough to install manually, you first remove most

components from the chassis as shown in Figure 9 on page 10 and

Figure 10 on page 11. The procedure in this section for removing components from

the chassis is for initial installation only and assumes that you have not connected

power cables to the services gateway:

■Power supplies

■Switch Fabric Board (SFB)

■Routing Engine

■I/O Cards (IOCs)

■Network Processing Cards (NPCs)

■Services Processing Cards (SPCs)

■Fan tray

Figure 9: Components to Remove from the Front of the Device

g030263

Cards in

CFM slots

SFB

10 ■Step 3: Install the Device

SRX 3400 Services Gateway Getting Started Guide

Otros manuales para SRX 3400

Tabla de contenidos

Otros manuales de Puerta de Juniper

Juniper

Juniper SRX 5800 Instrucciones de instalación

Juniper

Juniper SSG5 Manual de usuario

Juniper

Juniper SRX650 Manual de usuario

Juniper

Juniper SRX3400 Instrucciones de instalación

Juniper

Juniper SRX 210 Manual de usuario

Juniper

Juniper SRX650 Manual de instrucciones

Juniper

Juniper SRX340 Instrucciones de instalación

Juniper

Juniper VGW VIRTUAL GATEWAY Manual de usuario

Juniper

Juniper BX7000 Instrucciones de instalación

Juniper

Juniper SRX3400 Instrucciones de instalación

Juniper

Juniper SSG140 Manual de usuario

Juniper

Juniper SRX300 Series Guía de configuración

Juniper

Juniper SRX3400 Manual de usuario

Juniper

Juniper SRX3400 Instrucciones de instalación

Juniper

Juniper SRX 5800 Manual de instrucciones

Juniper

Juniper SRX650 Manual de usuario

Juniper

Juniper SRX340 Instrucciones de instalación

Juniper

Juniper SRX345 Manual de usuario

Juniper

Juniper SRX340 Instrucciones de instalación

Juniper

Juniper SRX4200 Instrucciones de instalación

Juniper

Juniper SRX 210 Instrucciones de instalación

Juniper

Juniper SRX3400 Manual de usuario

Juniper

Juniper SRX110 H2 Instrucciones de instalación

Juniper

Juniper SRX100 Instrucciones de instalación

Manuales populares de Puerta de otras marcas

LST

LST M500RFE-AS Manual de usuario

Kinnex

Kinnex Media Gateway Manual de usuario

2N Telekomunikace

2N Telekomunikace 2N StarGate Manual de usuario

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manual de usuario

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Manual de usuario

Telsey

Telsey CPVA 500 - SIP Manual de usuario

RTA

RTA 460A-NNA4 Hoja de especificaciones

Shaw

Shaw Gateway HDPVR Manual de usuario

ABB

ABB VSN900 Guía de inicio rápido

Commander

Commander Pulse Manual de usuario

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manual de usuario

NETGEAR

NETGEAR C6300BD Manual de usuario

Amit

Amit CDW531AM Manual de usuario

HMS

HMS Netbiter EasyConnect EC150 Manual de usuario

Huawei

Huawei EchoLife HG620 Manual de usuario

AT&T

AT&T U-verse 3801 Manual de uso y cuidado

Logic IO

Logic IO RTCU MX2 turbo Manual de usuario

Suttle

Suttle MediaMAX MXM-521 Manual de usuario
