Jensen CMM10 Instrucciones de funcionamiento
CMM10
10” CAPACITIVE TOUCH SCREEN
MULTIMEDIA MECHLESS RECEIVER
AM-FM, Bluetooth
USB Screen Mirroring
Front & Rear Camera Input
INSTALLATION &
OWNER’S MANUAL
B-Type
22
CMM10 OPERATION
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth
SIG, Inc.
microSD Logo is a registered trademark of SD-3C, LLC.
Siri and Apple are registered trademarks owned by Apple, Inc.
Google Assistant and Android are trademarks owned by Google LLC.
Other trademarks and trade names are those of their respective owners.
FCC Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Warning: Changes or modications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Copyright and Trademark
33
Video / movie playback will not operate while the vehicle is moving.
This is a safety feature to prevent driver distraction. In-dash video / movie
functions will only operate when vehicle is in Park and the parking brake is
engaged. It is illegal in most jurisdictions for the driver to view video while
the vehicle is in motion.
The SAFETY NOTICE is reminder to drive responsibly and safely while using your
mobile phone device, or any APP’s that are compatible with this unit.
it is highly recommended that your JENSEN CMM10 is installed by a professional
installer or an authorized dealer.
This product is only for use in vehicles with 12VDC negative ground only.
To prevent damage or injury:
• Make sure to ground the unit securely to the vehicle chassis ground.
• Do not remove the top or bottom covers of the unit.
• Do not install the unit in a spot exposed to direct sunlight or excessive heat or the
possibility of water splashing.
• Do not subject the unit to excessive shock.
• When replacing a fuse, only use a new one with the correct rating. Using a fuse with
the wrong rating may cause the unit to malfunction.
• To prevent short circuits when replacing a fuse, disconnect the wiring harness rst.
• Use only the provided hardware and wire harness.
• If you experience problems during installation, consult your nearest JENSEN dealer.
• If the unit malfunctions, reset the unit as described. If the problem still persists,
consult your nearest JENSEN dealer or call tech assistance @ 1-888-921-4088.
• To clean the monitor, wipe only with a dry silicone cloth or soft cloth. Do not use
a sti cloth, or solvents such as paint thinner and alcohol. They can scratch the
surface of the panel and/or remove the printing.
• When the temperature of the unit falls (as in winter), the liquid crystal inside the
screen will become darker than usual. Normal brightness will return after the unit is
in use for a while.
• When extending the ignition, battery or ground wiring, make sure to use
automotive-grade wiring with an a minimum AWG 16 or more to prevent voltage
drops.
• Do not touch the liquid crystal uid if the LCD is damaged or broken. The liquid
crystal uid may be hazardous to your health or fatal. If the liquid crystal uid from
the LCD contacts your body or clothing, wash it o with soap immediately.
Safety Notice
44
CMM10 OPERATION
Please read and understand entire manual before
installation.
Consult a qualied technician for detailed instructions or
installation assistance.
Before You Start
• Disconnect negative battery terminal.
• Avoid installing the unit where it would be subject to high
temperatures, such as from direct sunlight, or where it would be
subject to dust, dirt or excessive vibration.
Getting Started
• Unpack unit from its protective packaging.
• Connect vehicle wiring harness and antenna to this receivers
harness. See wiring instructions. Consult a qualied technician if
you are unsure.
• Certain vehicles may require an installation dash kit and/or wiring
harness adapter (sold separately).
• Reconnect battery negative terminal.
• Test for correct operation and secure back into dashboard.
• Snap trim ring into place if needed.
Preparation
Typical ISO-DIN Installation
55
CMM10 OPERATION
Tips
EN
NyneADS15
USBCHARGE
5V1A
When replacing a fuse, make sure to use the correct type and
amperage. Using an incorrect fuse could cause damage. The unit
uses (1) 15 amp ATC blade-type fuse located on the back of the unit.
Front / Rear camera inputs
Up to two cameras (not included) can be used. We recommend
JENSEN Part # BUCAM200J for front camera and BUCAM300AJ or
BUCAM400AJ for rear camera.
Input / Output Wiring Diagram
6

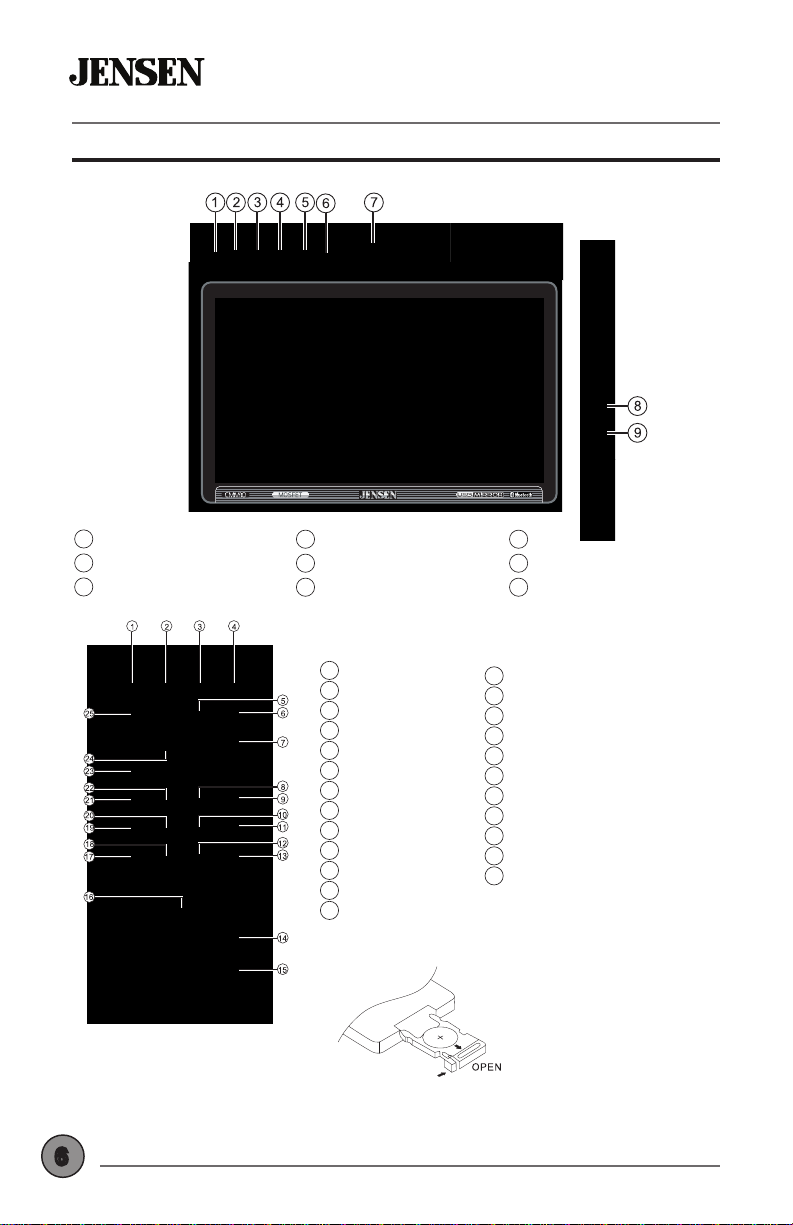

CMM10 OPERATION
Main Control Locations
1Power
2Mode
3Play / Pause
4Mute
5Talk
6End Call
7Setup
8Volume Up
9Zoom
10 Select
11 Tune/Track Up
12 Volume Down
13 Audio
14 * Key
15 Loudness
16 Number Keys
17 Root
18 OSD (On Screen Display)
19 Local / Random
20 Tune/Track Down
21 AS/PS / Repeat
23 Stop
24 Enter
25 Band
1Microphone
2Power / Mute
3Voice Assistant
7microSD Card Slot
8USB Slot
9Auxiliary Input
Use CR2025
Replacement Battery Only
How to Replace the Battery
Slide the tray out on back of the remote control,
and insert battery with the (+) and minus (-) poles
pointing in the proper direction.
4Volume Up
5Volume Down
6Reset
77
CMM10 OPERATION
Source Menu Operation
Press to access Radio.
Press to initiate USB mirroring.
Press to access Bluetooth phone.
Press to display and adjust system settings.
Press to display the rear camera.
Press to access AV input.
Press to access auxiliary input.
Press to access the Bluetooth music.
Press to access les on microSD card.
Press to access les on USB device.
Radio 1
USB Mirroring 2
Bluetooth Phone 3
Settings 4
Rear Camera 5
AV Input 6
Auxiliary Input 7
BT Music 8
microSD 9
USB 10
3
12
10
4
6
98 7 5
88
CMM10 OPERATION
On Screen Controls
15
23 4
Press up to two times to dim the screen. Press
a third time to put the unit in standby mode
(screen will go black). Press anywhere on the
screen to return to normal screen operation.
Press to activate the voice assistant feature.
Press to access and adjust audio settings.
Press to directly access your phone’s
navigation app (refer to Navigation Hot Button
section of the manual for setup instructions).
Press to display and adjust system settings.
Screen Brightness 1
Voice Assistant 2
Audio 3
Navigation Hot Button 4
Settings 5
99
CMM10 OPERATION
Select any of the preset EQ settings (Flat, Classic, Rock, Pop, Jazz, Beat or
User) or use the touch screen to manually adjust EQ settings.
Select any of the preset Surround settings: Concert, Church, Passive,
Wide, Live or None.
Adjust balance (8L to 8R) and fader (8F to 8R), or use the touch screen to
manually adjust balance and fader settings.
Audio Settings
1010
CMM10 OPERATION
From the Main Menu, press the gear icon to access the Setup menu and
adjust the following: General, Audio, Display and Bluetooth.
General:
• OSD Language - Select English.
• Wallpaper - Select from three different wallpaper options.
• Radio Area - Select Europe, USA, South America or Asia.
• Time Setting - Set the date (month, day, year) and time (hours,
minutes, AM/PM and 12-hour or 24-hour clock).
• Beep - Enable or disable the audible beep.
• Camera - Enable or disable the rear camera input.
• Version - Press to display version numbers.
• Restore Default - Press to restore unit to default factory settings.
Audio:
• Audio Settings - Press to access and adjust audio settings.
• Subwoofer- Press to adjust subwoofer frequency and volume.
• Loudness - Enable or disable the loudness feature.
Display:
• Aspect Ratio - Select desired region (America, Europe or Latin).
• Adjust - Press to adjust screen brightness, contrast, hue, saturation
and shaprness.
• Panel - Select from the following Backlight settings: Off, 10 seconds,
20 seconds or 30 seconds.
Bluetooth:
• Bluetooth - Turn Bluetooth signal on or off.
• Auto Answer - Turn auto answer feature on or off.
Settings Menu
