JBL Control SB210 Manual de usuario

JBL Incorporated, 8500 Balboa Boulevard, P.O. Box 2200, Northridge, California 91329 U.S.A.

JBL CONTROL SB210

REV D

PACKAGE WIRING DIAGRAM

06-10

Technical Manual

JBL CONTROL SB210

SPECIFICATIONS

ACOUSTIC & ELECTRICAL SPECIFICATIONS:

• Nominal Impediance: 8 Ohms

• Power Capacity: 800W Continuous Program Power

400W Continuous Pink Noise

• Frequency Range: 42 Hz – 200 Hz (–10 dB)

• Sensitivity: 96 dB, 1 Watt @ 1 Meter

SYSTEM COMPONENTS:

• Cabinet: Enclosure (Not for Sale)

• Grille: 338995-001

•Low Frequency 2 338983-001, 250mm (10in.)

Transducer: Woofer

• DC Resistance: 3.3 ohms

• Crossover Network: 338990-001

AURAL SWEEP TEST SPECIFICATIONS:

A. System Aural Sweep Test: 5.0V Input, 20 Hz to 700 Hz

B. L.F. Aural Sweep Test: 2.5V Input, 20 Hz to 700 Hz

PHYSICAL SPECIFICATIONS:

• Enclosure Dimensions: 335 x 590 x 570 mm D

(14.0 x 23.3 x 22.5 in.D.)

•Shipping Weight: 43 lb (19.4 kg.)

WARRANTY INFORMATION:

• Refer to Warranty Statement packed with each product.

Warranty 59660

Owners Manual

338999-001

End Pad (2)

Plastic Bag

Carton

GRN

WHT

WHT/BLK GRN/BLK

Network Assembly

338990-001

Woofer (2)

338983-001

Install Kit for

Eyebolts 337714-001

Plastic Sealed Cover

MTC-PC4

JBL CONTROL SB210

2

10W 2

10W

2

10W 2

10W

Stereo

Socket

Mono

L+

L–

R+

R–

SK3

SK3

SK3 Socket

GRN/BLK

338990-001

WHT/BLK

Plug WHT

GRN

SK3

JBL CONTROL SB210

SCHEMATIC

CONTROL SB210

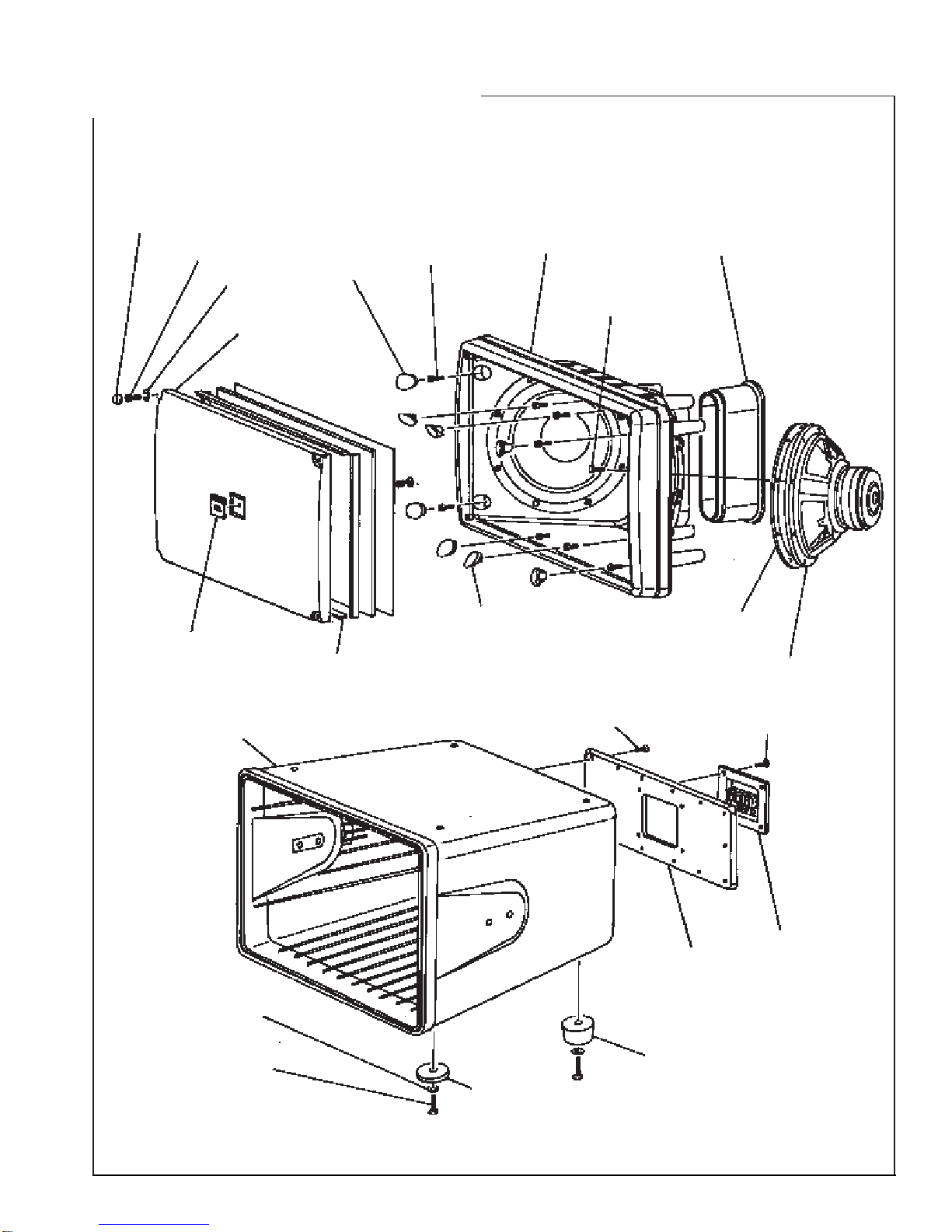

COMPONENT EXPLODEDVIEW

Screw (4)

Network

338990-001

Panel

Woofer (2)

338983-001

Cover (4)

Plug (4)

Screw (4) Screw (8)

Washer (4)

Grille Assy

338995-001

Baffle (SB210)

338980-001

Screw (16)

338985-001

M5 x 12

Port Tube

(Not for Sale)

Logo Badge Assy

338996-001 Gasket

Enclosure Assembly SB210

(Not Available for Sale)

Plug (4)

Nylon Feet (R) (2)

339000-001

Nylon Feet (F) (2)

339001-001

Washers (4)

339003-001

Screws (4)

339002-001

Gasket (2)

338984-001

Screw (14)

CONTROL SB210
