JBL Studio S310II Manual de usuario

Technical Manual

S310II

Studio™Series

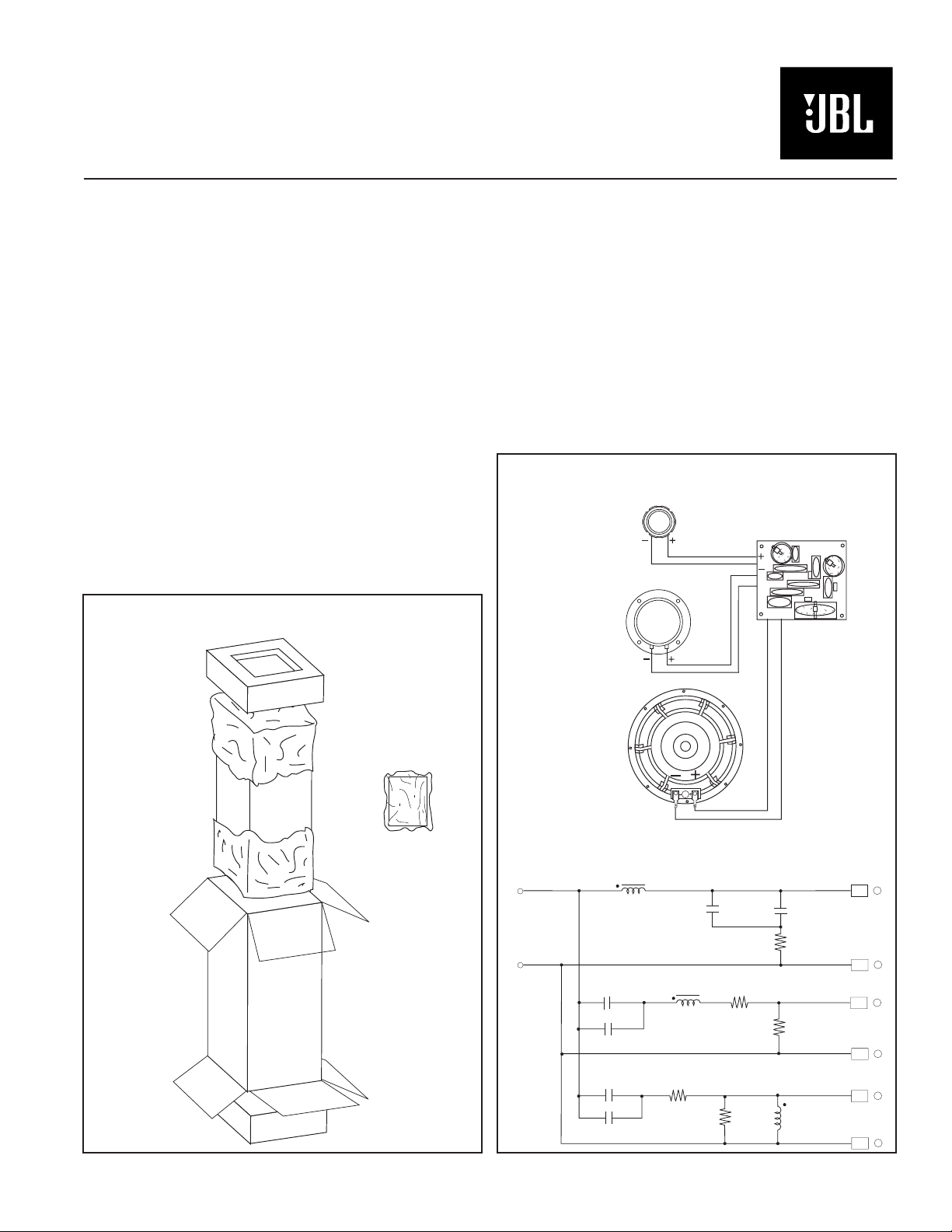

ACOUSTIC & ELECTRICAL SPECIFICATIONS:

•Nominal Impedance 8 ohms

•Max Amp Power 200 watts

•Frequency Response 37Hz – 20kHz (-3dB)

•Sensitivity 91dB (1 watt @ 1 meter)

•Crossover Frequencies 850Hz, 3500Hz

SYSTEM COMPONENTS:

•Enclosure S310II (not for sale)

•Grille 335146-002

•Low-Frequency Transducer 10" (254mm) PolyPlas,

™ shielded

(335150-002)

DC Resistance 5.4 ohms ±10%

•Mid-Frequency Transducer 4" (101mm) PolyPlas,

™ shielded

(338040-001)

DC Resistance 4.3 ohms ±10%

•High-Frequency Transducer 1" (25mm) titanium dome,

shielded (338042-001)

DC Resistance 3.4 ohms ±10%

•Crossover Network 335411-002

AURAL SWEEP TEST SPECIFICATIONS:

•A. System Aural Sweep Test 6.0V Input 40Hz to 20kHz

•B. L.F. Aural Sweep Test 6.0V Input 40Hz to 1kHz

•C. M.F. Aural Sweep Test 4.0V Input 500Hz to 4kHz

•D. H.F. Aural Sweep Test 2.83V Input 3kHz to 20kHz

PHYSICAL SPECIFICATIONS:

•Enclosure dimensions 38" x 13" x 12-1/2"

(H x W x D) 965mm x 330mm x 318mm

•Weight 55 lb/25kg each

WARRANTY:

• Refer to Warranty Statement packed with each product.

Owner’s Manual

338018-001

Warranty Card

338322-001

Survey Card

331384-001

Spike Foot Kit

338076-001

OWNER’S

MANUAL

Upper/Lower

Foam

338030-001

Microfoam

(2 pcs.)

Outer Carton

338027-001

PACKAGING

07/02

JBL Consumer Products, 250 Crossways Park Dr., Woodbury, New York 11797

S310II Studio™Series

Driver

High-Frequency

338042-001

Driver

Mid-Frequency

338040-001

Driver

Low-Frequency

335150-002

YELLOW/BLACK

WHITE/BLACK

GREEN/BLACK

WHITE

GREEN

YELLOW

Crossover Network

335411-002

+IN

–IN

INPUT

GREEN

BLK/GREEN

WHT/BLACK

WHITE

YELLOW

YEL/BLK

RED

BLACK

L.F.

M.F.

H.F.

250

205

–

110

–

205

–

110

2.4mH

2.4 ohms

10W

60µF

100V

0.01µF

250V

40 ohms

2.4 ohms

10W

2.4 ohms

10W

300µH

16µF/100V

0.01µF/250V

7µF/100V

20 ohms

.3µH

0.01µF/250V

S310II SCHEMATIC

WIRING DIAGRAM

Network

335411-002

Port Tube

337957-001 Feet (4)

338037-001

Grille

338815-001

Grille Retainers (8)

333249-001

Enclosure

S310II (not for sale)

Screws (6)

#8 x .75" HXS-HD

903802-012

Woofer

335150-002

Screws (4)

#6 x .75"

PPH 63563

Terminal Cup

335471-002

Binding-

Post Nuts (2)

T879-01

Screws (4)

#6 x .75"

PPH 63563

Faceplate

Gasket

338036-001 Flower Pot

334072-001

Faceplate

337643-001

Screws (6)

#6 x .75" HXS-HD

908302-012

Screws (2)

PPH H/L 6-19 x 5/8 Znc

905402-010

Tweeter

338042-001

Bar, Hold Down

338059-001

Midrange

338040-001

Screws (4)

#6 x .75" PPH

61867

S310II

Studio™Series

S310II Studio™Series

07/02

JBL Consumer Products, 250 Crossways Park Dr., Woodbury, New York 11797

EXPLODED VIEW
