FAE070

Flexible Arm with Clamp ø50 mm

INSTRUCTION MANUAL

Packing List

The following items are included:

Flexible Arm ................................................ 1 unit

already assembled:

Ref. FAE083 Round Metal Nozzle for FAE

Manual ............................ 1 unit

Ref. 0019184

Clamp .......................................................... 2 units

Screws* ........................ 2 units

DIN-965 M4x20 - black

Washers* ...................... 2 units

DIN-9021 ø4.3mm - black

This manual corresponds to the following reference:

FAE070

* The supplied screws and washers can be used, as an alternative, to fix the arm to the workbench.

Round Metal Nozzle

for FAE

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

70 cm / 27.6 in max.

www.jbctools.com

STATION1

Filter

STATION2

PORT 1

PEDAL1 PEDAL2

FAE2

FUME EXTRACTOR

PORT 2

STATION3 STATION4

70 cm / 27.6 in max.

www.jbctools.com

STATION1

Filter

STATION2

PORT1

PEDAL1 PEDAL2

FAE2

FUME EXTRACTOR

PORT2

STATION3 STATION4

Assembly Example

Clamp for mounting the

flexible arm. The clamp

is suitable for a table

thickness of approx.

60mm or less.

* The flexible arm can also

be fixed on the workbench

with the supplied screws

and washers.

FAE 070

Flexible Arm with

Clamp - ø50mm

Take in mind the

installation dimensions

(see page 5 below)

FAE2*

Fume Extractor

FAE010*

Flexible Hose ø50mm

Total length: ~1.6m / ~63in

Connect the Flexible Hose to

Flexible Arm

* Not included, sold separately.

www.jbctools.com

STATION1

Filter

STATION2

PORT1

PEDAL1 PEDAL2

FAE2

FUMEEXTRACTOR

PORT2

STATION3 STATION4

70 cm / 27.6 in max.

www.jbctools.com

STATION1

Filter

STATION2

PORT1

PEDAL1 PEDAL 2

FAE2

FUME EXTRACTOR

PORT2

STATION3 STATION 4

70 cm / 27.6 in max.

www.jbctools.com

STATION1

Filter

STATION2

PORT1

PEDAL1 PEDAL 2

FAE2

FUME EXTRACTOR

PORT2

STATION3 STATION 4

70 cm / 27.6 in max.

www.jbctools.com

STATION1

Filter

STATION2

PORT1

PEDAL1 PEDAL 2

FAE2

FUME EXTRACTOR

PORT2

STATION3 STATION 4

distance = 0

To avoid breaking the arm, do not extend the

arm more than 70 cm / 27.6 inches from the

center of its base and do not go below the

minimum bend radius of 20 cm / 7.87 inches.

min. bending

radius

20cm

7.87in

workbench

breakage

Do not install the flexible arm on shelves or

higher levels than the work bench. Forced

bending radii can cause the arm to break.

When the flexible arm

loses firmness, it must be

recompressed.

For a greater compression, turn

it slightly clockwise.

Once the arm is compressed,

adapt its position again.

Usage Guidelines

Note: In case of a breakage, the windings can be plugged back into each other. To do this, align the

windings with one another and push them back together with strength.

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

www.jbctools.com

STATION1

Filter

STATION2

PORT1

PEDAL1 PEDAL 2

FAE2

FUME EXTRACTOR

PORT2

STATION3 STATION4

70 cm / 27.6 in max.

www.jbctools.com

STATION1

Filter

STATION2

PORT1

PEDAL1 PEDAL 2

FAE2

FUME EXTRACTOR

PORT2

STATION3 STATION4

70 cm / 27.6 in max.

www.jbctools.com

STATION1

Filter

STATION2

PORT1

PEDAL1 PEDAL 2

FAE2

FUME EXTRACTOR

PORT2

STATION3 STATION4

70 cm / 27.6 in max.

The Suppied nozzle can be replaced by one of the following nozzles. Choose the one that best suits

your needs.

Accessories

FAE080

Rectangular Nozzle for FAE

aprox. 170 x 90mm /

6.69x3.54in

FAE081

Round Nozzle for FAE

aprox ø 120mm /

ø 4.72in

FAE082

Large Rectangular Nozzle for FAE

aprox. 227 x 107mm /

8.94x4.21in

Nozzle Replacement

Nozzle in use

with hanging arm

Nozzle lying on

the workbench

The bayonet system makes it

easy to change the nozzle. To do

this, hold the tube with one hand

and with the other turn the nozzle

counter-clockwise and pull it out

to remove the nozzle.

To install a new nozzle, turn the

nozzle bayonet clockwise to

lock it in place.

The nozzles are designed in

such a way that they can be

used with a hanging arm or be

lying on the workbench.

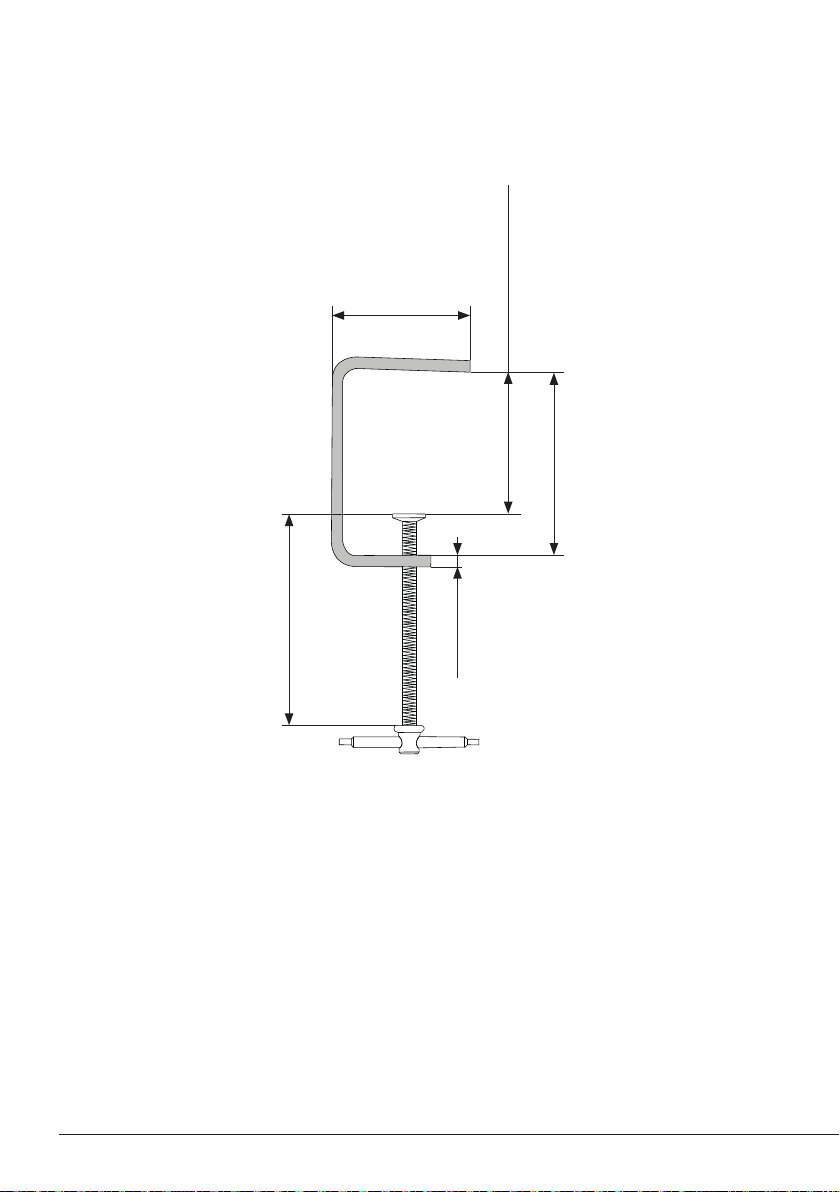

Clamp Dimensions

70 cm / 27.6 in max.

~57mm

~2.24in

~5mm

~0.20in

~72mm

~2.83in

~84mm

~3.31in

max. opening ~60mm

~2.36in

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

Notes

This product should not be thrown in the garbage.

In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must

be collected and returned to an authorized recycling facility.

Warranty

JBC’s 2 year warranty covers this equipment against

all manufacturing defects, including the replacement

of defective parts and labour.

Warranty does not cover product wear or misuse.

In order for the warranty to be valid, equipment must

be returned, postage paid, to the dealer where it was

purchased.

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

Specifications

0019184-080623

FAE070

Flexible Arm with Clamp ø50 mm

Ref. FAE070

- Net Weight: 2.2 kg / 4.89 lb

- Inner Tube Diameter: ø50 mm / 1.97 in

- Fixing Clamp: For a table thickness of approx. 60mm or less

- Total Package Dimensions / Weight: 1050 x 170 x 120 mm / 3.0 kg

(L x W x H) 41.34 x 6.69 x 4.72 in / 6.61 lb

Complies with CE standards.

ESD Safe.
