jbc AT420-A Manual de usuario
Adjustable Tweezers
Ref. AT420-A
INSTRUCTION MANUAL
www.jbctools.com
2
C420 Cartridges
(Required but not supplied)
Control Unit
Stand
Ref. AT-SA
Manual ...............1 unit
Ref. 0022048
Packing List
The following items should be included:
Adjustable Tweezers ...............1 unit
Ref. AT420-A
Adjustable Tweezers
Ref. AT420-A
Adjustable Tweezers
Ref. AT420-A
Features
Screwdriver...............1unit
Ref. 0023074
www.jbctools.com
(Push this way to close the tweezers) (Push this way to open the tweezers)
Normally open mode
Slide the knobs to switch
between modes
Normally closed mode
Upper sliding
knob
www.jbctools.com
3
1. Inserting
3. Rotational and Vertical Cartridge
alignment
Changing cartridges
Slightly turn the wheels to align the cartridges
as required (1). Use the screwdriver supplied
to get them fixed (2).
2. Fixing Screws
Insert the cartridges as far as the
mark for a proper connection..
Mark
Once the alignment has been made, do not forget to fix the cartridges by tightening the fixing
screws. A single turn of the knob is required to get them fixed.
!
Unlock the fixing knobs and remove
the cartridges by using the cartridge
extractor of the stand (Ref. AT-SA).
Working Mode
Choose between a normally open and normally closed mode depending on the job to be done:
The rear wheel guarantees that the
cartridges are equally aligned with vertical
symmetry when closing the tweezers.
4. Removing
Consult our wide range of cartridges with more than 250 references on www.jbctools.com.
For Special Cartridges contact with our distributor.

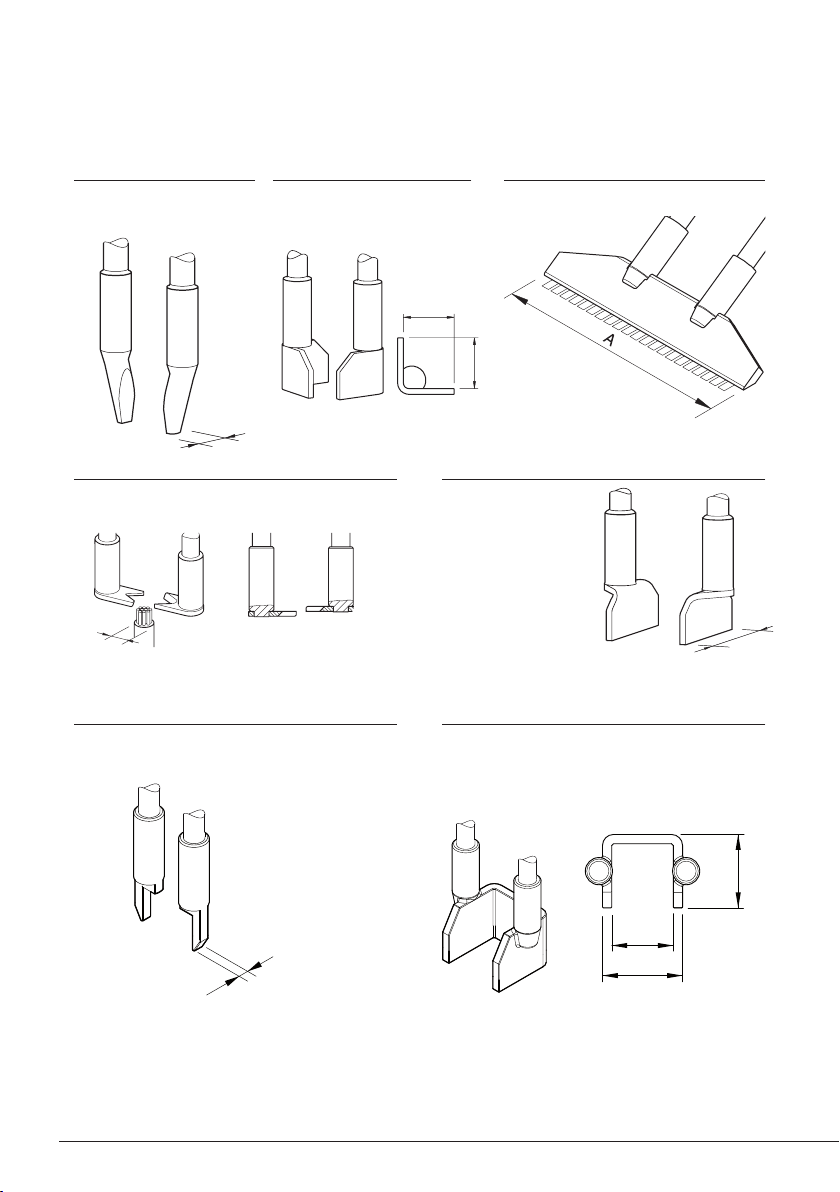

C420 Cartridge Range
Chip Components
Dual in line
QFP y PLCC Blade Type
Cable stripper
12
15,6
14,3
2
Special Cartridges Special Cartridges
A
A
A
A
A
C420-282C420-281
C420-271 A = 1,5 mm
C420-272 A = 2,6 mm
C420-273 A = 4 mm
C420-274 A = 6 mm
C420-275 A = 8 mm
C420-276 A = 10 mm
C420-277 A = 15 mm
C420-278 A = 20 mm
C420-285 A = 22 mm
C420-279 A = 8 mm
C420-280 A = 11 mm
C420-283 A = 50 mm
C420-281 C420-282
A = 12 mm
B= 15,6 mm
C= 14,3 mm
2 mm
4
www.jbctools.com
5
Notes
This product should not be thrown in the garbage.
In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must
be collected and returned to an authorized recycling facility.
Warranty
JBC’s 2 year warranty covers this equipment against
all manufacturing defects, including the replacement
of defective parts and labour.
Warranty does not cover product wear or misuse.
In order for the warranty to be valid, equipment must
be returned, postage paid, to the dealer where it was
purchased.
Get 1 extra year JBC warranty by registering here:
https://www.jbctools.com/productregistration/
within 30 days of purchase.
www.jbctools.com
Specifications
002204 8-0519
- Weight: 110 g (0.2 lb)
- Max. power per cartridge: 80W
Complies with CE standards
ESD Safe
