JABSCO 5850-0001 Manual de usuario

Model 5850-0001

SE F-PRIMING PUMP

FEATURES

Body: Bronze

Impeller: Jabsco Neoprene Compound

Shaft: 316 Stainless Steel

Shaft Seal: ip Type

Ports: 3/4" NPT

Weight: 6 lb (approx.)

APPLICATION

Marine Engine Cooling

FOR ENGINE MODELS

CHRIS CRAFT - M Series (131 to 158 HP)

PA MER - DH 120

KERMATH - Sea Rover

ATHROP - H Master- H6- H - Atom

OSCO - Hercules Diesel 685

UNIVERSA - Super 6-Model Z

HERCU ES - JX

(and others)

OPERATING INSTRUCTIONS

Pump will self-prime at low or high speeds. Make sure

scoop and inlet line are clear and all connections airtight.

Do not run pump dry for more than 30 seconds. ack of

water flow may damage impeller. To drain pump, loosen

end cover screws.

SERVICE INSTRUCTIONS

IMPELLER REPLACEMENT: Remove end cover and

gasket. Pull impeller out by grasping hub or blades with

pliers. Replace impeller, gasket and end cover. A light

coating of grease in impeller bore will aid priming on dry

start up. (Use correct Jabsco gasket, a thicker or thinner

gasket may cause impeller damage.) Standard gasket is

0.010" thick.

INSTALLATION INSTRUCTIONS

Engage shaft with drive tang, make sure flange seats

squarely on mounting surface and bolt to engine.

Connect inlet and outlet fittings using pipe compound to

seal threads.

MODEL 5850-0001

MAJOR REPAIR: Remove pump from engine to

replace seal, bearings or shaft. To disassemble pump,

remove end cover, gasket and impeller as outlined

above. Press on impeller end of shaft to remove shaft

and bearing assembly. Remove cam and wearplate

assembly. Use screw driver to pry bearing seal out of

bearing bore. Press shaft seal out towards impeller bore.

Replace all worn parts. When installing coupling, sup-

port splined end of shaft. Press bearing seal in bearing

bore with lip towards bearing. Press shaft and bearing

assembly into bearing bore. Press adaptor ring into

body. Install slinger on shaft. Install seal spacer in seal

cavity. Install 0-ring in seal bore. Press seal in seal cav-

ity with lip facing toward impeller bore. Apply a thin coat

of sealant to top of cam and cam screw threads, install

wearplate and cam assembly. (Be sure cam is flush with

end cover surface.) Secure with screw. ubricate

impeller bore, install impeller. ubricate impeller face,

install gasket and end cover and secure with screws.

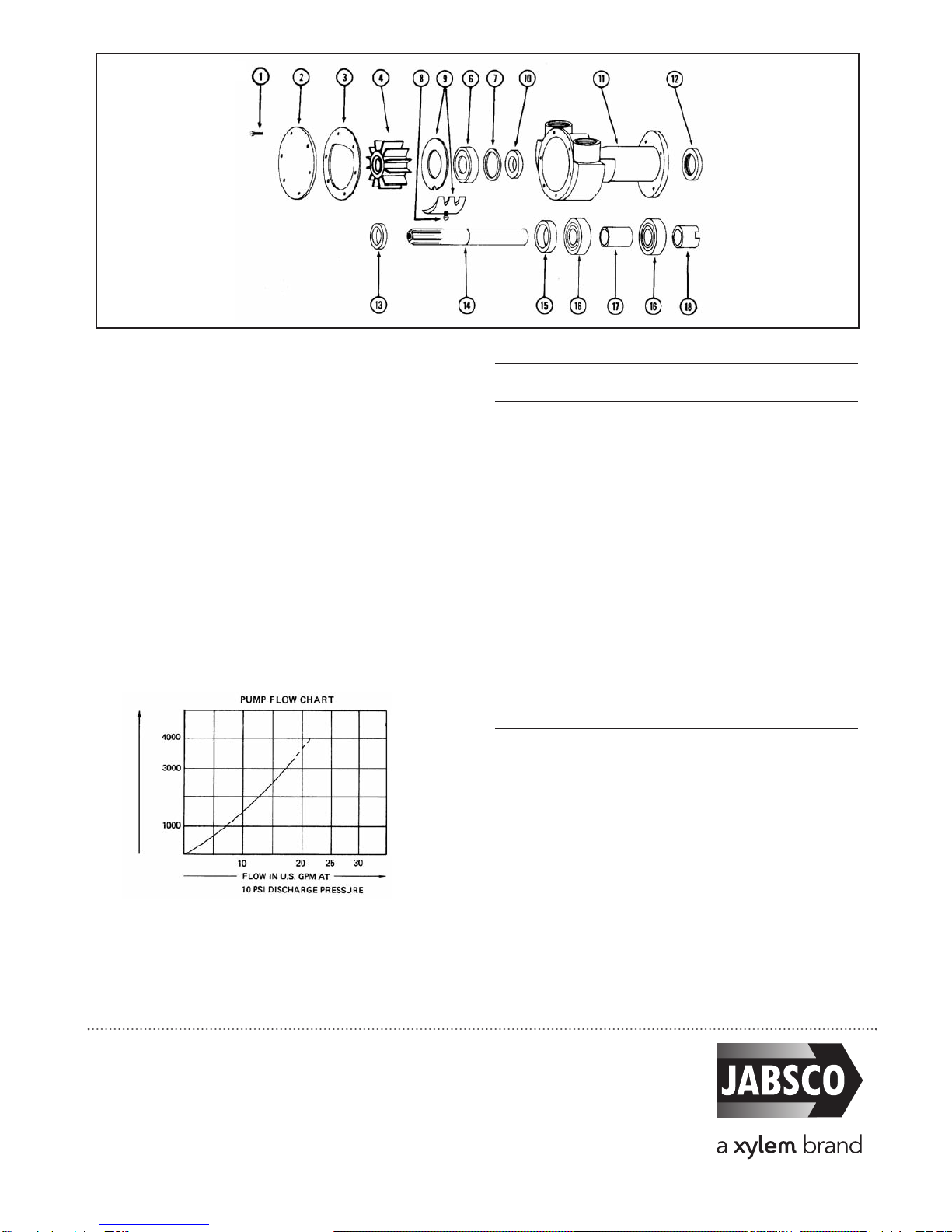

EXPLODED VIEW

PARTS LIST

Part

Key Description Qty. Num er

1 Screw (End Cover) 6 91002-0020

2 End Cover 1 11830-0000

3* Gasket 1 3298-0000

4* Impeller 1 1210-0001

6* Seal (Shaft) 1 92700-0060

7* O-Ring † 1 92000-0210

8 Screw (Cam) 1 91003-0010

9 Cam Wearplate 1 7884-0000

Assembly

10 Seal Spacer 1 3166-0000

11 Body 1

12 Adaptor Ring 1 3376-0000

13 Slinger 1 3286-0000

14 Shaft 1 5857-0000

15 Bearing Seal 1 92700-0060

16 Ball Bearing 2 92600-0130

17 Bearing Spacer 1 3383-0000

18 Coupling 1 3278-0000

Service Kit 90033-0001

* Parts Contained in Service Kit

† O-ring used only in pumps manufactured prior to June 1993.

Warranty: All products of the company are sold and all services of the company are offered subject to the company’s warranty and terms and conditions of sale, copies of which will be furnished upon request.

The information provided herein is for guidance only, it does not constitute a guarantee of the performance or specification of any individual product or component.

Jabsco is a trademark of X lem Inc. or one of its subsidiaries.

www.xylemﬂowcontrol.com

Jabsco, 100 Cummings Center, Ste. 535-N, Beverly, MA 01915

Tel: +1 978 281 0440 Fax: +1 978 283 2619

Jabsco, Bingley Road, Hoddesdon, Hertfordshire, EN11 0BU

Tel: +44 (0) 1992 450 145 Fax: +44 (0) 1992 467 132

NHK Jabsco Co Ltd, 3-21-10, Shin - Yokohama Kohoku-ku, Yokohama 222

Tel: +81 (0) 45 475 8906 Fax: +81 (0) 45 475 8908

Jabsco GmbH, Oststraße 28, 22844 Norderstedt

Tel: +49 (0) 40 53 53 73 0 Fax: +49 (0) 49 53 53 73 11

Jabsco Italia, s.r.l., Via Tommaseo, 6, 20059 Vimercate, Milano

Tel: +39 039 685 2323 Fax: +39 039 666 307
