Isenberg 230.4201 Manual de usuario

www.isenbergfaucets.com

Ver. 2.54

BEFOREYOUBEGIN



•Youmustobservealllocalplumbinglawsandcodes.



•Donotinstallthisvalveifitdoesnotmeetlocalplumbingcodes.

•Shutoﬀthemainwatersupply.



InstallationManual-230.4201

3/4”ThermostaticValve&Trim

NOTICETOHOMEOWNER

•

We

recommendthatthisproductisinstalledbyaqualiﬁed



professionalplumber.

•Pleasecheckthisproductimmediatelytoensurethatithas

notbeendamagedandiscomplete.Beforeinstallation,please

makesurethisproductisthecorrectmodelandyouhaveall

thepartsrequiredforinstallationanduse.

•Pleaseﬂushthewatersystemtoensurethatnometalswarf,

solder,andotherimpuritiescanentertheproduct.

•

Turnoﬀwatersupplybeforecommencingwork.



•Pleasereadtheseinstructionscarefullyandretainforfuture

reference.

www.isenbergfaucets.com



TABLEOFCONTENTS

•

OperatingSpeciﬁcations . . . . . . . 1

ValveInstallationAndTolerance

 Cut-OutDimensions . . . . . . . 1

RoughInSpeciﬁcation . . . . . . 2

ConnectingTheSupply&OutputLines . . . . . 3

TrimMarkings/WaterOutput . . . . . . 4

UsingTheSupplyStops . . . . . . . 5

FlushingTheValve . . . . . . . . 5

InstallingTheTrim . . . . . . . . 6

ReplacingTheThermostaticCartridge . . . . . 9

ReplacingSupplyStops . . . . . . . 9

InstallingTheExtensionKit . . . . . . . 10

CartridgeMaintenance . . . . . . . 11



•



•



WATERTEMPERATURE

ThisvalvemeetsorexceedsANSIA112.18.1andASSE1016

ThisvalveiscertiﬁedbyIAPMO



WATERPRESSURE



Thisproductistobeusedwithawater

pressurerangeof15PSIto80PSIONLY



Ifwaterpressureisgreaterthan80PSI

installapressurereducingvalve(PRV)



Thisproductistobeusedwithwaterat

atemperaturerangeof40˚F-120˚F

ONLY!



www.isenbergfaucets.com

OPERATINGSPECIFICATIONS



CUTOUTDIMENSIONS

IsenbergʼsTVHSeriesvalvescomeswithablack

pre-attachedmud-guard.Thismud-guardisnot

toberemovedordiscarded.Itspurposeisto

guidetheinstallationprofessionalontheproper

cut-outdimensionsofthedrywall.

Wall Cut Out Dimensions

From Center Point of Valve:

TVH.4201

X = 68mm / 2.67”

Y = 113mm / 4.44”

www.isenbergfaucets.com



ROUGHINSPECIFICATION

The distance between back of

the valve to the nished tile

surface should be between

2.77” and 3.44” inches.

Minimum = 70.5mm [2,77"]

Maximum = 87.5mm [3,44"]

Finished tile should fall

between Min & Max.

If valve is installed too deep

into the wall, extensions are

available.

www.isenbergfaucets.com

CONNECTINGTHESUPPLY&OUTPUTLINES

FixValveonwoodenplank LevelValve

AttachHot/ColdLines AttachOutputLines

www.isenbergfaucets.com

FINISHTILEPOSITION

OUTPUT

InstallDrywallandTile.Ensureﬁnishedtile

surfaceisbetweentheminandmaxmarks

onthemudguards.

Thebelowdiagramshowsthemarkingson

thetrimplateandtheoutputsonthevalve.

Thiswillhelptheinstallationprofessional

toconnecttheappropriateaccessoriestothe

valveoutputports

TRIMMARKINGS/WATEROUTPUT

Note: The TVH.4201 valve does not have volume control capability. It must be used

with a volume control valve such as the TVH.4511 or a diverter valve such as the TVH.4371

www.isenbergfaucets.com

USINGTHESUPPLYSTOPS

TurnClock-wise7timestostop

waterﬂow.

FLUSHINGTHEVALVE

Inordertocleardirtinthelines-

youmustﬂushthevalvebeforethe

wallisclosedandwateristurnedon

fortheﬁrsttime.

1)Removethe2supplystopsby

turningwithaspanner

2)Removethermostaticcartridge

byturningwithaspanner

3)Turnonwatersupplyandlet

waterﬂowremovinganydirtinthe

lines.

www.isenbergfaucets.com

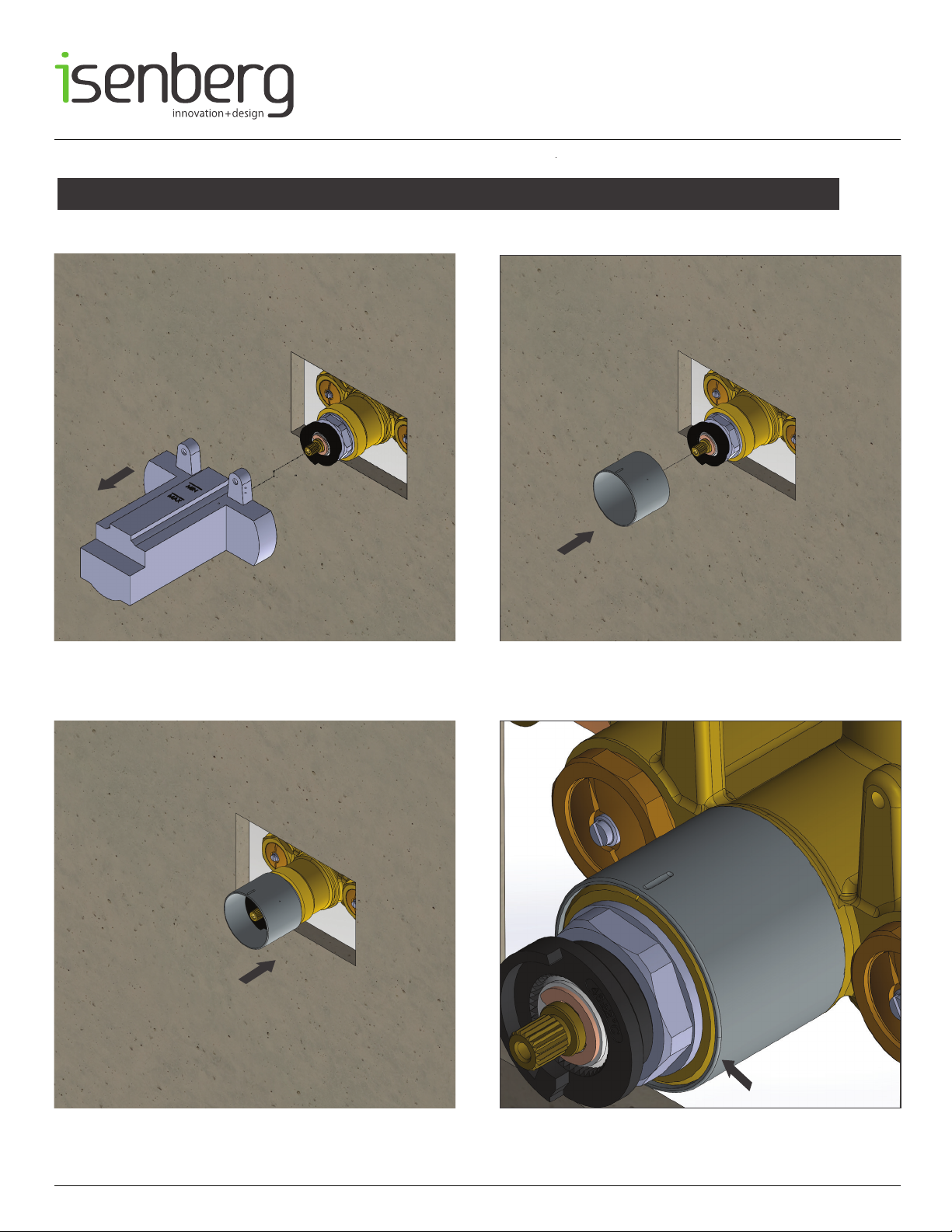

INSTALLINGTHETRIM-TRIMPLATESIZEANDSHAPEMAYVARY-ILLUSTRATIONONLY

Removemudguard Install42mmring

Ahardpushmayberequired The42mmringmustbeﬂush.Otherwisethehandle

willnotﬁtproperly

www.isenbergfaucets.com

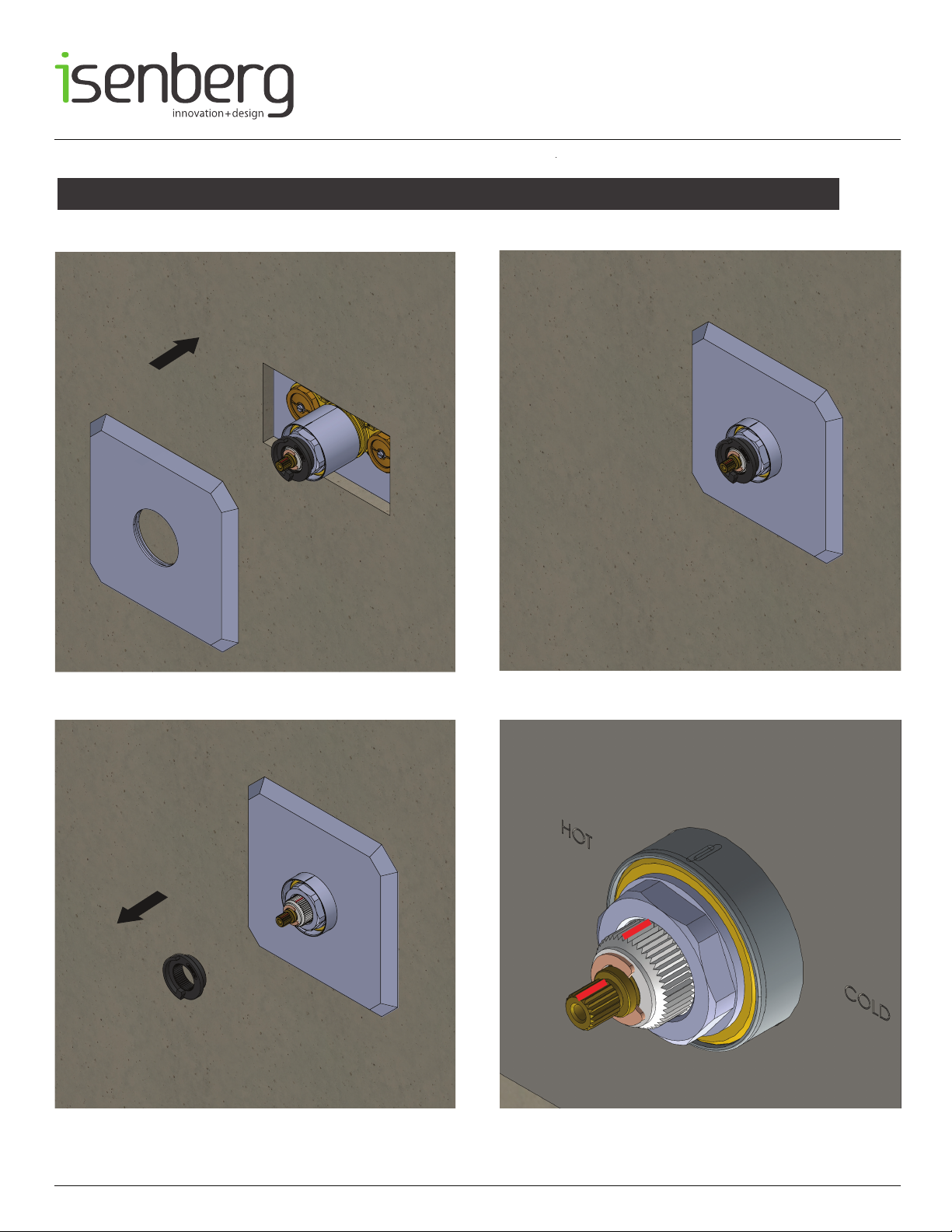

INSTALLINGTHETRIM-TRIMPLATESIZEANDSHAPEMAYVARY-ILLUSTRATIONONLY

Inserttrimplate AlignTrimplatetillitisstraight

Removeanti-scaldtemperaturering

Caliberatecartridgebeforeinsertingtemperature

handle.Redmarksmustalign.

www.isenbergfaucets.com

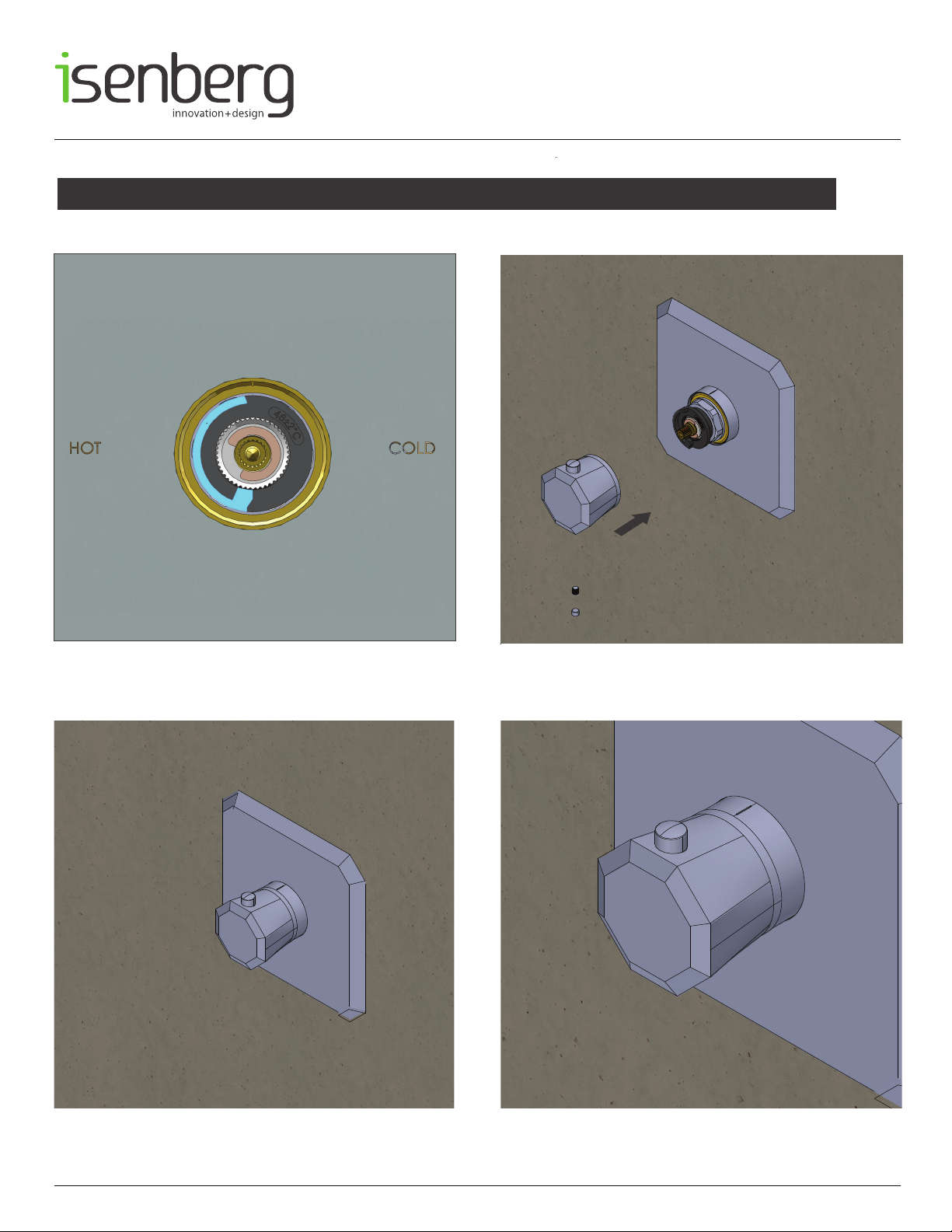

INSTALLINGTHETRIM-TRIMPLATESIZEANDSHAPEMAYVARY-ILLUSTRATIONONLY

Thebuttononthetemperaturehandleisananti

scaldfeature.Inordertorotatethehandlefurther

to“HOT”thebuttonmustbepressed

Thisphotoshowsacompletelyinstalledtrim

Correctlyre-insertanti-scaldtemperatureringinthe

rightposition
