Dear iRobot Roomba Owner,

Thank you for purchasing an iRobot Roomba vacuum cleaning

robot. You’ve joined the millions of people who clean with robots -

the smarter way to get it done.

Please take a few moments to read this manual and get acquainted

with your Roomba, to get the best performance from your robot.

If you have any questions, visit our website at www.irobot.com for

more information.

You can also tell us about your experience with your Roomba;

iRobot listens to our customers and makes enhancements to our

robots based on your valued feedback. We’d love to hear from you!

On behalf of the entire team, thank you for choosing iRobot; we

appreciate your business, feedback and loyalty.

Here’s to robots that make a difference!

Yours for less chores and more life,

Colin Angle

Chairman, CEO and Co-Founder

iRobot Corporation

00054.0310.v2.Roomba500.Manual.EN.indd 3 23/06/2011 3:57 PM

4 iRobot Roomba 500 Series

Important Tips

Roomba contains electronic parts. DO NOT submerge Roomba or spray it

with water. Clean with a dry cloth only.

Before using Roomba the ﬁrst

time, you need to activate Roomba

by removing the battery pull tab.

Charge Roomba overnight before

ﬁrst time use.

Remove battery pull tab

For Best Performance

• Remove and clean Roomba’s brushes after every use.

• Empty Roomba’s bin and clean its lter after every use.

• Use a Virtual Wall® (optional accessory) to keep Roomba cleaning where

you want it.

• Use your Roomba frequently.

Battery Life

To extend Roomba’s battery life and keep Roomba cleaning at peak

performance:

• Always keep Roomba plugged in when not in use.

• Recharge Roomba as soon as possible. Waiting several days to

recharge Roomba can damage the battery.

• For storage off the power supply, remove the battery from Roomba and

store in a cool, dry place.

Turning Roomba on and off

• To turn Roomba ON, press CLEAN once. You will hear a

beep and the CLEAN button will light.

• To start a cleaning cycle, press CLEAN again. Roomba will

start a cleaning cycle.

• To pause Roomba, press CLEAN while Roomba is cleaning.

• To turn Roomba OFF, press and hold the CLEAN button

until Roomba’s lights turn OFF.

• To resume the cleaning cycle, press CLEAN again.

00054.0310.v2.Roomba500.Manual.EN.indd 4 23/06/2011 3:57 PM

For more detailed information, visit: www.irobot.com 5

Table of Contents

iRobot Roomba Anatomy.............................................6

Cleaning Pattern...........................................................7

Cleaning Modes............................................................8

Cleaning System...........................................................9

Cleaning Bins..............................................................10

Battery Storage and Charging ........................... 11 - 12

Optional Accessories .................................................13

Virtual Wall® ...........................................................13

Virtual Wall® Lighthouses™ ........................... 14 - 15

Home Base® ..........................................................16

Wireless Command Center ...................................17

Remote Control .....................................................18

Scheduling Roomba (selected models) ................ 19 - 20

Regular Maintenance .......................................... 21 -23

Language Selection Mode .........................................24

Troubleshooting.................................................... 25-26

Replaceable Modules........................................... 27-31

Frequently Asked Questions......................................32

Important Safety Instructions ....................................33

Document of Conformity............................................34

iRobot Customer Care ...............................................35

00054.0310.v2.Roomba500.Manual.EN.indd 5 23/06/2011 3:57 PM

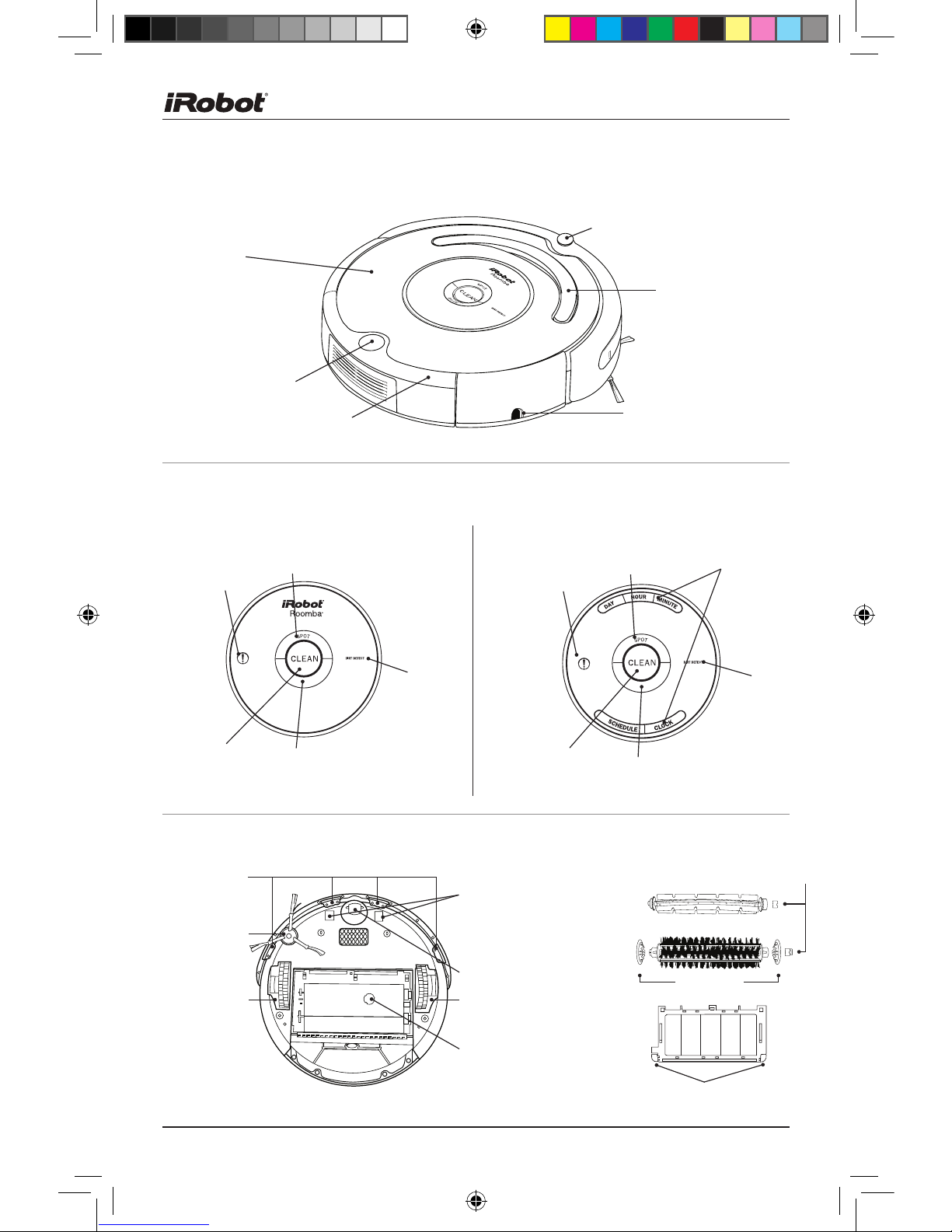

6 iRobot Roomba 500 Series

iRobot Roomba Anatomy

SPOT Button

CLEAN/Power

Button SPOT/DOCK Button

(varies by model)

Dirt Detect™

Infrared Sensor

Bin Release Button

Power Supply Socket

Handle

(varies by model)

Flexible

Brush

Cliff Sensor

Openings

Edge-Cleaning

Side Brush

Dirt Detect™

Sensor

Left Wheel

Module

Right Wheel

Module

Contact Points

for Home Base

(selected

models)

Brush Guard Release Tabs

Brush

Bearings

Brush

Guard

Removable

Caster Wheel

Buttons and Lights

Bottom View

(Models 500 - 549) (Models 550 and above)

Scheduling

Interface

Main

Brush

Troubleshooting

Light

Faceplate

Bin

DOCK Button

SPOT Button

CLEAN/Power

Button

Dirt Detect™

Troubleshooting

Light

End Caps

00054.0310.v2.Roomba500.Manual.EN.indd 6 23/06/2011 3:57 PM

For more detailed information, visit: www.irobot.com 7

Scheduling

Interface

Cleaning Pattern

Roomba is a robot that cleans ﬂoors differently than the way most people

clean their ﬂoors. Roomba uses its robot intelligence to efﬁciently clean

the whole ﬂoor, under and around furniture and along walls.

Roomba calculates the optimal cleaning path as it cleans and determines

when to use its various cleaning behaviors:

Spiraling: Roomba uses

a spiral motion to clean a

concentrated area.

Wall Following: Roomba

uses this technique to

clean the full perimeter

of the room and navigate

around furniture and

obstacles.

Room Crossing: Roomba

crisscrosses the room

to ensure full cleaning

coverage.

Dirt Detection: When

Roomba senses dirt, the

blue Dirt Detect™ light is lit

and Roomba cleans more

intensely in that area.

TIP: Roomba takes approximately 25 minutes to clean an average room and

will pass over the same area of the ﬂoor multiple times to ensure total

ﬂoor coverage.

TIP: For most efcient cleaning, clear your oor of clutter and use a Virtual

Wall (optional accessory) to conﬁne Roomba to one room.

00054.0310.v2.Roomba500.Manual.EN.indd 7 23/06/2011 3:57 PM

8 iRobot Roomba 500 Series

Cleaning Modes

Roomba will clean based on the cleaning mode you select. Roomba has

three cleaning modes.

Clean Mode (all models)

Roomba automatically calculates the room size and adjusts its cleaning

time appropriately.

Spot Mode (all models)

Roomba will spiral approximately three feet in diameter and then spiral

back to where it started, intensely cleaning a localized area.

Scheduled Cleaning Mode (Models 550 and above)

When a future cleaning time is programmed, Roomba enters Scheduled

Cleaning Mode. When scheduled to clean, Roomba will occasionally ﬂash

its next cleaning time to remind you of its schedule. At the speciﬁed time,

Roomba leaves its Home Base, cleans, and then returns to the Home

Base to recharge when it’s done.

00054.0310.v2.Roomba500.Manual.EN.indd 8 23/06/2011 3:57 PM

For more detailed information, visit: www.irobot.com 9

Cleaning System

Roomba features a patented three-stage cleaning system.

Floor Surfaces

Roomba works on wood, carpet, tile, vinyl, and linoleum, and adjusts

automatically to different ﬂoor types.

Roomba automatically senses stairs and other cliffs. Roomba might

stall when confronting rounded edges and might slide over particularly

slippery surfaces. Extremely dark-colored ﬂoors may contribute to

Roomba’s cliff sensors working less effectively.

Anti-Tangle system

Roomba won’t get stuck on cords, carpet fringe or tassels. When Roomba

senses it has picked up a cord or tassel, it will automatically stop its main

brushes or side brush and try to escape. Roomba may make a clicking

noise when anti-tangle is activated.

Side brush

sweeps along

edge of walls and

into corners.

Two counter-

rotating brushes

scoop up dirt,

hair, and debris

into the bin.

Powerful vacuum picks up the

remaining ﬁne particles, dirt, and

hair. The ﬁlter traps dust and

small particles.

Filter

00054.0310.v2.Roomba500.Manual.EN.indd 9 23/06/2011 3:57 PM

10 iRobot Roomba 500 Series

Cleaning Bins

Roomba is compatible with two interchangeable cleaning bins.

Vacuum Cleaning Bin

The vacuum cleaning bin should be used for everyday cleaning. The dual

action, counter-rotating brushes pick up debris, while the vacuum sucks

up the dirt and dust.

High-Capacity Sweeper Bin (optional accessory for all models)

The high-capacity sweeper bin can hold more debris than the vacuum

cleaning bin. Use this bin when cleaning larger-than-usual amounts of dirt

and dust, or when cleaning bigger pieces of debris.

Vacuum Cleaning Bin High-Capacity Sweeper Bin

00054.0310.v2.Roomba500.Manual.EN.indd 10 23/06/2011 3:57 PM
