IPEX CABLINE-UM Manual de usuario

1/ 15

Document No.

18033

Confidential

PEX Inc.

QKE-DFFDE09-03 REV.8

CABLINE®-UM

Part No.Plug:20877-0**T-0※Receptacle:20879-0**E-0※

Instruction Manual

4 S20389 August 6, 2020 T.Masunaga -H.Ikari

3 S19758 December 13, 2019

T.Masunaga -H.Ikari

2 S19466 August 1, 2019 T.Masunaga -H.Ikari

1 S18713 August 1, 2019 Y.Miyazaki T.Masunaga H.Ikari

Rev. ECN Date Prepared by Checked by Approved by

CABLINE

Instruction Manual

Document No.

18033

04EN

2/ 15

Confidential

This manual is to explain the insertion & withdrawal methods and important points in handling of

CABLINE-UM connector plug with cable for the purpose of proper use.

【Connector Name, Part number】

◆The cable side connector

Product Name ： CABLINE-UM Plug

Part No. ： 20877-0**T-0※

◆The PCB side connector

Product Name ： CABLINE-UM Receptacle

Part No. ： 20879-0**E-0※

“ ** ” part shows the number of the connector position.

“ ※ ” part shows the variation. Please refer to the drawing for details.

CABLINE

Instruction Manual

Document No.

18033

04EN

3/ 15

Confidential

Lock cover finger hook

【Names of each part of the connector.】

Mating direction

I-PEX mark

Lock cover

Plug finger hook

Lock cover open

Plug

Receptacle

CABLINE

Instruction Manual

Document No.

18033

04EN

4/ 15

Confidential

【Comparing Plug parts numbers】

【Comparing Receptacle parts numbers】

20879-0**E-01

Shell Soldering Area

Refer to red dotted box below.

PULL TAPE HOLDER

PULL TAPE

20877-0**E-02

Without Lock Cover

20877-0**E-03

With PULL TAPE HOLDER

20877-0**E-01

With Lock Cover

20879-0**E-02

Shell Soldering Area

Refer to blue dotted box below.

CABLINE

Instruction Manual

Document No.

18033

04EN

5/ 15

Confidential

【Connector Insertion Manual】

１．Which direction to mate

As shown in Fig.1, make sure to place a cable on non-soldered tail side.

Fig.1 Fig.2 Correct Connector Mating View

CAUTION

Do not mate the connector while cable is at soldered tail side.

Fig.3

・As shown in Fig.4 and 5, Please set it so that both ends of PLUG are located within the "[ ]" of silk

print on PCB.

Fig.4 With Lock cover Fig.5 Without Lock cover

Soldered tail side

Cable

Inside silk print on

PCB

Silk print on PCB

The shape of plug

Silk print on PCB

Inside silk print on

PCB

Non-soldered tail side

Soldered tail side

CABLINE

Instruction Manual

Document No.

18033

04EN

6/ 15

Confidential

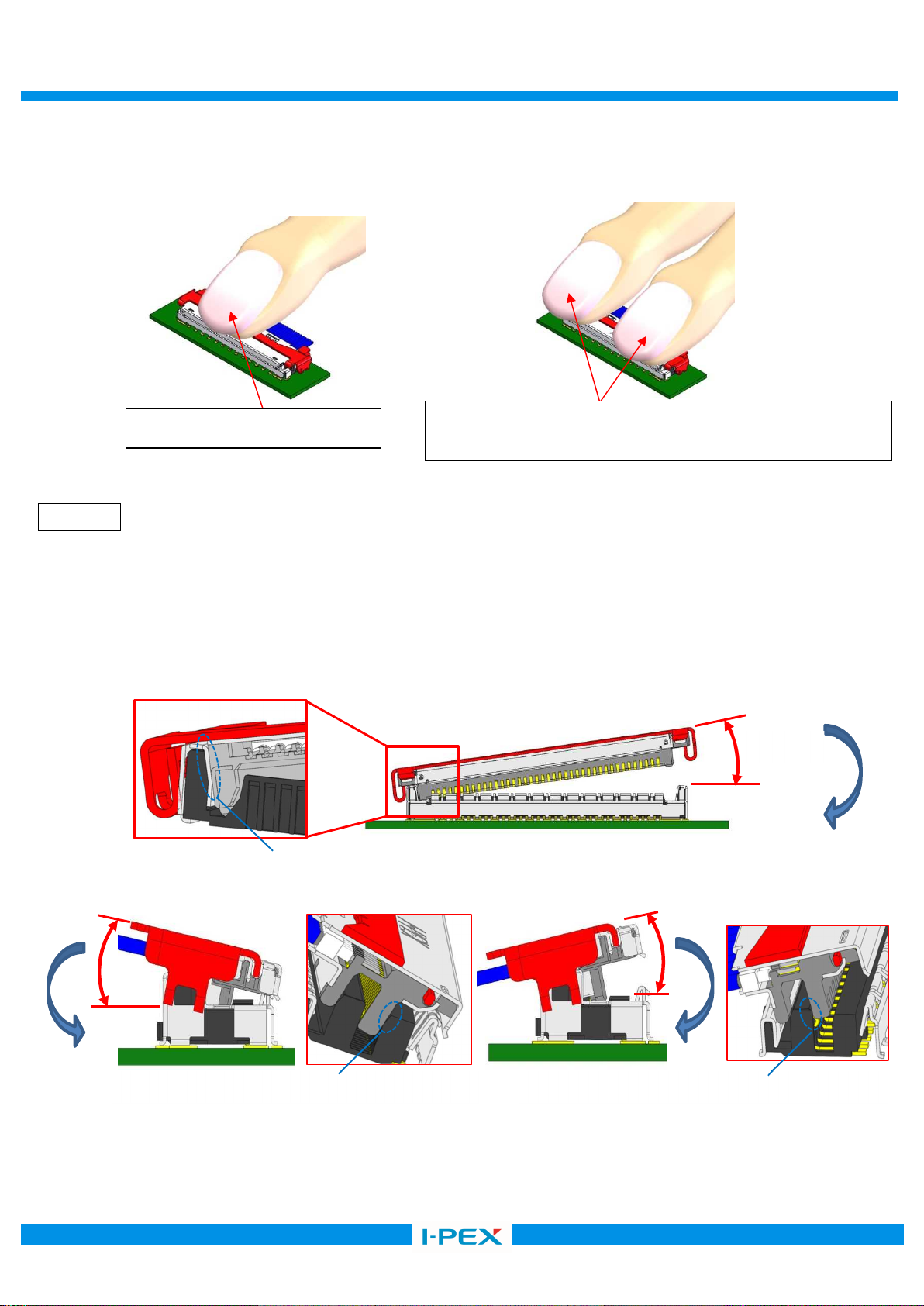

2．How to Mate

Push the center of cable connector vertically until it clicks.

The clicking shows the mating completion. [Fig. 6]

Push both ends of the connector to make sure the mating is completed. [Fig. 7]

Fig.6 Fig.7

CAUTION

・A support shall be designed and placed under PCB in order to prevent PCB from being deformed

when cable connector is inserted with a pressing.

・The initial connector insertion angle allowance is given in Fig.8. Please set so that it becomes

parallel without applying excessive force afterwards. Do not force to press cable connector when

the insertion angle is out of this allowance angle.

Note 1. One side mating: Receptacle and plug mating slot side wall are touched on one end

Fig.8 Insertion angle allowance

Then push both connector ends and check the mating

condition to ensure that either end is securely inserted.

One side mating Note 1

Push the center of connector

12° MAX.

One side mating Note 1

12° MAX. 12° MAX.

CABLINE

Instruction Manual

Document No.

18033

04EN

7/ 15

Confidential

【How to Withdraw Cable Connector by finger】

①Lift a lock cover finger hook outward on one end and repeat it again on opposite side to release lock cover.

Make sure that the inner lock part is completely released. (see Fig.9)

② TYPE 1

Hook both ends of the Plug with the nail and withdraw the connector. (see Fig.10)

TYPE 2

Jump up both ends of the plug one by one and withdraw the connector. (see Fig.11)

Fig.9

Fig.10 TYPE 1

Fig.11 TYPE 2

LOCK

CABLINE

Instruction Manual

Document No.

18033

04EN

8/ 15

Confidential

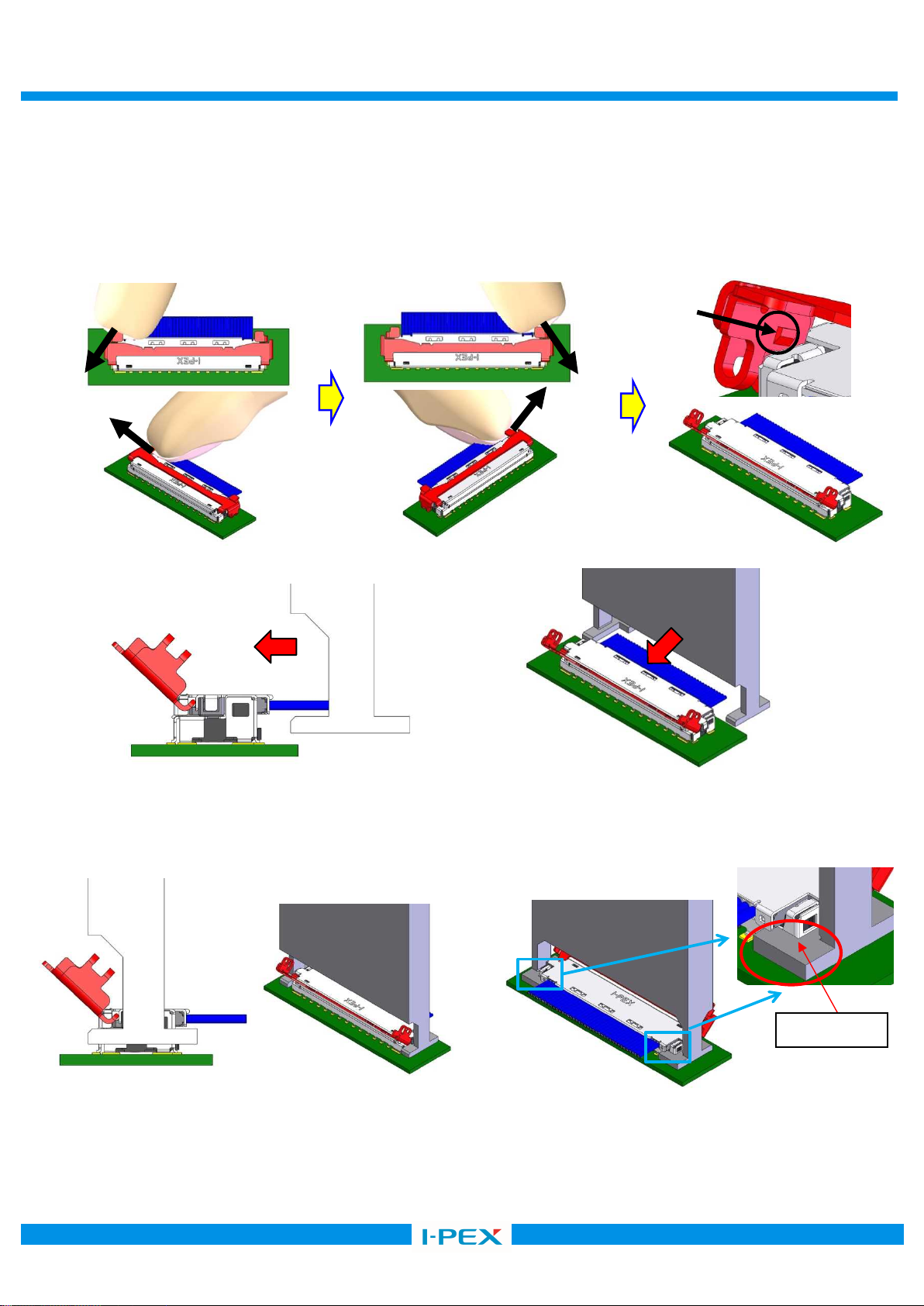

【How to Withdraw Cable Connector by pull jig】

①Lift a lock cover finger hook outward on one end and repeat it again on opposite side to release lock cover.

Make sure that the inner lock part is completely released. (see Fig.12)

②Slide the “pull jig” from the side of a cable and attach to the cable connector.(see Fig.13)

③The jig shall be moved until it reach a stopper just as it hold the cable connector .(see Fig.14)

④Lift up the jig vertically to the PCB surface.(see Fig.15)

Fig.12

Fig.13

Fig.14

The front view

The side view

LOCK

The front view

The side view

The back view

Stopper

CABLINE

Instruction Manual

Document No.

18033

04EN

9/ 15

Confidential

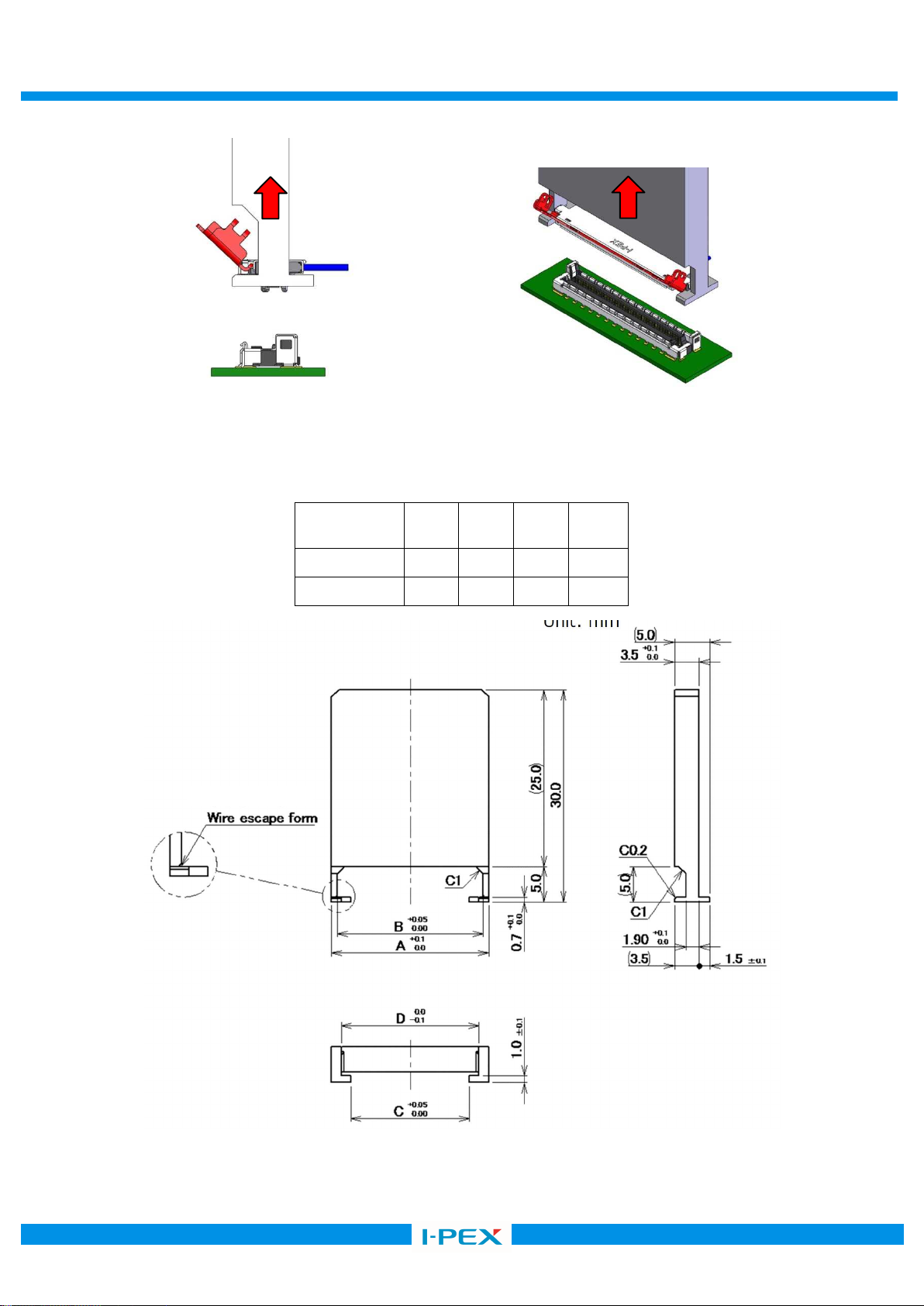

Fig.15

【Pull Jig】

When withdrawal using pull jig, jig shape is presented in Fig.16 for reference.

pos. A B C D

30P 18.2

16.6

12.8

15.5

40P 22.2

20.6

16.8

19.5

Unit: mm

Fig.16 Reference : Plug Pull Jig

The front view

The side view

CABLINE

Instruction Manual

Document No.

18033

04EN

10 / 15

Confidential

CAUTION

・Do not lift lock cover finger hook inward or excessive force applied to the connectors may

damage them.

・Do not unmate a cable connector by pulling cable.

・When withdrawing the connector, we recommend that you pull the finger perpendicular to PCB.

When removing one side (cable pitch direction) first, please do not apply load to the top of

the connector. (see Fig.)

・Allowable mating angle is shown in Fig.15. When the jig is lifted up to un-mate the cable connector,

The unmating angle must be with in this tolerance.

Fig.19

Allowance

connector mating angle

Fig.17

2° MAX. 2° MAX.

Fig.18

Do not apply load
