Invion GPS-3V4 Manual de usuario
InVion Language : UK
Page : 1 (of 13 Pages)
Version : 1.0
Date : 2007.08.21
Model: GPS-3V4
INSTRUCTION MANUAL
GPS NAVIGATION SYSTEM
GPS-3V4
UK
FR
NL
DE
PT
PL
InVion Language : UK
Page : 2 (of 13 Pages)
Version : 1.0
Date : 2007.08.21
Model: GPS-3V4
2
ENGLISH
Congratulations on choosing your new Invion product. We have
every expectation that you will be completely satised with your new
purchase.
To always guarantee optimal function and performance of your product, we
would ask the following:
Before using the product for the rst time, carefully read the operating
instructions and adhere to the safety precautions!
All activities at and with this product may only be carried out as described
in these operating instructions.
Please be sure to include the operating instructions in case you pass
along this product to someone else.
Packaging:
This product is delivered in protective packaging to prevent transportation
damage. Packaging materials are raw materials and can therefore be
recycled. Please recycle these materials.
•
•
•
InVion Language : UK
Page : 3 (of 13 Pages)
Version : 1.0
Date : 2007.08.21
Model: GPS-3V4
3
Contents
Brief introduction of hardware. . . . . . . . . . . . . . . . . . . . . . . . .4
TopMenu..........................................6
Entertainment ......................................7
Specications .....................................10
With reference to environmental protection. . . . . . . . . . . . .11
Claims&Warranties................................12
InVion Language : UK
Page : 4 (of 13 Pages)
Version : 1.0
Date : 2007.08.21
Model: GPS-3V4
4
ENGLISH
Brief introduction of hardware
(1) Power button: press and hold for 3 seconds to turn the GPS unit
on or off.
(2) Touch screen
(3) Built-in GPS antenna
(4) Card slot: slot for SD or MMC memory cards (sold separately)
(5) Charge indicator light
(6) Reset button
(7) USB port
(8) Headphone jack/TMC antenna jack
*Tip1: Do not touch the touch screen before the unit starts up completely;
otherwise, the touch screen may fail to work.
Standard Package
Before getting started with your GPS, check to see that your INVION GPS-
3V4 package includes the following items (if you are missing any parts,
please contact your INVION dealer immediately):
● GPS unit ● Car power adapter
● Owner’s manual ● USB cable
● Windshield suction mount ● Mounting bracket
● TMC external antenna
1
2
3
4
5
6
8
7
InVion Language : UK
Page : 5 (of 13 Pages)
Version : 1.0
Date : 2007.08.21
Model: GPS-3V4
5
Connection
Connect to Car Power
Connect the USB plug of the car power adapter to the USB port on the
side of the GPS Unit.
Connect the car cigarette lighter plug of the car power adapter into the
car cigarette lighter socket.
1.
2.
Chipset SIRF III
Operates behind athermic windshield
InVion Language : UK
Page : 6 (of 13 Pages)
Version : 1.0
Date : 2007.08.21
Model: GPS-3V4
6
ENGLISH
Press the POWER button to turn on the GPS unit.
The “Top Menu” screen will be displayed.
NOTE: During navigation or other operations, quickly pressing the
POWER button will display the “Top Menu” screen.
Volume
Tap (+) or (-) on the “Top Menu” screen to adjust the volume.
Tap on the screen to mute the sound. The following will be displayed
on the screen:
Bright
Tap on the “Top Menu” screen to display the “Bright” menu.
1. Tap (+) or (–) on the screen to adjust the brightness of the screen.
2. Tap on the screen to return to the “Top Menu” screen.
1.
2.
1.
2.
Top Menu
InVion Language : UK
Page : 7 (of 13 Pages)
Version : 1.0
Date : 2007.08.21
Model: GPS-3V4
7

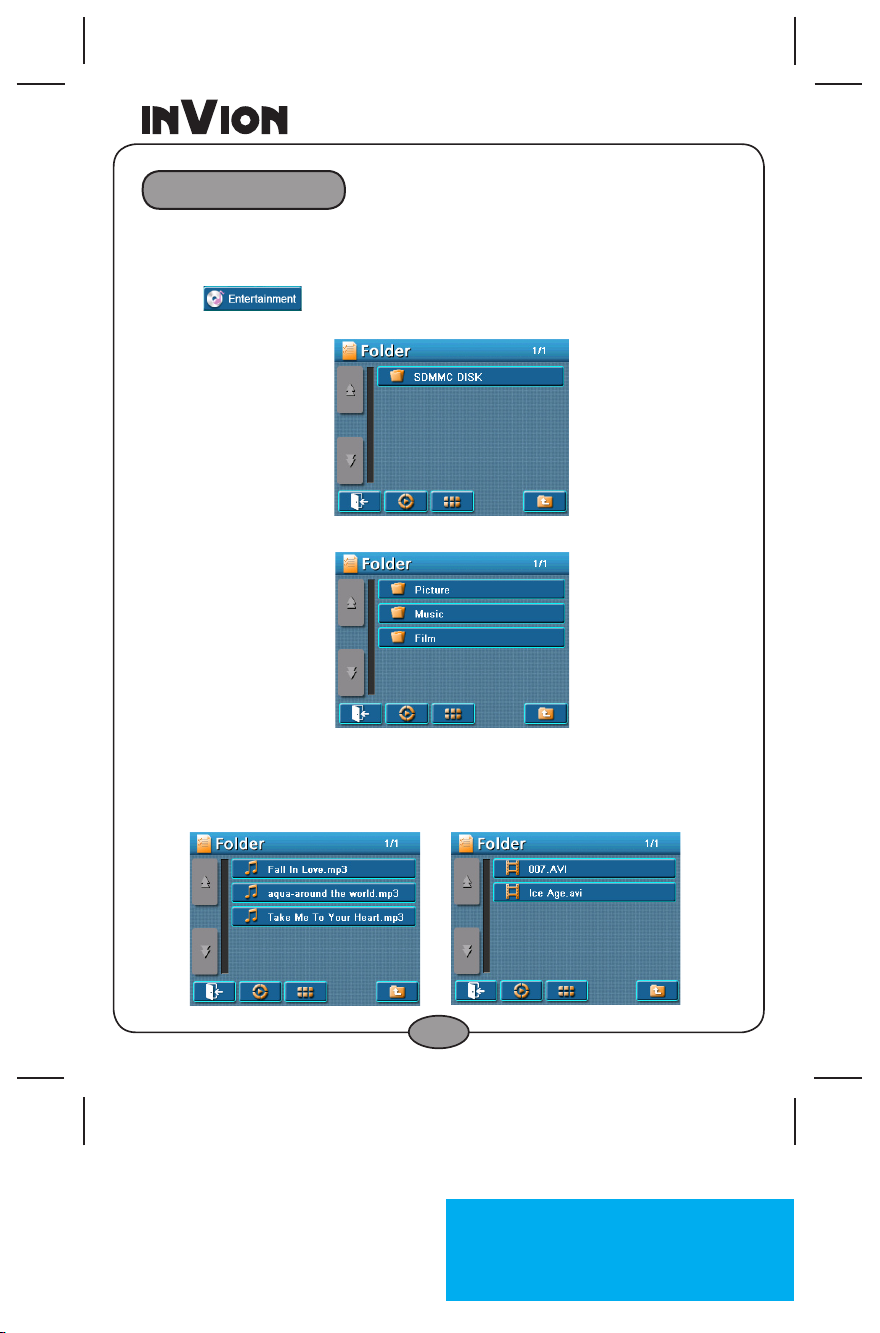

Entertainment
You can play the audio, video or picture les stored in SD or MMC memory
cards.
Insert the SD or MMC memory card into the card slot.
Tap on the Top Menu to change to Media player mode. The
SDMMC DISK folder will be displayed.
Tap SDMMC DISK folder to open it. The folder list will be displayed.
Tap a folder (Picture, Music, or Film) to open it; or tap a le to play it.
To Play an Audio or Video File
Tap the Music or Film folder to open it.
1.
2.
3.
4.
1.
InVion Language : UK
Page : 8 (of 13 Pages)
Version : 1.0
Date : 2007.08.21
Model: GPS-3V4
8
ENGLISH
Select and tap the le to play it.
NOTE:
While a video is playing, tap the video screen area to toggle between the
two screen sizes.
To View a Picture File
Tap the Picture folder to open it.
Select and tap the le to view it.
NOTE:
While displaying a picture, tap the picture screen area to toggle between the
two screen sizes.
2.
1.
2.
InVion Language : UK
Page : 9 (of 13 Pages)
Version : 1.0
Date : 2007.08.21
Model: GPS-3V4
9
The following buttons appear on the Folder screens.
Tap to return to the Top Menu.
Tap to display the entertainment interface.
Tap to scroll up the folder list or le list.
Tap to scroll down the folder list or le list.
Tap to show the le list in thumbnail mode.
Tap to show the le list in list mode.
Tap to return to the folder list.
The following buttons appear on the Audio and Video Media screens.
Tap to play a le or all les repeatedly.
Tap to play the les in random order.
Tap to play the previous le.
Tap to pause the playback.
Tap to resume the playback.
Tap to play the next le.
Tap to stop the playback.
Tap to return to the le list.
The following buttons appear on the Picture Media screens.
Tap to view the previous picture.
Tap to play the picture slideshow continuously.
Tap to view the next picture.
Tap to rotate the current picture 90º clockwise.
Tap to return to the le list.
InVion Language : UK
Page : 10 (of 13 Pages)
Version : 1.0
Date : 2007.08.21
Model: GPS-3V4
10
ENGLISH
3.5” GPS Navigation with MP3/MP4 Player
3.5” 4:3 LCD Screen, 320*240 RGB
OS: Windows CE.Net 4.2
64 MB SDRAM
CPU : ARM 400 MHz
GPS: SIRF Star 3 High Sensitivity Receiver
Built-in Antenna
Plays MP4/MP3 le via SD card (sold separately)
Built-In Lithium-Polymer Battery last 2.5 hours
Dimension: 105L X 75W X 20H mm
Weight: 175g
Hard Key and Connection Ports:
Power on/off
Headphone jack/TMC antenna jack
USB port
Reset
SD/MMC card slot
External antenna jack
Accessories:
5V Car Power Adapter
USB cable
Windshield suction mount
Mounting bracket
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Specications
