INVENTOR R1FI-30 Manual de usuario

Floor Standing Type Air Conditioners

R1FI-30

R1FO-30

R1FO-50

R1FI-50

Models and specifications

Power supply

Model Air purify Electric heater

220-240V～50Hz no Yes

R1FI-30/R1FO-30

220-240V～50Hz

R1FI-50/R1FO-50no Yes

■ ．．．．．．．．．．．．．．．．．．．．．．．．．．．．１

■ ．．．．．．．．．．．．．．．．．．．．．．．．６

■ ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．１４

■ ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．１６

■ ．．．．．．．．．．．．．．．．．．．．．．．．．．．２２

■ ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．２３

■ ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．２７

■ ．．．．．．．．．．．．．．．．．．．２9

■ ．．．．．．．．．．．．．．．．．．．．．．４

■ ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．１９

■ ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．７

■ ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．１３

CONTENTS

Notices for operation

Operation and maintenance

Notices for use

Names and functions of each part

Controller and function

Operation of wireless remote control

Breeze guide

Clean and care

Troubleshooting

Installation service

Notices for installation

Installation dimension diagram

Install indoor unit

Install outdoor unit

Test operation and check after installation

The symbol stands for the items

should be forbidden This symbol stands for the items

should be followed

■ ．．．．．．．．．．．．．．．．．．．．．．．．９

１

★

Operation and maintenance-Notices for operation

Please read the following carefully before operating.

WARNING

When having a burning smell

or smoke, please turn off the power

supply and contact with the service

may be damaged, and may cause

If the abnormity still exists, the unit

electric shock or fire.

Don't operate the air conditioner

with wet hands.

Otherwise, it can cause an electric

shock or fire.

Never cut off or damage power

cables and control wires. If the power

cable and signal control wire were

damaged, change them by professional

Power must adopts the special

circuit to prevent fire.

Otherwise, it can cause an electric

shock or fire.

Be sure to pull out the power

plug as the air conditioner not in use

for a long time.

Otherwise, the accumulated dusts

that may cause overheating or fire.

Never damage the electric wire

or use the electric wire, which is not

appointed.

Otherwise, it will cause overheating

or fire.

When cleaning, it is necessary

to stop driving and turn off the power

supply.

Cut off power supply

Otherwise, it may cause electric

shock or damage.

The power supply must adopt

the special circuit that with air switch

protection and assure it has enough

capacity.

The unit will be turned on

or off according to your requirement

automatically, please do not turn on

or turn off the unit frequently, othe-

rwise disadvantage effect may be

caused to the unit.

.center of INVENTOR

２

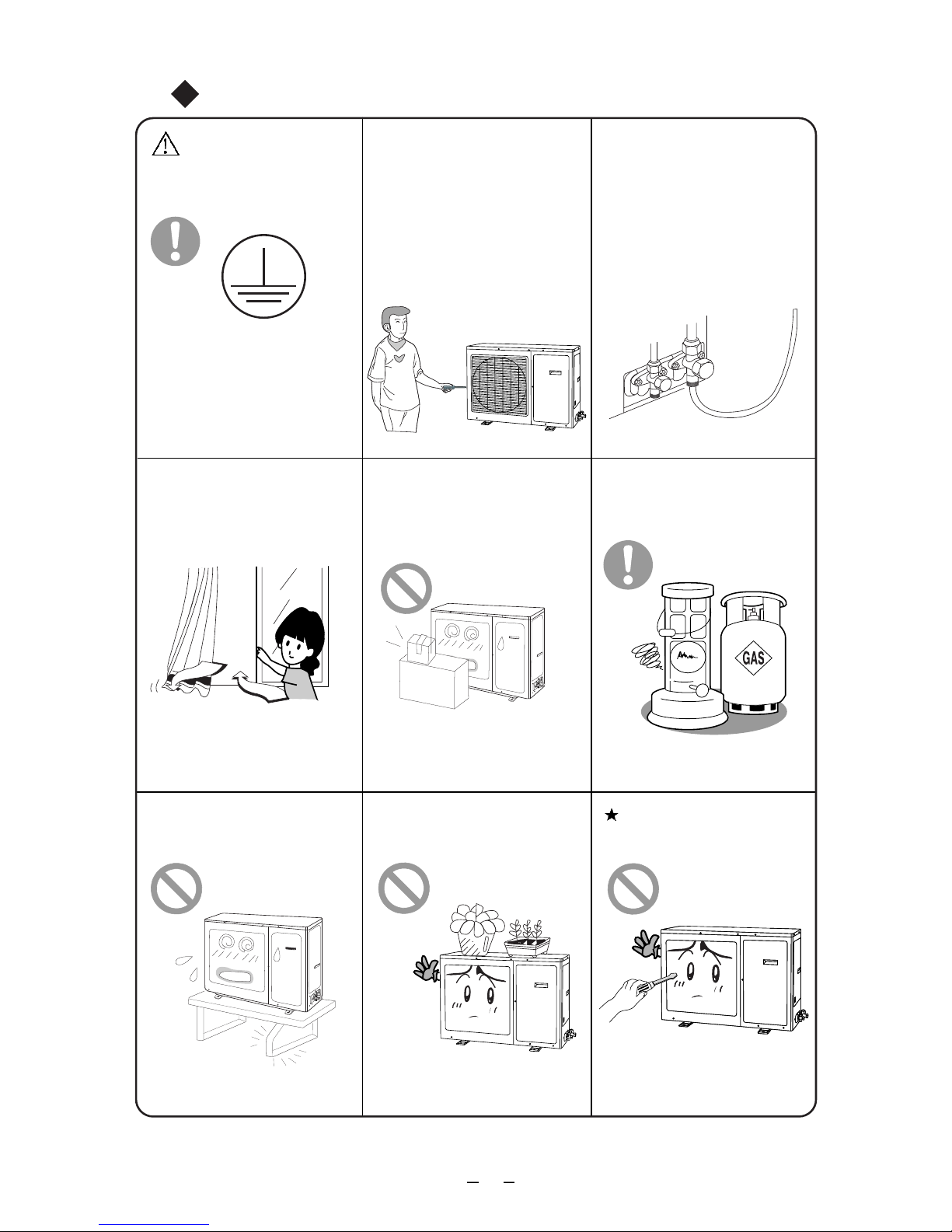

Earth: The ground be connected!

If not, please ask the qualified personnel to

install. Furthermore, don't connect each wire

to the gas pipe, water pipe, drainage pipe or

any other improper places.

Don't leave windows and doors open

for a long time while operating the air condit-

ioner.

It can decrease the air conditioning capacity.

Keep combustible spray away from the

units more than 1m.

It can cause a fire or explosion.

Don't step on the top of the outdoor unit

or place something on it.

As falling off the outdoor unit can be dangerous.

Please note whether the installed

stand is firm enough or not.

If it is damaged, it may lead to the fall of

the unit and cause the injury.

Don't attempt to repair the air condi-

tioner by yourself.

The wrong repair will lead to an electric

shock or fire, so you should contact the

Please never insert any thing into

the air conditioner, that may damage

the air conditioner. And never insert

your hands into the air outlet vent of

the indoor and outdoor unit.

The operation of outdoor unit stop

valve, should be operated by the pro-

fessional personnel, in order to avoid

Never block the air inlet vent and

air outlet vent of the indoor unit and

outdoor unit.

This will reduce the unit's effect or may

cause unit's stop running, and even

more it will cause fire.

★

★★

★

the compressor damaged.The

standard pipe length is 4m for 18,24,28

unit, standard pipe length is 5m for 36,

48 unit, it should be vacummized before

installing.

Notices for operation

service center of to repair.

INVENTOR

３

★

５℃

★

Don't insert your hands or stick into the air intake or

outlet vents.

Don't blow the wind to animals and plants directly.

It can cause a bad influence to them.

S plashing water on the air conditioner can cause an

electric shock and malfunction.

Don't apply the cold wind to the body for a long time. Don't use the air conditioner for other purposes, such as

drying clothes, preserving foods, etc.

Don't place a space heater near the air conditioner.

Or CO toxicosis may occur for imcomplete burning.

Select the most appropriate temperature.

It can preclude the electricity wasted.

Keep room

cooler than

outside

Notices for operation

The power cords of this air conditioner adopt X-type

connection, please don't cut off or damage the power

cords and control cords. If they are damaged, please

ask the qualified personnel to change them.

４

★

４８℃

２１℃

１８℃

Notices for use

The following temperature range protection device may act, that may cause stop running.

"COOL"

running

Outdoor temp. above

Indoor temp. below

"DRY"

running

Indoor temp. below

Under the relative humidity above 80% (doors and windows opened) when cooling or

dehumidifying for a long time, there will be dew drip off near the air inlet.

so that indoor ambient temperature will be decreased,

Working principle and special functions for cooling

Principle:

Anti-freezing function:

If the unit is running in COOL mode and in low temperature, there will be frost formed

on the heat exchanger, when indoor heat exchanger temperature decreased below

－２℃， the indoor unit microcomputer will stop compressor running and protect the unit.

Air conditioner absorbs heat in the room and transmit to outdoor and discharged,

its cooling capacity will be decreased by outdoor ambient temperature rising

The conditions of unit can't normally run

The following temperature range protection device may act, that may cause stop running.

★

24℃

27℃

"Heat "

operation

Outdoor temp above

Indoor temp below

"Cool"

operation

Under the relative humidity above 80%( doors and windows opened) when cooling or dihu-

midifying for a long time, there will be dew drip off near the air vent.

accordingly to enhance the room air temperature. The heating principle of this kind of heat

Working principle and special functions for heating

Principle:

Notice: This heating air circulation system can enhance the indoor

Air conditioner absorbs heat from outdoor air and transmits to room and then discharge,

pump, its heating capacity will be declined accord with the outdoor temperature declines.

Anti-cool wind function:

temperature in a short while.

If outdoor temperature got lower,please operate with the other

form on the heat exchanger of outdoor unit, that will effect the heating effect, at this time,the

Defrosting:

When outdoor temperature is low but in high humidity, after a long while running, frost will

auto defrosting function will act, the heating operation will stop for 5-10mins provisionally.

During the Auto Defrosting procedure, both fans of in indoor unit and outdoor unit stop to run.

During the Auto Defrosting procedure, the vapor will be emitted from outdoor unit. This is

due to rapid defrosting, not malfunction.

After defrosting finished, the heating will recover automatically.

1.Heating starts. 2.After Auto defrosting finished. 3.Heating under the low temperature.

The conditions of unit can't normally run

"Dehumidi-

fying"

43℃

21℃

Outdoor temp above

Indoor temp below operation 18℃

Indoor temp below

-7℃

Outdoor temp above

heating ventilating equipments.

In Heat mode, in the following three kinds of status, if indoor heat exchanger hasn't arrived

at certain temperature, indoor fan motor will not start, in order to prevent cool wind blow

out (2-5 minutes):

Notices for use
