Invacare Lynx L-3X Manual de instrucciones

Yes, you can. ™

Lynx L-3X

Scooter Series

Parts Catalog Issued: Mar 27, 2012

The information contained in this document is subject to change without notice. This catalog contains

service parts for Form No. 07-080. If you have any questions regarding this catalog, please contact one

of our Customer Service Representatives.

For Customer Service Support Call:

1-800-333-6900

For Faxed In Orders Call:

1-800-678-4682 or

1-440-366-0709

For Technical Service Call:

1-800-832-4707

Literature Can Be Found at:

www.invacare.com or

1-800-828-6272

SYMBOL DEFINITION

Throughout this catalog you will notice letters to draw your attention to specific footnotes which are located at the

bottom of the page or below specified charts.

HARDWARE MEASUREMENTS

Examples: = Special Comments

= General information pertaining to that specific page

= No Longer Available

NOTE:

NLA

The measurements for the hardware will be listed as follows:

Screws, Bolts

Washers

Spacers

For your convenience, we have supplied an area for you to list your Invacare Representatives.

A,B,C etc.

Diameter X Thread Count/Pitch X Length

Inside Diameter X Outside Diameter X Thickness

Inside Diameter X Outside Diameter X Length

Name Phone Numbers

Corporation.

Parts Catalog Usage Guide

Form No. 07-080

To order call toll free 1-800-333-6900, or www.invacare.com

Chargers, Controller & Cable Cover ......................................................................................... 14

Floor Mats - Main & Rear Shrouds ........................................................................................... 6

Frame Finishes and Touch-Up Paint ........................................................................................ 3

Lower Tiller Assembly w/ Caster .............................................................................................. 18

Motor - Transaxle & Rear Wheel .............................................................................................. 16

Seat & Arms - L-3X .................................................................................................................. 4

Tiller Maintenance .................................................................................................................... 9

Wire Harnesses & Battery Straps ............................................................................................. 12

TABLE of CONTENTS

Description

Page

Number

To order call toll free 1-800-333-6900, or www.invacare.com

Form No. 07-080

Touch-Up Paint (.6 oz.) Color

Paint, Touch-Up, Blue

1149226-NLA

See Note(s) A

Paint, Touch-Up, Onyx Blue

1169179-NLA

See Note(s) B Paint, Touch-Up, Silver1101318

A - To be used on scooters built before serial number 10BCT600382.

B - To be used on scooter built after serial number 10BCT600381.

NOTE:

Frame Finishes and Touch-Up Paint

To order call toll free 1-800-333-6900, or www.invacare.com

Form No. 07-080

Seat and Arms - L-3X

NOTE: A full seat assembly is not available at this time, please order seat components separately.

To order call toll free 1-800-333-6900, or www.invacare.com

Form No. 07-080

Seat and Arms - L-3X

NOTE: A full seat assembly is not available at this time, please order seat components separately.

Item

Number Part Number DescriptionNote

Quantity Per

Package Assembly

1168468 Arm Assembly (Pair) 2 11 Arm Assembly - Right 1 1

Arm Assembly - Left 1 1

1148847 Cover, Seat 1 12 C 1168466 Cover, Seat 1 12 D 1148848-NLA NLA - Cover, Backrest 1 13 C 1168465 Cover, Backrest 1 13 D 1148845 Kit, Seat Slide 1 14 1148846-NLA NLA - Seat Bracket Assembly 1 15 1148850 Hardware, Seat Post

Includes:

(1) ea. Nylon Nut,

(1) ea. Bolt, &

(2) ea. Washers.

1 16

1148852 Liner, Shroud/Guide Seat 1 17 1148849 Kit, Plugs and Knobs

Includes:

(2) ea. Screws &

(2) ea. Plugs.

1 18

1144812 Spring, Seat Lever 1 19

C - Before 9/7/10

D - After 9/6/10

NOTE:

To order call toll free 1-800-333-6900, or www.invacare.com

Form No. 07-080

Floor Mats, Main and Rear Shrouds

Due to design change, Invacare recommends replacing all blue shrouds on scooters manufactured after

serial number 10BCT600381 in order to maintain a unified appearance.

To order call toll free 1-800-333-6900, or www.invacare.com

Form No. 07-080

Floor Mats, Main and Rear Shrouds

Due to design change, Invacare recommends replacing all blue shrouds on scooters manufactured after

serial number 10BCT600381 in order to maintain a unified appearance.

Item

Number Part Number DescriptionNote

Quantity Per

Package Assembly

1148851 Kit, Floor Mat w/ Hardware

Includes:

(1) ea. Rubber Pad and

(6) ea. Push Rivets.

1 11

1144816 Package, Push Rivet 25 1A 1148855 Kit, Floor Shroud, Red

Includes:

(1) ea. 3-D Invacare Logo,

(1) ea. Front Shroud - Red,

(4) ea. Shield Bolts,

(1) ea. Front Bumper Cover,

(2) ea. Bolt,

(1) ea. Hook & Loop,

(1) ea. Weight Capacity Decal, and

(1) ea. Warning Label.

1 12

1148856 Kit, Floor Shroud, Blue

Includes:

(1) ea. 3-D Invacare Logo,

(1) ea. Front Shroud - Blue,

(4) ea. Shield Bolts,

(1) ea. Front Bumper Cover,

(2) ea. Bolt,

(1) ea. Hook & Loop,

(1) ea. Weight Capacity Decal, and

(1) ea. Warning Label.

1 12 B

1148171 Kit, Floor Shroud, Onyx

Includes:

(1) ea. 3-D Invacare Logo,

(1) ea. Front Shroud - Onyx,

(4) ea. Shield Bolts,

(1) ea. Front Bumper Cover,

(2) ea. Bolt,

(1) ea. Hook & Loop,

(1) ea. Weight Capacity Decal, and

(1) ea. Warning Label.

1 12 C

1148857 Kit, Rear Shroud, Red

Includes:

(1) ea. Drive/Push Decal,

(1) ea. Rear Shroud - Red,

(1) ea. Hook & Loop, and

(2) ea. Lynx Side Logo Decals.

1 13

1148858 Kit, Rear Shroud, Blue

Includes:

(1) ea. Drive/Push Decal,

(1) ea. Rear Shroud - Blue,

(1) ea. Hook & Loop, and

(2) ea. Lynx Side Logo Decals.

1 13 B

To order call toll free 1-800-333-6900, or www.invacare.com

Form No. 07-080

Floor Mats, Main and Rear Shrouds

Due to design change, Invacare recommends replacing all blue shrouds on scooters manufactured after

serial number 10BCT600381 in order to maintain a unified appearance.

Item

Number Part Number DescriptionNote

Quantity Per

Package Assembly

1148172 Kit, Rear Shroud, Onyx

Includes:

(1) ea. Drive/Push Decal,

(1) ea. Rear Shroud - Onyx,

(1) ea. Hook & Loop, and

(2) ea. Lynx Side Logo Decals.

1 13 C

1148853 Cover, Shroud Tail w/ Decal, Red 1 14 1148854 Cover, Shroud Tail w/ Decal, Blue 1 14 B 1169667 Cover, Shroud Tail w/ Decal, Onyx 1 14 C

A - Not Shown

B - To be used on scooters built before serial number 10BCT600382.

C - To be used on scooter built after serial number 10BCT600381.

NOTE:

To order call toll free 1-800-333-6900, or www.invacare.com

Form No. 07-080

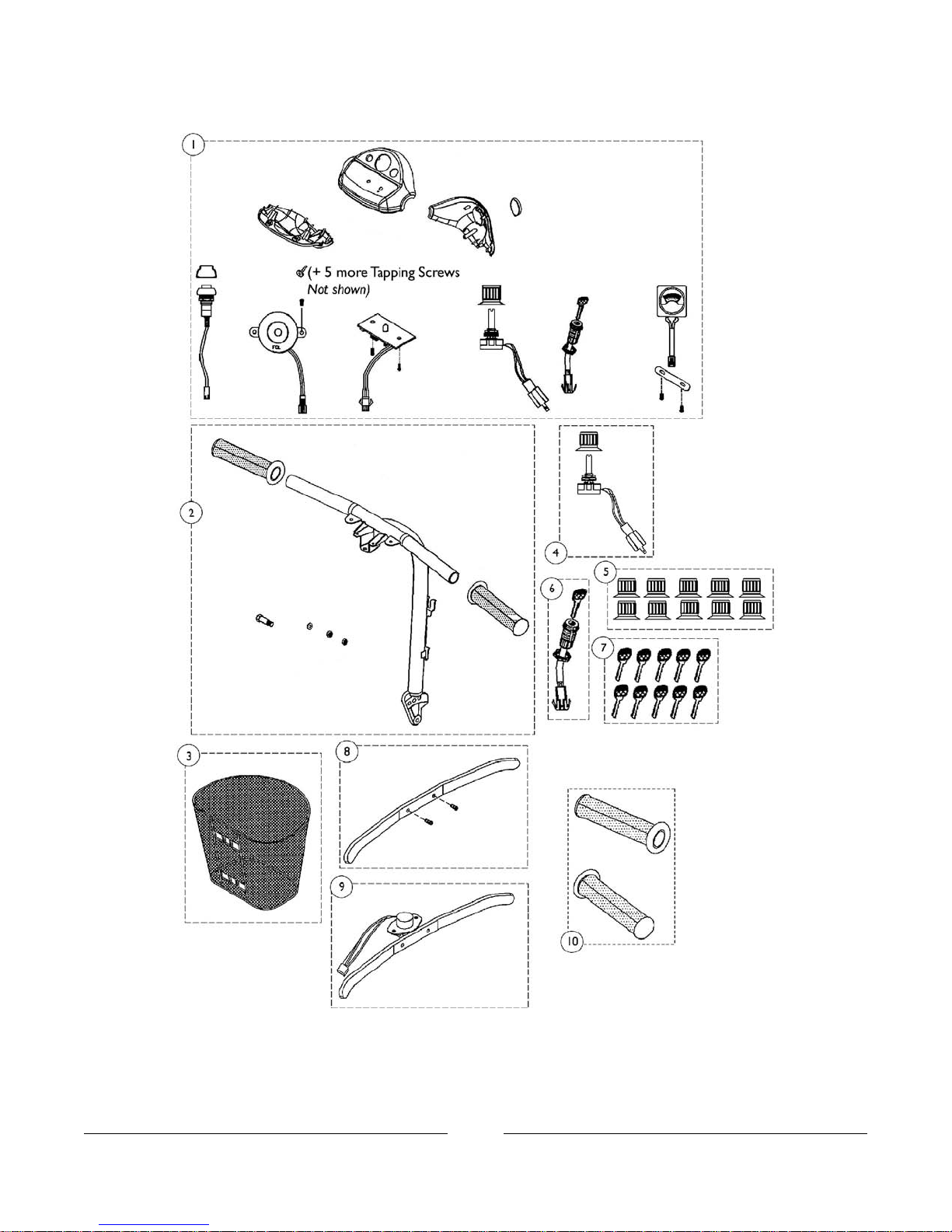

Tiller Maintenance

To order call toll free 1-800-333-6900, or www.invacare.com

Form No. 07-080
