Quick Start Guide

CK1 Serial Dock Quick Start Guide

*073772-001*

P/N 073772-001 CK1 Serial Dock

Specifications

What Is the Serial Dock?

You must use the appropriate Intermec power supply with this device

or equipment damage may occur.

Attention:Vous devez utiliser la source d’alimentation Intermec

adéquate avec cet appareil sinon vous risquez d’endommager

l’équipement.

The serial dock is an accessory for the CK1 Handheld Computer. You can use the

dock to:

•power the CK1.

•charge the battery while it is in a CK1.

•transfer data and applications using RS-232 serial communications.

This guide explains how to install and use the dock. Before using the dock,

please read this guide thoroughly and save it for future reference.

Input Voltage: x 9V

Current: 1000 mA

Operating Temperature: 5°C to 40°C (41°F to 104°F)

Storage Temperature: -20°C to 70°C (-4°F to 158°F)

Operating Humidity: 0% to 95% non-condensing relative humidity

To prevent fire or electric shock, do not expose the device to rain or

moisture.

Avertissement: Pour éviter des risques d’incendie ou de choc

électrique, ne pas exposer l’appareil à la plui ou l’humidité.

What You Need

To use the serial dock, you need:

•an RS-232 cable (included).

•one of the following power supplies. To purchase a power supply, contact

your local Intermec representative.

6001 36th Avenue West

Everett, WA 98203

U.S.A.

www.intermec.com

Region Part Number

Australia 073859

Europe 073857

United Kingdom 073856

United States 073858

CK1 Serial Dock Quick Start Guide

Understanding the Lights

This table explains the different colors of the Communications, Charge, and Power

lights.

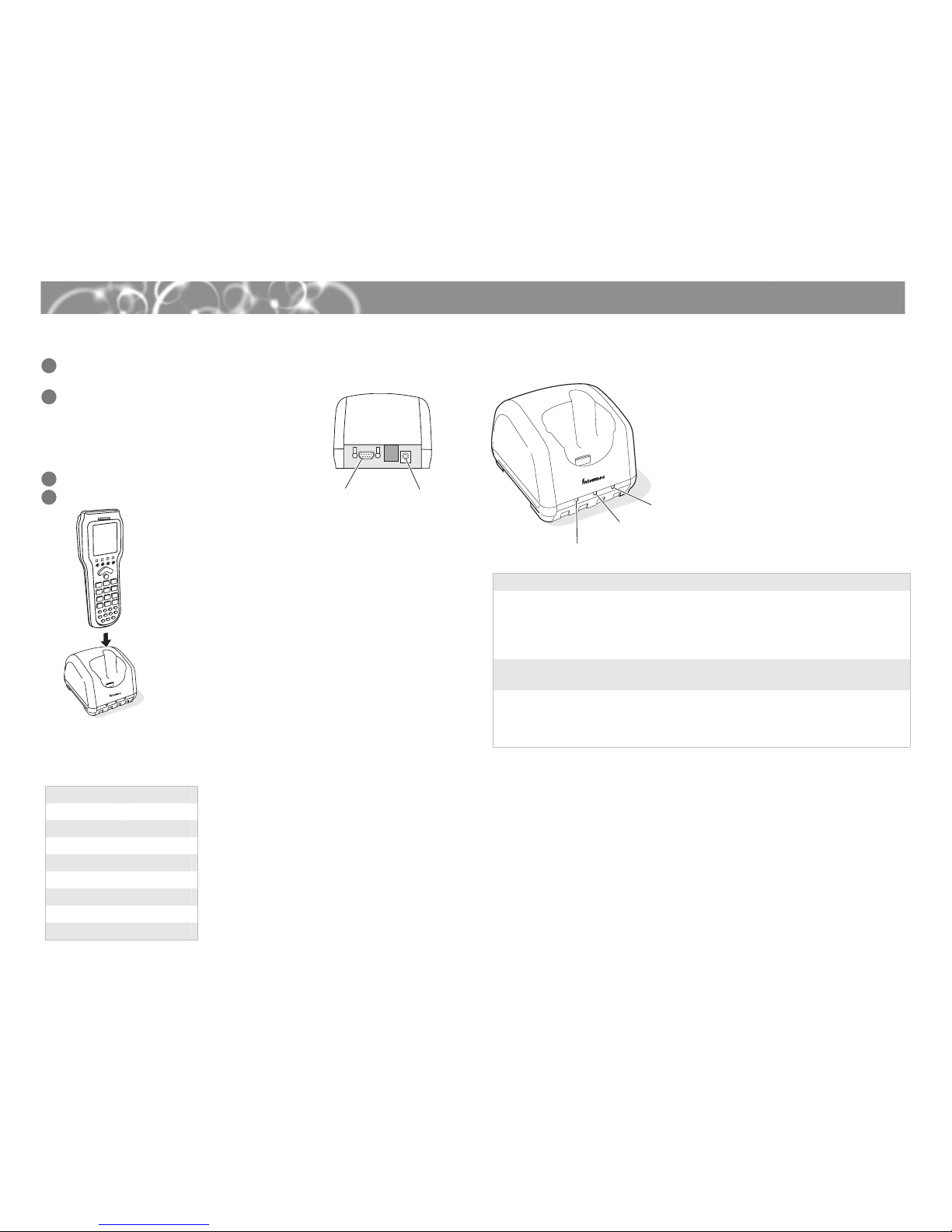

Installing the Serial Dock

For More Information

You may need additional information when working with the dock and CK1 in a

data collection system. Please visit our web site at www.intermec.com to download

PDF versions of our current manuals. To order printed versions of the Intermec

manuals, contact your local Intermec representative or distributor.

Place the dock on a flat, stable, and clean surface that is within 1.5 m (5 ft) of an AC

outlet.

Connect the AC power supply to the power

connector on the back of the dock, and then

connect the power supply to an AC power outlet.

The green Power light turns on. The dock is now

ready to charge a battery in a CK1. The dock fully

charges the battery in 4 hours.

(Optional) Connect the RS-232 serial cable.

Place the CK1 in the dock.

Use this pinout table if you want to make your own serial cable.

Serial Port Pinouts

Power

Charge

Communications

RS-232

serial cable

Power

connector

Pin Number Assignment

1 Unassigned

2 RXD

3 TXD

4 DTR

5 GND

6 DSR

7 RTS

8 CTS

Light Color Description

Communications Off

Flashing green

The CK1 is not communicating. Make sure the

RS-232 cable is connected properly and the CK1 is

configured properly.

The CK1 is communicating with the serial device

connected to the serial dock.

Charge Red

Green

The serial dock is charging the battery.

The battery is fully charged.

Power Off

Green

The serial dock is not receiving power. Make sure

the AC power supply is connected properly.

The serial dock is connected to AC power and is

ready to charge.
