Intermec FlexDock Manual de usuario

FlexDock

DX1, DX2, DX4

User’s Guide

ii FlexDock User’s Guide

Intermec Technologies Corporation

Worldwide Headquarters

6001 36th Ave.W.

Everett, WA 98203

U.S.A.

www.intermec.com

The information contained herein is provided solely for the purpose of allowing customers to

operate and service Intermec-manufactured equipment and is not to be released, reproduced, or

used for any other purpose without written permission of Intermec Technologies Corporation.

Information and specifications contained in this document are subject to change without prior

notice and do not represent a commitment on the part of Intermec Technologies Corporation.

The word Intermec, the Intermec logo, Norand, ArciTech, Beverage Routebook, CrossBar,

dcBrowser, Duratherm, EasyADC, EasyCoder, EasySet, Fingerprint, i-gistics, INCA (under license),

Intellitag, Intellitag Gen2, JANUS, LabelShop, MobileLAN, Picolink, Ready-to-Work, RoutePower,

Sabre, ScanPlus, ShopScan, Smart Mobile Computing, SmartSystems, Trakker Antares, and Vista

Powered are either trademarks or registered trademarks of Intermec Technologies Corporation.

There are U.S. and foreign patents as well as U.S. and foreign patents pending.

FlexDock User’s Guide iii

Document Change Record

This page records changes to this document. The document was

originally released as Revision 001.

Version

Number Date Description of Change

003 7/2011 Added support for the CK3, CN3, and CN4 computers.

002 4/2011 Added additional troubleshooting information,

specifications, and support for the CN50 and CS40

computers.

iv FlexDock User’s Guide

Contents

FlexDock User’s Guide v

Contents

About the FlexDocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

What You Need . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Connecting the DX1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Connecting the DX2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Connecting the DX4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Charging Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Charging Computers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

About the Ethernet LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Using the CK3, CN3, and CN4 with the DX4 Ethernet Dock. . . . . . . . . . . . . . . . .13

About Custom Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Optional FlexDock Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

vi FlexDock User’s Guide

FlexDock User’s Guide 7

About the FlexDocks

The FlexDocks power your Intermec computers and charge spare

batteries. Each dock is available with a combination of computer cups

and battery cups to match your Intermec computers and batteries.

Each battery cup can charge up to two batteries at once.

The FlexDocks include the DX1 Desktop Dock, the DX2 Dual Dock,

and the DX4 Quad Dock.

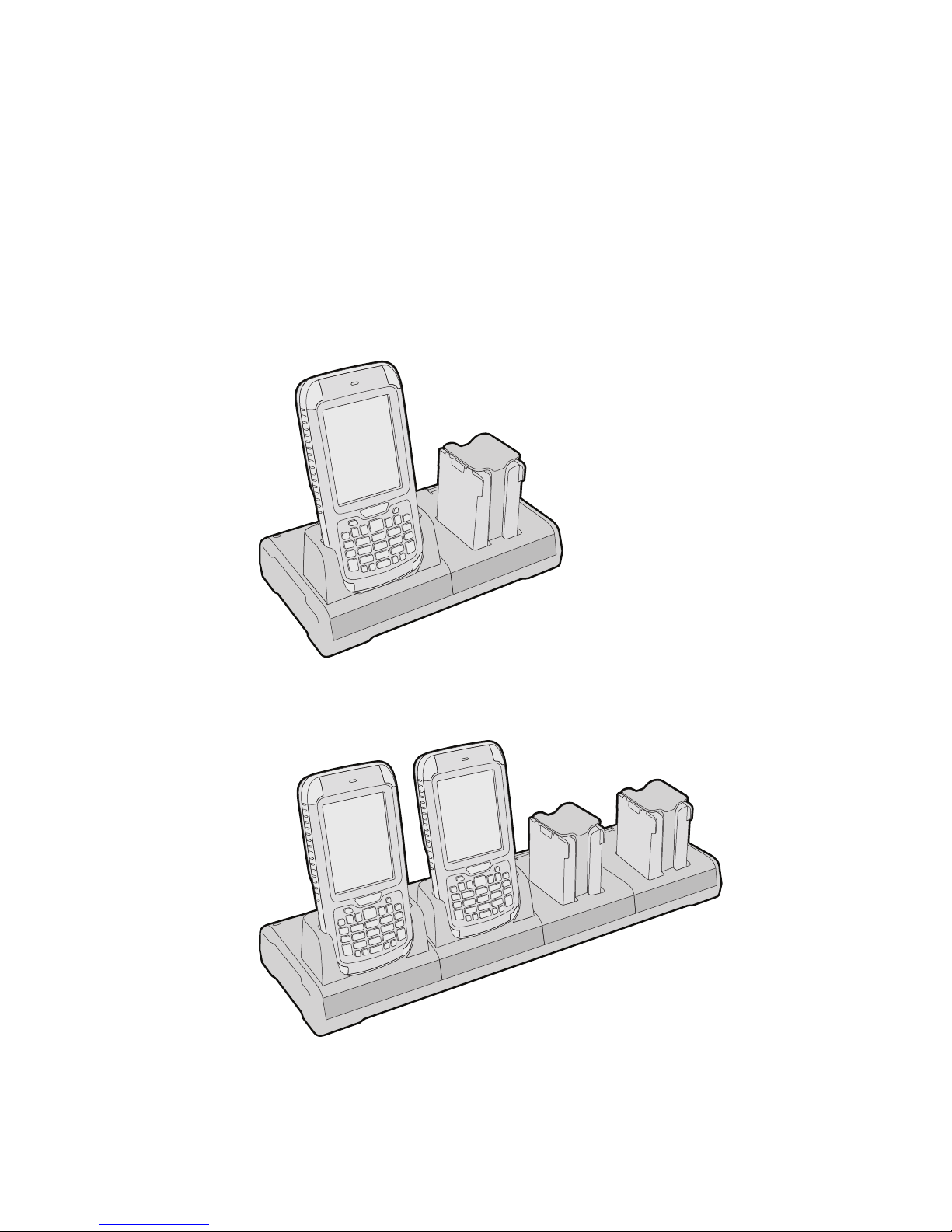

DX1 Desktop Dock and DX2 Dual Dock: DX2 is also available with two

computer cups or two battery cups.

DX4 Quad Dock: DX4 is also available with other combinations of computer

and battery cups.

8 FlexDock User’s Guide

The DX1 Desktop Dock has one computer cup and one battery cup.

You can connect the DX1 to a desktop PC through its USB port.

The DX2 Dual Dock has two cups, and the DX4 Quad Dock has four

cups. Computers in the DX2 and DX4 docks can connect to your

Ethernet network (except for charge-only docks), and other Ethernet

devices can be connected to your network through the dock.

What You Need

You need these accessories to use the FlexDocks:

•AC power cord for your region (except North America)

•Ethernet cable (except charge-only docks)

•Micro-USB cable (DX1 only)

For information on these and other accessories, contact your local

Intermec representative.

Connecting the DX1

Note: Use the optional Ethernet Adapter (P/N 871-238-001) to

connect the DX1 to your network. Or, use the optional Modem

Adapter (P/N 871-238-002) to connect the DX1 to a phone line. For

information, contact your local Intermec representative.

To power

supply

USB client

port

USB host

port

FlexDock User’s Guide 9

About the DX1 USB Ports

Use the USB client port (requires a Micro-USB connector) to connect

the DX1 to your desktop PC. The USB host port is intended for use

with the Ethernet or Modem Adapter accessories. Other USB devices

may not be supported.

If you are using the DX1 with the CS40 computer:

•use USB cables of 2 m (6 ft) or shorter.

•multiple concurrent USB connections are not supported.

Connections to the USB client port receive priority over

connections to the USB host port.

For more information on connecting USB devices to your Intermec

computer, see the computer user’s manual.

Installing the Optional Retaining Clip

For the DX1 and DX2, you can use the optional retaining clip to

secure the power supply cord to the dock as shown in the next

illustration.

Optional Power Cord Retaining Clip for DX1 and DX2: DX1 shown here.

10 FlexDock User’s Guide

Connecting the DX2

Connecting the DX4

To Ethernet

devices

To Ethernet

network

To power

supply

Note: To install the optional retaining clip for the power cord, see the

previous section.

To Ethernet

devices To Ethernet

network

To power

supply
