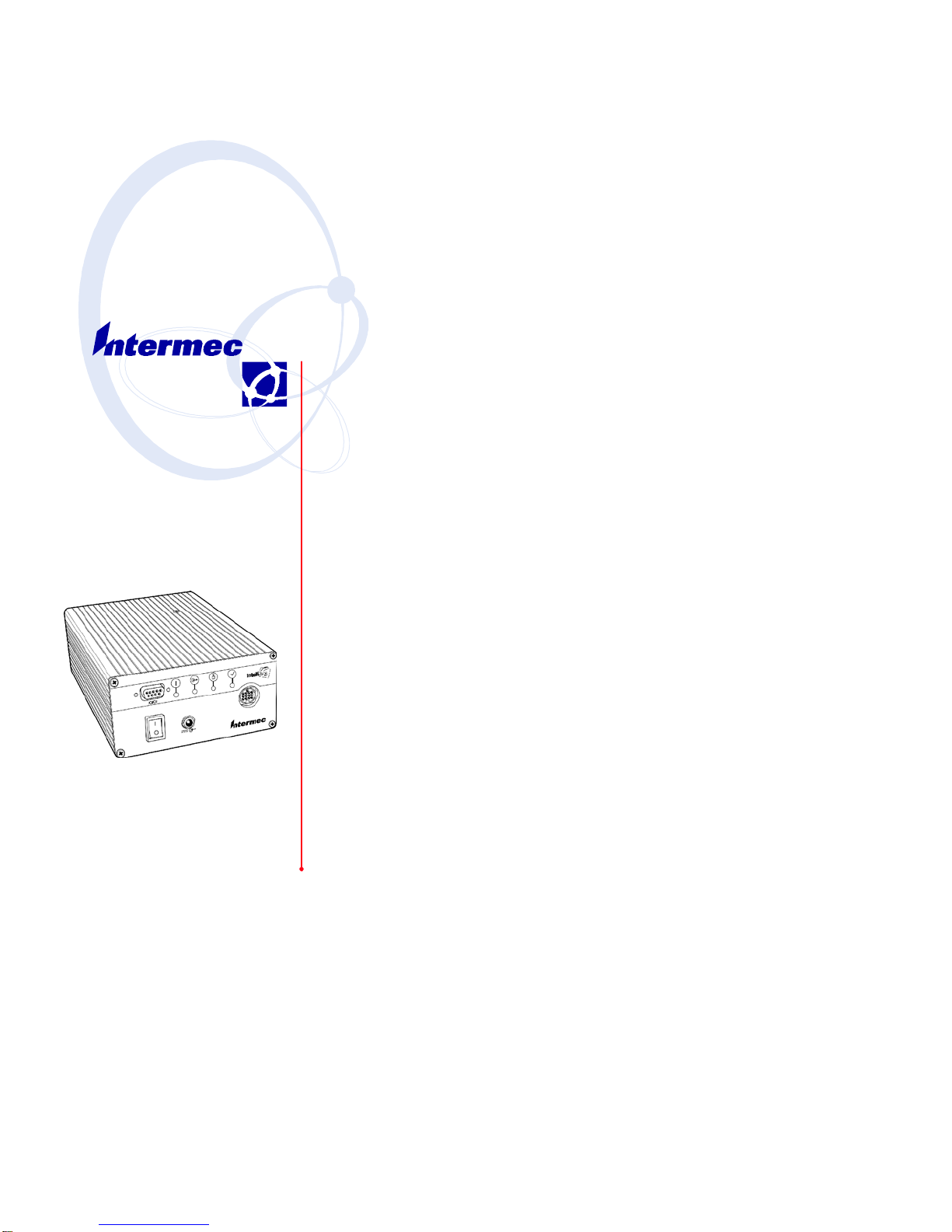

Intermec ITRF91501 Manual de usuario

ITRF91501

Reader

Quick Start Guide

ITRF91501 Reader Quick Start Guide

Packing List

WARNING: This is a Class A product. In a domestic

environment this product may cause radio

interference in which case the user may be

required to take adequate measures.

Check to ensure that you receive these items:

IntermecRITRF91501 MHz Reader

Model Number ITRF91501

(part number country dependent)

Product Warranty Card

Compliance Statement

ITRF91501 Reader Quick Start Guide

Host Communication

Host communication comes through the 9-pin female D-sub

connector. Both RS-232 and RS-422 standards are supported as

ordered from the factory or service center

Table 1-1

RS-232 Connections

Pin Number Definition

2 Serial Data from the Fixed Reader to the host

3 Serial Data to the Fixed Reader from the host

5 Ground

7 CTS (Clear to Send) to the Fixed Reader from the

host

8 RTS (Request to Send) from the Fixed Reader to the

host

Table 1-2

RS-422 Connections

Pin Number Definition

1 Serial Data Out + from the Fixed Reader to the host

4 Serial Data Out -- from the Fixed Reader to the host

5 Ground

6 Serial Data In + to the Fixed Reader from the host

9 Serial Data In -- to the Fixed Reader from the host

The default baud rate is 115.2 kbps with 8 data bits, no parity,

and 1 stop bit.

ITRF91501 Reader Quick Start Guide

Power Requirements

Power comes in from 8 to 10 volts DC. The Fixed Reader uses

less than 2 amps. Intermec supplies 9 volts DC at 2.4 amps

from Intermec power supply, p/n: 351-066-001.

User I/O

A general purpose I/O (Input/Output) connector provides signal

lines in and out of the reader allowing monitoring and/or con-

trol of external devices or functions.

The connector for this is a 13-pin female circular DIN. The

mating male connector you need for mating with this is an In-

termec p/nL 351-184-001.

Table 1-3

I/O Pin-outs

Pin Number Definition

1GPIOIN0

2GPIOIN1

3GPIOIN2

4GPIOIN3

5GPIOOUT0

6GPIOOUT1

7GPIOOUT2

8GPIOOUT3

9, 10, 11, 12, 13 GROUND though individual 10 ohm resistors

Outputs and inputs have 12 volt transient suppression devices

to ground at the connector. Output signals are driven by

2N3904 NPN transistors (low level) with a 100 kohm pull--up

to +5 volts through a silicon diode, giving about a 4.3 volt high

level. An output can be pulled high from an external source as

high as 40 volts. This will however tend to pull the other out-

puts higher (through two 100k resistors). The low level will be

about 0.1 volt up to about 30 mA. The output low voltage will

ITRF91501 Reader Quick Start Guide

climb higher as the sink current increases. There is no protec-

tion on this. You need to ensure that their load won’t require

thereadertosinkmorethan50mA.

Input signals should be 0 to +1.5 volt for a low input and +3.5

to +5 volts for a high input. Each input has a 1.1 kohm resistor

in series with clamping diodes, but only about 1µA is used until

the input exceeds the 0 to +5 volt input range. There is also a

weak (100 kohm) pull--up to +5 volt on each input.

Connecting and Getting Started

WARNING: FCC regulations limit exposure to

radiofrequency (RF) radiation. To comply with

these regulations, operators of this device must

maintain a distance of at least 23 cm. (9.1

inches) from the cover on the antenna assembly

(The cover on the antenna is the dome shaped

surface). While the device is on, the operator’s

body and parts of the body such as eyes, hands,

or head, must be 23 cm. (9.1 inches) or farther

from the cover of the antenna assembly.

FCC regulations also require that the antenna

assembly of this device be installed in

accordance with the installation procedures to

allow the operator to comply with the limit.

Antenna Installation

Ensure that you read the above warning before installing the

antennas and using your Reader product.

ITRF91501 Reader Quick Start Guide

Front view of the antenna

1. Review the locations for your Reader products. Ensure

that you have carefully considered the safe distances for

product placement for workers and any other personnel

that may get in the RF path.

2. Place the radio and antennas with cabling are easily ac-

cessible for installation and troubleshooting.

3. Use the mounting bracket to attach the antenna to a

fixed surface.

4. Attach the antenna to one of the four antenna ports on

the back of the Reader.

ITRF91501 Reader Quick Start Guide

The following illustrations are a couple of examples for Reader

installations.

EXAMPLE 1: Shipping Dock Door, showing two antennas at each

shipping door. Two antennas in a crossing pattern

provide angular diversity to improve read capability

when tag orientation is unknown.

WARNING: While the device is on, the operator’s body and

parts of the body such as eyes, hands, or head,

must be 23 cm. (9.1 inches) or farther from the

cover of the antenna assembly.

oor #1 S

oor #2

100” Max.

distance

to tag

A singular antenna in a portal may be sufficient

in applications where there is a known tag orientation.

ITRF91501 Reader Quick Start Guide

EXAMPLE 2: Two Product Line Conveyers, showing two antennas

on each line. Two antennas in a crossing pattern

provide angular diversity to improve read capability

when tag orientation is unknown.

The frames for these stations are PVC tubing with RF reflec-

tive Mylar liner X2. Ensure that an 9.1 inch (23 cm) distance

from the antenna assembly is maintained to limit people’s ex-

posure to radiofrequency (RF) radiation.

WARNING: While the device is on, the operator’s body and

parts of the body such as eyes, hands, or head,

must be 23 cm. (9.1 inches) or farther from the

cover of the antenna assembly.

Conveyer Belt #1

Conveyer Belt #2

A singular antenna in a portal may be sufficient

in applications where there is a known tag orientation.

100” Max.

distance

to tag

ITRF91501 Reader Quick Start Guide

Connecting the Antenna to the Reader

1. Connect antenna cable to a port.

2. Connect a reverse-sex SMA terminator (Intermec p/n

345-004-001) to any port that does not have an antenna

attached.

"NOTE: Each port must have either an antenna or a termina-

tor connected.

1234

Antenna ports

Back panel Antenna cable

SMA terminator

3. Connect the Reader to a power source using power supply

p/n 351-066-001 and country dependent AC power cord.

4. Turn on your Reader.

Power supply

Power cord

ITRF91501 Reader Quick Start Guide

5. Review the front panel LEDs to become familiar with the

status indications you will receive from your Reader.

RS-232 or

RS-422 port I (ON) O (OFF) switch

Auxilary I/O connector

Power supply jack

LEDs position

(lefttoright)0,1,2,3

0123

LED Meaning

LED 0 Reader has power is initialized and ready.

LED 1 Reader is communicating with the host, it flashes as data

transfer occurs.

LED 2 Reader RF is ON and searching for TAGs.

LED 3 Reader is communicating with a TAG, it flashes as transfer

occurs.

Troubleshooting

Table 1-4

Troubleshooting

Problem Solution

Doesn’t recognize tag 1. Check to ensure antenna is connected

to jack on Reader.

2. Ensure Reader is connected to your

computer.

3. Ensure computer is plugged into ac

outlet and computer is turned on.

4. Ensure tag is within range of antenna.

5. Call Intermec Technical Support

800--755--5505 (US or Canada)

425--356--1799 (elsewhere).
