Intermec EasyLAN 100E Manual de usuario
EasyLAN 100e
Ethernet Adapter
快速入门指南
Adaptateur Ethernet
Ethernet-Adapter
이더넷 어댑터
Adaptador Ethernet
Ethernet-адаптер
Adaptador Ethernet
Quick Start Guide
快速入门指南
Guide de démarrage rapide
Kurzanleitung
빠른 시작 안내서
Manual de Consulta Rápida
Краткое руководство
Guía de comienzo rápido
ii
Contents
EasyLAN 100e Ethernet Adapter Quick Start Guide . . . . . .3
EasyLAN 100e 以太网适配器快速入门指南 . . . . . . . . . .8
Adaptateur Ethernet EasyLAN 100e -
Guide de mise en route rapide . . . . . . . . . . . . . . . . . . . .13
Kurzanleitung für EasyLAN 100e Ethernet-Adapter . . . . . .18
EasyLAN 100e 이더넷 어댑터 주요 정보 . . . . . . . . .24
Manual de Consulta Rápida do Adaptador Ethernet
EasyLAN 100e. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Краткое руководство по эксплуатации
Ethernet-адаптера EasyLAN 100e . . . . . . . . . . . .34
Información importante del adaptador Ethernet
EasyLAN 100e. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
3
EasyLAN 100e Ethernet Adapter Quick
Start Guide
Introducing the EasyLAN 100e Adapter
The external EasyLAN 100e Ethernet Adapter (P/N 225-746-
001) lets you share your available printer resources with everyone
connected to your Ethernet network.
EasyLAN 100e Ethernet Adapter
You can connect this external adapter to these printers:
• EasyCoder PC4
• EasyCoder PC41
•PF8t
•PF8d
The Adapter supports several key network and Ethernet
standards, including the following:
• The Adapter has one (1) 10BaseT/100BaseTx auto-sensing
Ethernet port that supports standard Ethernet/Fast Ethernet
connections—twisted pair 10BaseT and 100BaseTx (RJ45
connector).The Adapter is compliant with IEEE802.3 and
IEEE802.3u standards.
• The wired network interface supports full and half duplex
operation for both 10 Mbps, 10BaseT and 100 Mbps,
100BaseTx.
Out of the Box
The Adapter draws its power from the connected printer (+5V on
pin 18). Your printer comes with the following:
• EasyLAN 100e Ethernet Adapter
• This guide (P/N 930-193-002) and Important EasyLAN 100e
Information
4
EasyLAN 100e Ethernet Adapter Connectors
Installing the Adapter
Before you install the Adapter, make sure that you have the
appropriate length Ethernet cable, and make sure that you have
loaded media and ribbon into the printer. For help, see the quick
start guide for your printer.
Connecting to Your Network
This section explains how to physically connect the adapter to
the printer and your network.
Connectors, LED, and Button Descriptions
Part Description
10BaseT/100BaseTx Provides a standard Ethernet/Fast Ethernet
interface for network connection.
Parallel port connector This single high-speed parallel port connects
directly to an Intermec printer a parallel port.
LED The LED provides information on power-up
diagnostics and network activity.
Test button Use the test button to:
• Print a test label that shows some of the
Adapter settings. The Adapter supports IPL,
FP/DP, and ESim languages.
• Reset the Adapter settings to the factory
default settings.
For more help, see “Printing a Test Label” later
in this guide.
LED
10BaseT/100BaseTx
Ethernet port
Test
button
Parallel port
connector
5
To connect the Adapter
1Turn off the printer.
Connecting the Adapter to Your Printer
2Plug the parallel port connector on the Adapter into the
parallel port on the printer.
3Connect one end of an Ethernet cable to the 10BaseT/
100BaseTx Ethernet port on the adapter.
4Connect the other end of the cable to an Ethernet port for
your network.
To connect to your network
• Turn on the printer. The LED on the Adapter flashes and
then turns off.
Note: Although you can connect this Adapter to
many different Intermec printers, the illustration in
the next procedure shows the PF8t.
Parallel
port
connector
Parallel
port
10BaseT/100BaseTx
port
Ethernet
cable
6
Printing a Test Label
After the LED turns off, print a test label to make sure that the
Adapter is working. The test label information includes the
Adapter’s current IP address and some network statistics.
To print a test label
1Insert a small, straightened paper clip into the Test button.
2Press and release the button. The printer prints one label with
the current Ethernet and network settings of the adapter.
Getting the IP Address
If your network supports DHCP, the Adapter automatically
connects to the server and obtains its TCP/IP settings, including
an IP address.
You can use ARP (Address Resolution Protocol) to assign an IP
address to the adapter if your network does not use DHCP or if
you want to configure a static IP address.
To download the IP address using a Windows-based PC
1Open a command prompt (MS-DOS®) window.
2Type the following:
arp -s nnn.nnn.nnn.nnn nn-nn-nn-nn-nn-nn
ping nnn.nnn.nnn.nnn
arp -d nnn.nnn.nnn.nnn
where:
nnn.nnn.nnn.nnn is the IP address for the Adapter
nn-nn-nn-nn-nn-nn is the MAC address for the Adapter.
Note: The MAC address is printed on the underside
of the Adapter. You need this address when you
configure the printer settings.
When you execute the PING command for the first
time, you may experience a longer than usual response
time.
7
To download the IP address using a UNIX host
• Type the following:
arp -s host_name nn:nn:nn:nn:nn:nn temp
ping host_name
where:
host_name is the name mapped to the Adapter’s IP address.
The default name is INTERMEC_nnnnnn, and
nnnnnn is the last six digits of the MAC address.
The full MAC address for the Adapter is
nn:nn:nn:nn:nn:nn.
The host will return INTERMEC_0B766F is alive or a similar
message. This message indicates that the address has been set and
communication established.
The ARP command can vary between different UNIX systems.
Berkeley System Distribution (BSD) type systems expect the host
name and node address in reverse order. Furthermore, IBM
AIX®systems require the additional argument ether.
Managing and Configuring Advanced Features
Use your web browser to manage or configure more advanced
parameters on the Adapter.
•Openyourwebbrowser.
• Type in the Adapter’s IP address (printed on the test label; see
“To print a test label” on page 6).
For more help, refer to the EasyLAN 100e Ethernet Adapter User’s
Guide.
8
EasyLAN 100e 以太网适配器快速
入门指南
EasyLAN 100e 适配器简介
外置 EasyLAN 100e 以太网适配器 (P/N 225-746-001) 让
您能够与连接到以太网络的所有用户共享可用的打印资
源。
EasyLAN 100e 以太网适配器
您可以将此外置适配器连接到下列打印机上：
• EasyCoder PC4
• EasyCoder PC41
• PF8t
• PF8d
此适配器支持几种主要的网络和以太网标准，包括以下
内容：
•此适配器具有一个 (1) 支持标准以太网 / 快速以太网
连接的 10BaseT/100BaseTx 自动感应以太网端口 _双绞
线 10BaseT 和 100BaseTx （RJ45 接头），并且符合
IEEE802.3 和 IEEE802.3u 标准。
•有线网络接口支持 10 Mbps 、10BaseT 和 100 Mbps、
100BaseTx 全双工和半双工操作。
打开包装箱
此适配器由其所连接的打印机供电（pin 18，+5V）。打印机
随附以下内容：
• EasyLAN 100e 以太网适配器
• 本指南 (P/N 930-193-002)
• Important EasyLAN 100e Information
9
EasyLAN 100e 以太网适配器接口
安装适配器
在安装适配器之前，请确认您拥有长度合适的以太网电
缆，并已将介质和色带装入打印机中。如需帮助，请参阅
打印机的快速入门指南。
连接到网络
此部分内容说明如何将适配器连接到打印机和网络上。
接口、
LED
和按钮说明
部件 说明
10BaseT/100BaseTx 为网络连接提供标准的以太网 /快速以太
网接口。
并行端口接口 此单一的高速并行端口可直接连接到
Intermec 打印机的并行端口上。
LED 此 LED 可提供通电诊断和网络活动的相关
信息。
测试按钮 此测试按钮用于下列目的：
• 打印可展示某些适配器设置的测试标
签。此适配器支持 IPL、FP/DP 和 ESim
语言。
• 将适配器设置重置到出厂默认设置。
如需更多帮助，请参阅本指南后面的 “打
印测试标签”。
注：您可以将适配器连接到许多不同的
Intermec 打印机上，下面步骤中仅以 PF8t 为例
进行说明。
LED
10BaseT/100BaseTx
ҹ㔥ッষ
⌟䆩ᣝ䪂
ᑊ㸠ッষ
ষ
10
连接适配器
1关闭打印机。
将适配器连接到打印机上
2将适配器的并行端口接口插入打印机的并行端口。
3将以太网电缆的一端连接到适配器的 10BaseT/100BaseTx
以太网端口。
4将电缆的另一端连接到网络的以太网端口。
连接到网络
• 开启打印机。适配器上的 LED 会闪烁，然后熄灭。
打印测试标签
LED 熄灭后，打印一张测试标签，以确认适配器处于工作
状态。测试标签信息包括适配器当前的 IP 地址和一些网络
统计信息。
注：MAC 地址打印在适配器的下侧。您需要使
用此地址配置打印机设置。
ᑊ㸠ッষ
ষ
ᑊ㸠
ッষ
10BaseT/100BaseTx
ッষ
ҹ㔥⬉㓚
Otros manuales para EasyLAN 100E
1
Tabla de contenidos
Idiomas:
Otros manuales de Adaptador de Intermec
Intermec
Intermec AA12 Manual
Intermec

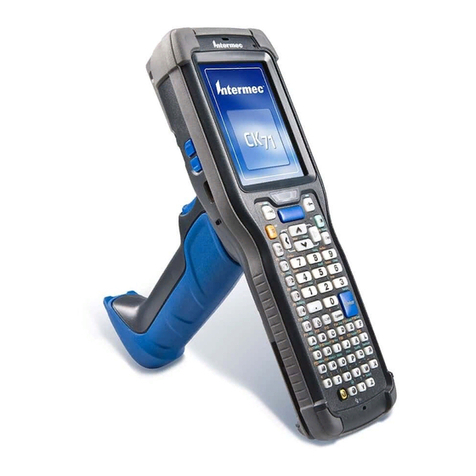

Intermec CK70 RFID Manual de usuario
