Interlogix TVR 12 Manual de usuario

P/N 1072799B-EN • REV 1.0 • ISS 21AUG14

TVR 12 Quick Start Guide

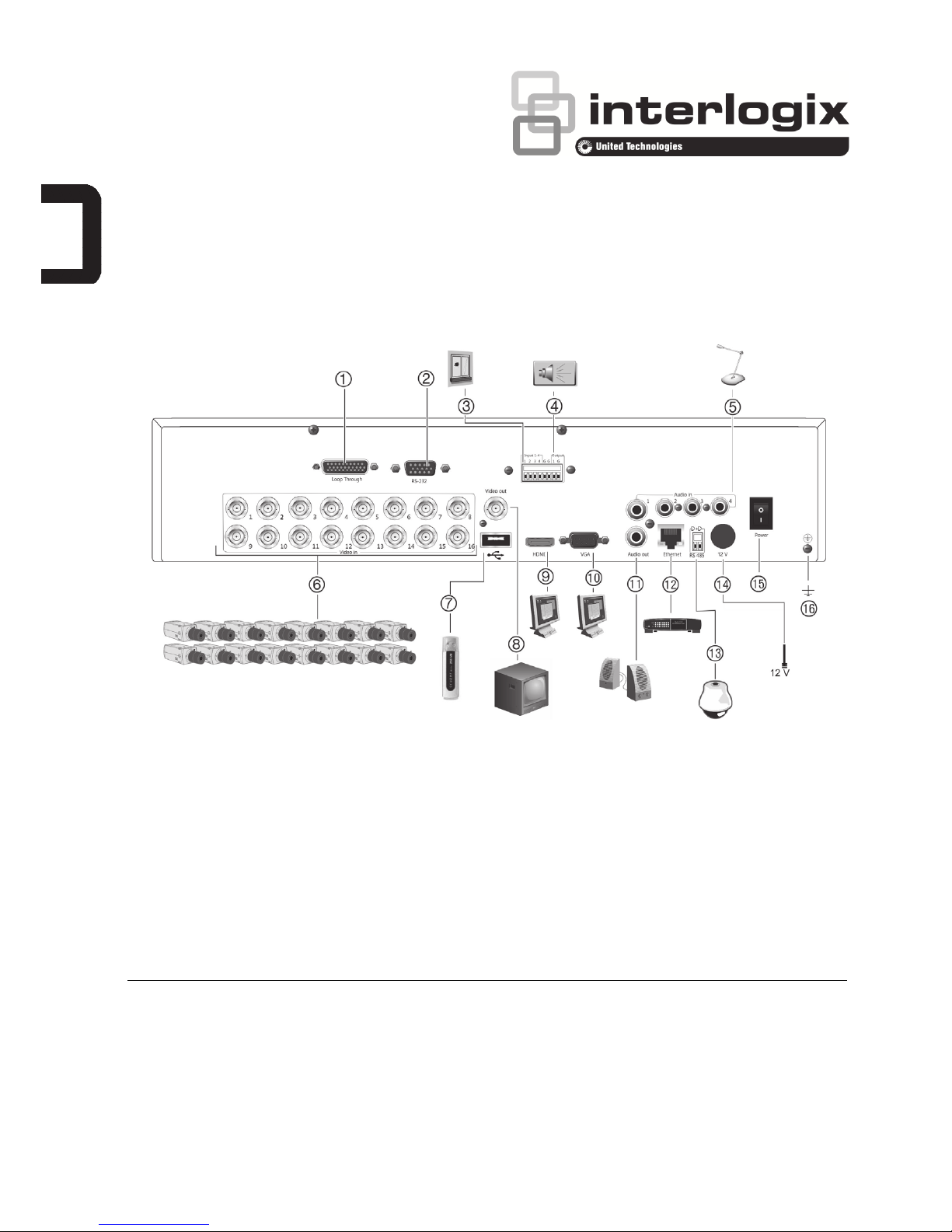

Figure 1: Back panel connections

1. Loop through for up to 16 analog cameras

(depends on DVR model).

2. Connect to a RS-232 device.

3. Connect up to four alarm inputs.

4. Connect one alarm relay output.

5. Connect four audio inputs to RCA connectors.

6. Connect up to 16 analog cameras to BNC

connectors (depends on model of DVR).

7. Connect to an optional USB device such as a

mouse, CD/DVD burner or HDD.

8. Connect one CCTV monitor (BNC-type

connector).

9. Connect to a HDTV. The HDMI connection

supports both digital audio and video.

10. Connect to a VGA monitor.

11. Connect to speakers for audio output.

12. Connect to a network.

13. Connect to a RS-485 device such as a PTZ

camera or a keypad.

14. Connect to the 12 VDC PSU (enclosed).

15. Power switch (on/off).

16. Connect to ground.

2 TVR 12 Quick Start Guide

Figure 2: Front panel controls

1 USB port.

2. CD/DVD burner (optional).

3. Eject button: Press to eject CD/DVD disc.

4. Archive button: Press once to enter quick

archive mode. Press twice to start archiving.

5. Display and Seq buttons: In live view mode,

press Display to toggle through the single and

multiviews. Press Seq to start/stop sequencing

in live view mode.

In menu mode, press Enter to select a menu

window.

6. Channel buttons. Switch between different

cameras in live view, PTZ control or playback

modes.

7. Live, Menu and Search buttons: Press Live to

switch to live view mode. Press Menu to enter

or exit the main menu. In live mode, press

Search to enter the advanced search menu.

8. Status LEDs. Indicates the status of the HDD,

network, and Watchdog, as well as whether there

is an external alarm.

9. Alarm button: Press to manually acknowledge

an alarm.

10. Enter and arrow buttons: Use the Direction

buttons to navigate in the menus and to control

playback. Press Enter to confirm menu selection.

11. IR receiver.

12. Playback buttons: Reverse: In live view

mode, use to play back earliest video. In

playback mode, play back a camera in the

reverse direction. Pause: In live view; freeze

the last image for all active cameras. In playback

mode, stop playback. Play: In live view mode,

play all-day playback of the selected camera. In

playback mode, play back the camera in the

forward direction.

Figure 3: Quick access toolbar

1. Freeze: Freeze live image of the selected

camera.

2. Manual recording: Start/stop manual

recording.

3. Instant playback: Play back the recorded video

from the last five minutes.

4. Audio: Enable/disable audio output.

5. Quick snapshot: Capture a snapshot of a video

image.

6. PTZ control: Enter PTZ control mode.

7. Digital zoom: Enter digital zoom.

8. Image settings: Modify the image lighting levels.

9. Text show: Display inserted text on screen.

10. Close: Close the toolbar.

TVR 12 Quick Start Guide 3

Package contents

The TruVision DVR 12 (model TVR 12) is

shipped with the following items:

• IR (infrared) remote control

• Two AAA batteries for the remote control

• AC power cords

• 12 VDC PSU

• USB mouse

• DVR

• Video loop through cable

• CD with software and manuals

• TruVision DVR 12 Quick Start Guide

• TruVision DVR 12 User Manual (on CD)

• TruVision Recorder Operator Guide (on

CD)

Installation environment

Refer to the user manual for detailed

information, but observe these important

requirements:

• Place the unit in a secure location.

• Ensure that the unit is in a well-ventilated

area.

• Do not expose the unit to rain or moisture.

Quick install

Recommended steps for setting up the DVR:

1. Connect all the devices required to the

back panel of the TVR 12. See Figure 1 on

page 1.

Basic connections:

Connect the cameras to the BNC camera

inputs and monitor A to the BNC, VGA or

HDMI output. Connect the mouse to the

USB port in the front panel.

Optional connections:

All the other connections shown are

optional and depend upon installation

requirements.

2. Connect the power supply to the unit and

turn on the power.

3. Set up the unit with the required settings

using the setup Wizard.

First-time use

The TVR 12 has an express installation wizard

that lets you easily configure basic DVR

settings when first used. It configures all

cameras simultaneously. The configuration

can then be customized as required.

By default, the setup wizard will start once the

DVR has loaded. The wizard walks you

through some of the more important settings

of your DVR. Select the preferred language for

the system and then enter the administrator

password. The default admin password is

1234. It is strongly recommended that this

password is changed.

The wizard will then guide you through the

menus to set the time and date, network

configuration, HDD management, and

recording configuration.

When all the required changes have been

entered, click Finish to exit the wizard. The

TVR 12 is now ready to use. Recording starts

automatically.

Operating the TVR 12

There are several ways to control the unit:

• Front panel

• IR remote control

• Mouse

• Web browser

Front panel

The buttons on the front panel control most

functions. See Figure 2 on page 2 for the

locations of the controls.

IR remote control

The IR remote control buttons are similar to

those on the front panel. Place the two AAA

batteries in the remote control.

4 TVR 12 Quick Start Guide

To connect the remote control to the DVR:

1. Press Menu on the front panel or right-click

the mouse and select Menu. The main

menu screen appears.

2. Select Display mode settings > Monitor.

3. Check the DVR device address value. The

default value is 255. The device address is

valid for all IR controls.

4. On the remote control press the Device

button.

5. Enter the device address value. It must be

the same as that on the TVR 12.

6. Press OK on the remote control.

USB mouse

The USB mouse provided with the TVR 12

operates all the functions of the DVR, unlike

the front panel, which has limited functionality.

The mouse lets you navigate and make

changes to settings in the user interface.

Connect the mouse to the DVR by plugging

the mouse USB connector into the USB port

on the back or front panel. The mouse is

immediately operational and the pointer

should appear.

Web browser control

The TVR 12 Web browser lets you view,

record, and play back videos as well as

manage all aspects of the DVR from any PC

with Internet access. The browser’s easy-to-

use controls give you quick access to all DVR

functions.

To access the unit, open a web browser and

enter the IP address assigned to the DVR as a

web address. In the logon screen, enter the

default user ID and password:

• User ID: admin

• Password: 1234

The default values for TVR 12 network

settings are:

• DHCP: Disabled by default.

• IP address - 192.168.1.82

• Subnet mask - 255.255.255.0

• Gateway address - 192.168.1.1

• Server Port: 8000

• HTTP Port: 80

• RTSP port: 554

Note: The following ports need to be followed

in the router in order to connect properly:

Server port and RTSP port.

Figure 4: Web browser interface

Live view mode

Live mode is the normal operating mode of the

unit where you watch live pictures from the

cameras.

Regularly used functions in live view can be

quickly accessed by clicking the left-button of

the mouse when its cursor is on the camera

image. The shortcut pop-up toolbar appears.

See Figure 3 on page 2 for a description of

the functions available.

Configuring the TVR 12

The TVR 12 has an icon-driven menu

structure that allows you to configure the unit’s

parameters. Each command icon displays a

screen that lets you edit a group of settings.

Most menus are available only to system

administrators.

Refer to the TVR 12 user manual for detailed

information on configuring the unit.

TVR 12 Quick Start Guide 5

To access the main menu from live view:

Press the Menu button on the remote

control or front panel.

- Or -

Right-click the mouse and select Menu

from the pop-up menu.

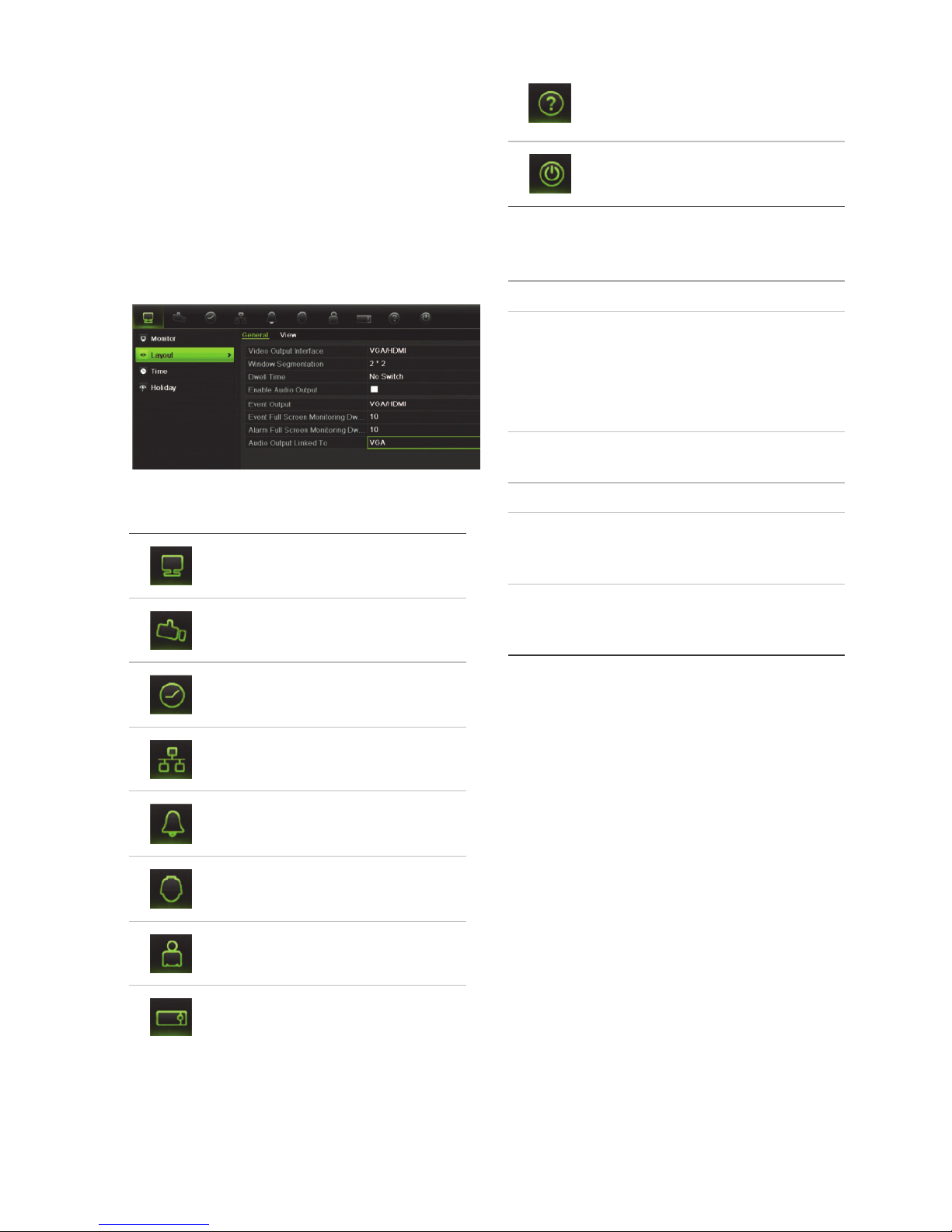

The main menu screen appears. Move the

mouse over a command icon in the menu

toolbar and click to select it.

Description of the command icons in the

menu toolbar:

Configures display settings.

Configures camera settings.

Configures recording settings.

Configures standard network

settings.

Configures alarm settings.

Configures PTZ settings.

Configures user settings.

Configures system settings.

Provides reference information

to the various toolbars and

menus within the interface.

Provides access to logout,

reboot and shutdown options.

Specifications

Power supply 12 VDC

Power consumption (without HDD or DVD-

R/W):

TVR 1204

TVR 1208

TVR 1216

≤10 W

≤15 W

≤20 W

Operating

temperature

-10 to +55 ºC

(14 to 131 °F)

Relative humidity 10 to 90%

Dimensions

(W x H x D)

362 × 330 × 78 mm

(14.25 × 13.0 × 3.07

in.)

Weight ≤3 kg (6.6 lb.)

(without HDD or DVD-

R/W)

Contact information

For contact information, see

www.interlogix.com, or

www.utcfssecurityproducts.eu

Tabla de contenidos

Otros manuales de DVR de Interlogix

Interlogix

Interlogix TruVision TVR-1108-1T Manual de usuario

Interlogix

Interlogix TVR 11c Manual de usuario

Interlogix

Interlogix TruVision TVR 1516DHD Manual de usuario

Interlogix

Interlogix TruVision DVR 11 Manual de usuario

Interlogix

Interlogix TruVision NVR 70 Manual de usuario

Interlogix

Interlogix TruVision DVR 40 Manual de usuario

Interlogix

Interlogix TruVision TVR-1116D-2T Manual de usuario

Interlogix

Interlogix TruVision NVR 50 Manual de usuario

Interlogix

Interlogix TruVision NVR 71 Manual de usuario

Interlogix

Interlogix TruVision SVR Manual de usuario

Interlogix

Interlogix TruVision DVR 41 Manual de usuario

Interlogix

Interlogix TruVision 70 Manual de usuario

Interlogix

Interlogix TruVision DVR 44HD Manual de usuario

Interlogix

Interlogix TruVision DVR 42 Manual de usuario

Interlogix

Interlogix TruVision DVR 44HD Guía

Interlogix

Interlogix MobileView 3000 Manual de usuario

Interlogix

Interlogix truVision DVR 31 Manual de usuario

Interlogix

Interlogix TruVision NVR 20 Manual de usuario

Interlogix

Interlogix TruVision TVR-1116D-2T Manual de usuario

Interlogix

Interlogix TruVision DVR 45HD Manual de usuario

Interlogix

Interlogix TruVision DVR 12 Manual de usuario

Interlogix

Interlogix TruVision Line Manual de usuario

Interlogix

Interlogix TVR 15HD Manual de usuario

Interlogix

Interlogix TruVision NVR 21 Manual de usuario

Manuales populares de DVR de otras marcas

FLIR

FLIR M3100E Series Manual de usuario

VTRACKPRO

VTRACKPRO FPRO300 Manual de usuario

Swann

Swann NVR-7085 models Manual de usuario

XtendLan

XtendLan DVR-1670C Manual de usuario

urmet domus

urmet domus 1093/004AHD Manual de usuario

Holux

Holux M1 Manual de usuario

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Manual de usuario

Whistler

Whistler D16VRS Manual de usuario

Defender Security

Defender Security 82-20235 Manual de usuario

MISUMI

MISUMI MP-WF100M Manual de usuario

Speco

Speco D8HU Manual de usuario

UST

UST DDR-E04AA Instrucciones de uso

Consolidated

Consolidated Digital Video Recorder Manual de usuario

Mace

Mace DVR0404RW Guía de inicio rápido

RCA

RCA RTD315W Manual de usuario

FSM

FSM Colibri Grande PRO Manual de usuario

Hauppauge

Hauppauge HD PVR 2 Manual de usuario

Identivision

Identivision ICR-PH161i PIONEER Manual de usuario
