Interlogix TVR 11c Manual de usuario

P/N 1072609A-EN • REV 1.0 • ISS 28JAN13

TVR 11c Quick Start Guide

Figure 1: Back panel connections

1. Connect up to 4 analog cameras to BNC

connectors.

2. Connect one CCTV monitor (CVBS connector).

3. Connect to a RS-232 device.

4. Connect four audio inputs to RCA connectors.

5. Power switch (on/off).

6. Connect up to four alarm input cables to relay

outputs.

7. Connect one alarm relay output.

8. Connect to an optional USB device such as a

mouse, CD/DVD burner or HDD. The DVR

supports both a USB DVD and a USB HD on the

front and rear USB ports.

9. Connect to a HDTV. The HDMI connection

supports both digital audio and video.

10. Connect to a VGA monitor.

11. Connect to speakers for audio output.

12. Connect to a network.

13. Connect to a RS-485 device such as a PTZ

camera or a keypad.

14. Connect to the PSU (12 VDC).

15. Connect to ground.

2 TVR 11c Quick Start Guide

Figure 2: Front panel controls

1 USB port. The DVR supports both a USB DVD

and a USB HD on the front and rear USB ports.

2. Archive button: Press to enter archive mode.

3. Channel buttons. Switch between different

cameras in live view, PTZ control or playback

modes.

4. Display and Seq buttons: In live view mode,

press Display to toggle through the single and

multiviews. Press Seq to start/stop sequencing

in live view mode.

In menu mode, press Enter to select a menu

window and then Seq to toggle through the tabs

along the top of the menu window.

5. Live, Menu and Search buttons: Press Live to

switch to live view mode. Press Menu to enter

the main menu. Press Search to enter the

advanced search menu.

6. Status LEDs.

7. IR receiver.

8. Playback buttons: Press to control playback.

Press to jump back to the oldest available

video and start playback. Press to pause

playback. Press for all-day playback.

9. Enter and arrow buttons: Use to select options

in a menu and to control playback. Press for

Enter.

10. Alarm button: Press to manually acknowledge

an alarm.

Figure 3: Quick access toolbar

1. Freeze: Freeze live image of the selected

camera.

2. Instant playback: Play back the recorded video

from the last five minutes.

3. Audio: Enable/disable audio output.

4. Quick snapshot: Capture a snapshot of a video

image.

5. PTZ control: Enter PTZ control mode.

6. Digital zoom: Enter digital zoom.

7. Image settings: Modify the image lighting levels.

8. Close: Close the toolbar.

TVR 11c Quick Start Guide 3

Quick Start Guide

Package contents

The TruVision DVR 11c (model TVR 11c) is

shipped with the following items:

• IR (infrared) remote control

• Two AAA batteries for the remote control

• AC power cords

• 12 VDC PSU

• USB mouse

• DVR

• CD with software and manuals

• TruVision DVR 11c Quick Start Guide

• TruVision DVR 11/TVR 11c User Manual

(on CD)

Installation environment

Refer to the user manual for detailed

information, but observe these important

requirements:

• Place the unit in a secure location.

• Ensure that the unit is in a well-ventilated

area.

• Do not expose the unit to rain or moisture.

Quick install

Recommended steps for setting up the DVR:

1. Connect all the devices required to the

back panel of the DVR. See Figure 1 on

page 1.

Basic connections:

Connect the cameras to the BNC camera

inputs and monitor A to the BNC, VGA or

HDMI output. Connect the mouse to the

USB port in the front panel.

Optional connections:

All the other connections shown are

optional and depend upon installation

requirements.

2. Connect the power supply to the unit and

turn on the power.

3. Set up the unit with the required settings

using the setup wizard.

First-time use

The DVR has an express installation wizard

that lets you easily configure basic DVR

settings when first used. It configures all

cameras simultaneously. The configuration

can then be customized as required.

By default, the setup wizard will start once the

DVR has loaded. The wizard walks you

through some of the more important settings

of your DVR. Select the preferred language for

the system and then enter the administrator

password. The default admin password is

1234. It is strongly recommended that this

password is changed.

The wizard will then guide you through the

menus to set the time and date, network

configuration, HDD management, and

recording configuration.

When all the required changes have been

entered, click Finish to exit the wizard. The

DVR is now ready to use. Recording starts

automatically.

Operating the TVR 11c

There are several ways to control the unit:

• Front panel

• IR remote control

• Mouse

• Web browser

Front panel

The buttons on the front panel control most

functions. See Figure 2 on page 2 for the

locations of the controls.

IR remote control

The IR remote control buttons are similar to

those on the front panel. Place the two AAA

batteries in the remote control.

4 TVR 11c Quick Start Guide

To connect the remote control to the DVR:

1. Press Menu on the front panel or right-click

the mouse and select Menu. The main

menu screen appears.

2. Select Display mode settings > Monitor.

3. Check and remember DVR device address

value. The default value is 255. The device

address is valid for all IR controls.

4. On the remote control press the Device

button.

5. Enter the device address value. It must be

the same as that on the DVR.

6. Press OK on the remote control or front

panel.

USB mouse

The USB mouse provided with the DVR

operates all the functions of the DVR, unlike

the front panel, which has limited functionality.

The mouse lets you navigate and make

changes to settings in the user interface.

Connect the mouse to the DVR by plugging

the mouse USB connector into the USB port

on the back or front panel. The mouse is

immediately operational and the pointer

should appear.

Web browser control

The DVR web browser lets you view, record,

and play back videos as well as manage all

aspects of the DVR from any PC with Internet

access. The browser’s easy-to-use controls

give you quick access to all DVR functions.

To access the unit, open a web browser and

enter the IP address assigned to the DVR as a

web address. In the logon screen, enter the

default user ID and password:

• User ID: admin

• Password: 1234

The default values for DVR network settings

are:

• DHCP: Enabled by default.

• IP address - 192.168.1.82

• Subnet mask - 255.255.255.0

• Gateway address - 192.168.1.1

• Server Port: 8000

• HTTP Port: 80

• RTSP port: 554

Note: The following ports need to be followed

in the router in order to connect properly:

Server port and RTSP port.

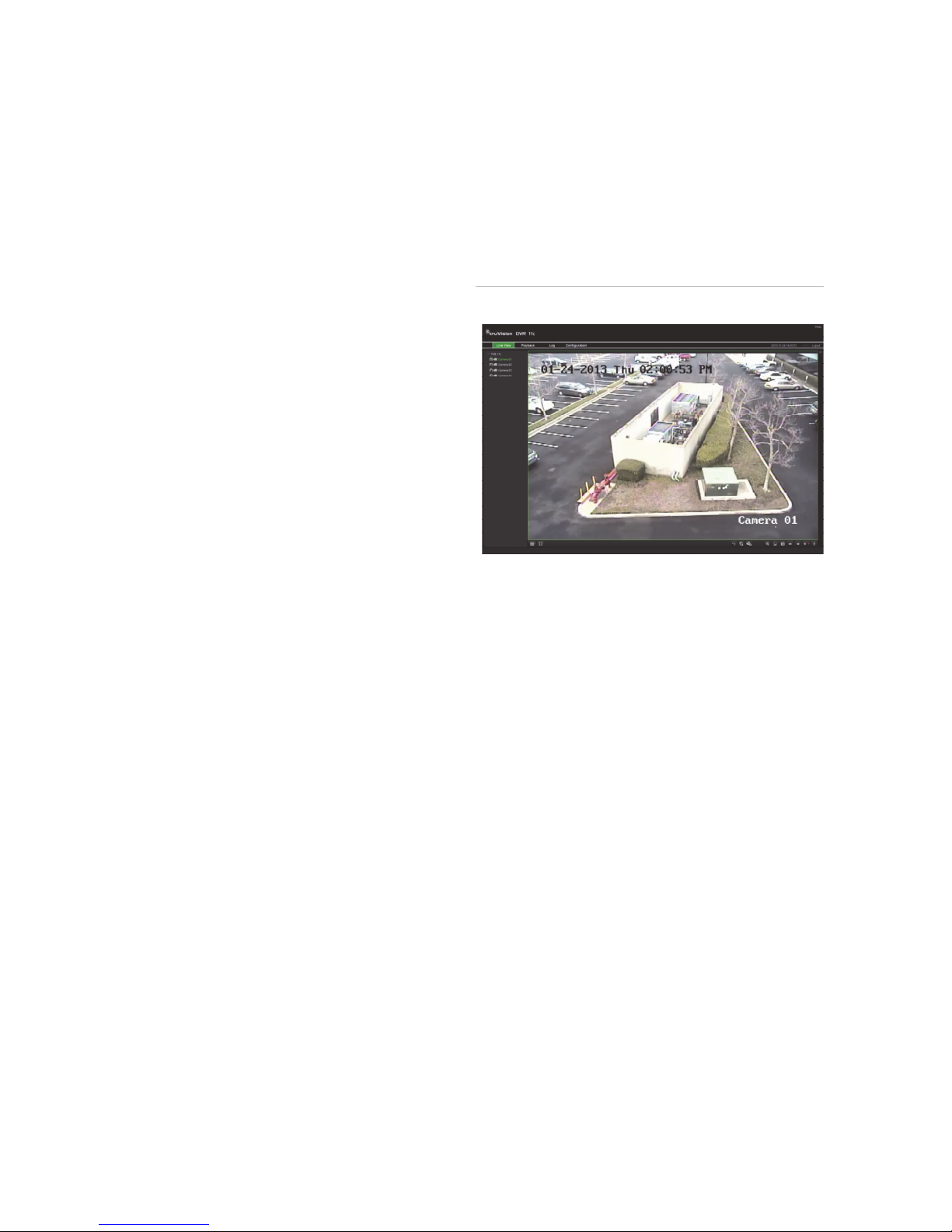

Figure 4: Web browser interface

Live view mode

Live mode is the normal operating mode of the

unit where you watch live pictures from the

cameras.

Regularly used functions in live view can be

quickly accessed by clicking the left-button of

the mouse when its cursor is on the camera

image. The shortcut pop-up toolbar appears.

See Figure 3 on page 2 for a description of

the functions available.

Configuring the TVR 11c

The DVR has an icon-driven menu structure

that allows you to configure the unit’s

parameters. Each command icon displays a

screen that lets you edit a group of settings.

Most menus are available only to system

administrators.

Refer to the TVR 11c user manual for detailed

information on configuring the unit.

TVR 11c Quick Start Guide 5

To access the main menu from live view:

Press the Menu button on the remote

control or front panel.

- Or -

Right-click the mouse and select Menu

from the pop-up menu.

The main menu screen appears. Move the

mouse over a command icon in the menu

toolbar and click to select it.

Description of the command icons in the

menu toolbar:

Configures display settings.

Configures camera settings.

Configures recording settings.

Configures standard network

settings.

Configures alarm settings.

Configures PTZ settings.

Configures user settings.

Configures system settings.

Provides reference information

to the various toolbars and

menus within the interface.

Provides access to logout,

reboot and shutdown options.

Specifications

Power supply 12 VDC

Power consumption:

TVR-1104c-500

TVR-1104c-1T ≤100 W

Operating

temperature

-10 to +55 ºC

(14 to 131 °F)

Relative humidity 10 to 90%

Dimensions

(W x H x D)

314 × 222 × 53 mm

(12.3 × 8.74 × 2.1 in.)

Weight ≤2 kg (4.4 lb.)

Contact information

For contact information, see

www.interlogix.com, or

www.utcfssecurityproducts.eu
