Interlogix ATS 500A Series Manual de usuario

Advisor Advanced

ATSx500A User Guide

P/N 466-2886-EN • REV E • ISS 28JAN19

reserved.

Trademarks and

patents

Interlogix, Advisor Advanced ATSx500A name and logo are

trademarks of UTC Fire & Security.

Other trade names used in this document may be trademarks or

registered trademarks of the manufacturers or vendors of the

respective products.

Manufacturer

UTC Fire & Security Americas Corporation, Inc.

3211 Progress Drive, Lincolnton, NC, 28092, USA

Authorized EU manufacturing representative:

UTC Fire & Security B.V.

Kelvinstraat 7, 6003 DH Weert, Netherlands

Product warnings

and disclaimers

THESE PRODUCTS ARE INTENDED FOR SALE TO AND

INSTALLATION BY QUALIFIED PROFESSIONALS. UTC FIRE &

SECURITY CANNOT PROVIDE ANY ASSURANCE THAT ANY

PERSON OR ENTITY BUYING ITS PRODUCTS, INCLUDING ANY

“AUTHORIZED DEALER” OR “AUTHORIZED RESELLER”, IS

PROPERLY TRAINED OR EXPERIENCED TO CORRECTLY

INSTALL FIRE AND SECURITY RELATED PRODUCTS.

For more information on warranty disclaimers and product safety

information, please check

https://firesecurityproducts.com/policy/product-warning/ or scan the

QR code.

Version

This document applies to the following Advisor Advanced firmware

versions:

ATSx500A(-IP): MR_4.2

Certification

Important: This product has not been designed to comply to

EN 50134 and EN 54 norms.

European Union

directives

UTC Fire & Security hereby declares that this device is in

compliance with the applicable requirements and provisions of the

Directive 2014/30/EU and/or 2014/35/EU. For more information see

www.utcfireandsecurity.com or www.interlogix.com.

2012/19/EU (WEEE directive): Products marked with this symbol

cannot be disposed of as unsorted municipal waste in the European

Union. For proper recycling, return this product to your local supplier

upon the purchase of equivalent new equipment, or dispose of it at

designated collection points. For more information see:

www.utcfssecurityproducts.eu/recycle/

Contact information

www.utcfireandsecurity.com or www.interlogix.com

Customer support

www.utcfssecurityproducts.eu

Advisor Advanced ATSx500A User Guide i

Content

Important information iii

Typographical conventions iii

Important note iii

Keypads and readers 1

Using your PIN and/or card to access the system 4

Duress 5

Door access 6

Set and unset the system 7

When to set 7

When to part set 7

When to unset 7

The time limit to leave the premises once set 7

The time limit when unset 8

Unset when there is an alarm 8

When you cannot set or unset 8

Set areas via LCD keypad 10

Part set areas via LCD keypad 10

Unset areas via LCD keypad 11

Set areas via keypad without LCD 11

Unset areas via keypad without LCD 12

Autoset 12

Areas displayed during set and unset 12

What to do when there is an alarm 14

What happens when there is an alarm 14

Who to contact when an alarm occurs 14

Viewing an alarm 15

Resetting an alarm 15

Acknowledging the alarm 15

Performing a walk test 15

Problems that can occur 16

Error! Bookmark not defined.The Advisor Advanced menu 17

How the menu option sections are organised in this manual 17

Option availability 17

Accessing menu 17

Zone options 19

Inhibiting / uninhibiting zones 19

Shunting zones 20

ii Advisor Advanced ATSx500A User Guide

Panel status 21

Settings 22

PIN 22

SMS and voice reporting 22

Door control 24

Service 25

Common key sequences 28

Common key sequences for LCD keypad 28

Common key sequences for keypad without LCD 29

Function keys 30

Advisor Advanced ATSx500A User Guide iii

Important information

This document includes an overview of the product and detailed instructions

explaining how to use the Advisor Advanced system. To use this documentation

effectively, you should have a basic knowledge of alarm systems.

Read these instructions and all ancillary documentation entirely before operating

this product.

Typographical conventions

This manual uses certain notational and typographical conventions to make it

easier for you to identify important information.

Table 1: Notational and typographical conventions

Item

Description

Keys

Capitalized, for example “press Enter”.

Note

Notes alert you to information that can save you time and effort.

Caution

Cautions identify conditions or practices that may result in damage to the equipment

or other property.



Check boxes let you indicate whether a particular option is available or not. The

manager can provide details on the available options.

Important note

This manual provides information for all Advisor Advanced control panels in all

variations. “Advisor Advanced control panel” refers to any variant of the Advisor

Advanced, unless specifically stated otherwise.

List of panel variants

Table 2: List of ATSx500A(-IP) panel variants

Model

Enclosure

Dimensions (mm)

Weight (kg)

ATS1500A-MM

Metal

MM, 315 x 388 x 85

5.2

ATS1500A-IP-MM

Metal

MM, 315 x 388 x 85

5.2

ATS1500A-SM

Metal

SM, 250 x 250 x 86

2.8

ATS1500A-IP-SM

Metal

SM, 250 x 250 x 86

2.8

ATS1500A-LP

Plastic

LP, 257 x 400 x 112

2.6

ATS1500A-IP-LP

Plastic

LP, 257 x 400 x 112

2.6

ATS3500A-MM

Metal

MM, 315 x 388 x 85

5.2

ATS3500A-IP-MM

Metal

MM, 315 x 388 x 85

5.2

ATS3500A-LP

Plastic

LP, 257 x 400 x 112

2.6

ATS3500A-IP-LP

Plastic

LP, 257 x 400 x 112

2.6

ATS4500A-IP-MM

Metal

MM+, 315 x 445 x 88

5.4

ATS4500A-IP-LM

Metal

LM, 475 x 460 x 160

10.9

iv Advisor Advanced ATSx500A User Guide

Notes

•Not all variants may be available.

•Weight does not include batteries.

Advisor Advanced ATSx500A User Guide 1

Keypads and readers

Figure 1: ATS111xA keypad

Figure 2: ATS113x keypad

(1)

AC mains LED

Green on: AC mains supply on

(2)

Access LED

Blue flashes: card read

(3)

Fault LED

Yellow on: system fault active

Yellow flashing: general alert (EN 50131)

(4)

Alarm LED

Red on: alarm condition active

(5)

LCD display

Displays messages

(6)

/ Up

Scroll up in the menus

Change value

Delete

(7)

? / Help

Show help

Scroll text (ATS113x only)

(8)

Partset

Part set an area

Scroll text (ATS111x only)

(9)

F / Function

Show active zones / faults

Function key modifier

Scroll text (ATS113x only)

(10)

Full set an area

(11)

/ Right

Enter the selected menu

Move cursor right

(12)

/ Left

Return to the previous menu

Move cursor left

(13)

X / Clear

Exit the current user function

Volume control modifier

(14)

Off

Unset an area

916





4 6

798

*Menu #

Enter

(1) (2)

(3) (4)

(5)

(7)

(8) (9)

(10)

(20)

(19)

(18)

(17)

(16)

(15)

(14) (13)

(12)

(11)

(6)

123

456

789

abc

jkl

tuv

def

ghi

.,’?!

A B C

(1) (3) (5) (4) (2)(14)

(10) (21)

(12) (6)

(18)

(11)

(22)

(9)

(13)

(23) (16) (17)(15) (19) (7)

(25)

(24)

2 Advisor Advanced ATSx500A User Guide

(15)

/ Down

Scroll down in the menus

Change value

Backspace

(16)

Alphanumeric keys

Keys 1 to 9, alphanumerical data

(17)

Menu, *

Request entry to the menus

(18)

Enter, #

Complete the step

Enter the selected menu entry

(19)

Key 0

Toggle selection

(20)

Area LEDs 1 to 16

On: area set. See also “Access control indication note” on page 3.

Off: area unset.

Flashing: area alarm condition.

(21)

Partset 1

Part set 1 of areas

(22)

Partset 2

Part set 2 of areas

(23)

A, B, C

Programmable function keys

(24)

LED1

Programmable LED 1

(25)

LED2

Programmable LED 2

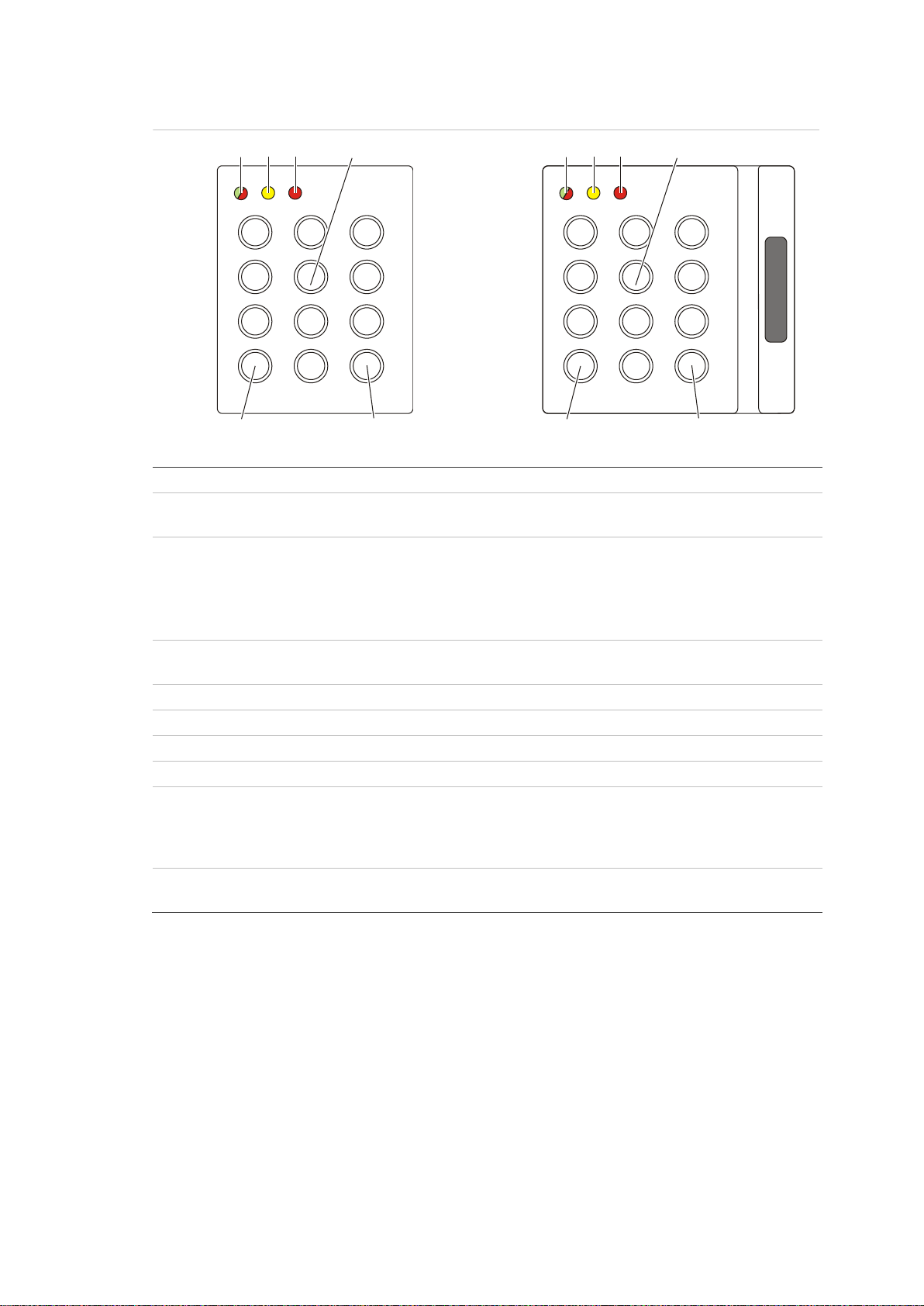

Figure 3: ATS118x readers

Figure 4: ATS1190/ATS1192 readers

Figure 5: ATS1197 reader with keypad

(9) (10) (5) (9) (10) (5)

(6)

(7) (8)

12 3

45 6

78 9

*0 #

(7) (8)

(9) (10) (5)

(1)

(2)

OFF ON

(3)

(4)

(5) (6)

(7) (8)

Advisor Advanced ATSx500A User Guide 3

Figure 6: ATS1151/ATS1156 readers

(1)

Blue LED

Access granted

(2)

Red LED

On: area set

Flashing: general alert (EN 50131)

(3)

Dual LED

Green on: AC mains supply on.

Green flashing: AC mains supply off, or unlocked while unset.

Red on: all areas set. See also “Access control indication note”

below.

Red flashing: unlocked while set.

(4)

Yellow LED

On: All zones are in normal state

Flashing: general alert (EN 50131)

(5)

Red LED

Flashing: alarm

(6)

Numeric keys

Keys 0 to 9, numerical data

(7)

Off

Unset an area

(8)

Full set an area

(9)

Tri-color LED

Green on: System is disarmed

Green flashing: Door open time

Green / red flashing: Valid card presented

Red (ATS125x): System is armed

(10)

Orange LED

ATS4000: System is not ready

ATS125x: Always on

Access control indication note

Access control keypads and readers, which are connected to door controllers

instead of the control panel, indicate areas in a different way:

•Dual LED is lit red when any associated area is set.

•Area 1 LED is on when any associated area is set. Area LEDs 2 to 16 are not

used.

12 3

4 5 6

7 8 9

*0 #

(4) (5) (6)

(7) (8)

(3)

12 3

4 5 6

789

*0 #

(3) (4) (5) (6)

(7) (8)

4 Advisor Advanced ATSx500A User Guide

Using your PIN and/or card to access the

system

You need a PIN and/or a card to use the Advisor Advanced system. A PIN is a

unique number having between 4 and 10 digits.

The manager of the security system has set up your user account with a PIN

and/or card details. In addition, options have been assigned that allow you to

perform specific tasks, such as set or unset the system. You can only access

menu options that have been enabled for your user account. When you try to

access an option that you are not authorised to access, you get the following

error message:

ERROR

Access denied

If you access the menu and do not press any key for three minutes, the system

time out function automatically exits from the menu. It is good practice to exit the

menu using the Clear button rather than using this time out facility. If someone

else uses the menu before it times out, the option used is logged against your

user account.

Otros manuales para ATS 500A Series

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Unidad de control de Interlogix

Interlogix

Interlogix 600-1046-95 Manual de usuario

Interlogix

Interlogix 60-677 Manual de usuario

Interlogix

Interlogix Simon XT Manual de usuario

Interlogix

Interlogix ITI SuperBus 2000 Manual de usuario

Interlogix

Interlogix SuperBus 2000 PIV Manual de usuario

Interlogix

Interlogix RF-KF101-K4 Instrucciones de montaje

Interlogix

Interlogix DIGITAL INVERTER GENERATOR Instrucciones de montaje

Interlogix

Interlogix DTIM Instrucciones de montaje

Interlogix

Interlogix SuperBus 2000 Manual de usuario

Interlogix

Interlogix NX-595E Manual de usuario

Interlogix

Interlogix UltraSync UM-C-H1 Instrucciones de montaje

Interlogix

Interlogix UltraSync UM-W7 Instrucciones de montaje

Interlogix

Interlogix TX-E121 Manual de usuario

Interlogix

Interlogix NXG-7002 Instrucciones de montaje

Interlogix

Interlogix ATS1201 8 Instrucciones de montaje

Interlogix

Interlogix ATS7200N Instrucciones de montaje

Interlogix

Interlogix UltraSync UM-Z8 Instrucciones de montaje

Interlogix

Interlogix NX-586E Manual de usuario

Interlogix

Interlogix NX-586E Manual de usuario

Interlogix

Interlogix UM-ZW Manual de usuario

Interlogix

Interlogix TruPortal TP-ADD-2D-BRD Manual de usuario

Interlogix

Interlogix AdvisorOne AVO-ZW Instrucciones de montaje

Interlogix

Interlogix ATS7340 Instrucciones de montaje

Interlogix

Interlogix ATS1520 Instrucciones de montaje

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
