Wireless-N

Access PoiNt

quick

iNstAll

guide

MODELS:

524704

524728

524735

INT-524704/524728/524735-QIG-0809-01

Shown: Model 524728

Thank you for purchasing the INTELLINET NETWORK SOLUTIONS

™

Wireless 150N Access Point, Model 524704, Wireless 300N Access

Point, Model 524728 or Wireless 300N PoE Access Point, Model 524735.

This guide presents the basic steps to set up and operate this device.

For detailed instructions and specications, refer to the user manual on

the CD enclosed with this product or at www.intellinet-network.com.

Installation

1. Connect your router or switch/hub to the LAN port on the back panel

of the device using Ethernet cable.

2. Attach the antenna(s).

3. Connect the A/C power adapter to a wall socket, and then connect it

to the power socket of the access point.

4. Check all LEDs on the front panel. The PWR and LAN LEDs should

both be on, indicating the device is powered on and properly/securely

connected. NOTE: The WLAN LED will blink once the LAN connection

is made.

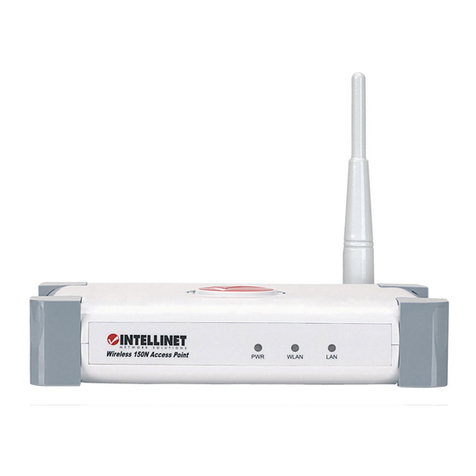

Wireless 150N Access Point

NOTE: Model 524704 Wireless

150N Access Point features

only one antenna.

5. Start your Web browser —

MS Internet Explorer, for

example — and open

http://192.168.2.1 to display

a login window.

6. Enter “admin” for username

and “1234” for password.

Additional install instructions —

as well as explanations for all

the setup options — can be

found in the user manual on the enclosed CD.

Safety Guidelines

• Do not place this device outdoors or near excessive heat or humidity.

• Do not yank any connected cables; disconnect them gently.

• If placing this device at heights or on a wall, make sure it’s rmly

secured to prevent damage or possible injury.

• Access point parts (antennas, power supply, etc.) are dangerous should

children put them in their nose or mouth. Keep out of the reach of

children!

• It’s normal for the device to become hot when used for a long time, so

keep it away from paper, cloth and other ammable materials.

• There’s no user-serviceable part inside the device. If you nd that it

isn’t working properly, contact your dealer (place of purchase) and

ask for help. Do not disassemble the device: Doing so will void

the warranty.

• If the device falls into water while turned on, do not touch it to remove

it! Turn off its power source before you do anything, or contact an

experienced technician for help.

• If smoke or strange odors emanate from the device or power supply,

remove the power supply or turn the power off immediately.

INTELLINET NETWORK SOLUTIONS™offers a complete line

of active and passive networking products.

Ask your local computer dealer for more information or visit

www.intellinet-network.com.

SOLUTIONS

All products mentioned are trademarks or registered trademarks of their respective owners.
