User Guide for NUC8i7BEK, NUC8i5BEK, NUC8i3BEK

Intel® NUC Kit NUC8i7BEK

Intel® NUC Kit NUC8i5BEK

Intel® NUC Kit NUC8i3BEK

User

Guide

User Guide for NUC8i7BEK, NUC8i5BEK, NUC8i3BEK

Before You Begin

CAUTIONS

The steps in this guide assume you’re familiar with computer terminology and with the safety

practices and regulatory compliance required for using and modifying computer equipment.

Disconnect the computer from its power source and from any network before performing any of the steps

described in this guide.

Failure to disconnect power, telecommunications links, or networks before you open the computer or

perform any procedures can result in personal injury or equipment damage. Some circuitry on the board

can continue to operate even though the front panel power button is off.

Follow these guidelines before you begin:

•Always follow the steps in each procedure in the correct order.

•Create a log to record information about your computer, such as model, serial numbers,

installed options, and configuration information.

•Electrostatic discharge (ESD) can damage components. Perform the procedures described in

this chapter only at an ESD workstation using an antistatic wrist strap and a conductive foam

pad. If such a station isn’t available, you can provide some ESD protection by wearing an

antistatic wrist strap and attaching it to a metal part of the computer chassis.

Installation Precautions

When you install and test the Intel NUC, observe all warnings and cautions in the installation

instructions.

To avoid injury, be careful of:

•Sharp pins on connectors

•Sharp pins on circuit boards

•Rough edges and sharp corners on the chassis

•Hot components (such as SSDs, processors, voltage regulators, and heat sinks)

•Damage to wires that could cause a short circuit

Observe all warnings and cautions that instruct you to refer computer servicing to qualified

technical personnel.

Observe Safety and Regulatory Requirements

If you don’t follow these instructions, you increase your safety risk and the possibility of noncompliance

with regional laws and regulations.

User Guide for NUC8i7BEK, NUC8i5BEK, NUC8i3BEK

This guide tells you how to:

•

Install and remove memory

•

Install an M.2 SSD

•

Install a VESA mount bracket

•

Connect power

•

Install an operating system

•

Install the latest drivers

Open the Chassis

Unscrew the four corner screws on the bottom of the chassis and lift the cover.

Installing and Removing Memory

Intel NUC Kits NUC8i5BEK and NUC8i3BEK have two 260-pin DDR4 SO-DIMM sockets. Memory

requirements:

•1.2V low voltage memory

•2400 MHz SO-DIMMs

•Non-ECC

For a list of tested memory, go to the System Memory page on the Support site.

User Guide for NUC8i7BEK, NUC8i5BEK, NUC8i3BEK

Install SO-DIMMs

If you plan to install just one SO-DIMM, install it in the lower memory socket.

To install the SO-DIMMs, follow these steps:

1. Observe the precautions in "Before You Begin" on page 2.

2. Turn off all peripheral devices connected to the computer. Turn off the computer and disconnect

the AC power cord.

3. Align the small notch at the bottom edge of the SO-DIMM with the key in the socket.

4. Insert the bottom edge of the SO-DIMM into the socket.

5. When the SO-DIMM is inserted, push down on the outer edge of the SO-DIMM until the

retaining clips snap into place. Make sure the clips are firmly in place.

Removing SO-DIMMs

To remove a SO-DIMM, follow these steps:

1. Observe the precautions in "Before You Begin" on page 2.

2. Turn off all peripheral devices connected to the computer. Turn off the computer.

3. Remove the AC power cord from the computer.

4. Remove the computer’s cover.

5. Gently spread the retaining clips at each end of the SO-DIMM socket. The SO-DIMM pops out of

the socket.

6. Hold the SO-DIMM by the edges, lift it away from the socket, and store it in an anti-static

package.

7. Reinstall and reconnect any parts you removed or disconnected to reach the SO-DIMM sockets.

8. Replace the computer’s cover and reconnect the AC power cord.

User Guide for NUC8i7BEK, NUC8i5BEK, NUC8i3BEK

Install an M.2 SSD

Intel NUC Kits NUC8i5BEK and NUC8i3BEK support 80mm and 42mm SSDs.

Find compatible M.2 SSDs at the Intel® Product Compatibility Tool:

•Intel NUC Kit NUC8i7BEK

•Intel NUC Kit NUC8i5BEK

•Intel NUC Kit NUC8i3BEK

If you’re installing an 80mm M.2 SSD:

1. Remove the small silver screw from the 80mm metal standoff on the motherboard (A).

2. Align the small notch at the bottom edge of the M.2 card with the key in the connector.

3. Insert the bottom edge of the M.2 card into the connector (B).

4. Secure the card to the standoff with the small silver screw (C).

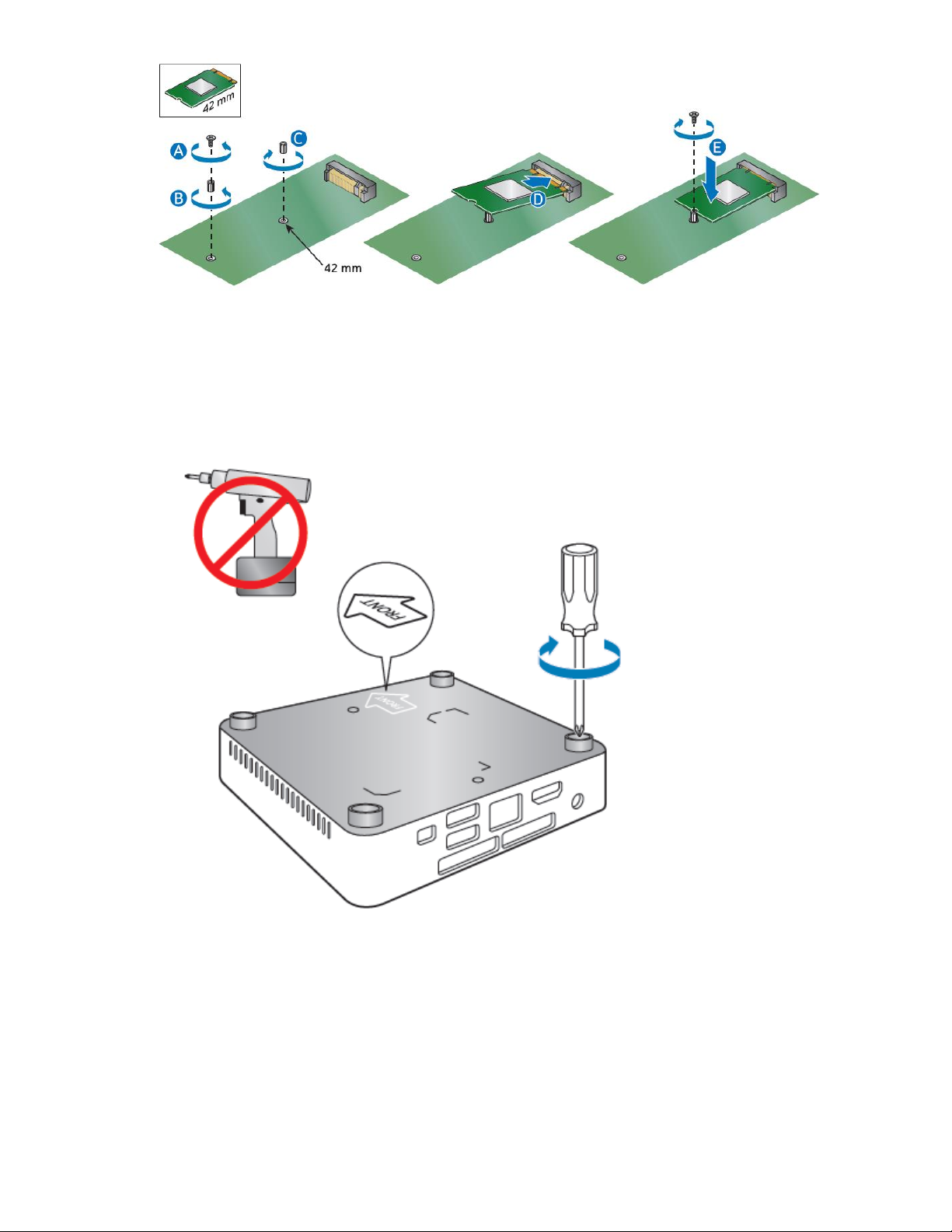

If you’re installing a 42mm M.2 SSD:

1. Remove the small silver screw from the metal standoff on the motherboard (A).

2. Move the standoff (B) from the 80mm position to the 42mm position (C).

3. Align the small notch at the bottom edge of the M.2 card with the key in the connector.

4. Insert the bottom edge of the M.2 card into the connector (D).

5. Secure the card to the standoff with the small silver screw (E).

User Guide for NUC8i7BEK, NUC8i5BEK, NUC8i3BEK

Close the Chassis

After all components have been installed, close the Intel NUC chassis. Intel recommends this be done by

hand with a screwdriver to avoid over-tightening and possibly damaging the screws.

Attach and Use the VESA Bracket (Optional)

Follow these instructions to attach and use the VESA mount bracket:

1. Using the four small black screws that were included in the box, attach the VESA bracket to the

back of the monitor or TV.

User Guide for NUC8i7BEK, NUC8i5BEK, NUC8i3BEK

2. Attach the two slightly larger black screws to the bottom chassis cover of the Intel NUC.

3. Slide the Intel NUC onto the VESA mount bracket.

User Guide for NUC8i7BEK, NUC8i5BEK, NUC8i3BEK

Connect Power

Country-specific power cords are included in the Intel NUC Kit box.

Connect AC power

Each Intel NUC model includes either a region-specific AC power cord or no AC power cord (only the power

adapter).

Product codes

Power cord type

BOXNUC8i5BEK

BOXNUC8i3BEK

No power cord included. An AC power cord needs to be purchased

separately. Power cords are available at many Internet sites for use in

multiple countries. The connector on the power adapter is a C5 type

connector.

BOXNUC8i7BEK1

BOXNUC8i5BEK1

BOXNUC8i3BEK1

US power cord included.

BOXNUC8i7BEK2

BOXNUC8i5BEK2

BOXNUC8i3BEK2

EU power cord included.

BOXNUC8i5BEK3

BOXNUC8i3BEK3

UK power cord included.

BOXNUC8i5BEK4

BOXNUC8i3BEK4

Australia/New Zealand power cord included.

User Guide for NUC8i7BEK, NUC8i5BEK, NUC8i3BEK

Install an Operating System

Refer to Supported Operating Systems for a list of Intel-validated Windows* operating systems and

versions of Linux that have been reported as compatible by Intel NUC owners.

Refer to Operating System Installation for system requirements and installation steps.

Install Intel NUC Drivers

To download the latest Microsoft* Windows* drivers and BIOS updates, go to Download Center:

Links:

•Intel® NUC Kit NUC8i7BEK

•Intel® NUC Kit NUC8i5BEK

•Intel® NUC Kit NUC6i3BEK

Drivers are available for the following features:

•Audio

•Bluetooth

•Chipset

•Consumer Infrared

•Graphics

•Intel® ME

•Intel® Rapid Storage Technology

•Intel® Ready Mode Technology

•LAN (wired and wireless)

•NFC

•Serial IO

•USB 3.0
