Intel NUC7i3DNHNC Manual de usuario

User Guide for NUC7i3DNHNC

Intel® NUC7 Business, a Mini PC with Windows® 10 –NUC7i3DNHNC

User Guide

User Guide for NUC7i3DNHNC

Before You Begin

CAUTIONS

The steps in this guide assume you’re familiar with computer terminology and with the

safety practices and regulatory compliance required for using and modifying computer

equipment.

Disconnect the computer from its power source and from any network before performing any of

the steps described in this guide.

Failure to disconnect power or networks before you open the computer or perform any procedures

can result in personal injury and/or equipment damage. Some circuitry on the board can continue

to operate even though the front panel power button is off.

Follow these guidelines before you begin:

Always follow the steps in each procedure in the correct order.

Create a log to record information about your computer, such as model, serial

numbers, installed options, and configuration information.

Electrostatic discharge (ESD) can damage components. Perform the procedures

described in this chapter only at an ESD workstation using an antistatic wrist strap and a

conductive foam pad. If such a station isn’t available, you can provide some ESD

protection by wearing an antistatic wrist strap and attaching it to a metal part of the

computer chassis.

Installation Precautions

When you install and test the Intel NUC, observe all warnings and cautions in the installation

instructions.

To avoid injury, be careful of:

Sharp pins on connectors

Sharp pins on circuit boards

Rough edges and sharp corners on the chassis

Hot components (such as SSDs, processors, voltage regulators, and heat sinks)

Damage to wires that could cause a short circuit

Observe Safety and Regulatory Requirements

If you don’t follow these instructions, you increase your safety risk and the possibility of

noncompliance with regional laws and regulations.

User Guide for NUC7i3DNHNC

This guide tells you how to:

•

Upgrade memory (RAM)

•

Change/install an M.2 SSD

•

Change/install a 2.5-inch drive

•

Use a VESA mount bracket

•

Connect power

•

Set up Microsoft® Windows® 10

•

Install the latest device drivers and software

•

Recover the operating system

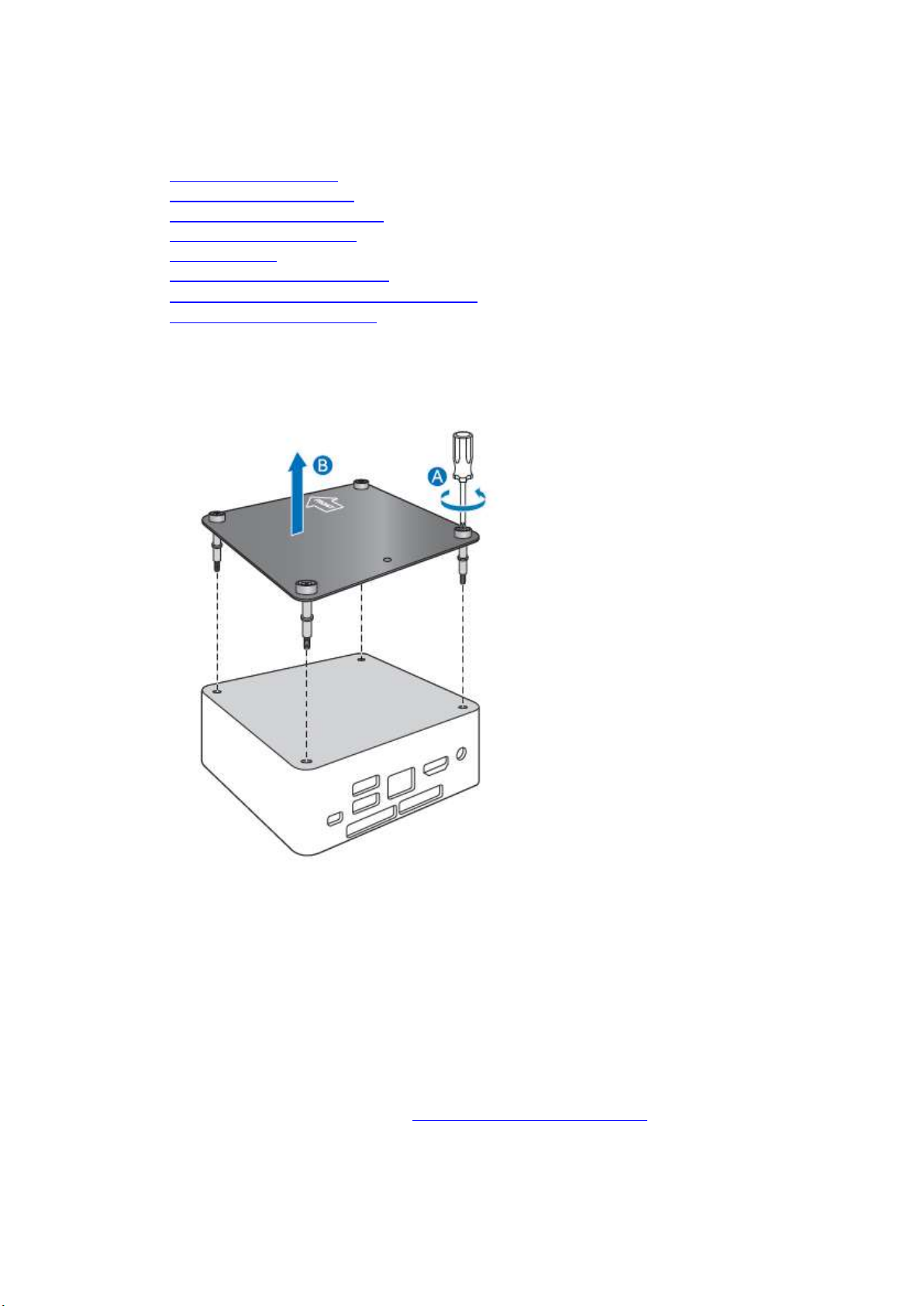

Open the Chassis

Unscrew the four corner screws on the bottom of the chassis and lift the cover.

Upgrade System Memory

The Intel NUC Kits NUC7i3DNHNC have two 260-pin DDR4 SO-DIMM sockets, pre-installed with

one 4GB DDR4 2133 MHz SO-DIMM.

To upgrade memory, be sure to select memory modules that meet these requirements:

1.2V low voltage memory

2133 MHz SO-DIMMs

Non-ECC

Find compatible memory modules in the Intel® Product Compatibility Tool.

User Guide for NUC7i3DNHNC

NOTE

If you plan to install only one memory module, install it in the lower memory

socket.

To upgrade or add memory, follow these steps:

1. Observe the precautions in "Before You Begin" on page 2.

2. Turn off all peripheral devices connected to the computer. Turn off the computer and

disconnect the power cord.

3. Remove the computer’s bottom chassis cover.

Upgrade to different memory

a. Remove the pre-installed memory module

i. Gently spread the retaining clips at each end of the memory socket, which

causes the module to pop out of the socket (C).

ii. Holding the module by the edges, lift it away from the socket, and

store it in an anti-static package.

b. Install the new memory module

i. Align the small space at the bottom edge of the memory module with

the key in the socket.

ii. Insert the bottom edge of the module at a 45 degree angle into the

socket (A).

iii. When the module is inserted, push down on the outer edges of the

module until the retaining clips snap into place (B). Make sure the

clips are firmly in place (C).

Install an additional memory module

a. Align the small space at the bottom edge of the memory module with the key on the

socket.

b. Insert the bottom edge of the module at a 45 degree angle into the socket (A).

c. When the module is inserted, push down on the outer edges of the module

until the retaining clips snap into place (B). Make sure the clips are firmly in

place (C).

4. Reinstall and reconnect any parts you removed or disconnected to reach the memory

sockets.

5. Replace the computer’s cover and reconnect the power cord.

User Guide for NUC7i3DNHNC

Changing an M.2 SSD or Intel® Optane™ Memory Module

The Intel NUC Kits NUC7i3DNHNC support an 80mm or 42mm SSD.

Find compatible M.2 SSDs in the Intel Product Compatibility Tool.

NOTE

Before changing the Intel Optane memory module, it needs to be disabled. Follow

Removing Intel Optane Memory on this page first, before taking the module out.

To Change an M.2 SSD:

1. Remove the small silver screw from the 80mm or 42mm metal standoff on the board (A).

2. Remove the pre-installed SSD/Intel Optane Memory from the connector.

3. Align the space at the bottom of the new M.2 SSD to the key on the connector.

4. Insert the bottom edge of the M.2 SSD into the connector (B).

5. Secure the card to the standoff with the small silver screw (C).

Changing a 2.5” SSD or Hard Drive

The Intel NUC Kits NUC7i3DNHNC support an additional 2.5” Solid State Drive (SSD) or Hard Disk

Drive (HDD), pre-installed with one 1TB HDD.

User Guide for NUC7i3DNHNC

Find compatible 2.5” drives in the Intel Product Compatibility Tool.

1. Unscrew the four screws holding the current drive in the bay.

2. Remove the pre-installed drive from the drive bay.

3. Slide the new 2.5” drive into the drive bay, ensuring the SATA connectors are fully seated into

the connectors of the SATA daughter card (A).

4. Secure the drive into the drive bay with the four screws that were used in step 1. Set the drive

bay bracket down inside the chassis (C).

User Guide for NUC7i3DNHNC

Close the Chassis

After all components have been installed, close the Intel NUC chassis. Intel recommends this be

done by hand with a screwdriver to avoid over-tightening and possibly damaging the screws.

Attach and Use the VESA Bracket (Optional)

Follow these instructions to attach and use the VESA mount bracket:

1. Using the four small black screws that were included in the box, attach the VESA bracket to

the back of the monitor or TV.

User Guide for NUC7i3DNHNC

2. Attach the two slightly larger black screws to the bottom chassis cover of the Intel NUC.

3. Slide the Intel NUC onto the VESA mount bracket.

User Guide for NUC7i3DNHNC

Connect Power

Each Intel NUC model includes either a region-specific AC power cord or no AC power cord (only the

power adapter).

Product codes

Power cord type

BOXNUC7i3DNHNC

No power cord included. An AC power cord needs to be purchased

separately. Power cords are available at many Internet sites for use in

multiple countries. The connector on the power adapter is a C5 type

connector.

BOXNUC7i3DNHNC1

US power cord included.

BOXNUC7i3DNHNC2

EU power cord included.

BOXNUC7i3DNHNC3

UK power cord included.

BOXNUC7i3DNHNC4

Australia/New Zealand power cord included.

BOXNUC7i3DNHNC5

India power cord included.

Connect AC power.

Set Up Microsoft® Windows® 10

Microsoft Windows 10 is already installed on the Intel NUC. The first time you start the computer,

you are guided through the Windows 10 setup steps, including:

Selecting your region and language.

Accepting the Microsoft Windows license terms.

Personalizing Windows and assign a PC Name.

"Get Online" dialog to pick a wireless network (this step is optional).

Choosing Express Settings or Customize.

Assigning a User Name and Password.

User Guide for NUC7i3DNHNC

Reinstalling the Operating System

If you upgrade or replace the computer’s drive, you may need to install a new version of the

operating system. See these resources:

Supported Operating Systems

Windows Setup Guide

Install the Latest Device Drivers and Software

Here are the options for keeping device drivers current:

Allow the Intel® Driver & Support Assistant (Intel® DSA) to detect out-of-date drivers

Manually download drivers, BIOS, and software from Download Center.

The following device drivers and software are available.

Intel® Chipset Device Software

Intel® HD Graphics

Intel® Management Engine

Intel® Wireless

Intel® Bluetooth

Intel® Gigabit Ethernet

Intel® Rapid Storage Technology

Intel® Software Guard Extensions (Intel® SGX)

HDMI Firmware

Operating System Recovery

There’s a Windows recovery partition on the Intel NUC. You can use this partition to Refresh, Reset,

or Restore Windows. Here is what each of these actions do:

Refresh

If your PC isn't performing as well as it once did, and you don't know why, you

can refresh your PC. This action doesn’t delete any of your personal files or

change your settings. Refresh does the following:

Files and personalization settings won’t change.

PC settings are changed back to their defaults.

Apps from the Windows Store are kept.

Apps installed from disks or websites are removed.

List of removed apps is saved on the desktop.

Reset

If you want to recycle your PC, give it away, or start over with it, you can reset

it completely. This process removes everything. Reset does the following:

All personal files and apps are removed.

PC settings are changed back to their defaults.

Windows is reinstalled.

Restore

If a recently installed app or driver is causing problems with your PC, you can

restore Windows back to an earlier point in time, called a restore point.

System Restore doesn’t change your personal files, but it can remove recently

installed apps and drivers.
