Intel NUC10i7FNKN Manual de usuario
User Guide for NUC10i7FNKN, NUC10i5FNKN, NUC10i3FNKN
1
Intel® NUC Kit NUC10i7FNKN
Intel® NUC Kit NUC10i5FNKN
Intel® NUC Kit NUC10i3FNKN
User
Guide
User Guide for NUC10i7FNKN, NUC10i5FNKN, NUC10i3FNKN
2
Before You Begin
CAUTIONS
The steps in this guide assume you’re familiar with computer terminology and with the safety
practices and regulatory compliance required for using and modifying computer equipment.
Disconnect the computer from its power source and from any network before performing any of the steps
described in this guide.
Failure to disconnect power, telecommunications links, or networks before you open the computer or
perform any procedures can result in personal injury or equipment damage. Some circuitry on the board
can continue to operate even though the front panel power button is off.
Follow these guidelines before you begin:
Always follow the steps in each procedure in the correct order.
Create a log to record information about your computer, such as model, serial numbers,
installed options, and configuration information.
Electrostatic discharge (ESD) can damage components. Perform the procedures described in
this chapter only at an ESD workstation using an antistatic wrist strap and a conductive foam
pad. If such a station isn’t available, you can provide some ESD protection by wearing an
antistatic wrist strap and attaching it to a metal part of the computer chassis.
Installation Precautions
When you install and test the Intel NUC, observe all warnings and cautions in the installation
instructions.
To avoid injury, be careful of:
Sharp pins on connectors
Sharp pins on circuit boards
Rough edges and sharp corners on the chassis
Hot components (such as SSDs, processors, voltage regulators, and heat sinks)
Damage to wires that could cause a short circuit
Observe all warnings and cautions that instruct you to refer computer servicing to qualified
technical personnel.
Observe Safety and Regulatory Requirements
If you don’t follow these instructions, you increase your safety risk and the possibility of noncompliance
with regional laws and regulations.
User Guide for NUC10i7FNKN, NUC10i5FNKN, NUC10i3FNKN
3
This guide tells you how to:
•
Install and remove memory
•
Install an M.2 SSD
•
Install a VESA mount bracket
•
Connect power
•
Install an operating system
•
Install the latest drivers
Open the Chassis
Unscrew the four corner screws on the bottom of the chassis and lift the cover.
Installing and Removing Memory
Intel NUC Kits NUC10i7FNKN, NUC10i5FNKN and NUC10i3FNKN have two 260-pin DDR4 SO-DIMM
sockets. Memory requirements:
1.2V low voltage memory
2666 MHz SO-DIMMs
Non-ECC
Find compatible memory modules in the Intel Product Compatibility Tool
NUC10i7FNKN
NUC10i5FNKN
NUC10i3FNKN
NOTE If you plan to install only one memory module, install it in the lower memory
socket.
User Guide for NUC10i7FNKN, NUC10i5FNKN, NUC10i3FNKN
4
Install SO-DIMMs
If you plan to install just one SO-DIMM, install it in the lower memory socket.
To install the SO-DIMMs, follow these steps:
1. Observe the precautions in "Before You Begin" on page 2.
2. Turn off all peripheral devices connected to the computer. Turn off the computer and disconnect
the AC power cord.
3. Align the small notch at the bottom edge of the SO-DIMM with the key in the socket.
4. Insert the bottom edge of the SO-DIMM into the socket.
5. When the SO-DIMM is inserted, push down on the outer edge of the SO-DIMM until the
retaining clips snap into place. Make sure the clips are firmly in place.
Removing SO-DIMMs
To remove a SO-DIMM, follow these steps:
1. Observe the precautions in "Before You Begin" on page 2.
2. Turn off all peripheral devices connected to the computer. Turn off the computer.
3. Remove the AC power cord from the computer.
4. Remove the computer’s cover.
5. Gently spread the retaining clips at each end of the SO-DIMM socket. The SO-DIMM pops out of
the socket.
6. Hold the SO-DIMM by the edges, lift it away from the socket, and store it in an anti-static
package.
7. Reinstall and reconnect any parts you removed or disconnected to reach the SO-DIMM sockets.
8. Replace the computer’s cover and reconnect the AC power cord.
User Guide for NUC10i7FNKN, NUC10i5FNKN, NUC10i3FNKN
5
Install an M.2 SSD
Intel NUC Kits NUC10i7FNKN, NUC10i5FNKN and NUC10i3FNKN support 80mm and 42mm SSDs.
Find compatible M.2 SSDs at the Intel® Product Compatibility Tool:
NUC10i7FNKN
NUC10i5FNKN
NUC10i3FNKN
NOTE Before changing the Intel Optane memory module, it needs to be disabled. Follow Removing
Intel Optane Memory on this page first, before taking the module out.

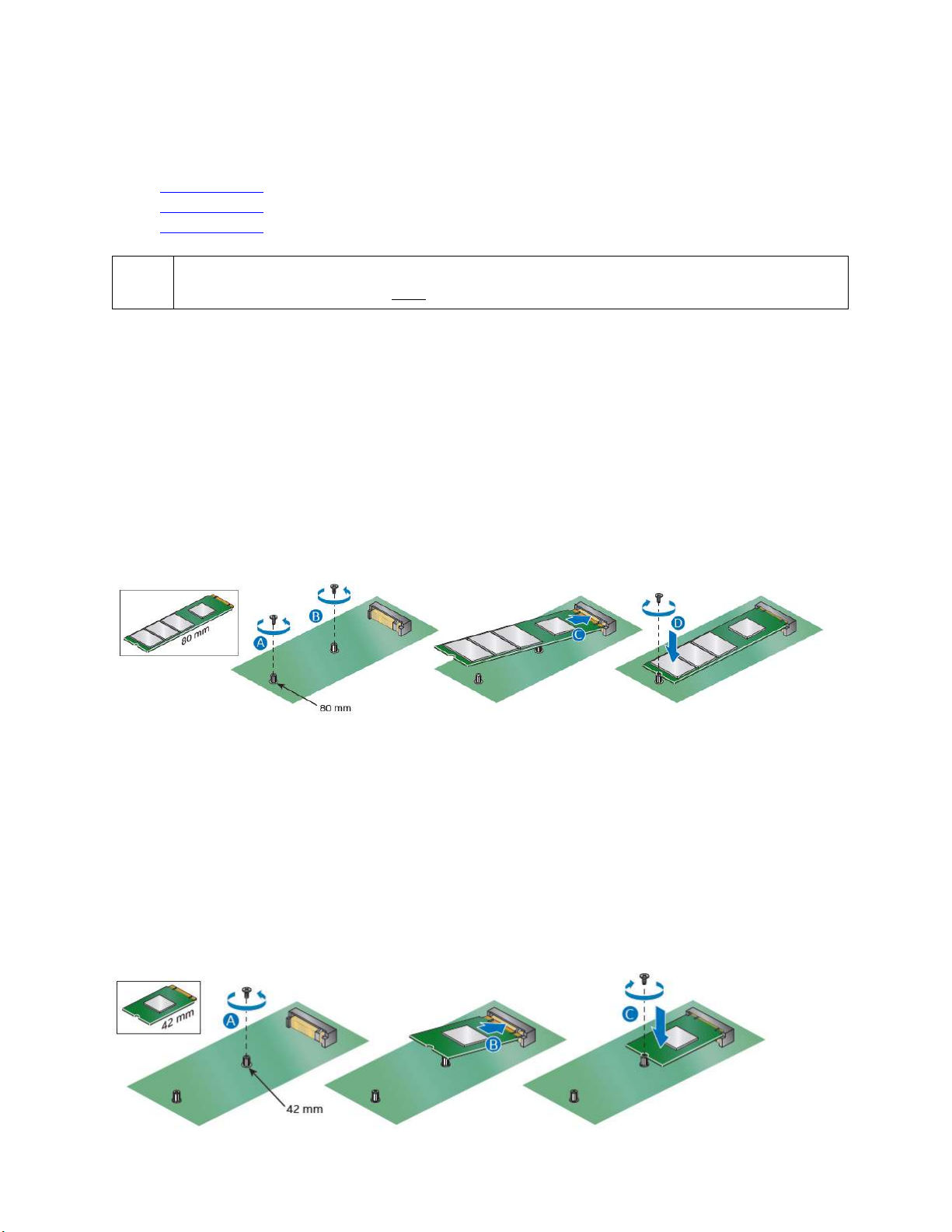

If you’re installing an 80mm M.2 SSD:
1. Remove the small silver screw from the 80mm (A) and 42mm (B) metal standoff on the
motherboard.
2. Align the small notch at the bottom edge of the M.2 card with the key in the connector.
3. Insert the bottom edge of the M.2 card into the connector (C).
4. Secure the card to the standoff with the small silver screw (D).
If you’re installing a 42mm M.2 SSD:
1. Remove the small silver screw from the metal standoff on the motherboard (A).
2. Align the small notch at the bottom edge of the M.2 card with the key in the connector.
3. Insert the bottom edge of the M.2 card into the connector (B).
4. Secure the card to the standoff with the small silver screw (C).
User Guide for NUC10i7FNKN, NUC10i5FNKN, NUC10i3FNKN
6
Close the Chassis
After all components have been installed, close the Intel NUC chassis. Intel recommends this be done by
hand with a screwdriver to avoid over-tightening and possibly damaging the screws.
Attach and Use the VESA Bracket (Optional)
Follow these instructions to attach and use the VESA mount bracket:
1. Using the four small black screws that were included in the box, attach the VESA bracket to the
back of the monitor or TV.
User Guide for NUC10i7FNKN, NUC10i5FNKN, NUC10i3FNKN
7
2. Attach the two slightly larger black screws to the bottom chassis cover of the Intel NUC.
3. Slide the Intel NUC onto the VESA mount bracket.
User Guide for NUC10i7FNKN, NUC10i5FNKN, NUC10i3FNKN
8
Connect Power
Country-specific power cords are included in the Intel NUC Kit box.
Connect AC power
Each Intel NUC model includes either a region-specific AC power cord or no AC power cord (only the power
adapter).
Product codes
Power cord type
The
connector on the power adapter is a C5 type connector.
BXNUC10i7FNKN1,
BXNUC10i5FNKN1,
BXNUC10i3FNKN1,
US power cord included.
BXNUC10i7FNKN2,
BXNUC10i5FNKN2,
BXNUC10i3FNKN2
EU power cord included.
Install an Operating System
Refer to Supported Operating Systems for a list of Intel-validated Windows* operating systems and
versions of Linux that have been reported as compatible by Intel NUC owners.
Refer to Operating System Installation for system requirements and installation steps.
User Guide for NUC10i7FNKN, NUC10i5FNKN, NUC10i3FNKN
9
Install Intel NUC Drivers
To download the latest Microsoft* Windows* drivers and BIOS updates, go to Download Center:
Links:
NUC10i7FNKN
NUC10i5FNKN
NUC10i3FNKN
Drivers are available for the following features:
Chipset
Graphics
Intel® Management Engine
Wireless and/or Gigabit Ethernet (depending on how you connect)
Bluetooth®—required if you use Bluetooth devices
Thunderbolt
Consumer Infrared (CIR)—required if you use an infrared remote control
Card Reader—required if you use an SD card for extra storage
Intel® Rapid Storage Technology—required if you plan to configure RAID
