How to Use This Manual

This Users Guide contains the latest information on the EtherExpress

PRO/100 LAN+Modem56 PC Card available at press time. It is designed

to help both new and experienced users with installation and configura-

tion.

Installation and Configuration Overview

For an overview, see the Quick Installation Card. For complete technical

details and troubleshooting information, see the chapter covering your

operating system (Chapter 2 Windows 95, Chapter 3 Windows NT, or

Chapter 4 Windows 3.x/MS-DOS) in this Users Guide.

How to Find More Information

Use the Table of Contents, Index, and page and text headings in this Users

Guide to help you find what you need. Check the README file on Disk 2,

Network Drivers disk. To check for updated drivers, visit our Customer

Support web site at:

http://support.intel.com

See Appendix A for additional support information.

ii PRO/100 LAN+Modem PC Card User's Guide

Intel Corporation

5200 N.E. Elam Young Parkway

Hillsboro, OR 97124-6497

Intel Corporation assumes no responsibility for errors or omissions in this guide.

Nor does Intel make any commitment to update the information contained

herein.

* Other product and corporate names may be trademarks of other companies

and are used only for explanation and to the owners benefit, without intent to

infringe.

September 1997 687759-001

Contents

Hardware Installation ..................................... 1-1

Software Supplied ...................................................................1-2

Hardware Installation ..............................................................1-3

Unpacking and Inspection.......................................................1-3

Other Required Equipment .....................................................1-4

Installing Card and Cables......................................................1-5

PRO/100 Modem and Ethernet Connections..........................1-6

Windows* 95 Installation ............................... 2-1

Which Version of Windows 95? ...............................................2-1

How Can I Tell Which Version I Have? ....................................2-1

Additional Information in this Chapter .....................................2-2

Windows 95 Installation (Retail Version) .................................2-2

Windows 95 OSR2 Installation

(OEM Version) ..................................................................2-4

How to Install for Windows 95 and NetWare* .........................2-8

Utilities.....................................................................................2-8

Power-Saving Modes ..............................................................2-9

Windows 95 Troubleshooting ..................................................2-9

Troubleshooting Checklist .....................................................2-10

Windows 95 Driver Parameters Reference ...........................2-13

Windows NT Installation................................ 3-1

Which Version of Windows NT? ..............................................3-1

How Can I Tell Which Version and Service Pack I Have? .......3-2

Additional Information in this Chapter .....................................3-2

Windows NT 4.0 Installation....................................................3-3

Windows NT 3.51 Installation..................................................3-5

Power-Saving Modes ..............................................................3-7

Utilities.....................................................................................3-7

Windows NT Driver Parameters Reference ............................3-8

Windows 3.x/DOS Installation....................... 4-1

Installation under MS-DOS .....................................................4-2

Windows 3.x Modem Driver Settings ....................................4-36

Windows 3.x Network Driver Parameters .............................4-37

ODI Settings (for M16BODI.COM) ........................................4-38

Error Messages for Windows 3.x and MS-DOS Drivers .......4-47

iv PRO/100 LAN+Modem PC Card User's Guide

Windows 3.x Troubleshooting................................................4-51

Computer-Specific Application Notes (Windows 3.x)............4-60

Utilities and Applications .............................. 5-1

Utilities.....................................................................................5-1

Country Identifier Utility...........................................................5-1

Modem Test Utility...................................................................5-2

Diagnostic Test Utility (M16BTEST.EXE) ................................5-3

COM port monitor (Windows 3.x only) ....................................5-5

Communications Application Notes and Modem

Script Files ......................................................................5-6

Modem Reference .......................................... 6-1

Result Codes...........................................................................6-1

AT Command Reference.........................................................6-4

S-Register Reference............................................................6-25

Automated Customer Support ..................... A-1

Specifications................................................ B-1

Limited Warranty ........................................... C-1

Agency Notices ............................................. D-1

Software License Agreement........................E-1

Index.........................................................Index-1

CHAPTER 1

Hardware Installation

Introduction

The PRO/100 PC Card is the ideal high-speed, multifunction solution for

portable PC users. It supports 10 and 100Mbps Ethernet networks and

modem speeds up to 56Kbps for high-performance connectivity in any

environment. The PRO/100 PC Card plugs into your computers Type II

PC Card slot for simultaneous connection to an Ethernet LAN and the

telephone network.

56K Technology

The PRO/100 PC Card uses K56flex* modem technology to reach speeds

up to 56Kbps. K56flex Technology enables notebook users to access

information and E-mail on corporate networks, the Internet and other

online services at speeds up to 56Kbps over standard phone lines.

These higher speeds are achieved by avoiding conversion from digital to

analog lines in the connection between the user and service provider.

Ordinary connections begin over an analog line, are converted to digital

by the phone company and are converted back to analog in the final

segment before arriving at the service provider. In order to achieve 56K

connections, there can only be one digital to analog conversion. This

requires the service provider to have a direct digital connection and

therefore, avoids one conversion of the signal. By avoiding this conver-

sion, data download speeds up to 56K are possible. Data sent upstream by

the user travels at the standard V.34 rate. Also, the modems at both ends

of the call must be compatible to achieve speeds up to 56K. If the

modems at both ends of the call are not compatible, they will negotiate a

standard V.34 connection.

1-2 PRO/100 LAN+Modem PC Card User’s Guide

With K56flex technology, current country-specific regulations may limit

download speeds. Additional factors such as phone line conditions, can

affect the performance of the PRO/100 PC Card. You can find more

detailed technical information on K56flex performance on Intel's support

web site, support.intel.com.

Model

MBLA1656 Combination card that provides access to

10Base-T and 100Base-TX networks and

modem speeds up to 56Kbps. An Ethernet

Adapter Cable (RJ-45) and Modem Cable

(RJ-11) are supplied. It provides access to

both 10Mbps and 100Mbps networks with a

single Ethernet Adapter Cable, and auto-

senses 10Mbps or 100Mbps network speed.

Requires Category 5 (data grade)

unshielded twisted pair (UTP) cabling

for 100Mbps network connections.

Software Supplied

Intel drivers and other software are supplied on 3.5-inch 1.44 megabyte

disks. All popular network operating systems, including NetWare, Win-

dows 95, Windows NT, Windows 3.x, and Windows for Workgroups are

supported.

An easy-to-use Installation Program for Windows 3.x is provided on the

Intel Installation Disk, which includes the country identifier utility for local

modem settings.

Additional Features

The PRO/100 PC Card is a Type II PC Card conforming to the Personal

Computer Memory Card International Association (PCMCIA) PC Card

Standard. It supports HotSwap, suspend/resume power management, full-

duplex transmission at 10Mbps, and Advanced Look-Ahead Pipelining.

Hardware Installation 1-3

HotSwap

This card supports HotSwap on a PC Card computer that is running

Microsoft Windows 95 or Windows 3.x/MS-DOS using Card and Socket

Services. This feature allows the PRO/100 PC Card to be removed from

the computer, temporarily replaced with another type of PC card, then

reinserted without loss of the local area network connection.

Power Management Suspend/Resume

Power management features such as suspend/resume are supported by the

PRO/100 PC Card on PCMCIA systems running Windows 95 or Win-

dows NT, or Windows 3.x/MS-DOS using Card and Socket Services. This

means that when the computer enters a reduced power or power saving

mode, an ongoing local area network connection will remain active for the

period of time allowed by the network operating system

Hardware Installation

Note

Hardware installation requirements may vary with different

operating systems. For example, if your system is configured for

automatic detection of the card (for example, under Windows

95), the computer should be ON and standard operating

software loaded when the card is inserted. For installation

instructions specific to your particular environment, see the

appropriate chapter: Chapter 2. Installation with Windows 95,

Chapter 3. Installation with Windows NT, and Chapter 4.

Installation with Windows 3.x/MS-DOS.

The PRO/100 PC Card is compatible with Type II PC Card slots. The

hardware installation procedures outlined here are typical. Installation and

removal procedures vary on different PC Card-capable computers and

under different operating systems.

Unpacking and Inspection

After opening the PRO/100 PC Card box, verify that all parts are included

and have not been damaged during transportation. Retain the packing

materials.

1-4 PRO/100 LAN+Modem PC Card User’s Guide

Package Contents

 EtherExpress PRO/100 LAN+Modem PC Card PC Card (Model

MBLA1656)

Model MBLA-1656: Ethernet adapter cable with a 15-pin PC Card

connector at one end and female RJ-45 connector at the other for

10Base-T or 100Base-TX connectivity

 Modem cable with RJ-11 telephone connector

 Intel EtherExpress PRO/100 LAN+Modem PC Card User's

Guide

(this book)

 Intel EtherExpress PRO/100 LAN+Modem PC Card Quick

Start card

 Software on two 1.44 MB 3.5-inch diskettes

 Protective adapter case

 6-foot telephone cable

 Product registration card

Other Required Equipment

1For LAN operations: a local area network supporting 10 or

100Mbps Ethernet, as required, and a network operating system

supported by the PRO/100 PC Card.

Note

Since the PRO/100 PC Card automatically detects the speed of

the network to which it is connected, it may be safely connected

to either a 100Base-TX or 10Base-T network, as specified in

items 2 and 3 below.

2For connection to a 100Base-TX Ethernet network, a Category 5

(data grade) unshielded twisted pair (UTP) network cable terminat-

ing in a male RJ-45 connector and connected to a 100Mbps hub or

switch.

3For connection to a 10Base-T Ethernet network, a network cable

terminating in a male RJ-45 connector and connected to a 10Mbps

hub or switch.

Hardware Installation 1-5

4For modem operations: an analog telephone line or PABX

connection (RJ-11), and if needed, an RJ-11 adapter for the local

telephone system.

Note

Do not connect to a digital telephone line or digital PABX

system. The hardware on the adapter will protect your modem

from inadvertent connection to a digital line.

Installing Card and Cables

Inserting the PRO/100 PC Card into the PC Card Slot

1Grasp the PRO/100 PC Card by the edges with the Intel logo

facing upward and the 68-pin PC Card connector next to the card

slot.

2Insert the card into the PC card slot and push it in until it is firmly

seated. If you have more than one PC card slot, the PRO/100 PC

Card will automatically detect which slot it is in.

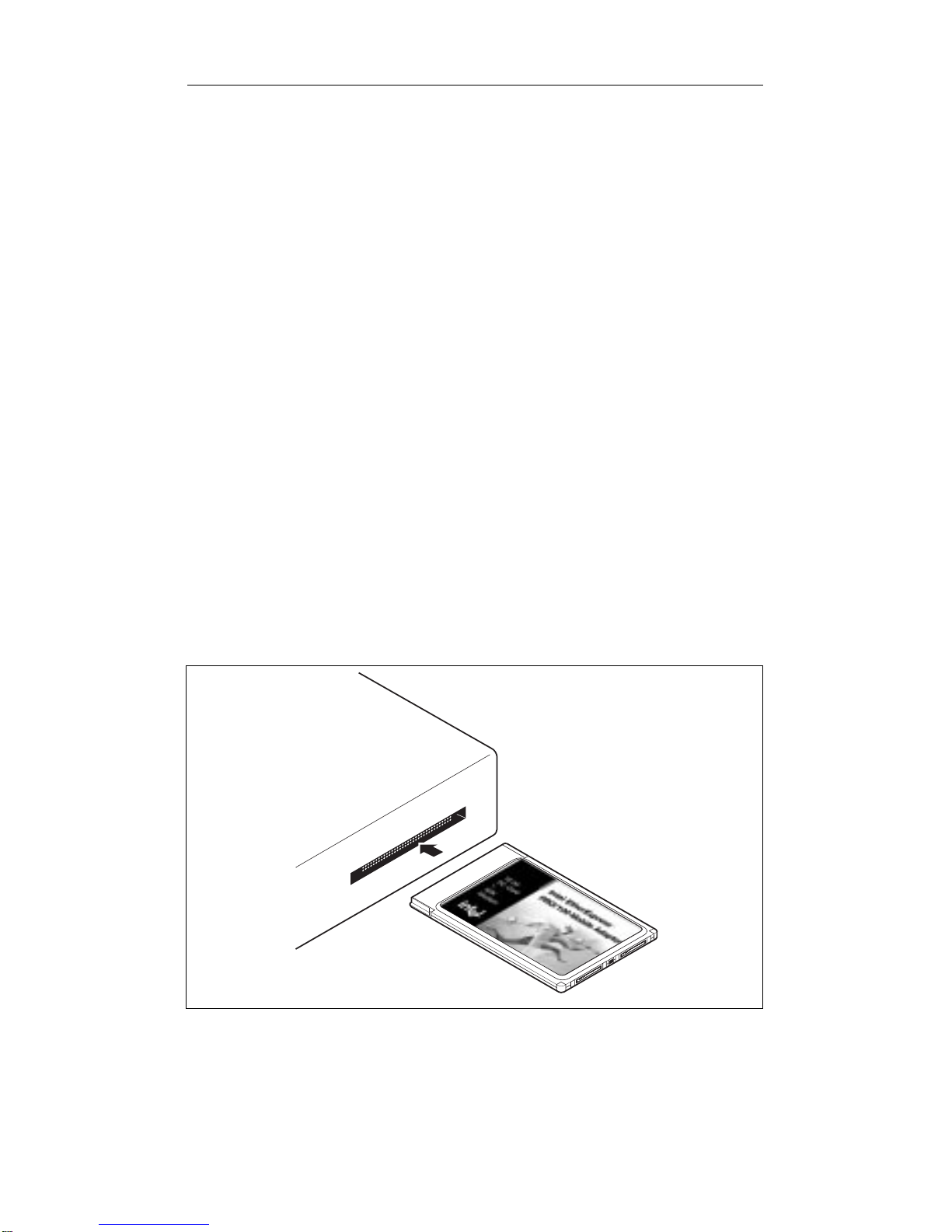

Inserting the PRO/100 PC Card into the Computer.

1-6 PRO/100 LAN+Modem PC Card User’s Guide

Note

The PRO/100 PC Card may feel hot to the touch, after

prolonged periods of normal use in some environments. This is

normal and is not known to affect operation of the Intel card,

the host computer, or any other peripheral device. However, to

avoid discomfort, use caution when removing the card from your

computer after extended use (see your computer manual for

removal procedures).

PRO/100 Modem and Ethernet Connections

Connecting the Modem Cable to the PRO/100

 Hold the PC Card with the top (card label and network graphic)

facing you. Grasp the flat connector on the end of the Modem

Cable with the network graphic on top, and plug it in to the

matching receptacle on the right side of the PRO/100 PC Card.

The cable connector will click into place. Do not force the connec-

tion.

Attaching the Modem Cable to the PRO/100.

Connecting the Modem Cable to the Telephone Line

 Plug one end of a male analog telephone line cable into the RJ-11

jack on the Modem Cable, and the other end into an analog (single-

line) RJ-11 telephone wall jack.

MODEM CABLE

Otros manuales para ETHEREXPRESS PRO/100

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Hardware de computadora de Intel

Intel

Intel Pentium OverDrive Processor with MMX... Manual de usuario

Intel

Intel 45NM - Phenom II X4 925 AM3 2.8GHZ 8MB 95W 4000MHZ... Manual de usuario

Intel

Intel PXA255 Manual de usuario

Intel

Intel BX80571E7500 - Core 2 Duo 2.93 GHz Processor Instrucciones de funcionamiento

Intel

Intel NUC11ATKPE Manual de usuario

Intel

Intel RS2BL040 - Raid Controller Manual de instalación

Intel

Intel PENTIUM P6000 SPECIFICATION 20 Manual de usuario

Intel

Intel Quark SoC X1000 Manual de usuario

Intel

Intel SE7525RP2 Manual de usuario

Intel

Intel NIOS II Manual de usuario

Intel

Intel 460GX Manual de instrucciones

Intel

Intel 8086 Manual de usuario

Intel

Intel WPC2011BWW - PRO/Wireless 2011B LAN PC Card Manual de usuario

Intel

Intel 12Gb/s Manual de usuario

Intel

Intel SRCU42E - Ultra320 SCSI PCI Express X8 RAID Storage... Manual de instalación

Intel

Intel L5310 - Cpu Xeon Quad-Core Lv 1.6Ghz Fsb1066Mhz 8M Fc-Lga6... Manual de usuario

Intel

Intel F-Tile SDI II Intel Agilex Manual de usuario

Intel

Intel Core 2 Duo Processor Manual de usuario

Intel

Intel Pentium OverDrive Manual de usuario

Intel

Intel Xeon LGA2011-v3 Manual de usuario

Intel

Intel RS3DC080 Manual de usuario

Intel

Intel E2160 - Cpu Pentium Dual-Core 1.80Ghz Fsb800Mhz 1M Lga775... Guía

Intel

Intel SRCZCRX - RAID Controller Storage Manual de instalación

Intel

Intel DP43TF - CARACTERISTIQUES TECHNIQUES Manual de usuario

Manuales populares de Hardware de computadora de otras marcas

EMC2

EMC2 VNX Series Manual del propietario

Panasonic

Panasonic DV0PM20105 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manual de usuario

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manual de usuario

Raidon

Raidon iT2300 Manual de usuario

National Instruments

National Instruments PXI-8186 Manual de usuario

Hauppauge

Hauppauge WinTV-HVR-2250 Manual de usuario

Kontron

Kontron CP6002 Manual de usuario

Manhattan

Manhattan 702843 Manual de usuario

Aphex

Aphex 230 Manual de usuario

AMD

AMD Phenom II Manual operacional

dbx

dbx Zone Pro 1260 Manual de usuario

Galaxy

Galaxy GHDX2-2430S-24F4D Manual de usuario

Kontron

Kontron DIMM-PC/MD Manual de usuario

ST X-NUCLEO-SAFEA1B Instrucciones de funcionamiento

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manual de usuario

Advantech

Advantech ASMB-935 Series Manual de usuario

Jupiter

Jupiter RAM PACK Manual de usuario
