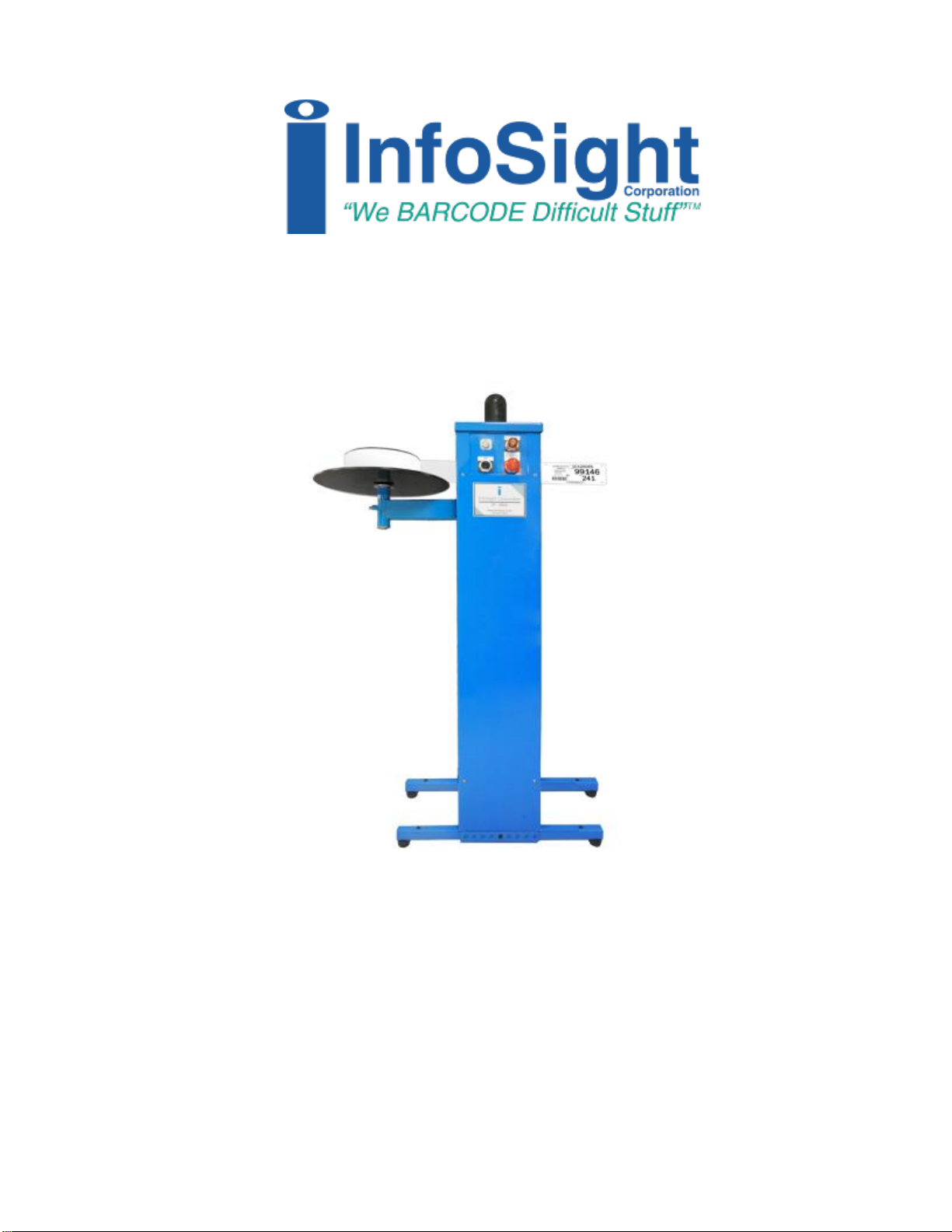

InfoSight INFOTAG KE28 Series Manual de usuario

KE28XX INFOTAGMARKER

OPERATIONS and MAINTENANCE MANUAL

KE2800, KE2852, KE2856

Revision G1

August 2016

INFOSIGHT CORPORATION

20700 U.S. Hwy 23

P.O. Box 5000

Chillicothe, Ohio 45601

+1 (740) 642-3600 Tel. (M-F 8am-5pm US Eastern Time Zone)

+1-800.401.0716 Emergency Service U.S. & Canada (outside normal business hours)

+1.740.642.4666 Emergency Service International (outside normal business hours)

+1.740.642.5001 Fax.

http://www.infosight.com

This page intentionally left blank.



2000-2016 INFOSIGHT CORPORATION

First Printing: April, 1997

INFOSIGHT CORPORATION reserves the right to make changes in specifications and other information

contained in this manual without prior notice, and the reader should consult INFOSIGHT CORPORATION to

determine whether any such changes have been made.

In no event shall INFOSIGHT CORPORATION be liable for any incidental, indirect, special, or consequential

damages whatsoever (Including but not limited to lost profits) arising out of, or relating to this manual or the

information contained in it, even if INFOSIGHT CORPORATION has been advised, knew, or should have

known of the possibility of such damages.

INFOSIGHT CORPORATION expressly warrants the equipment manufactured by it as set forth in the

Standard Terms and Conditions of Sale. INFOSIGHT CORPORATION makes no other warranties, either

expressed or implied (including without limitation warranties as to merchant ability or fitness for a particular

purpose).

The information contained in this manual is confidential information and proprietary products of INFOSIGHT

CORPORATION, or its licensers.

InfoTag, LabeLase, PermaLabel®, Pic-Anneal®, and Kettle Tag®Plus are registered trademarks of InfoSight

Corporation.

LabeLaseProducerTM, Info-TintTM, Foam TagTM, Tough TagTM, AlumaTagTM, and X-TagTM are trademarks of InfoSight

Corporation.

Windowsis a registered trademark of Microsoft Corporation.

Optical/Laser Safety

INVISIBLE LASER RADIATION

AVOID EYE OR SKIN EXPOSURE TO

DIRECT OR SCATTERED RADIATION

CLASS 1 LASER PRODUCT, USING

A CLASS 4 EMBEDDED LASER ( 25W or 50W, 10.57 –10.63 μm)

The laser beam Exits the Final lens 7.5 inches from the tag

Never attempt to operate the Laser Tag Marker without the protective covers in place.

Never attempt to override any of the safety interlocks on the tag printer.

Never attempt to dismantle or repair the tag printer. In case of malfunction contact an Infosight service

representative.

Any of the actions mentioned above may result in permanent eye or skin damage. Refer to Laser Safety

section for more information on laser safety.

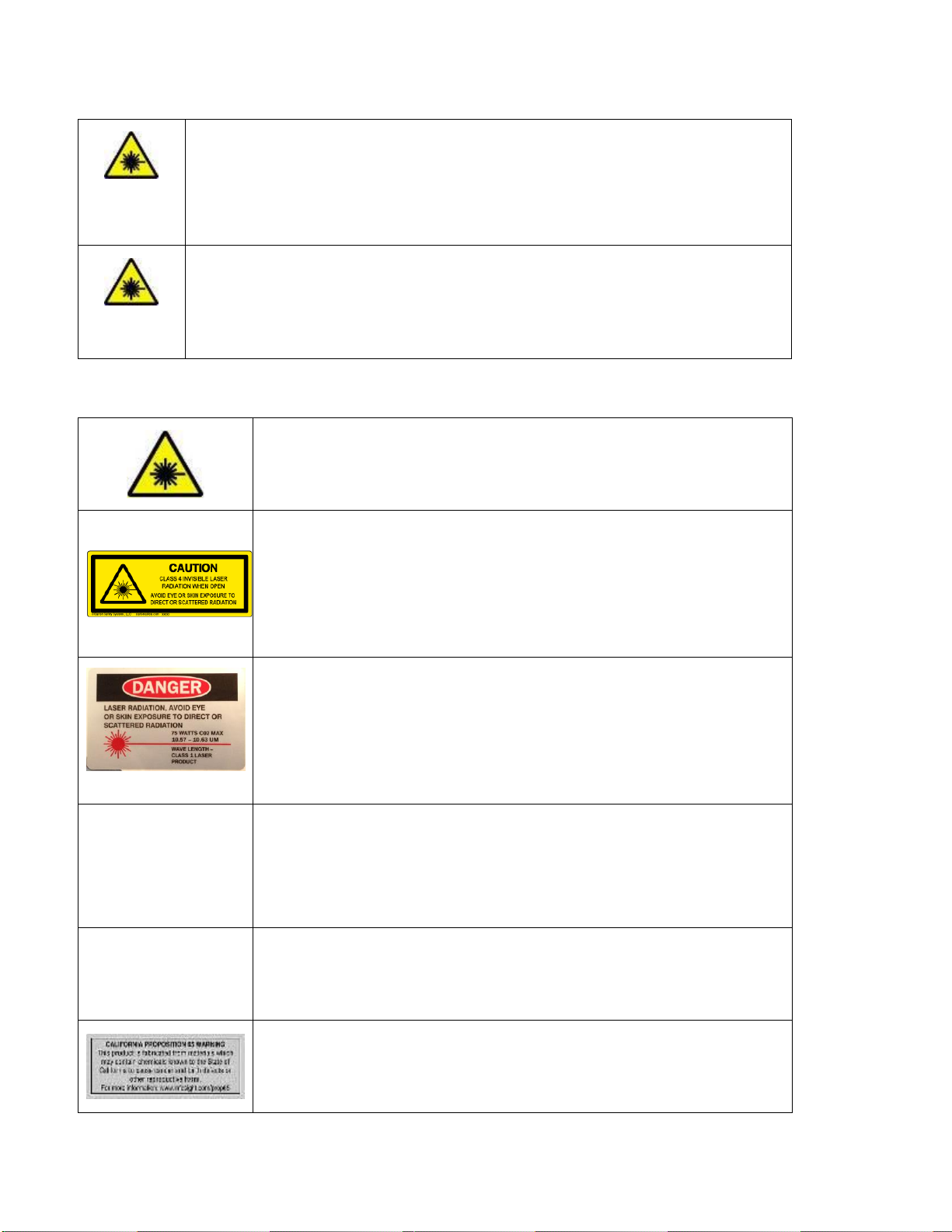

Labels / Warnings

Caution, Laser Radiation –See Appendix

Warning label located on the side near the communications ports:

CLASS 4 INVISIBLE LASER

RADIATION WHEN OPEN

AVOID EYE OR SKIN EXPOSURE TO

DIRECT OR SCATTERED RADIATION

Warning label located above the rating plate on the side of the Laser

Marker:

CLASS 1 LASER PRODUCT

Environmental

Conditions

The LabeLase®Printer is intended for Indoor use only. Altitude up to 6500

feet, operating temperature 40 to 100 degrees F, 80% maximum relative

humidity, rated 220VAC 5A 50/60Hz or 110VAC 10A 50/60Hz according to

Job Number ( Legend plate on marker ), pollution degree 2. NOTE: 220V

models both sides of the incoming line voltage are fused.

CAUTION

If this printer is not used in the manner specified by this manual, the

safety features provided may be insufficient.

Warning Label located on the side of the printer, near

the communications ports, regarding California

Proposition 65.

SOFTWARE/FIRMWARE LICENSE AGREEMENT

IMPORTANT: THE SUBJECT PROGRAMS ARE LICENSED BY INFOSIGHT CORPORATION TO END-

USERS FOR THEIR USE ONLY ON THE TERMS BELOW. ACCEPTING AND USING THESE PROGRAMS

INDICATES YOUR ACCEPTANCE OF THESE TERMS. THIS IS A LEGAL AGREEMENT BETWEEN YOU,

THE END USER, AND INFOSIGHT CORPORATION.

1) GRANT OF LICENSE. INFOSIGHT CORPORATION ("INFOSIGHT") agrees to grant to you a non-

exclusive license to use the INFOSIGHT software/firmware program (the "PROGRAM") subject to the terms

and conditions of this license agreement.

2) DEFINITION OF TERMS. The term SOFTWARE refers to a computer program stored on a floppy

diskette, hard disk, magnetic tape, or paper tape that must be loaded into the computer's memory to be

executed. The term FIRMWARE refers to a computer program stored in semiconductor memory (ROM,

PROM, EPROM, EEPROM, NVRAM, etc.) that is an integral part of the computer's memory. Together, these

forms of computer programs are referred to as the "PROGRAM".

3) COPYRIGHT. The PROGRAM(s) and Documentation is owned by INFOSIGHT and is protected by

United States copyright laws and international treaty provisions. The PROGRAM(s) contain trade secrets and

proprietary property of INFOSIGHT. You may make one copy of the PROGRAM(s) solely for backup or

archival purposes provided that the copy clearly displays the INFOSIGHT copyright notice. Additional copies

may be made when authorized to do so in writing by INFOSIGHT. In addition to any other right of INFOSIGHT,

INFOSIGHT has the right to terminate this license if the terms of this license are violated.

4) RESTRICTION ON USE AND TRANSFER. The single-processor version(s) of the PROGRAM(s) and

Documentation are to be used on one computer or embedded system at any one time. The multi-processor

version(s) of the PROGRAM(s) and Documentation may be used over a network provided that the number of

computers accessing the network simultaneously shall not exceed the number authorized by INFOSIGHT or

for which you paid the corresponding multi-processor fee. You may not distribute the programs or

Documentation to a third party. You may transfer the license and complete package (retaining nothing) if the

transferee agrees to the terms of this License Agreement. Neither the PROGRAM(s) nor the Documentation

may be changed or translated without express written permission of INFOSIGHT. You may not reverse

engineer, decompile or disassemble the PROGRAM(s).

5) WARRANTY for the subject PROGRAM(s) is covered under the INFOSIGHT STANDARD TERMS AND

CONDITIONS OF SALE.

6) TERM. The license is effective until terminated. It will be terminated if you fail to comply with any term or

condition of this License Agreement. You may terminate this License Agreement at any time. In the event of

termination, you agree to destroy the PROGRAM(s) and Documentation together with all copies and related

material.

7) YOUR USE OF THIS PROGRAM(S) acknowledges that you have read this License Agreement and

agree to its terms. This agreement is complete and supersedes any other agreement that may have related to

the subject matter of this agreement.

Table of Contents

TABLE OF CONTENTS............................................................................................................................IV

1. SYSTEM SETUP.................................................................................................................................1

1.1 PRINTER SETUP ......................................................................................................................................1

1.2 AFFIXING THE KE28XX TO SOLID PLATFORM..........................................................................................2

1.3 TERMINAL SETUP ...................................................................................................................................3

1.4 COMMON PRINTER SETTINGS FOR VARIOUS MODELS ..............................................................................3

1.5 POWER ON...............................................................................................................................................4

1.6 LOADING NEW TAGS ..............................................................................................................................4

1.6.1 Tag Break Off...............................................................................................................................5

2. OPERATIONS.....................................................................................................................................6

2.1 PRINTING ATAG.....................................................................................................................................6

2.1.1 Printing From The Operator Screen............................................................................................6

2.1.2 Printing From The Main Screen ..................................................................................................6

2.2 KE28XX SCREENS.................................................................................................................................7

2.2.1 Main Screen .................................................................................................................................7

2.2.2 Edit Screen...................................................................................................................................8

2.2.3 BARCODE SETUP SCREEN.....................................................................................................10

2.2.4 LOGO SETUP SCREEN ............................................................................................................11

2.2.5 OPERATOR SETUP SCREEN...................................................................................................11

3. DESIGNING TAGS...........................................................................................................................13

3.1 TAG DESIGN .........................................................................................................................................13

3.2 TAG LAYOUT SOFTWARE......................................................................................................................13

3.3 BARCODE EXAMPLES ...........................................................................................................................13

3.4 SERIAL NUMBERING.............................................................................................................................14

3.5 LOGO AND IMAGE DOWNLOAD ............................................................................................................14

4. MAINTENANCE...............................................................................................................................15

4.1 PERIODIC MAINTENANCE .....................................................................................................................15

4.2 LASER OPTICS CLEANING AND ALIGNMENT.........................................................................................15

4.3 CLEANING OPTICS ................................................................................................................................15

4.4 TROUBLE SHOOTING.............................................................................................................................16

5. APPENDIX.........................................................................................................................................17

LASER SAFETY........................................................................................................................................21

SECTION I: INTRODUCTION TO..........................................................................................................22

SECTION II: TYPES OF SAFETY INTERLOCKS...............................................................................23

DECLARATION OF CONFORMITY .....................................................................................................26

1. SYSTEM SETUP

1.1 PRINTER SETUP

The KE28XX requires either:

220VAC 5A (Fused at 5 amps) 50/60Hz or

110VAC 10A (Fused at 10 amps) 50/60Hz

Refer to the Legend Plate on your marker.

Caution High Leakage Current: this device must be fitted with a Type B (twist lock) plug.

Use a properly approved IEC 309 plug for 220V power connection. Unit must be connected

to a branch circuit with a dedicated circuit breaker. Warning: 220V models both sides of the

incoming line voltage are fused.

Recommended AC plug type is:

Woodhead 1447 for 110V

IEC 309 for 220V

Note: Complete AC Disconnect is accomplished at the power plug

UK Deviation:

Cores in this main are colored in accordance with the following code:

Green and yellow: earth, Blue: neutral, brown: live.

The KE28XX should be positioned at least a foot away from the wall to allow room for the

ventilation. The three inch ventilation hose should be attached to the top of the marker to

remove residue from the marking area and should be discharged outside the pulpit area.

This will require an external exhaust fan.

The KE28XX LASER MARKER should be placed in a temperature controlled environment.

This marker, though designed for steel mill use, should be treated as any typical computer

system and printer.

Legend Plate

1.2 AFFIXING THE KE28XX TO SOLID PLATFORM

Important:

The KE28xx support legs are designed to be anchored to the floor or concrete

to prevent the unit from tipping over in the unlikely event of a force exerted

upon the side surfaces of the units. Incorporated in the design of the support

legs are four (4) 33/64" thru-holes. These four (4) thru-holes are to have

placed through them, suitable anchor bolts to affix the KE28XX to the floor.

The type of anchor bolt used will depend upon the base material the KE28XX

will be set upon. Recommended anchor bolts are listed below.

Note:Anchor bolts used are to withstand a tension weight of at least 50

lbs. each.

Manufacture Description Floor type

------------------------------------------------------------------------------------------

Hilti KB II 38-3 3/8" Kwik bolt Concrete

Cast in place 3/8-16UNC 2" Concrete

3/8" x 2" Lag bolts Wood

3/8" x 4 " J bolts Steel Grating

1.3 TERMINAL SETUP

The Terminal is attached to the top DB-25 connector on the back side of the marker using

the supplied cable. The terminal facilitates the interface between the user and the marker. A

terminal or terminal program is required. The Terminal settings should be:

Emulation -- VT220

Keyboard Type -- 108

Main Port Speed -- 19200

Data Width -- 8

Parity -- None

Stop -- 1

Transmit Flow Control -- X-ON / X-OFF

Receive Flow Control -- X-ON / X-OFF

Host Interface -- RS232

If a terminal was supplied with the KE28XX to enter or exit the terminal settings screen

press SHIFT-F3. To check correct settings on the terminal, power on the marker by

switching the key switch located on front panel to the ON position. The software contained

within the marker should present the user with a bordered windowed screen.

1.4 COMMON PRINTER SETTINGS FOR VARIOUS MODELS

Printer Model

KE2800

KE2856/54

KE2852/53

Heat: (4:1)

150

Stepper Resolution

0.00505

0.0103

Stepper Delay

150

450

600

Mirror Resolution

0.006

0.012627

Reverse Take-up

Laser Off Tickle

Tear Off Location

7/ Application

Dependent

7 / Application

Dependent

Cache

ON[X]

High Definition

ON[X]

OFF [ ]

Number of Lasers

Pixels Per Row

560

280

Galvo Divider

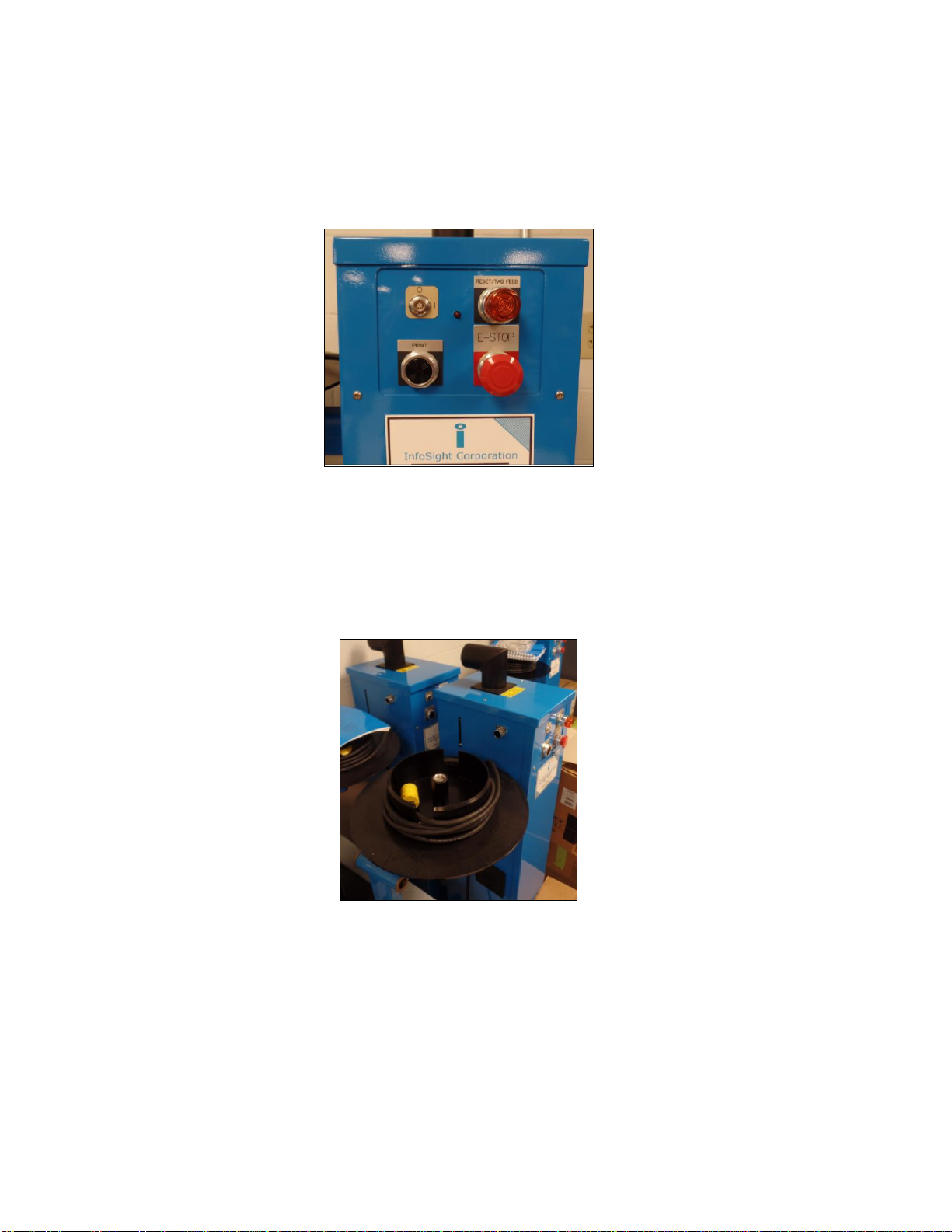

1.5 POWER ON

1. Insert the key into the key switch slot.

2. Turn the key to the “1” position.

3. Pull out the Red Emergency Stop (E-Stop) Jumbo Pushbutton

4. Press the Amber lighted Reset/Tag Feed Pushbutton.

1.6 LOADING NEW TAGS

1. Mount the new roll atop the circular platform to the left of the marker.

2. Feed by hand the tip of the tag stock, pushing it into first roller until it stops “the drive

roller”.

3. Once reaching the drive roller press the Amber Lighted Tag Feed Pushbutton.

Reminder - The marker is not ready for use until the laser E-stop is RESET by pressing

the amber reset button .

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Etiquetadora de InfoSight

InfoSight

InfoSight LabeLase 1000P Manual de usuario

InfoSight

InfoSight LabeLase 1000 Manual de usuario

Manuales populares de Etiquetadora de otras marcas

Brother

Brother P-Touch 2420PC Manual de usuario

newell

newell Dymo LabelManager 210D Manual de usuario

Brother

Brother TD-4000 Manual de usuario

U-Line

U-Line BROTHER H-8754 Manual de usuario

Tharo Systems

Tharo Systems H-435+ Manual de usuario

Brother

Brother E300 Manual de usuario

Godex

Godex RT700 SERIES Manual de usuario

ID Technology

ID Technology 252 Manual de usuario

Labelmate

Labelmate MC-11 Manual de usuario

CAB

CAB XD4M/300 Manual de usuario

Avery Dennison

Avery Dennison Pathfinder 6057 Manual de servicio

Brother

Brother P-touch PT-9700PC Manual de usuario

TSC

TSC PEX1000 Series Manual de usuario

Adkins

Adkins Label Master Manual de usuario

Epson

Epson LabelWorks LW-400 Manual de usuario

Primera

Primera 510212 Manual de usuario

Brady

Brady BradyPrinter S3100 Manual de usuario

DuraLabel

DuraLabel LabPRO Manual de usuario
