TSS 3-IN-1

Owner’s Guide

TOTAL SPEAKER SOLUTIONS

TSS 3-

-1

3-in-1 OM 5/19/06 3:17 PM Page 1

INTRODUCTION

InfinityTotal Solutions™

The InfinityTotal Solutions TSS 3-in-1 loudspeaker is actually

three discrete loudspeakers built into a single enclosure.The

TSS 3-in-1 incorporates the front left, center and right channels

ofahome theater system. Simply add a Total Solutions powered

subwoofer and satellites for the surround channels to complete

ahigh-performance home entertainment speaker system.The

TSS 3-in-1 uses identical drivers to provide exceptional dialogue

reproduction and a seamless transition between the front

channels.The horizontal design allows for maximum placement

flexibility.

AboutThis Guide

Please read this guide completely before connecting and

operating theTSS 3-in-1 center channel speaker. Maximum

performance is dependent upon following these instructions, as

well as those in the owner’s manuals of associated components

in your home theater system. Save these instructions for future

reference.

Unpacking the Speaker

Finish unpacking the speaker and check the contents. If you

suspect damage from transit, report it immediately to your

dealer. Keep the shipping carton and packing materials for

future use.

Contents

Please verify that the package contains the following items:

PLANNING YOUR SYSTEM

Before deciding where to best place your speakers, survey your

room and study Figures 1 and 2. TheTSS 3-in-1 should be placed

directly above or below theTV.

Figure 1. In this overhead view of a typical installation, the

TSS 3-in-1 is used to reproduce the front channels, and satellite

speakers are used to reproduce sound for the surround channels.

The powered subwoofer provides bass for movie effects and for

music.

Placement

Figure 2.This example shows the TSS 3-in-1 being placed on

top of a television.The speaker can also be placed below the

television and tilted up (see Figure 3).

NOTE: If placing theTSS 3-in-1 on top of a television, be sure

the top of the television has a flat surface large enough to

accommodate the speaker base. Do not set the speaker on top

of any surface without using the included base.

Couch

Left

Surround Channel

(not included)

Right

Surround Channel

(not included)

TSS 3-in-1

(above or below TV) Infinity

Subwoofer

(not included)

(1) TSS 3-in-1 speaker

(1) Speaker base

(1) Wall bracket with wall bracket cover

2TSS 3-IN-1

PartA

Part B

(2) Wall-mount end caps

(attached to TSS 3-in-1)

(1) Allen

wrench

Speaker base

3-in-1 OM 5/19/06 3:17 PM Page 2

TSS 3-IN-1

Tilting the Speaker

Ifneeded, the enclosed stand allows you to tilt the speaker

across a wide range (i.e., upward to a maximum of 18˚ or

downward to a maximum of 7˚), as shown in Figure 3.

Important!

Do not exceed the tilt range. Doing so may cause the speaker to

fall out of its stand.

Figure 3.

Wall-Mounting theTSS 3-IN-1 Using the Included

Wall Bracket

The customer is responsible for proper selection and use of

mounting hardware, and for correctly and safely wall-mounting

the speakers.

Step One

Remove the wall bracket cover by removing the four wall-bracket

screws on the ends, as shown.

StepTwo

Run the speaker wire for the left, center and right channels behind

the wall bracket and out the holes in the bracket.After deciding

whereto place the speaker, attach the wall bracket (in a horizontal

position) to the wall using the appropriate screws and anchors.

StepThree

Run the speaker wires out through the holes in the wall

bracket cover.Resecurein place, as shown, with the four

wall bracket screws.

Mounting screws and

anchors not included

Wall bracket

3-in-1 OM 5/19/06 3:17 PM Page 3

4TSS 3-IN-1

Step Five

Connect the wires (see page 5). Replace the end caps while

capturing the wall bracket between parts A and B of the

end cap,securing it in place.

Wall-mount

end cap A

Wall-mount

end cap B

Step Four

Using the included Allen wrench, remove the top and bottom

end caps of the speaker by unscrewing the single center screw

on bottom.

End cap

1/4-20 x 3/4"

Screw

End cap

Step Six

The wall-bracket design allows for rotation of the speakers

at angles of up to 30 degrees of center. Position the speakers

sothey face toward the primary listening position, before

fully tightening.

3-in-1 OM 5/19/06 3:17 PM Page 4

TSS 3-IN-1

WIRING THE SPEAKER

After placing the speaker, you are ready to connect it to your

system. First, turn off all audio system power. Use high-quality

speaker wire to make the connections. Consult the owner’s

manuals included with your amplifier or receiver for connection

and operation procedures.

Surround Modes

When using theTSS 3-in-1 in a Dolby®Digital or DTS®home

theater system, make sure the receiver’s/processor’s front left,

front right and center channel speaker modes are set to“Small.”

Wiring and Polarity

The TSS 3-in-1 speaker has gold-plated terminals that can

accept bare wire.To ensure proper polarity, connect each

+terminal on the back of the amplifier or receiver to the

respective + (red) terminal on each speaker, as shown in

Figure 4. Connect the – (black) terminals in a similar way.

See the owner’s manuals that were included with your

amplifier or receiver to confirm connection procedures.

Be sure to connect the left-channel wires to the left-most

terminals, the center channel wires to the middle terminals, and

the right-channel wires to the right-most terminals.

Important!

Do not reverse polarities (i.e., + to – or – to +) when making

connections. Doing so will degrade the imaging and bass

response of the home theater system.

After correctly placing and wiring theTSS 3-in-1 and the rest of

your speaker system, adjust the levels for all of the channels as

recommended by the manufacturer of your receiver/processor.

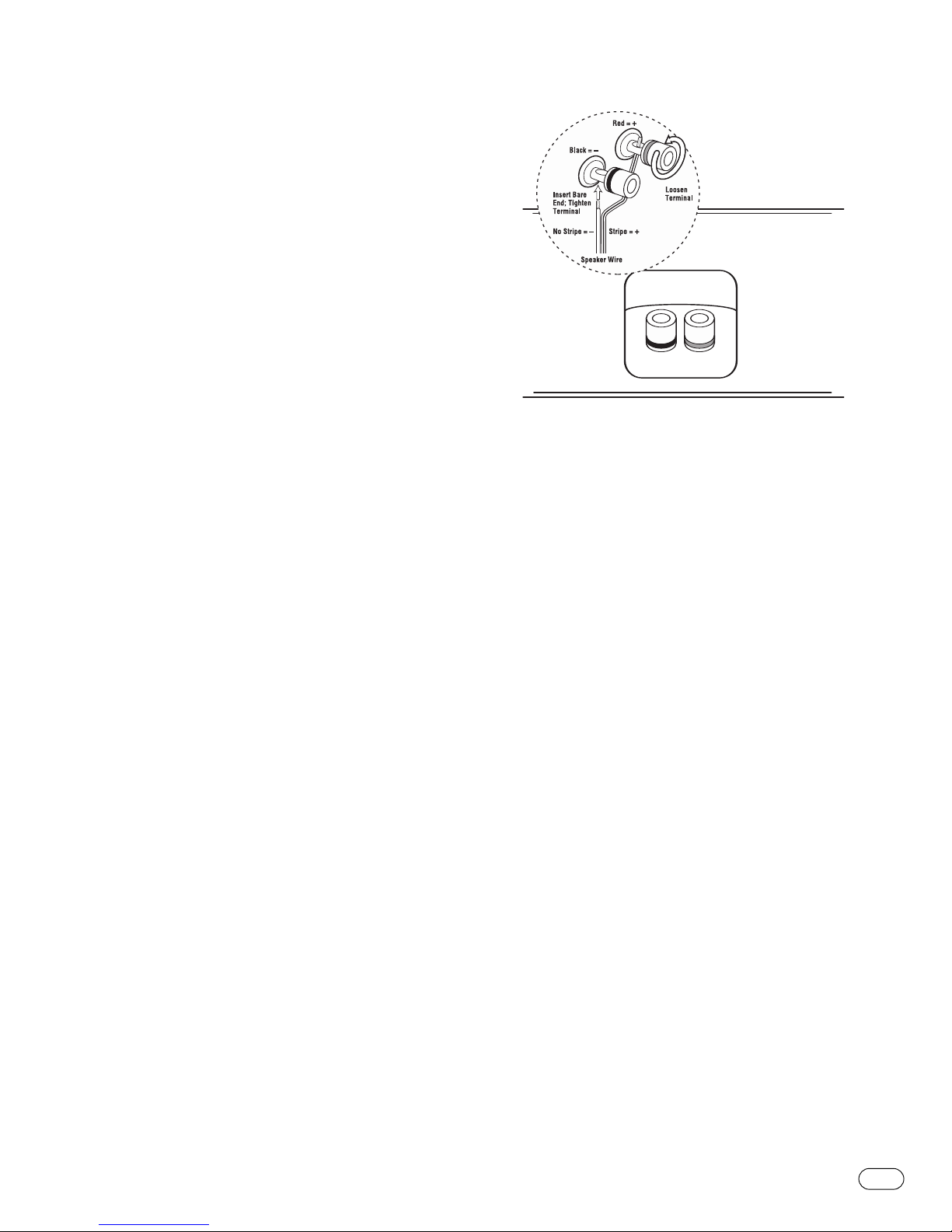

Figure 4.This example shows how to connect bare wires to the

terminals. Banana plugs may also be inserted directly into the

rear of the connector.

1Loosen the terminals.

2Insert bare ends; tighten terminals.

– +

CARE OF YOUR SPEAKER SYSTEM

When needed, use a soft cloth to removeany fingerprints or

to wipe off dust. Do not use any cleaning products or polish.

Clean the grille by gentle vacuuming.

If your TSS 3-in-1 should ever need service, please contact your

local dealer or distributor, or visit www.infinitysystems.com for

the location of a service center.

One channel shown.

3-in-1 OM 5/19/06 3:17 PM Page 5

6TSS 3-IN-1

SPECIFICATIONS

TSS 3-IN-1 Each Channel

Frequency Response 120 – 20kHz (±3dB)

Nominal Impedance 8Ohms

Sensitivity 89dB

(2.83V @ 1m)

Recommended Amplifier 10 – 125 Watts

Power Range

Crossover Frequency 3,500Hz; 24dB/octave

Low-Frequency Drivers (2) 3-1/2" (89mm) MMD®

magnetically shielded

High-Frequency Driver 3/4" (19mm) MMD,

elliptical waveguide,

magnetically shielded

Dimensions (H x W x D) 4-1/8" x 40-1/8" x 4-3/8"

(105mm x 1019mm x 111mm)

Weight 15.25 lb (6.9kg)

Infinity continually strives to update and improve existing products, as

well as create newones.The specifications and construction details in

this and related Infinity publications are therefore subject to change

without notice.

Declaration of Conformity

We, Harman Consumer Group International

2, route de Tours

72500 Château du Loir

France

declare in own responsibility that the product described in this

owner’s manual is in compliance with technical standards:

EN 61000-6-3:2001

EN 61000-6-1:2001

Laurent Rault

Harman Consumer Group International

Château du Loir, France 5/06

3-in-1 OM 5/19/06 3:17 PM Page 6
