Infinity Primus 250 Manual de usuario

ACOUSTIC & ELECTRICAL SPECIFICATIONS:

• Nominal Impedance 8Ω

• Max Amp Power 150 watts*

• Frequency Response 49Hz – 20kHz (±3dB)

• Sensitivity 92dB (2.83V @ 1 meter)

• Crossover Frequency 2,500Hz; 24dB/Octave

SYSTEM COMPONENTS:

• Cabinet Primus 250

(Not for Sale)

• Grille, Black 244-050-00260B

Grille, Gray 244-050-00260G

• Low-Frequency Transducer Dual 5-1/4" (130mm) MMD,

™

magnetically shielded

13PR80BZD-HW01

DC Resistance 7.5 ohms ±10%

• High-Frequency Transducer 3/4" (19mm) MMD,

™

magnetically shielded

85DA20AJ-DT02

DC Resistance 3.1 ohms ±10%

• Crossover Network 013-7500-00755

AURAL SWEEP TEST SPECIFICATIONS:

• System Aural Sweep Test 6.0V Input 50Hz to 20kHz

• L.F. Aural Sweep Test 5.0V Input 50Hz to 3kHz

• H.F. Aural Sweep Test 2.83V Input 2kHz to 20kHz

PHYSICAL SPECIFICATIONS:

• Dimensions 35-1/2" x 7-3/8" x 11-3/4"

(H x W x D) (900mm x 187mm x 300mm)

• Weight 35.3 lb (16kg) Each

WARRANTY:

• Refer to Warranty Statement packed with each product.

* The maximum recommended amplifier power rating will ensure

proper system headroom to allow for occasional peaks. We do not

recommend sustained operation at these maximum power levels.

Primus 250

Infinity Systems, 250 Crossways Park Drive, Woodbury, New York 11797

1/06

18 21

Legend on Page 2

INPUT

0.12mH

H.F.

3.0uf

100V

5.1uf

100V

40uf

100V

.9mH

.205

.110

–

BLK

RED

–

CROSSOVER

NETWORK

013-7500-00755

HIGH-FREQUENCY

TRANSDUCER

85DA20AJ-DT02

.205

.110

13" GRN

2.0mH

.6mH

.205

13-3/4" GRN

13" WHT

.110

13-3/4" WHT

17" BLUE

17" WHT

5.1uf

100V

11uf

100V

GRN

WHT

BLUE

WHT

–

GRN

WHT

LOW-FREQUENCY

TRANSDUCER

13PR80BZD-HW01

L.F. 1

L.F. 2

PACKAGING Primus 250 WIRING DIAGRAM

Primus 250 SCHEMATIC

Technical Manual

Primus 250

Primus 250 Cabinet – Not for Sale

Primus 250

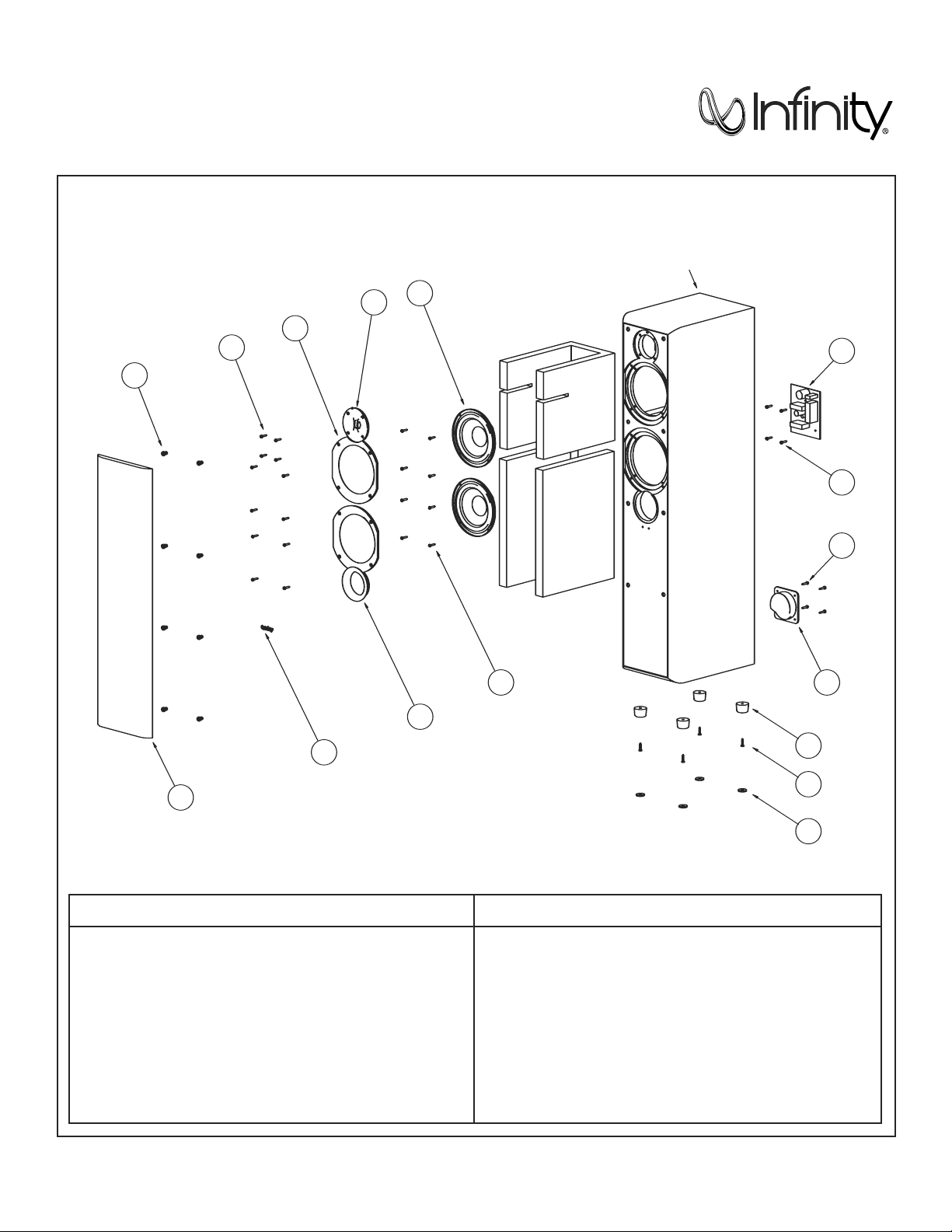

EXPLODED VIEW

Infinity Systems, 250 Crossways Park Drive, Woodbury, New York 11797

1/06

ITEM

NO. DESCRIPTION QTY. PART NO.

1. Crossover Network 1 013-7500-00755

2. Woofer 2 13PR80BZD-HW01

3. Tweeter 1 85DA20AJ-DT02

4. ABS Plastic Ring 166*121.5*8T 2 213-050-00491

5. Grille 670.9*183*3T Black 1 244-050-00260B

Grille 670.9*183*3T Gray 1 244-050-00260G

6. Port Tube 84.9*18.3 1 249-HIPS-00164

7. ABS Infinity Gold Logo 38.5*11.5 1 316-ABS-00532-2

8. Network Cup W/Binding Posts 1 317-ABS-00165

80*80mm ABS Gold Plating

9. Woofer Screw 4*L16 d=7mm 8 352-FM04014D602

10. Faceplate/Tweeter FE Screw T4.5*25 12 352-DM04525D597

11. Terminal Cup Screw 3.5*L20 d=6mm 4 352-GM03520D850

ITEM

NO. DESCRIPTION QTY. PART NO.

12. Network Screw t4*18 4 352-HM04018D497

13. Feet 4 320-ABS-00195

14. Foot Screw 4 352-CM04020D202

15. Rubber Footbase 4 320-RUB-00199

16. Grille Cup 8 338-RUB-00114

17. Outer Carton 1 400-000-04521

18. Owner’s Manual 1 406-000-01536

19. Foam End Pad (Top) 1 431-000-02176

Primus 250 400*287*95mm

20. Foam End Pad (Bottom) 1 431-000-02177

Primus 250 400*287*95mm

21. Warranty Card 1 405-000-00312

Technical Manual

Primus 250
