Infineon XC2000 Easy Kit Manual de usuario

Never stop thinking.

Microcontrollers

XC2000 series Board Manual, V.0.2, Nov. 2008

XC2000 Easy Kit

176Pin

Board REV. V1.0

Edition 2008-09

Published by

Infineon Technologies AG

81726 München, Germany

©Infineon Technologies AG 2008.

Legal Disclaimer

The information given in this document shall in no event be regarded as a guarantee of conditions or

characteristics (“Beschaffenheitsgarantie”). With respect to any examples or hints given herein, any typical values

stated herein and/or any information regarding the application of the device, Infineon Technologies hereby

disclaims any and all warranties and liabilities of any kind, including without limitation warranties of non-

infringement of intellectual property rights of any third party.

Information

For further information on technology, delivery terms and conditions and prices please contact your nearest

Infineon Technologies Office (www.Infineon.com).

Warnings

Due to technical requirements components may contain dangerous substances. For information on the types in

question please contact your nearest Infineon Technologies Office.

Infineon Technologies Components may only be used in life-support devices or systems with the express written

approval of Infineon Technologies, if a failure of such components can reasonably be expected to cause the failure

of that life-support device or system, or to affect the safety or effectiveness of that device or system. Life support

devices or systems are intended to be implanted in the human body, or to support and/or maintain and sustain

and/or protect human life. If they fail, it is reasonable to assume that the health of the user or other persons may

be endangered.

XC2000

Easy Kit

XC2000 series Board Manual 3 V 0.2, 2008-11

XC2000 Easy Kit

Revision History: 2008-11 V 0.2

Previous Version:

Page Subjects (major changes since last revision)

We Listen to Your Comments

Any information within this document that you feel is wrong, unclear or missing at all?

Your feedback will help us to continuously improve the quality of this document.

Please send your proposal (including a reference to this document) to:

[email protected]

XC2000

Easy Kit

Table of Contents Page

XC2000 series Board Manual 4 V 0.2, 2008-11

1Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2General Information about XC2000 Easy Kit Board . . . . . . . . . . . . . . . 7

2.1 Summary of Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.2 Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.3 Board Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.4 DIP Switch S101 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.4.1 Basic Startup Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.5 Easy Kit Power Supply concept . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.5.1 Power Supply via Power Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3Information in Detail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.1 Switch S102 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3.1.1 DIP Switch Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3.2 Headers, Connectors and Components . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.2.1 USB Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.2.2 CAN1/2 (X107, X108) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.2.3 LIN Interface (X109) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3.2.4 OCDS Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3.2.5 DAP Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3.2.6 ADC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

3.2.7 LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

3.2.8 Serial Eeprom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

3.3 Pin Definition and Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

3.3.1 176 - Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

3.4 Zero Ohm Resistors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

4Memory Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

4.1 Internal Flash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

4.2 Internal PRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

5Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

5.1 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

5.2 OCDS Debugging Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

5.3 USB Interface for UART support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

5.4 MemTool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

5.4.1 Start Memtool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

5.4.2 Connect to the Target . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

5.4.3 Downloading of code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

5.4.4 Execution Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

6Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

XC2000

Easy Kit

XC2000 series Board Manual 5 V 0.2, 2008-11

XC2000

Easy Kit

Introduction

XC2000 series Board Manual 6 V 0.2, 2008-11

1 Introduction

The XC2000 is a new family of 16/32-bit microcontrollers based on the high-performance

C166S V2 core. The C166S V2 core more than doubles the performance of the well

established C166 core while still providing code compatibility.

Applications can be developed easily. The Evaluation Board is equipped with peripherals

for connection to the environment. An On Board Wiggler allows easy access to all

peripherals and the core. For programming of the embedded Flash, MEMTOOL is

available.

The Evaluation Board allows the easy development of XC2000 family applications with

the corresponding tools. Subsequently, the applications can be downloaded and can be

tested with the several powerful debuggers.

For detailed technical information about the different derivatives please refer to the

XC2000 family web pages on the Infineon Internet.

The document XC2000EasyKit_176Pin_V10 covers several product series.

– xxx-XC22xxH-xxxFxxL-xx

– xxx-XC23xxC-xxxFxxL-xx

– xxx-XC27x7X-xxxFxxL-xx

XC2000

Easy Kit

General Information about XC2000 Easy Kit Board

XC2000 series Board Manual 7 V 0.2, 2008-11

2 General Information about XC2000 Easy Kit Board

2.1 Summary of Features

– Infineon’s XC2000 Controller in TQFP176 Package

– High Speed CAN Transceivers, LIN Transceiver, USB to UART/JTAG bridge

– 8 Low Power Status LEDs

– Easy access to all pins

– 5-DIP switches for configuration

– On board USB to JTAG / UART interface

– Powered via USB

Connectors

The XC2000 Board offers a wide variety of connectors:

– USB connector for ASC/JTAG Interface

– 4 pin header for LIN Transceiver

– 16-pin header for JTAG interface (OCDS)

– 10pin (2x5) header for CAN High Speed Transceiver (CAN1/CAN2)

– 10pin header for DAP interface

Components

– Low-Drop Voltage Regulator TLE 4274

– Step Down Voltage Regulator TLE 6365G (optional)

– Four status LED´s for Power / RESET / JTAG

– 2 x CAN-Transceiver TLE 6251

– LIN Transceiver TLE 7259

– FT2232 Dual USB to UART/JTAG interface

– SPI EEPROM 128 Kbit AT25128N

– 8 general purpose LEDs

– Potentiometer for ADC

– Reset switch

Zero Ohm Bridges

– Zero Ohm resistors give the flexibility to configure the systems functionality

XC2000

Easy Kit

General Information about XC2000 Easy Kit Board

XC2000 series Board Manual 8 V 0.2, 2008-11

2.2 Block Diagram

Figure 1 Block diagram of XC2000 Easy Kit layout overview

XC2xxx

CPU

OCDS1

XTAL

USB To UART/

JTAG Bridge

TxD

RxD

MultiCAN

Voltage

Regulator

LIN Transceiver

CAN Transceiver

8 LEDs

EEPROM

LIN

USB

XC2000

Easy Kit

General Information about XC2000 Easy Kit Board

XC2000 series Board Manual 9 V 0.2, 2008-11

2.3 Board Overview

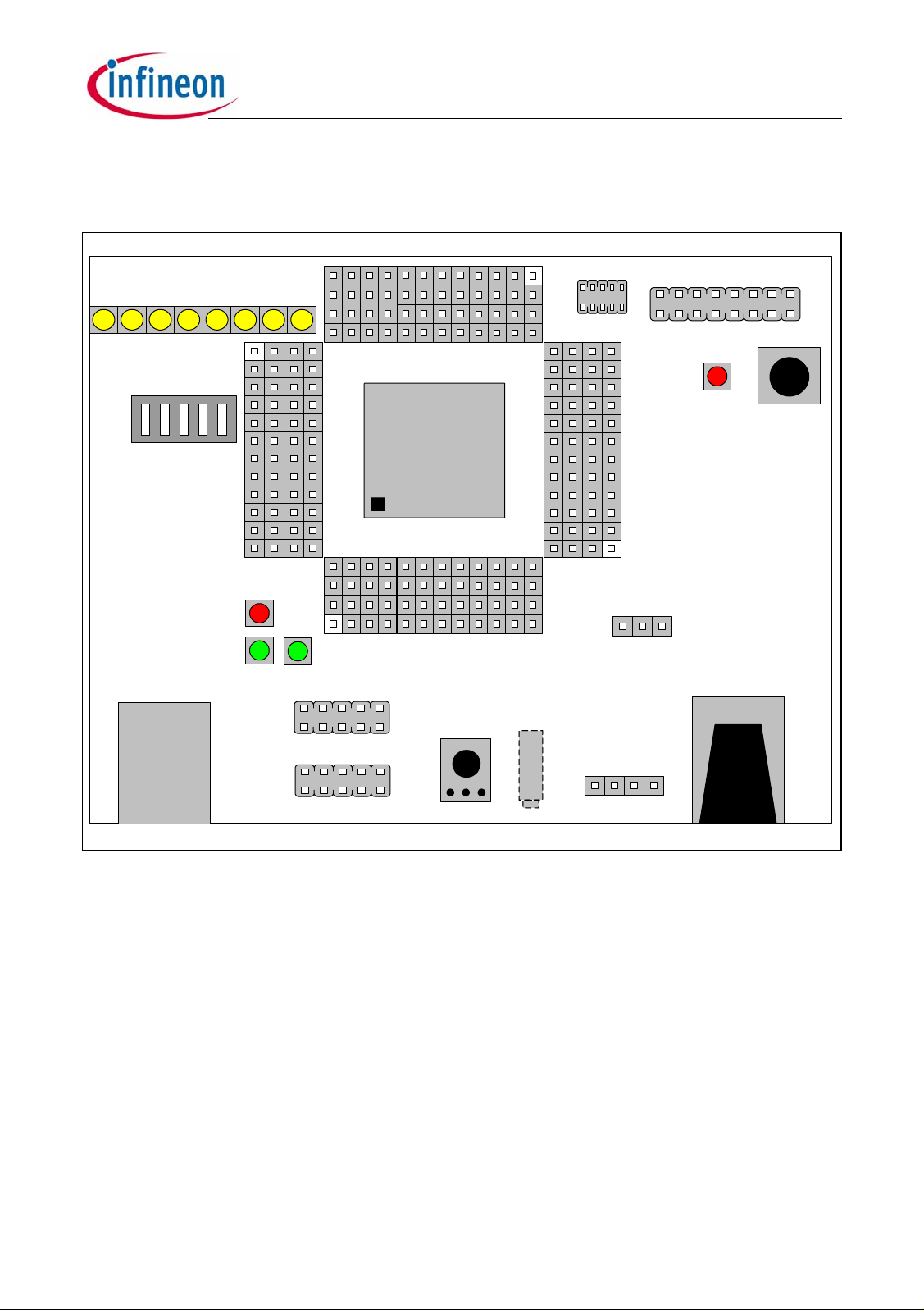

Figure 2 Top View (basic components)

Infineon

XC2000

Config

USB

1CAN1

Power

OCDS1

LIN1

DAP

AN0 (ADC0)

AN0(ADC1)

Power

supply

Reset

Debug

Active

Debug

Run

Power supply

Jumper

P10.7

Reset

1CAN2

XC2000

Easy Kit

General Information about XC2000 Easy Kit Board

XC2000 series Board Manual 10 V 0.2, 2008-11

Figure 3 Top view in detail

2.4 DIP Switch S101

Although most of the programmable features of the XC2000 are selected by software

either during the initialization phase or repeatedly during program execution, some

features must be selected earlier because they are used for the first access of the

program execution.

These configurations are accomplished by latching the logic levels at a number of pins

at the end of the internal reset sequence.
