Z8F62791012

DSO-8 / TSON-8 CAN Demoboard

User Manual

About this document

Scope and purpose

This document provides description and information for the DSO-8 / TSON-8 CAN Demoboard. This demoboard

can be used for all Infineon 8-pin standard CAN transceivers.

An overview of all products that can be evaluated by the DSO-8 / TSON-8 Demoboard can be found in the family

overview link above.

Note: The following information is given as a hint for the implementation of our devices only and shall

not be regarded as a description or warranty of a certain functionality, condition or quality of the

device.

Intended audience

This document is intended for engineers who develop applications.

Support

Family

overview

2 of 8 v1.10

2022-03-15

DSO-8 / TSON-8 Demoboard

User Manual

Summary

Table of contents

About this document....................................................................................................................... 1

Table of contents............................................................................................................................ 2

1Summary .............................................................................................................................. 3

2General Function.................................................................................................................... 4

3Schematic and PCB Layout...................................................................................................... 5

Revision history.............................................................................................................................. 7

3 of 8 v1.10

2022-03-15

DSO-8 / TSON-8 Demoboard

User Manual

Summary

1Summary

This document is guideline for the HS CAN transceiver demoboard DSO-8/ TSON-8 from Infineon Technologies

AG and provides information for the proper usage of the demoboard.

The demoboard can be used for all standard HS CAN transceiver on the market, which fulfill the OEM required

standard pinout for DSO-8 or TSON-8 package (see Figure 1).

Figure 1 Pin-out of standard 8-pin CAN transceiver

4 of 8 v1.10

2022-03-15

DSO-8 / TSON-8 Demoboard

User Manual

General Function

2General Function

The demoboard can be used for various test cases and various HS CAN transceiver. Power supply failures can

be simulated as well as different modes of operation. A configurable bus load on CANH and CANL allows to

evaulate the signal form depending on the bus load (standard termination and split termination).

The demoboard should be used to evaluate existing and new CAN transceivers on the market. Advantages, risks

and disadvantages of competitor devicese versus Infineon devices can be tested and measured.

Figure 2 Photo of the DSO-8 / TSON-8 CAN Demoboard

5 of 8 v1.10

2022-03-15

DSO-8 / TSON-8 Demoboard

User Manual

Schematic and PCB Layout

3Schematic and PCB Layout

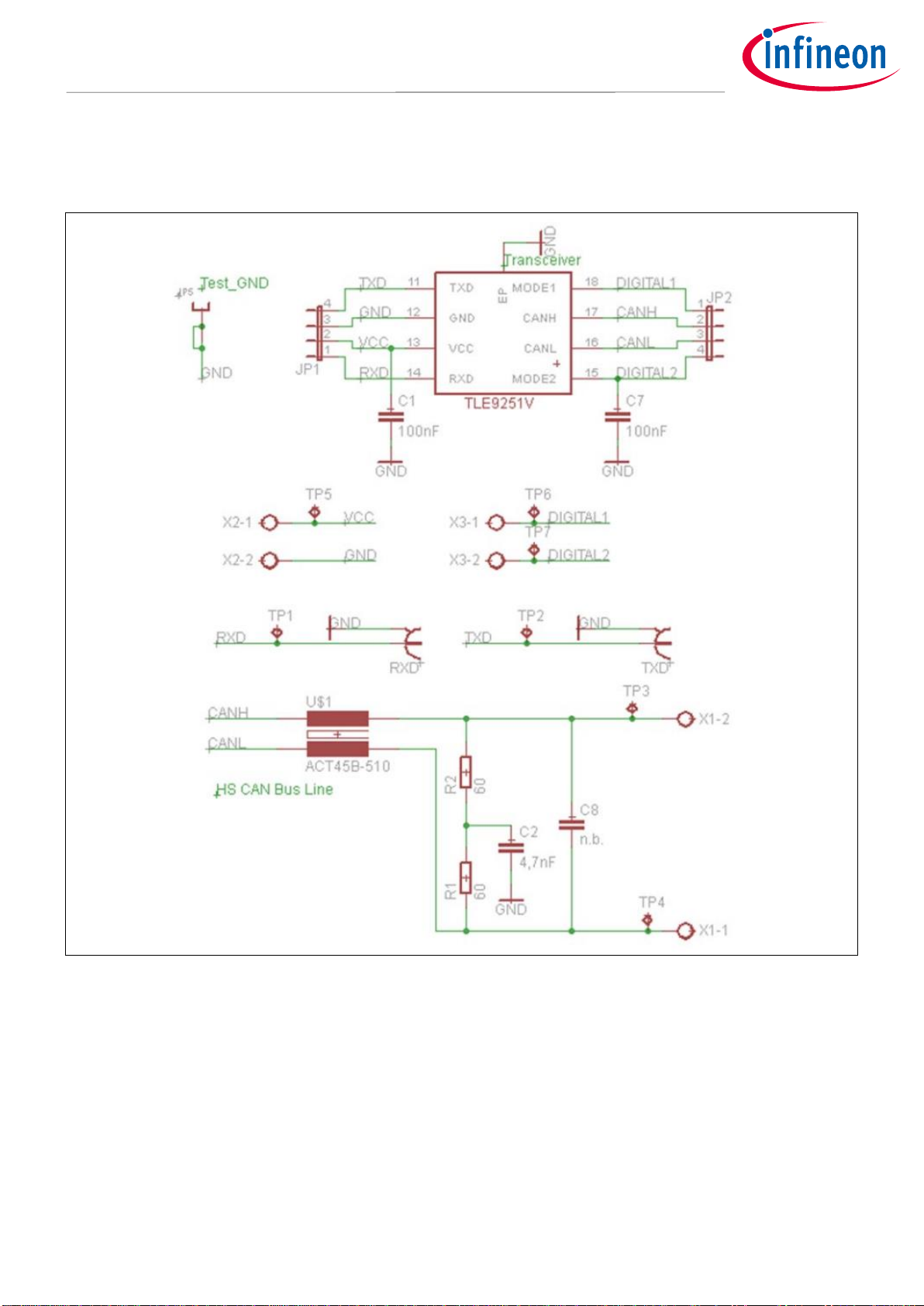

Figure 3 Schematic of DSO-8 / TSON-8 CAN Demoboard

6 of 8 v1.10

2022-03-15

DSO-8 / TSON-8 Demoboard

User Manual

Schematic and PCB Layout

Figure 4 PCB layout of TLE925X demoboard (Top + Bottom)

Table 1 Bill of Material

Part

Value

Device

Package

100nF

Capacitor

C0805

4.7nF

Capacitor

trough hole

capacitor (0.05 inch diameter)

100nF

Capacitor

C0805

n.b.

Optional Capacitor

C0805

JP1

Header Row

JP1

Header Row

JP5

GND Connection for Oscilloscope

Resistor

trough hole resistor (0.05 inch diameter)

Resistor

trough hole resistor (0.05 inch diameter)

TP1 - TP7

Test Points

p1-13 (0.05 inch diameter

US1

100µH

Common Mode Choke

5.9mm x 3.4mm

US3

CAN Transceiver (e.g. TLE9251V

PG-DSO-8 / PGTSON-8

X1 - X3

Connector

W237-132 (0.2 inch pitch)

7 of 8 v1.10

2022-03-15

DSO-8 / TSON-8 Demoboard

User Manual

Schematic and PCB Layout

Revision history

Revision

Date of release

Description of changes

1.1

2022-03-15

Editorial changes, inserting hyperlinks, updating of applicable products

1.0

2018-07-31

Initial release
