CMS5000 Monitoring System Concentrator

Installation Instructions

INSTRUCTION SHEET

PN 074-536-P1C

CAUTION

The CMS5000 concentrator is not interchangeable with the

concentrators from the HAPSITE®family of products.

1Disconnect the power by unplugging the Fischer Connector®from the right side of

CMS5000. Open the front panel by unlocking (if necessary) and rotating the latch

clockwise. See Figure 1.

NOTE: Nitrile or equivalent gloves are recommended when replacing the

concentrator.

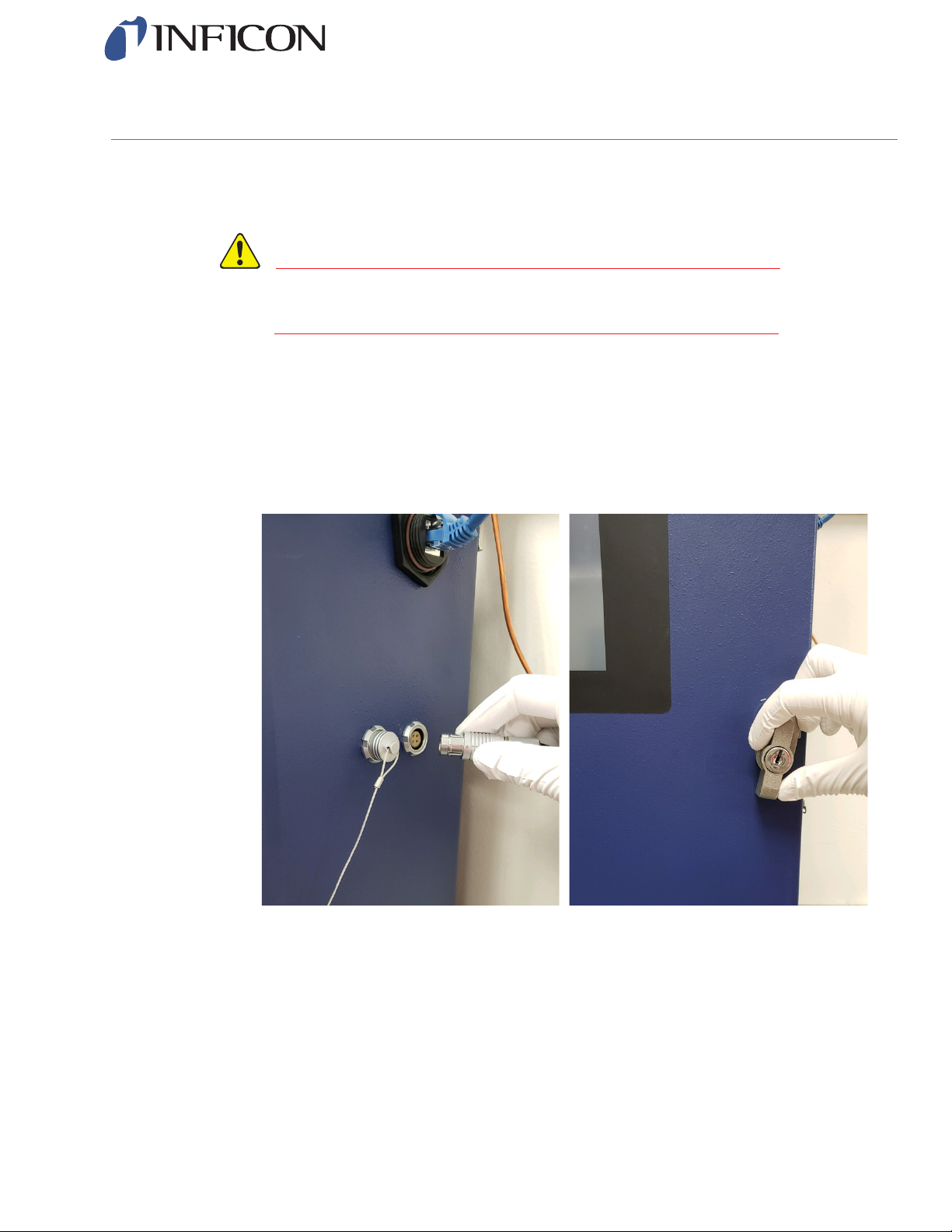

Figure 1 Disconnect power, open the front panel

2 of 8

PN 074-536-P1C

CMS5000 Monitoring System Concentrator Installation Instructions

2Using a screwdriver, remove the three screws that hold the lower oven. Retain the

screws for reuse. See Figure 2. Remove the lower oven cover. See Figure 3.

Figure 2 Open the front panel

Figure 3 Remove cover

3 of 8

PN 074-536-P1C

CMS5000 Monitoring System Concentrator Installation Instructions

3Unscrew and remove the four screws that hold the upper oven cover in place. Retain

the screws for reuse. Remove the upper oven cover. See Figure 4.

Figure 4 Remove four screws and upper oven cover

4Rotate so the board is parallel to the unit, gently grasp the board with both fingers

and pull straight out. See Figure 5.

Figure 5 Remove concentrator board

4 of 8

PN 074-536-P1C

CMS5000 Monitoring System Concentrator Installation Instructions

5Using a 7/16” wrench, loosen the nuts on each side of the concentrator by 1/4 of a

turn. Loosen the nut on the right side upwards and the nut on the left side

downwards. Using fingers, fully loosen both ends of the concentrator. See Figure 6.

Figure 6 Loosen the nuts

6Using a 3/8” wrench, stabilize the concentrator elbow on the right side. Using a

screwdriver, unscrew and remove the two screws that hold the elbow in place. Retain

the screws for use when reinstalling. See Figure 7.

Figure 7 Remove two screws

5 of 8

PN 074-536-P1C

CMS5000 Monitoring System Concentrator Installation Instructions

7Gently remove the concentrator from the concentrator elbows. See Figure 8.

Figure 8 Remove from the concentrator elbows

CAUTION

The concentrator is directional. The end with the groove in the

metal band must face toward the right when installed. There

are two small ferrules that are seated within the nuts. The

tapered end of the ferrules must face outward. See Figure 9.

Figure 9 Concentrator direction

6 of 8

PN 074-536-P1C

CMS5000 Monitoring System Concentrator Installation Instructions

8Ensure the concentrator ferrules are properly oriented. Place the ungrooved end of

the concentrator in the left concentrator elbow (A). Tighten the left side of the

concentrator to finger-tight (B). While holding the right concentrator elbow, place the

grooved end of the concentrator into it (C). See Figure 10.

Figure 10 Replace concentrator

9While holding the right concentrator elbow in place with your fingers, insert and

tighten the bottom screw until finger tight. Continue to stabilize the right concentrator

elbow in place with a 3/8” wrench, insert the top screw and evenly tighten the screws

until snug. Do not overtighten. Overtightening will cause the elbow to turn. See

Figure 11.

Figure 11 Reinsert the screws

7 of 8

PN 074-536-P1C

CMS5000 Monitoring System Concentrator Installation Instructions

10 Ensure that the concentrator is fully seated in both elbows and finger tighten both

sides. Using a 7/16” wrench, tighten both nuts by 1/4 of a turn. Tighten the nut on the

right side downwards and the nut of the left side upwards. See Figure 12.

Figure 12 Ensure that the concentrator is fully seated and tighten nuts

11 Line up the clips from the concentrator board with the metal contacts on the

concentrator. See Figure 13.

Figure 13 Line up the clips

www.inficon.com [email protected]

Due to our continuing program of product improvements, specifications are subject to change without notice.

All trademarks are the property of their respective owners.

8 of 8

CMS5000 Monitoring System Concentrator Installation Instructions

12 Press the concentrator board gently but firmly onto the concentrator. See Figure 14.

Figure 14 Press the concentrator board

13 Position the upper oven cover as shown in Figure 15. Using a screwdriver, screw the

four screws into the proper locations. Position the lower oven cover as shown. Screw

the three screws into the proper locations.

Figure 15 Replace the upper and lower oven covers

14 Shut the front panel, secure the latch and plug in the power cord. The CMS5000 will

begin its startup sequence.
