Inficon Micro GC Fusion Manual de usuario

INSTALLATION GUIDE

PN 074-663-P1B

over

age

EZ IQ and Micro GC Fusion Driver

Installation Guide

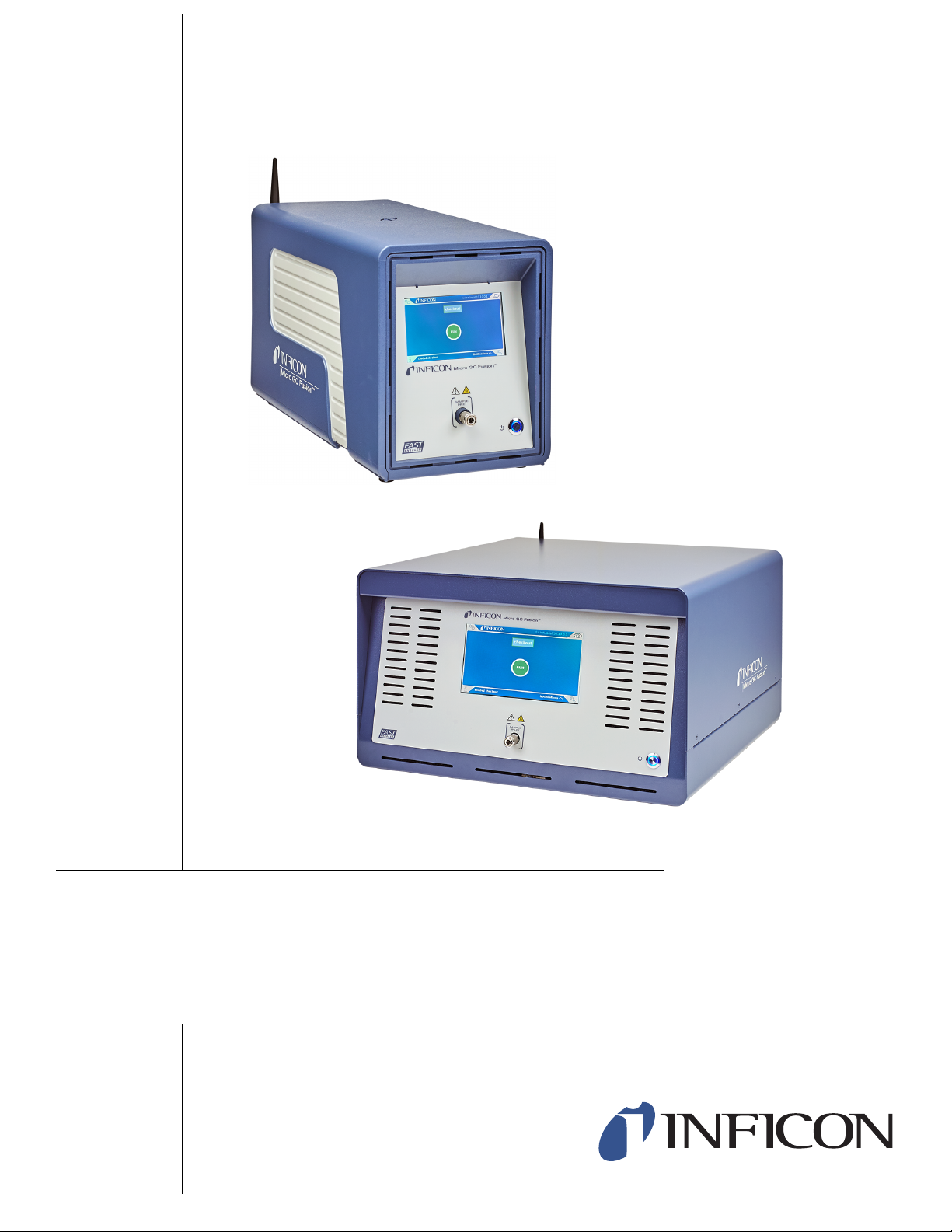

Micro GC Fusion

Trademarks

The trademarks of the products mentioned in this manual are held by the companies that

produce them.

Micro GC Fusion® is a registered trademark of INFICON GmbH.

Windows® and Microsoft® are registered trademarks of Microsoft Corporation.

All other brand and product names are trademarks or registered trademarks of their respective companies.

Disclaimer

The information contained in this manual is believed to be accurate and reliable. However, INFICON assumes

no responsibility for its use and shall not be liable for any special, incidental, or consequential damages related

to the use of this product.

Due to our continuing program of product improvements, specifications are subject to change without notice.

Reproduction or adaptation of any part of this document without permission is unlawful.

TOC – 1

Micro GC EZ IQ Installation and Driver Configuration

Table Of Contents

Cover Page

Trademarks

Disclaimer

Chapter 1

EZ IQ Installation

1.1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

1.2 Computer Minimum Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

1.3 Install EZ IQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

1.4 EZ IQ Installation Qualification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9

Chapter 2

Micro GC Fusion Driver Installation and Configuration

2.1 Installing Micro GC Fusion Driver for EZ IQ . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

2.2 Micro GC Fusion Driver License Activation . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

2.3 Configuring EZ IQ for Micro GC Fusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Chapter 3

Customer Support

3.1 How To Contact Customer Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

1–1

EZ IQ and Micro GC Fusion Driver Installation Guide

Chapter 1

EZ IQ Installation

1.1 Introduction

Micro GC Fusion is compatible with INFICON EZ IQ software (PN G2801-64002).

To connect Micro GC Fusion to EZ IQ, the Micro GC Fusion driver for EZ IQ must

be installed on the EZ IQ computer and a license for Micro GC Fusion driver on

OpenLAB or EZ IQ (PN 952-389-G1) must be obtained from INFICON and installed

on Micro GC Fusion.

1.2 Computer Minimum Requirements

The EZ IQ computer must meet the following requirements:

1.2.1 Important Notes

Microsoft TCP/IP networking is required for all products. WAN’s (wide area

networks) are not supported.

Disk space requirements should be adjusted based on archival periodicity.

INFICON recommends a minimum of one year of the expected disk usage on

top of the recommendation of the operating system. For reference, each

analysis will generate a data file of ~200 KB.

Micro GC Fusion software must be upgraded to version 1.3 or higher.

Table 1-1 Computer mimumum requirements

Type Microsoft Operating System CPU RAM1Disk Space Network Graphics

Minimum

Configuration

XP Pro. SP3 with.Net 3.0 or

Vista Business SP1 or

Windows 7 Pro 32-bit

2 GHz 2 GB 10 GB See

section

1.2.1.

1024 x 768

Recommended

Configuration

XP Pro. SP3 with.Net 3.0 or 3.5 SP1 or

Vista Business SP1 or

Windows 7 Pro 32-bit

Dual core

2 GHz

2 GB 10 GB and

>60% free HD

space

100 Mbps or

higher

1280 x 1024

or higher

1RAM total available memory for EZ IQ including the operating system, but no other application.

1–2

EZ IQ and Micro GC Fusion Driver Installation Guide

1.3 Install EZ IQ

To install EZ IQ onto a Windows computer:

1Insert the EZ IQ Installation CD into the computer CD-ROM drive.

2The CD Installer window will display. (See Figure 1-1.) If it does not display,

double-click CDInstaller.exe under the CD-ROM root drive.

3Click Install EZ IQ to start the installation.

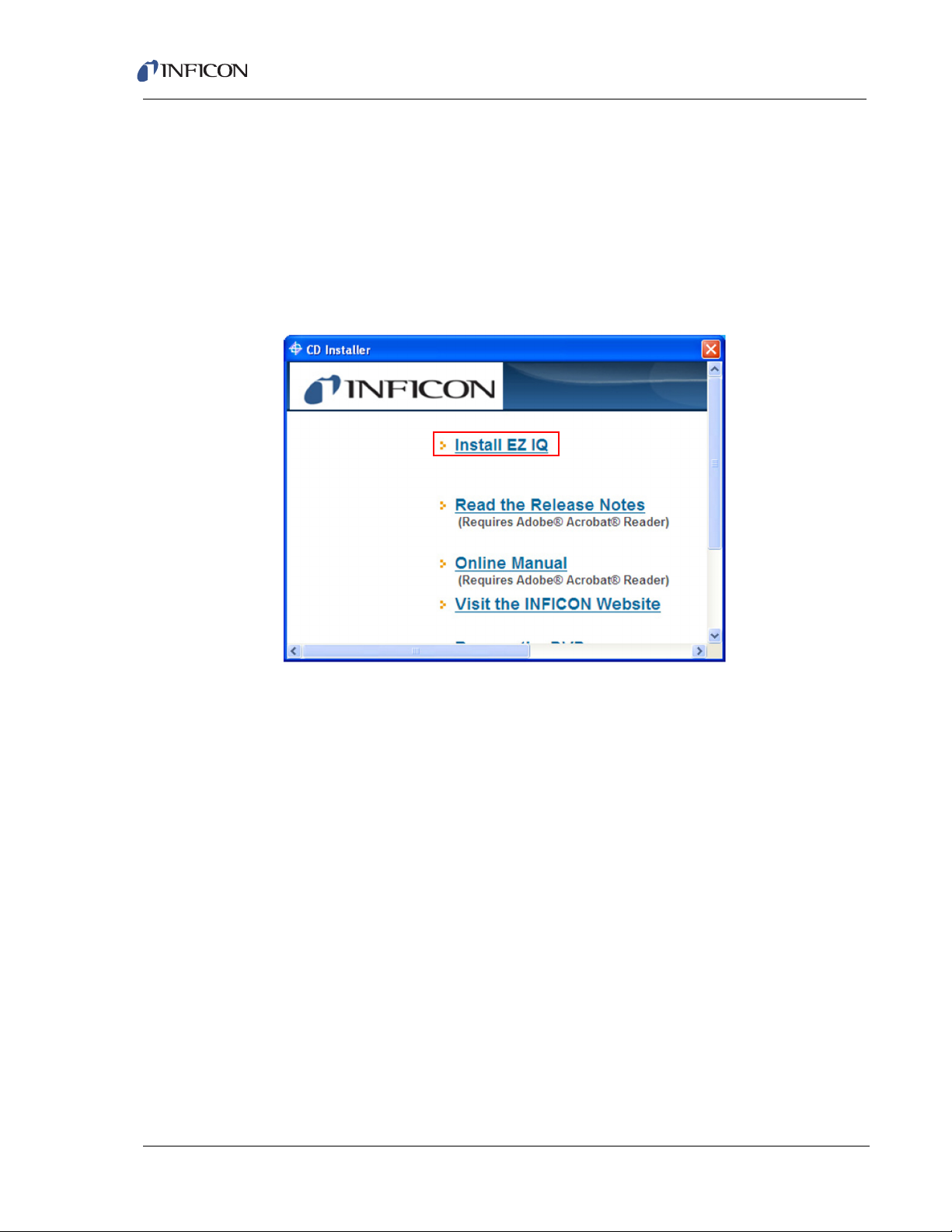

Figure 1-1 CD Installer window

1–3

EZ IQ and Micro GC Fusion Driver Installation Guide

4The EZ IQ Setup - Welcome to the InstallShield Wizard for EZ IQ window

will display. (See Figure 1-2.) Click Next>.

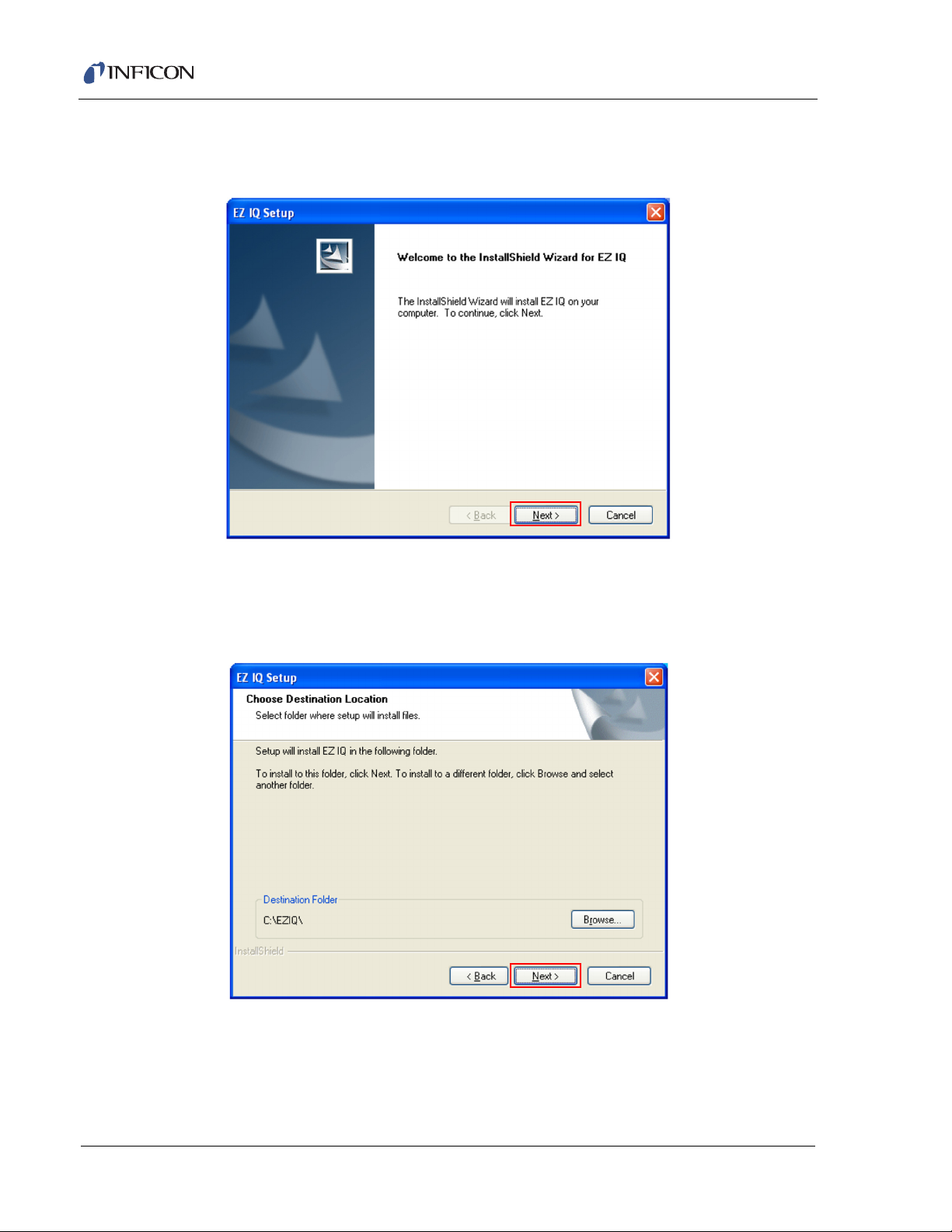

Figure 1-2 EZ IQ Setup - Welcome window

5The EZ IQ Setup - Choose Destination Location window will display.

(See Figure 1-3.) Choose an EZ IQ software installation destination folder. It is

recommended to use the default destination folder C:\EZIQ. Click Next>.

Figure 1-3 EZ IQ Setup - Choose Destination Location window

1–4

EZ IQ and Micro GC Fusion Driver Installation Guide

6The EZ IQ Setup - Select Program Folder window will display. (See Figure

1-4.) Type in a name for the Program Folder. This name will be shown in the

Start >> All Programs menu. It is recommended to use the default

Chromatography program folder name. Click Next>.

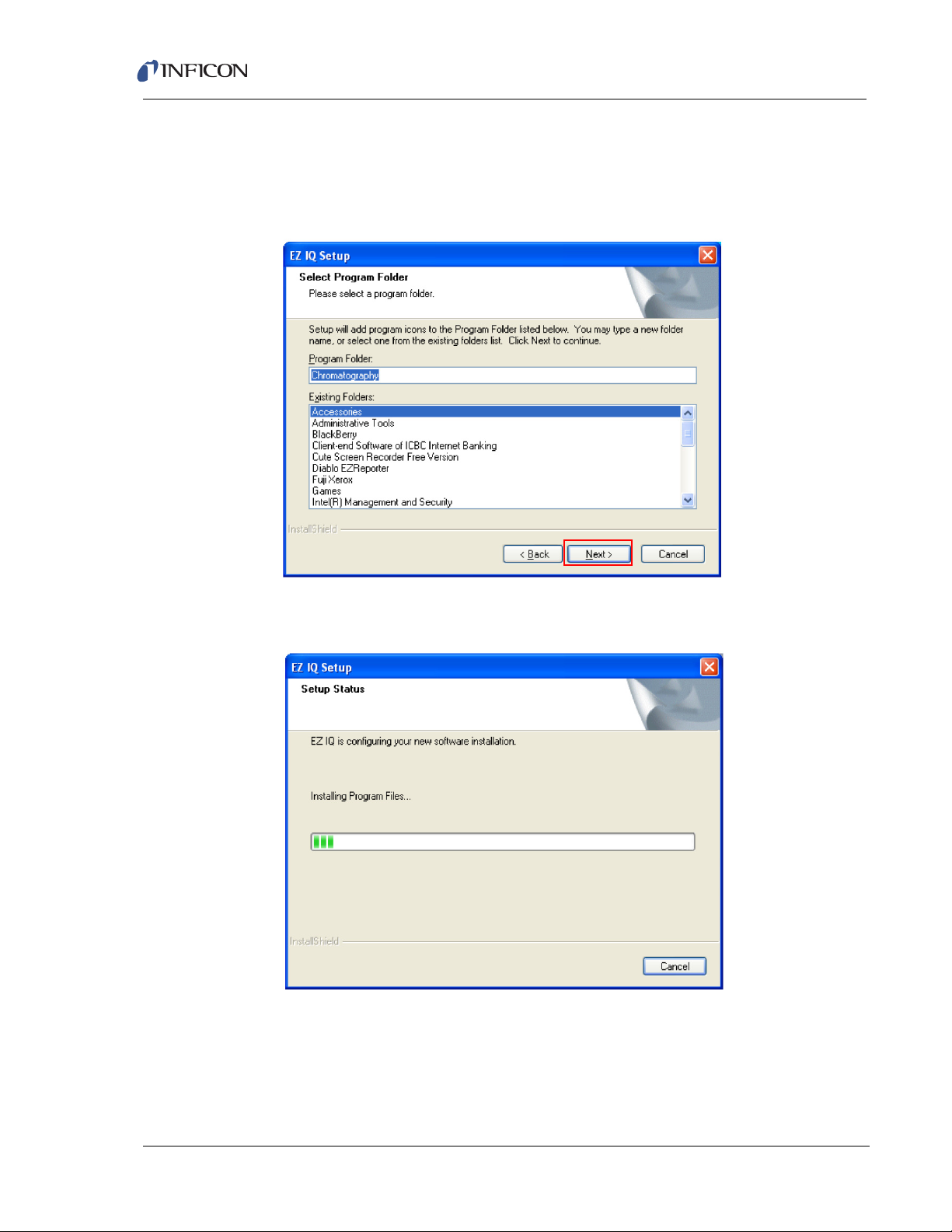

Figure 1-4 EZ IQ Setup - Select Program Folder window

7The EZ IQ Setup - Setup Status window will display. (See Figure 1-5.)

Figure 1-5 EZ IQ Setup - Setup Status window

1–5

EZ IQ and Micro GC Fusion Driver Installation Guide

8When prompted, click Yes to create an EZ IQ desktop shortcut. (See Figure

1-6.)

Figure 1-6 EZ IQ Setup - Setup Status window and EZ IQ shortcut icon

1–6

EZ IQ and Micro GC Fusion Driver Installation Guide

9Various EZ IQ installation windows will display. Some are shown in Figure 1-7

through Figure 1-11.

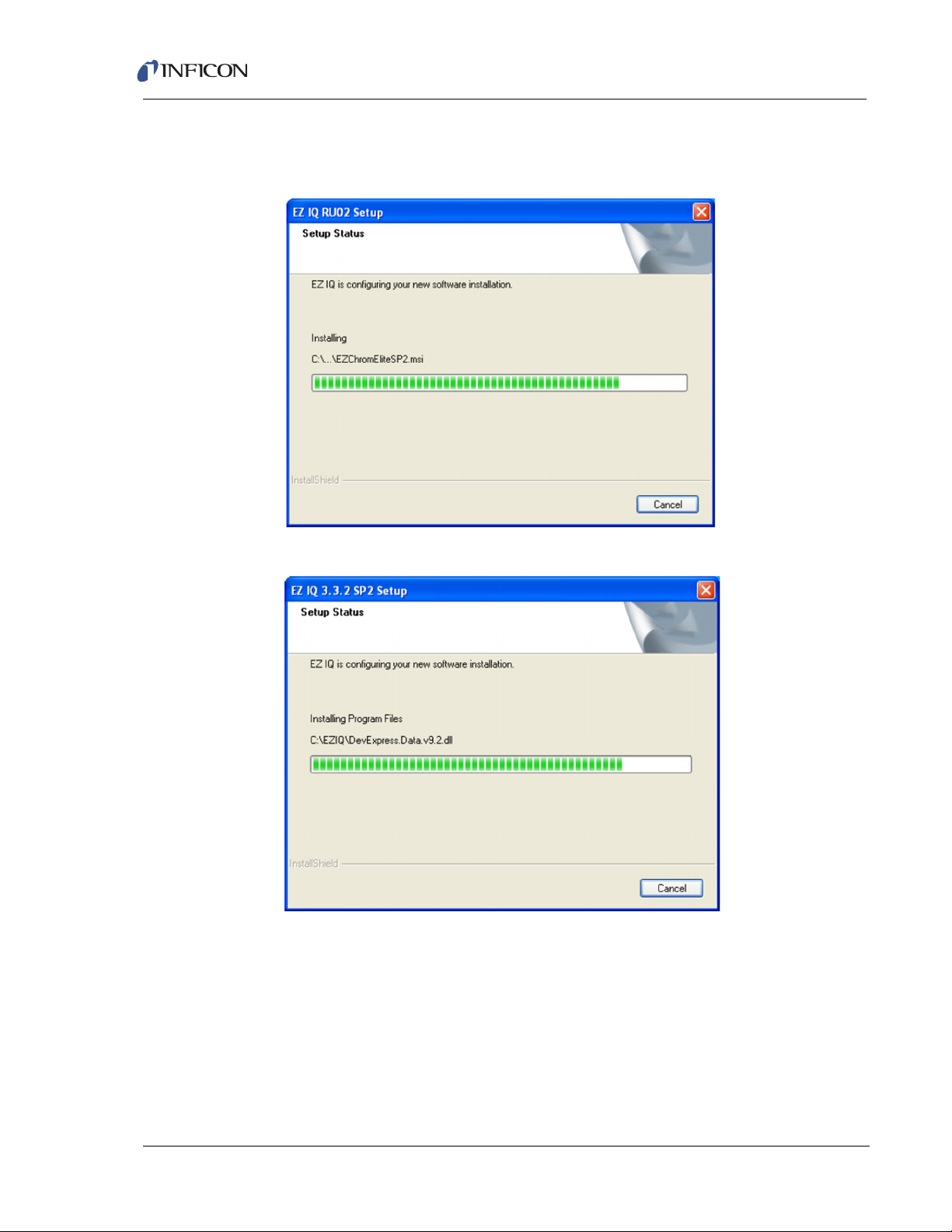

Figure 1-7 EZ IQ RUO2 Setup - Setup Status window

Figure 1-8 EZ IQ 3.3.2 SP2 Setup - Setup Status window

1–7

EZ IQ and Micro GC Fusion Driver Installation Guide

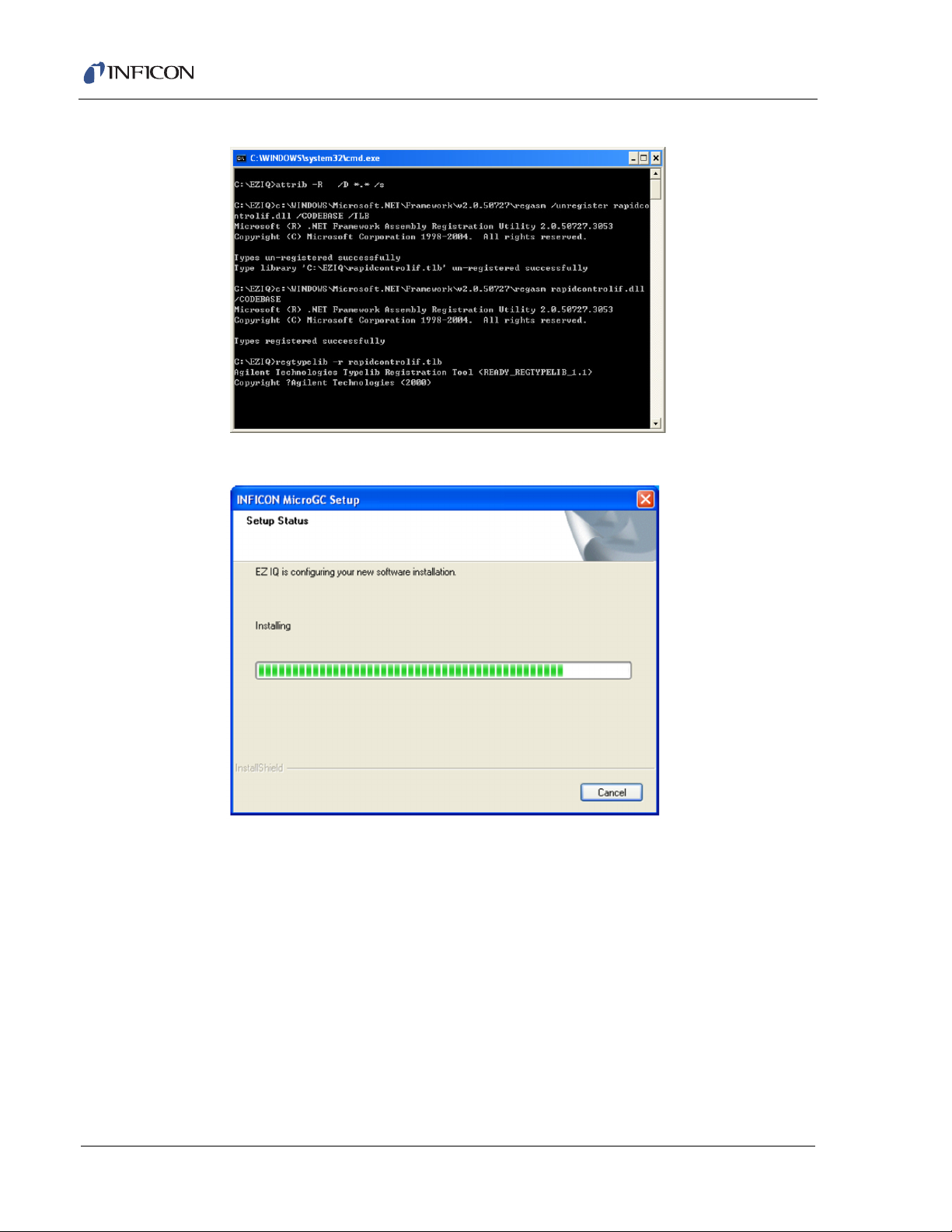

Figure 1-9 EZ IQ Setup - cmd.exe window

Figure 1-10 INFICON MicroGC Setup - Setup Status window
