Impex WM-1508 Manual de usuario

NOTE:

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Hardware Identifier

Assembly Instruction

Parts List

Resistance Chart

Warranty

Ordering Parts

Model

WM-1508

Retain This

Manual for

Reference

08-8-06

OWNER'S

MANUAL

COMPETITOR HOME GYM

WM-1508

IMPEX®INC.

14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746

Tel: (800) 999-8899 Fax: (626) 961-9966

www.impex-fitness.com

[email protected]

TABLE OF CONTENTS

BEFORE YOU BEGIN....................................................................................……….. 1

IMPORTANT SAFETY NOTICES...................................................................……….. 2

HARDWARE PACK……….....….....................................................................……….. 4

ASSEMBLY INSTRUCTIONS.........................................................................……….. 7

PARTS LIST………………………………………………………………………………….. 19

RESISTANCE CHART………….......................................................................………. 20

WARRANTY.................................................................................................…………. 21

ORDERING PARTS.......................................................................................…………21

BEFORE YOU BEGIN

Thank you for selecting the COMPETITOR WM-1508 HOME GYM by

IMPEX®INC. For your safety and benefit, read this manual carefully before

using the machine. As a manufacturer, we are committed to provide you

complete customer satisfaction. If you have any questions, or find there are

missing or damaged parts, we guarantee you complete satisfaction

through direct assistance from our factory. To avoid unnecessary delays,

please call our TOLL-FREE customer service number. Our Customer

Service Agents will provide immediate assistance to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. – Fri. 9 a.m. – 5 p.m. PST

www.impex-fitness.com

[email protected]m

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions apply

whenever you operate a piece of exercise equipment. Be sure to read the entire manual

before you assemble or operate your machine. In particular, note the following safety

precautions:

1. Keep children and pets away from the machine at all times. DO NOT

leave children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal

symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine

near water or outdoors.

5. Keep hands and feet away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear

robes or other clothing that could become caught in the machine. Running

or aerobic shoes are also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO

NOT use attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or

physician in attendance.

10. Before using the machine to exercise, always do stretching exercises to

properly warm up.

11. Never operate the machine if the machine is not functioning properly.

12. A spotter is recommended during exercise.

CARE AND MAINTENANCE

1. Lubricate moving parts with WD-40 or light oil periodically.

2. Inspect and tighten all parts before using the machine.

3. The machine can be cleaned using a damp cloth and mild non-abrasive detergent.

DO NOT use solvents.

4. Maximum user’s weight: 300 lbs.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR

PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE

AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ

ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC.

ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY

DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

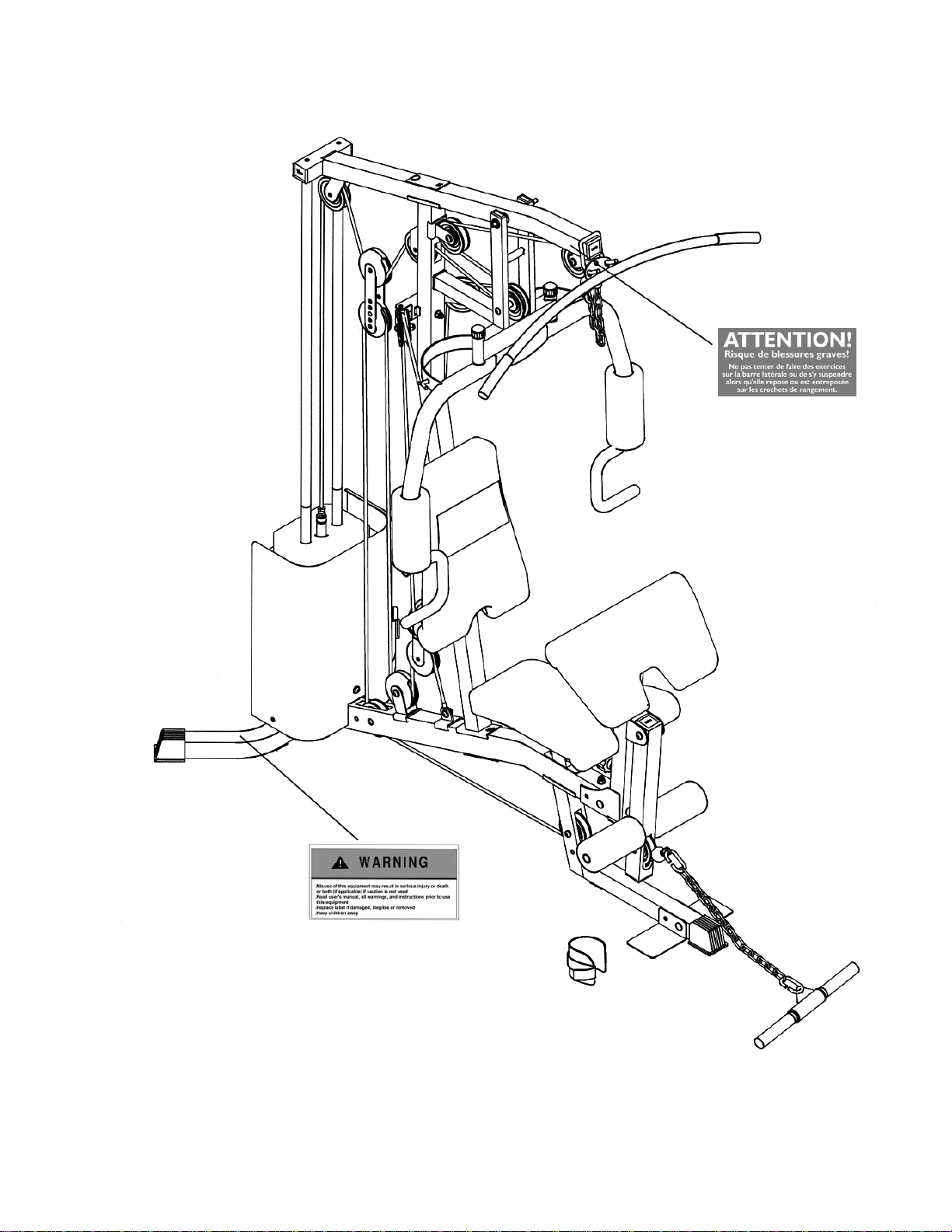

WARNING LABEL REPLACEMENT

The warning labels shown here have been placed on the Rear Base Frame and Upper Frame. If the labels

are missing or illegible, please call customer service at 1-800-888-8899 for replacements. Apply the labels

in the location shown.

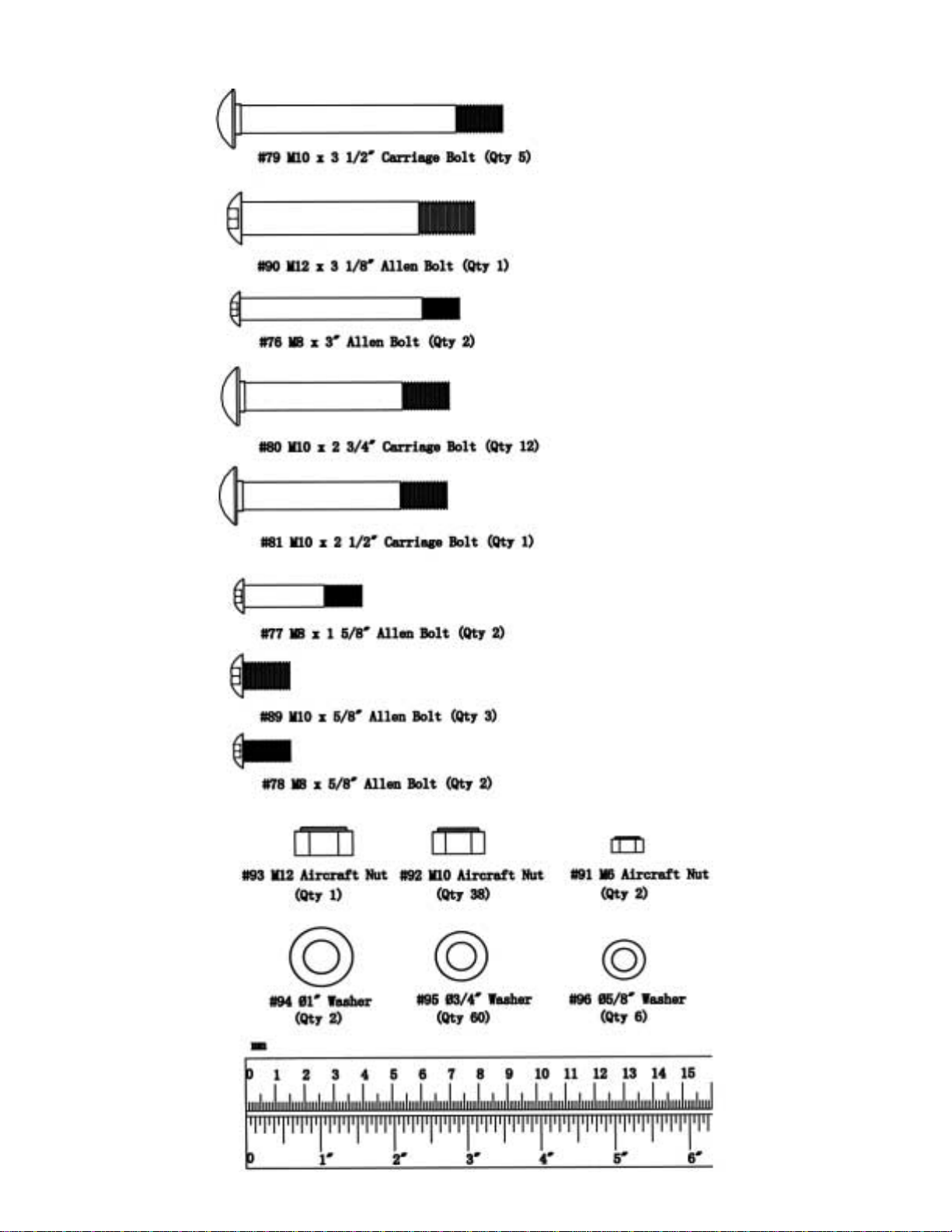

HARDWARE PACK

ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Two Adjustable Wrenches, two Allen

Wrenches, and one Philips Screwdriver. NOTE: It is strongly recommended this

machine to be assembled by two or more people to avoid possible injury.

STEP 1 (See Diagram 1)

A.) Connect the two Lower Guide Rods (8) and two Upper Guide Rods (#9) with two Stud

Bolts (#73). Firmly thread the Rods together.

B.) Insert the Lower Guide Rods (#8) into the holes on the Rear Base Frame (#2). Secure

it with two M10 x 1” Allen Bolts (#88) and Ø ¾” Washers (#95) from the bottom.

C.) Slide two Ø 2 ½” x 1” Rubber Bumpers (#58) onto the Guide Rods.

D.) Attach the Main Frame (#1) to the Rear Base Frame (#2). Secure it with two M10 x 2

¾” Carriage Bolts (#80), one 4 3/8” Bracket (#27), two Ø ¾” Washers (#95), and two

M10 Aircraft Nuts (#92).

E.) NOTE: Do not tighten all the Nuts and Bolts until instructed to do so.

F.) Place the other end of Main Frame onto the Front Base Frame (#3). Place the Seat

Support (#5) onto the Main Frame. Align the holes then secure the Seat Support, Main

Frame, and the Front Base Frame together with two M10 x 3 ½” Carriage Bolts (#79),

Ø ¾” Washers (#95), and M10 Aircraft Nuts (#92).

G.) Attach the Front Seat Support (#45) to the Seat Support (#5). Secure it with two M10 x

1 5/8” Allen Bolts (#87) and Ø ¾” Washers (#95).

H.) Attach the Leg Developer Holder (#19) to the Main Frame (#1). Secure it with two M10

x 2 ¾” Carriage Bolts (#80) from the side, one M10 x 3 ½” Carriage Bolt (#79) from the

bottom, three Ø ¾” Washers (#95), and three M10 Aircraft Nuts (#92). Thread the Lock

Knob (#61) into the hole on the Leg Developer Holder.

I.) Attach the two Foot Plates (#33) to the Front Base Frame (#3). Secure them with two

M10 x 2 ¾” Carriage Bolts (#80), Ø ¾” Washers (#95), and M10 Aircraft Nuts (#92).

J.) Attach the Lower Vertical Frame (#6) to the Main Frame (#1). Secure it with two M10 x

3 ½” Carriage Bolts (#79), one 4 ¾” Bracket (#28), two Ø ¾” Washers (#95), and two

M10 Aircraft Nuts (#92).

K.) Attach the Upper Vertical Frame (#7) to the Lower Vertical Frame. Secure them with

four M10 x 2 ¾” Carriage Bolts (#80), two Vertical Frame Brackets (#21), four Ø ¾”

Washers (#95), and four M10 Aircraft Nuts (#92).

L.) Push three Base Frame End Caps (#64) onto the ends of Rear and Front Base

Frames.

DIAGRAM 1

STEP 2 (See Diagram 2)

A.) Slide nine Weight Plates (#42) onto the Guide Rods. Make sure the groove on the

Weight Plates all facing the back of the machine and downward. Insert the

Selector Rod (#23) through the center hole on the Weight Plates.

B.) Slide the Selector Stem (#41) onto the Guide Rods. Make sure the center groove

faces downward.

C.)Slide the Ring on the String of the Selector Pin (#34) onto the Selector Rod.

D.)Attach the Upper Frame (#10) onto the two Guide Rods. Secure them with two

M10 x 1” Allen Bolts (#88) and Ø ¾” Washers (#95).

E.) Place the Upper Frame (#10) onto the Upper Vertical Frame (#7). Secure them

with two M10 x 2 ¾” Carriage Bolts (#80), one 4 ¾” Bracket (#28), two Ø ¾”

Washers (#95), and two M10 Aircraft Nuts (#92).

F.) Securely tighten all Nuts and Bolts previously installed.

G.)Cover the Weight Plates with the Weight Stack Cover (#53). Secure it with three

M10 x 5/8” Allen Bolts (#89) and Ø ¾” Washers (#95).

H.)Attach the Front Press Support Frame (#12) to the Upper Vertical Frame (#7).

Secure it with one M10 x 2 ½” Allen Bolt (#84) and Ø ¾” Washer (#95).

I.) Attach the Butterfly Pulley Bracket (#13) to the back of the Upper Vertical Frame

(#7). Secure it with one M10 x 2 ½” Carriage Bolt (#81), Ø ¾” Washer (#95), and

M10 Aircraft Nut (#92).

J.) Attach two Swivel Pulley Brackets (#14) to the Butterfly Pulley Bracket (#13).

Secure each Swivel Pulley Bracket with one M10 x 2 ½” Allen Bolt (#84), two Ø

¾” Washers (#95), and one M10 Aircraft Nut (#92).

K.) Attach the Leg Developer (#4) to the Leg Developer Holder (#19). Secure it with

one M12 x 3 1/8” Allen Bolt (#90), two Ø 1” Washers (#94), and one M12 Aircraft

Nut (#93).

L.) Insert the Arm Curl Stand (#20) into the Leg Developer Holder (#19). Secure the

height with the Lock Knob.
