Impex APEX TSA-499 Manual de usuario

NOTE:

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Hardware Identifier

Assembly Instruction

Parts List

Warranty

Ordering Parts

Model

TSA-499

Retain This

Manual for

Reference

08-03-05

OWNER'S

MANUAL

APEX

Combo Bench w/ Wt. Set

TSA-499

IMPEX INC.

14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746

Tel: (800) 999-8899 Fax: (626) 961-9966

www.impex-fitness.com

[email protected]

TABLE OF CONTENTS

BEFORE YOU BEGIN...................................................................................... 1

IMPORTANT SAFETY NOTICE....................................................................... 2

HARDWARE IDENTIFIER.....…....................................................................... 4

ASSEMBLY INSTRUCTIONS........................................................................... 6

EXPLODED DIAGRAM.......................................................................……….. 11

PARTS LIST…………………………………………………………………………. 12

WARRANTY.................................................................................................… 13

ORDERING PARTS......................................................................................... 13

BEFORE YOU BEGIN

Thank you for selecting the APEX Combo Bench TSA-499 by IMPEX INC.

For your safety and benefit, read this manual carefully before using the

machine. As a manufacturer, we are committed to provide you complete

customer satisfaction. If you have any questions, or find there are missing or

damaged parts, we guarantee you complete satisfaction through direct

assistance from our factory. To avoid unnecessary delays, please call our

TOLL-FREE customer service number. Our Customer Service Agents will

provide immediate assistance to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. - Fri. 9 a.m. - 5 p.m. PST

www.impex-fitness.com

[email protected]m

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions apply

whenever you operate a piece of exercise equipment. Be sure to read the entire manual

before you assemble or operate your machine. In particular, note the following safety

precautions:

1. Keep children and pets away from the machine at all times. DO NOT

leave children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal

symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine

near water or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear

robes or other clothing that could become caught in the machine. Running

or aerobic shoes are also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO

NOT use attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or

physician in attendance.

10. Before using the machine to exercise, always do stretching exercises to

properly warm up.

11. Never operate the machine if the machine is not functioning properly.

12. A spotter is recommended during exercise.

CARE AND MAINTENANCE

1. Inspect and tighten all parts before using the machine.

2. The machine can be cleaned using a damp cloth and mild non-abrasive detergent.

DO NOT use solvents.

3. Maximum user’s weight: 300 lbs.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR

PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE

OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL

INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC.

ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE

SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS. 2

WARNING LABEL PLACEMENT

The Warning Label shown here has been placed on the Front Stabilizer. If the label is missing or illegible, please

call customer service at 1-800-999-8899 for replacement. Apply the label in location shown.

HARDWARE PACK

ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen

Wrenches. NOTE: It is strongly recommended two or more people assembling this

machine to avoid possible injury.

STEP 1 (See Diagram 1)

A.) Connect the Left & Right Upright Beams (#1 & 2) by a Cross Brace (#8) in the mid-span.

Align the holes and secure each end with one 4 ¾” x 3 1/8” Bracket (#17), two M10 x 2 3/8”

Carriage Bolts (#41), ∅¾” Washers (#49), and M10 Aircraft Nuts (#48).

B.) Insert the Backrest Adjustment Bar (#9) through the selected holes on the Upright Beams.

C.) Insert the Left & Right Safety Catches (#12 & 13) into the selected holes on the Left &

Right Upright Beams. DIAGRAM 1

STEP 2 (See Diagram 2)

A.) Attach the Leg Developer Holder (#4) to the Front Stabilizer (#3). Secure it with two

M10 x ¾” Allen Bolts (#45) and Ø ¾” Washers (#49).

B.) Attach the Leg Developer Holder to the Main Seat Support (#5). Secure it with two M10

x 2 3/8” Carriage Bolts (#41), Ø ¾” Washers (#49), and M10 Aircraft Nuts (#48)

horizontally. Secure it with one M10 x 2 1/8” Carriage Bolt (#42), Ø ¾” Washer (#49),

and M10 Aircraft Nut (#48) vertically.

C.)Attach the Main Seat Support to the Cross Brace (#8). Secure it with a 4 3/8” x 1 ½”

Bracket (#26), two M10 x 2 3/8” Carriage Bolts (#41), two ∅¾” Washers (#49), and two

M10 Aircraft Nuts (#48).

D.)Insert the T-shaped Lock Pin (#22) into the hole on the Main Seat Support.

DIAGRAM 2

STEP 3 (See Diagram 3)

A.) Attach the Leg Developer (#6) to the Leg Developer Holder (#4). Secure it with one M10 x 2

7/8” Allen Bolt (#44), two Ø ¾” Washers (#49), and one M10 Aircraft Nut (#48).

B.) Insert two Foam Roll Tubes (#16) halfway through the holes on the Leg Developer (#6). Push

four Foam Rolls (#27) onto the Tubes from both sides.

C.)Attach a Spring Clip (#37) onto the weight post on the Leg Developer.

D.)Slide the Sliding Weight Post (#11) onto the Lat Bar Frame (#7). Insert the Lat Bar Frame into

the opening on the Leg Developer Holder.

E.) Thread a Lock Knob (#38) into the hole on the back of Leg Developer Holder to secure the

Lat Bar Frame. Attach a Spring Clip (#37) onto the weight post on the Sliding Weight Post.

DIAGRAM 3

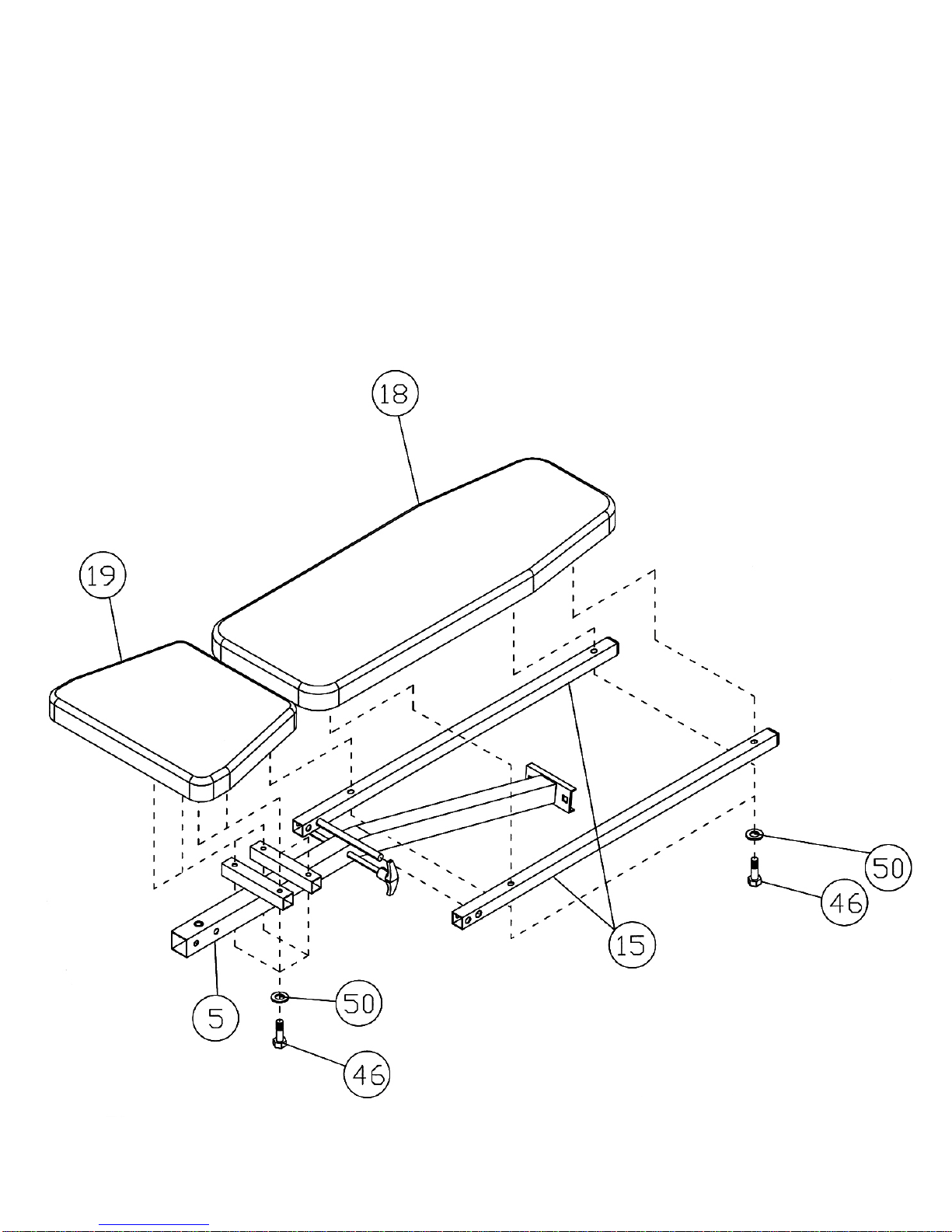

STEP 4 (See Diagram 4)

A.) Attach the side-holes on the Backrest Supports (#15) to the pivot on the Main Seat

Support (#5). Place the other end of Backrest Supports rest against the Backrest

Adjustment Bar.

B.) Attach the Backrest Board (#18) to the Backrest Supports. Secure it with four M6 x 1

3/8” Hex Bolts (#46) and Ø ½” Washers (#50).

C.)Place the Seat (#19) onto the Main Seat Support. Secure it with four M6 x 1 3/8” Hex

Bolts (#46) and Ø ½” Washers (#50).

D.)Use the T-shaped Lock Pin to hold the Backrest Board at vertical position. Note: The

Pin is not designed to sustain any weight. The only purpose is to hold the backrest

board at vertical position while doing squat exercise from the back of the bench.

DIAGRAM 4
