Impex IGS-5100 Manual de usuario

NOTE:

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Hardware Identifier

Assembly Instruction

Parts List

Warranty

Ordering Parts

Model

IGS-5100

Retain This

Manual for

Reference

08-15-06

OWNER'S

MANUAL

IRON GRIP STRENGTH

DELUXE SMITH MACHINE

IGS-5100

IMPEX®INC.

14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746

Tel: (800) 999-8899 Fax: (626) 961-9966

www.impex-fitness.com

[email protected]

TABLE OF CONTENTS

BEFORE YOU BEGIN..................................................................................... 1

IMPORTANT SAFETY NOTICES.................................................................... 2

SMITH MACHINE HARDWARE PACK….......…............................................. 4

SMITH MACHINE ASSEMBLY INSTRUCTIONS............................................ 8

EXPLODED DIAGRAM…………………………………………………………….. 20

SMITH MACHINE PARTS LIST………..…………………………………………. 21

MULTI-PURPOSE BENCH HARDWARE PACK………………………………… 22

MULTI-PURPOSE BENCH ASSEMBLY INSTRUCTIONS.............................. 24

EXPLODED DIAGRAM…………………………………………………………….. 30

MULTI-PURPOSE BENCH PARTS LIST………………………………………… 31

WARRANTY.................................................................................................… 32

ORDERING PARTS......................................................................................... 32

BEFORE YOU BEGIN

Thank you for selecting the IRON GRIP STRENGTH IGS-5100 Smith Machine

by IMPEX®INC. For your safety and benefit, read this manual carefully before

using the machine. As a manufacturer, we are committed to provide you

complete customer satisfaction. If you have any questions, or find there are

missing or damaged parts, we guarantee you complete satisfaction through

direct assistance from our factory. To avoid unnecessary delays, please call our

TOLL-FREE customer service number. Our Customer Service Agents will

provide immediate assistance to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. - Fri. 9 a.m. - 5 p.m. PST

www.impex-fitness.com

[email protected]m

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions apply

whenever you operate a piece of exercise equipment. Be sure to read the entire manual

before you assemble or operate your machine. In particular, note the following safety

precautions:

1. Keep children and pets away from the machine at all times. DO NOT

leave children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal

symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine

near water or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear

robes or other clothing that could become caught in the machine. Running

or aerobic shoes are also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO

NOT use attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or

physician in attendance.

10. Before using the machine to exercise, always do stretching exercises to

properly warm up.

11. Never operate the machine if the machine is not functioning properly.

12. A spotter is recommended during exercise.

CARE AND MAINTENANCE

1. Lubricate moving parts with WD-40 or light oil periodically.

2. Inspect and tighten all parts before using the machine.

3. The machine can be cleaned using a damp cloth and mild non-abrasive detergent.

DO NOT use solvents.

4. Maximum user’s weight: 300 lbs.

5. Maximum weights on the rack: 600 lbs.

6. Maximum weights on Leg Developer: 100 lbs.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR

PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE

OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL

INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC.

ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY

DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

WARNING LABEL PLACEMENT

The warning labels shown here have been placed on the Rear Stabilizer and Upper Frame. If the labels

are missing or illegible, please call customer service at 1-800-888-8899 for replacements. Apply the

labels in the location shown. 3

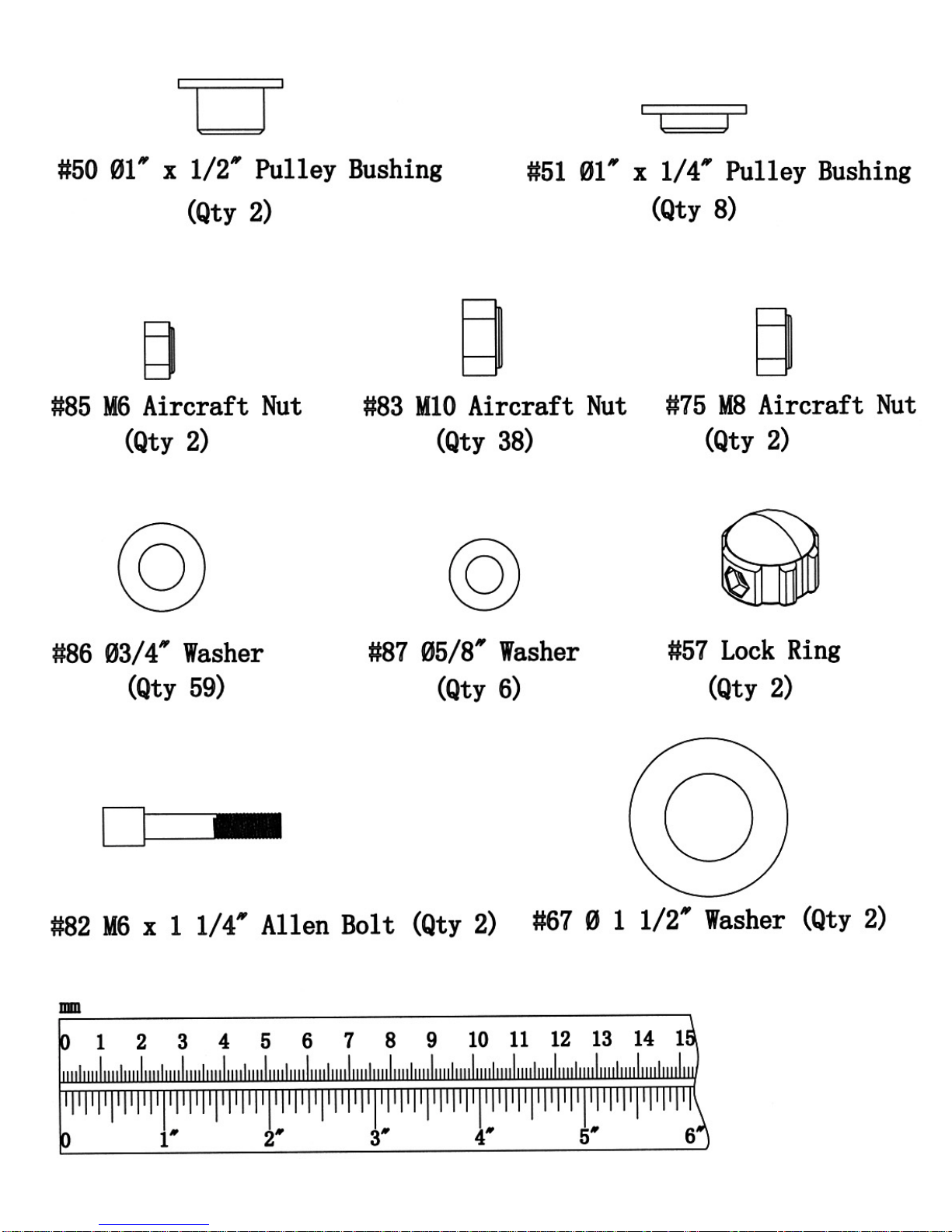

SMITH MACHINE HARDWARE PACK

SMITH MACHINE ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen

Wrenches

NOTE: It is strongly recommended two or more people assembling this machine to

avoid possible injury.

STEP 1 (See Diagram 1)

A.) Do not tighten all nuts and bolts until instructed to do so.

B.) Attach one Guide Rod (#12) onto a Base Frame (#1). Secure the Guide Rod to the Base

Frame with one M10 x 1” Allen Bolt (#74) and Ø ¾” Washer (#86) from the bottom.

C.) Slide one Lower Safety Stop Frame (#90) onto the Guide Rod from the top then slide one

Safety Stop Frame (#26) onto the Guide Rod.

D.) Attach the Base Frame (#1) to the Left Vertical Frame (#3). Attach the Cross Brace (#8)

to the back of the Left Vertical Frame (#8). Align the holes and secure the Base Frame,

Left Vertical Frame, and the Cross Brace together with two M10 x 2 ¾” Carriage Bolts

(#70), two Ø ¾” Washers (#86), and two M10 Aircraft Nuts (#83).

E.) Insert the top of the Guide Rod (#12) into the tube on the Left Vertical Frame (#3). Secure

it with one M8 x 1 5/8” Allen Bolt (#76) and M8 Aircraft Nut (#75).

F.) Attach one Front Vertical Frame (#2) onto the Base Frame (#1). Secure it with two M10 x

2 ¾” Carriage Bolts (#70), one 4” x 2” Bracket (#36), two Ø ¾” Washers (#86), and two

M10 Aircraft Nuts (#83).

G.) Attach the top of the Front Vertical Frame (#2) to the top of the Left Vertical Frame (#3).

Secure it with two M10 x 1” Allen Bolts (#74) and Ø ¾” Washers (#86).

H.) Attach a Safety Hook (#91) to the Lower Safety Stop Frame (#90). Securely it with one

M10 x 1” Allen Bolt (#74), two Ø ¾” Washers (#86), and one M10 Aircraft Nut (#83).

Attach the Safety Hook into the selected hole on the back of Front Vertical Frame.

I.) Repeat Procedure B through H to install the other side.

DIAGRAM 1
