Impex MARCY NS-652 Manual de usuario
NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Pack
Assembly Instruction
Parts List
Warranty
Ordering Parts
Model
NS-652
Retain This
Manual for
Reference
130204
OWNER'S
MANUAL
MARCY®
Foldable Bike
NS-652
IMPEX®INC.
2801 S. Towne Ave, Pomona, CA 91766
Tel: (800) 999-8899
www.impex-fitness.com
TABLE OF CONTENTS
BEFORE YOU BEGIN...................................................................................…. 1
IMPORTANT SAFETY NOTICES..................................................................…. 2
WARNING LABEL PLACEMENT………….....…................................................ 3
PRE-ASSEMBLY CHECK LIST, HARDWARE PACK.......................................... 4
ASSEMBLY INSTRUCTIONS........................................................................…. 5
EXPLODED DIAGRAM………………………………………………………………. 11
PARTS LIST...................................................................................................… 12
COMPUTER................................................................................................…… 13
EXERCISE INSTRUCTIONS................................................................................. 12
WARRANTY.................................................................................................…. 16
ORDERING PARTS.....................................................................................….. 16
BEFORE YOU BEGIN
Thank you for selecting the MARCY®MARCY Foldable Bike NS-652 by
IMPEX®INC. For your safety and benefit, read this manual carefully before
using the machine. As a manufacturer, we are committed to provide you
complete customer satisfaction. If you have any questions, or find there are
missing or damaged parts, we guarantee you complete satisfaction through
direct assistance from our factory. To avoid unnecessary delays, please call
our TOLL-FREE customer service number. Our Customer Service Agents
will provide immediate assistance to you.
Toll-Free Customer Service Number
1-800-999-8899
Mon. - Fri. 9 a.m. - 5 p.m. PST
www.impex-fitness.com
Impex Inc. www.impex-fitness.com
1
Impex Inc. www.impex-fitness.com
2
IMPORTANT SAFETY NOTICE
PRECAUTIONS
This exercise machine is built for optimum safety. However, certain
precautions apply whenever you operate a piece of exercise equipment. Be
sure to read the entire manual before you assemble or operate your machine.
In particular, note the following safety precautions:
1. Keep children and pets away from the machine at all times. DO NOT
leave children unattended in the same room with the machine.
2. Only one person at a time should use the machine.
3. If the user experiences dizziness, nausea, chest pain, or any other
abnormal symptoms, STOP the workout at once. CONSULT A PHYSICIAN
IMMEDIATELY.
4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.
7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.
8. Do not place any sharp object around the machine.
9. Disabled person should not use the machine without a qualified person or
physician in attendance.
10. Before using the machine to exercise, always do stretching exercises to
properly warm up.
11. Never operate the machine if the machine is not functioning properly.
12. The Maximum Weight Capacity is 300 lbs.
13. Read all warnings posted on the exercise bike.
14. Inspect the exercise bike for worn or loose component prior to use.
Tighten/replace any loose or wore components prior to use.
15. Care should be taken in mounting or dismounting the exercise bike.
16. This exercise bike is for consumer and home use only.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT
YOUR PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS
OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH
PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS
EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY FOR
PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR
THROUGH THE USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS.
WARNING LABEL REPLACEMENT
The Warning Label shown here has been placed on the rear Stabilizer. If the label is missing or
illegible, please call customer service at 1-800-999-8899 for replacement. Apply the label in
location shown.
Impex Inc. www.impex-fitness.com
3

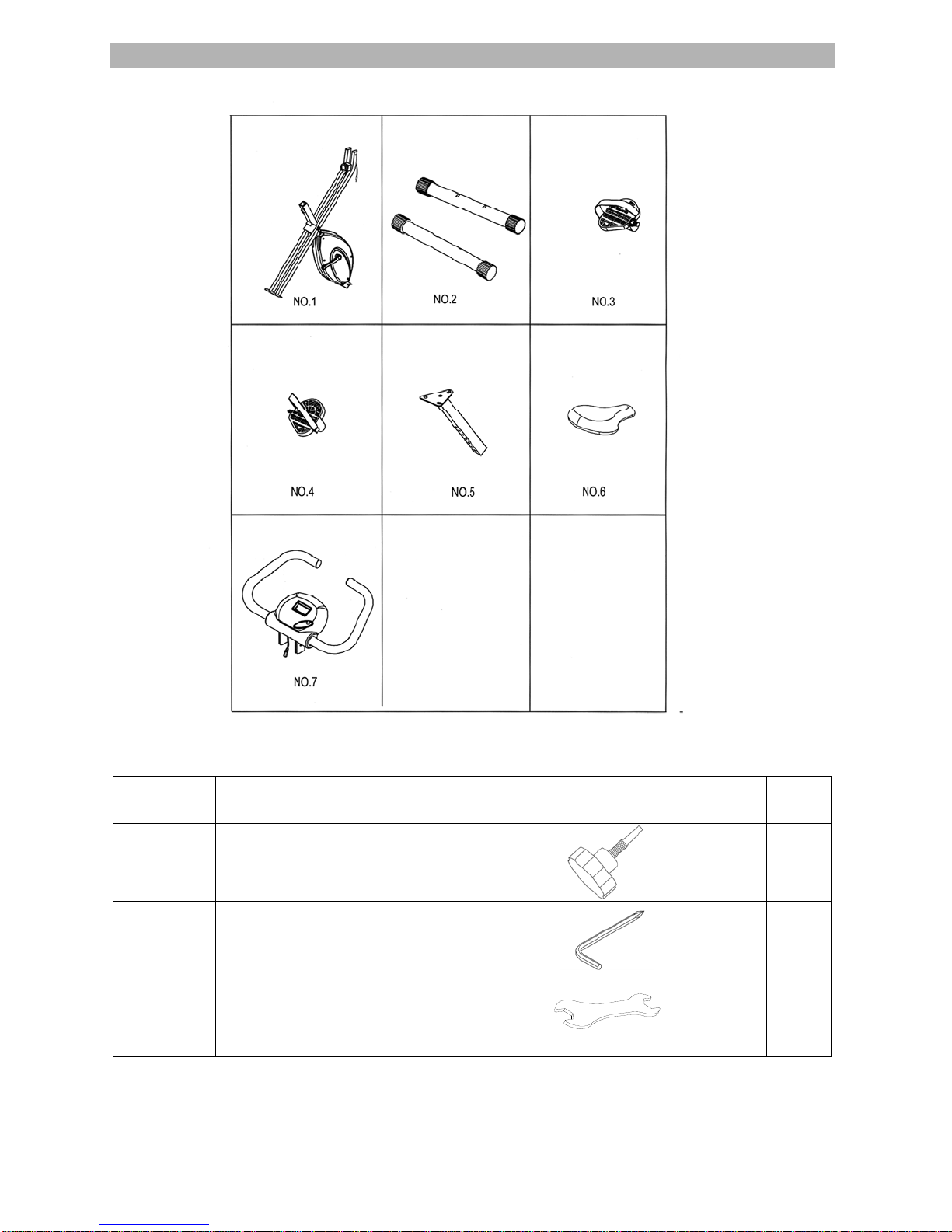

PRE-ASSEMBLY CHECK LIST
HARDWARE PACK
No. Description Identifier Q’ty
12 Adjustment knob
2
Allen Wrench 1
Crossing Wrench 1
Above hardware are all you need to assemble this machine. Before you start to assemble, please check the hardware
pack to make sure they are included.
Impex Inc. www.impex-fitness.com
4
ASSEMBLY INSTRUCTION
NOTE: It is strongly recommended that two or more people assemble this machine to
avoid possible injury.

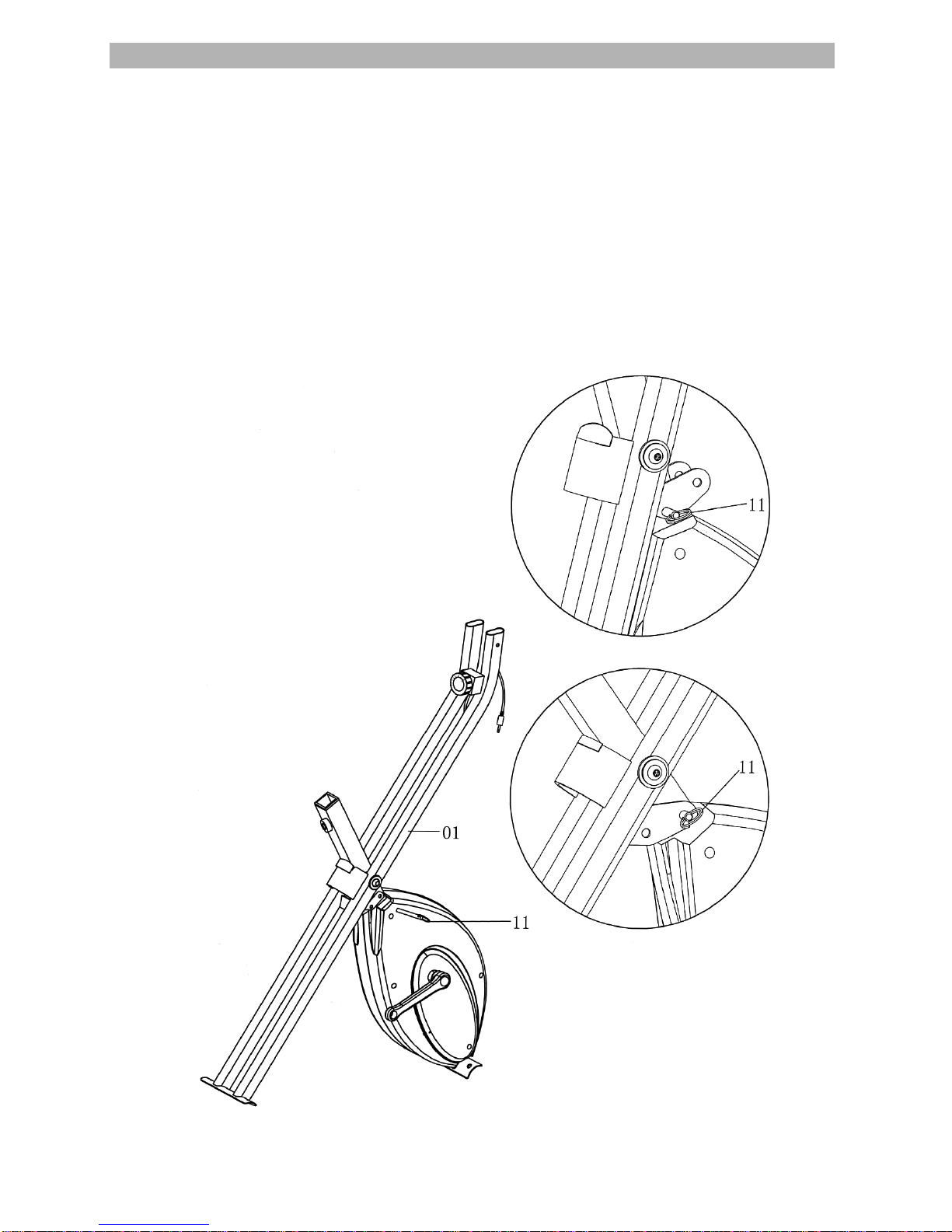

STEP 1 (See Diagram1)
A). Pull the Safety-Pin (#11) from the Main Frame (#1).
B.) Pull the upright frame and the seat post apart, and then insert back the Safety-Pin
to securely lock the Main Frame in X-position.
DIAGRAM 1
Impex Inc. www.impex-fitness.com
5
STEP 2 (See Diagram 2)
A.) Remove the two Carriage Bolts (#8), Curved Washers (#9), and Dome Nuts (#10)
from one of the Stabilizers (#2).
B.) Attach the Front Stabilizer to the front of Main Frame (#1). Secure it with the two
Carriage Bolts, Curved Washers, and Dome Nuts.
C.)Repeat Procedure B to install the other Stabilizer on rear.
DIAGRAM 2
Impex Inc. www.impex-fitness.com
6
STEP 3 (See Diagram 3)
A.) Firmly thread the Left Pedal (marked “L) (#3) counterclockwise to the left crank.
B.) Firmly thread the Right Pedal (marked “R” (#4) clockwise to the right crank.
DIAGRAM 3
Impex Inc. www.impex-fitness.com
7

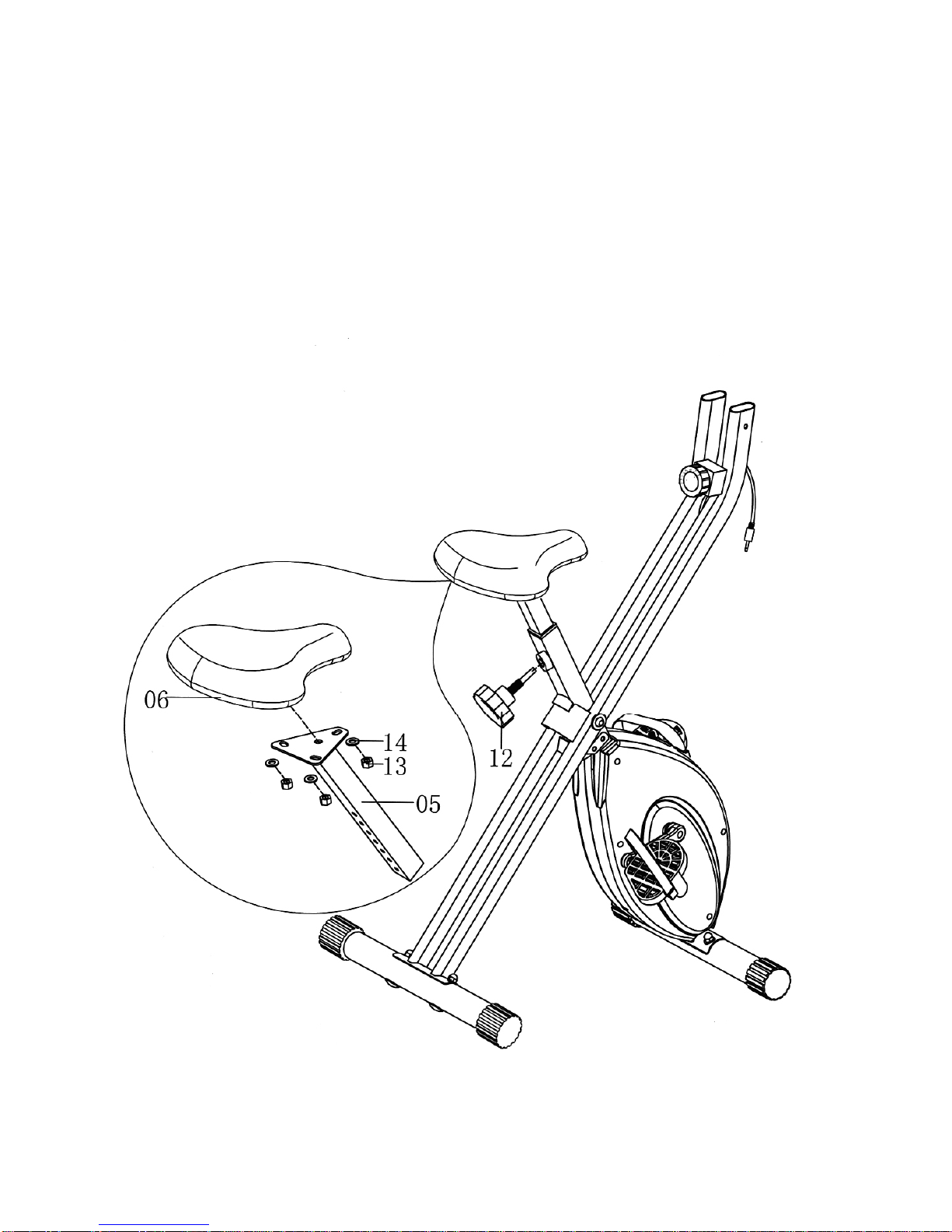

STEP 4 (See Diagram 4)
A.) Remove the two Nylon Nuts (#13) and two Flat Washers (#14) under the Seat
(#6).
B.) Attach the Seat to the Seat Post (#5). Secure it with the two Nylon Nuts (#13)
and two Flat Washers (#14).
C.)Insert the Seat Post into the opening on Main Frame. Use the Adjustment Knob
(#12) to lock the selected seat height in position.
D.)Seat height ranges from 35” to 40”, one inch for every height increment.
DIAGRAM 4
Impex Inc. www.impex-fitness.com
8
STEP 5 (See Diagram 5)
A.) Remove the four Allen Bolts (#15), four Spring Washers (#16), two Flat Washers
(#17), and two Curved Washers (#18) from the Handlebar (#7).
B.) Attach the Handlebar to the front post of Main Frame (#1). Secure it with two Allen
Bolts (#15), two Spring Washers (#16), and two Flat Washers (#17) from the sides.
Then secure it with two Allen Bolts (#15), two Spring Washers (#16), and two
Curved Washers (#18) from the back.
DIAGRAM 5
Impex Inc. www.impex-fitness.com
9
