Impex NS-908R Instrucciones de instalación y funcionamiento

NOTE:

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Hardware Pack

Assembly Instruction

Parts List

Warranty

Ordering Parts

Model

NS-908R

Retain This

Manual for

Reference

120731

ASSEMBLY &

OWNER'S

MANUAL

Magnetic-Resistance

Recumbent Bike/Hand Pulse

NS-908R

IMPEX®INC.

2801 South Towne Ave., Pomona, CA 91766

Tel: (800) 999-8899 Fax: (626) 961-9966

www.impex-fitness.com

[email protected]

©IMPEX INC. www.impex-fitness.com1

TABLE OF CONTENTS

BEFORE YOU BEGIN...................................................................................…. 1

IMPORTANT SAFETY NOTICES..................................................................…. 2

WARNING LABEL PLACEMENT……………………………………………………. 3

HARDWARE PACK, COMPONENTS FOR ASSEMBLY ……….....…..................4

ASSEMBLY INSTRUCTIONS........................................................................…. 6

EXPLODED DIAGRAM……………………………………………………………… 11

PARTS LIST...................................................................................................… 12

CARE, MAINTENANCE, AND STORAGE………………………………………… 13

OPERATING NOTES………………………………………………………………… 13

COMPUTER…………………………………………………………………………… 14

EXERCISE GUIDELINES……………………………………………………………. 15

WARRANTY.................................................................................................…. 17

ORDERING PARTS.....................................................................................….. 17

BEFORE YOU BEGIN

Thank you for selecting the MARCY Magnetic-Resistance Recumbent Bike with Hand

Pulse NS-908R by IMPEX®INC. For your safety and benefit, read this manual

carefully before using the bike. As a manufacturer, we are committed to provide you

complete customer satisfaction. If you have any questions, or find there are missing

or damaged parts, we guarantee you complete satisfaction through direct assistance

from our factory. To avoid unnecessary delays, please call our TOLL-FREE customer

service number. Our Customer Service Agents will provide immediate assistance to

you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. - Fri. 9 a.m. - 5 p.m. PST

www.impex-fitness.com

info@impex-fitness.com

©IMPEX INC. www.impex-fitness.com2

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions apply

whenever you operate a piece of exercise equipment. Be sure to read the entire manual

before you assemble or operate your machine. In particular, note the following safety

precautions:

1. Keep children and pets away from the machine at all times. DO NOT leave

children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal symptoms,

STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine near water

or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear robes or

other clothing that could become caught in the machine. Running or aerobic shoes are

also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO NOT use

attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or physician in

attendance.

10. Before using the machine to exercise, always do stretching exercises to properly warm

up.

11. Never operate the machine if the machine is not functioning properly.

12. Read all warnings posted on the exercise bike.

13. Inspect the exercise bike for worn or loose component prior to use. Tighten/replace any

loose or wore components prior to use.

14. Care should be taken in mounting or dismounting the exercise bike.

15. This exercise bike is for consumer and home use only.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR

PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE

OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL

INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES

NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE

SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

©IMPEX INC. www.impex-fitness.com3

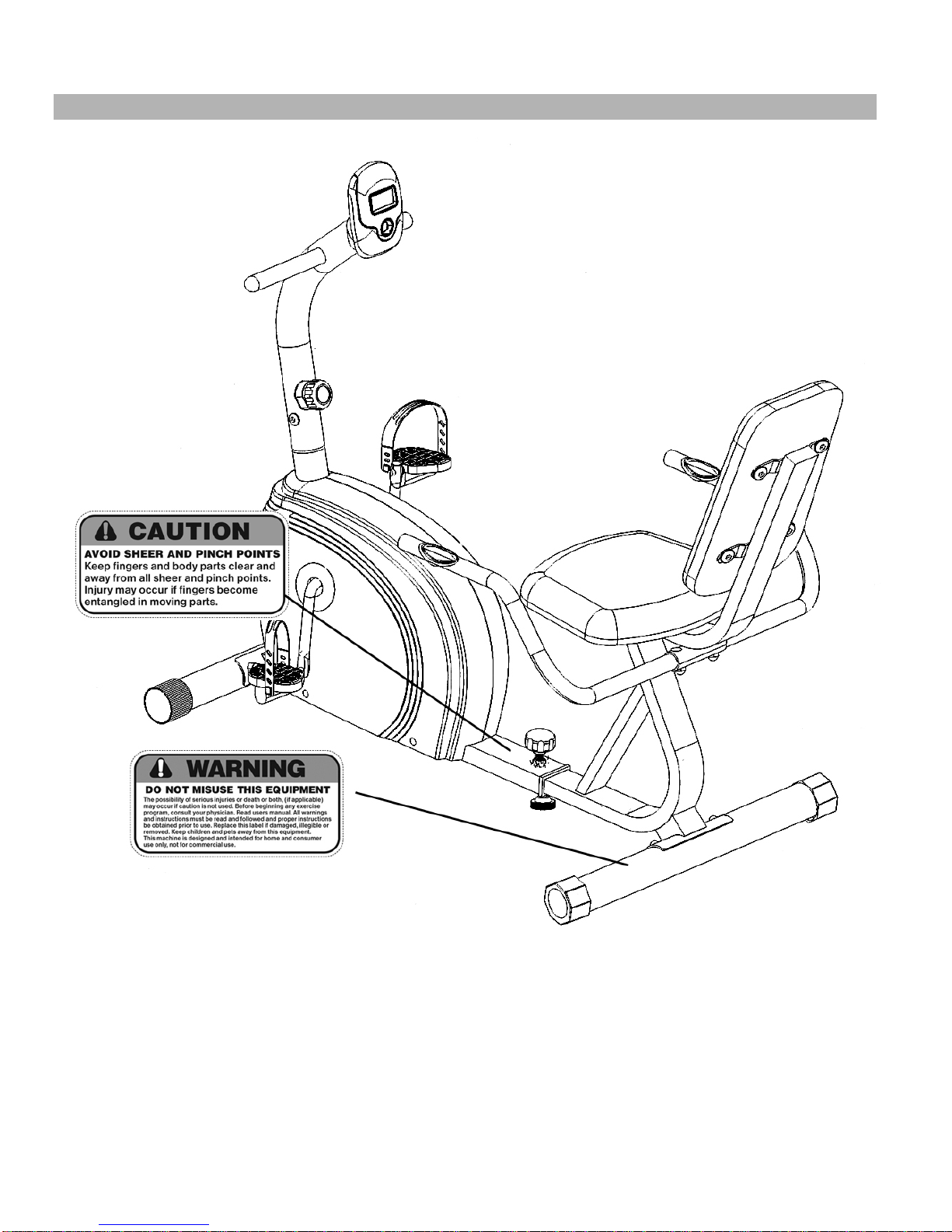

NS-908R WARNING LABEL PLACEMENT

The Warning Labels and Caution Label shown here have been placed on the Rear Stabilizer, Main Frame.

If the labels are missing or illegible, please call customer service at 1-800-999-8899 for replacement. Apply the

labels in location shown.

©IMPEX INC. www.impex-fitness.com4

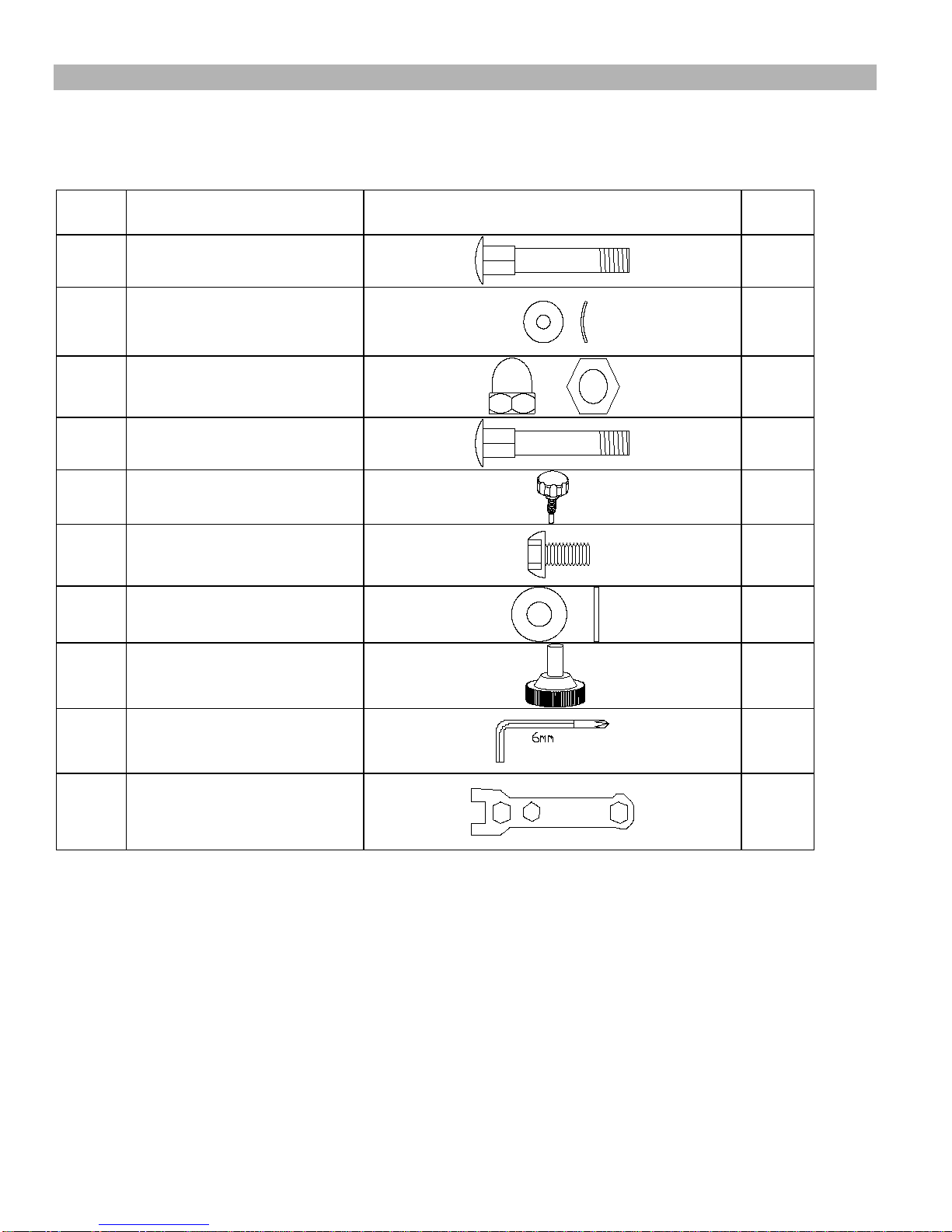

HARDWARE PACK

NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.

NO. Description QTY

4 Carriage Bolt M8 x 2 3/8”

7 Curved Washer Ø 5/8”

8 Acorn Nut M8

13 Carriage Bolt M8 x 1 5/8”

15 Quick Release Knob

24 Allen Bolt M8 x 5/8”

25 Washer Ø 5/8”

30 Leverage Knob

Allen Wrench 6#

Box Wrench

©IMPEX INC. www.impex-fitness.com5

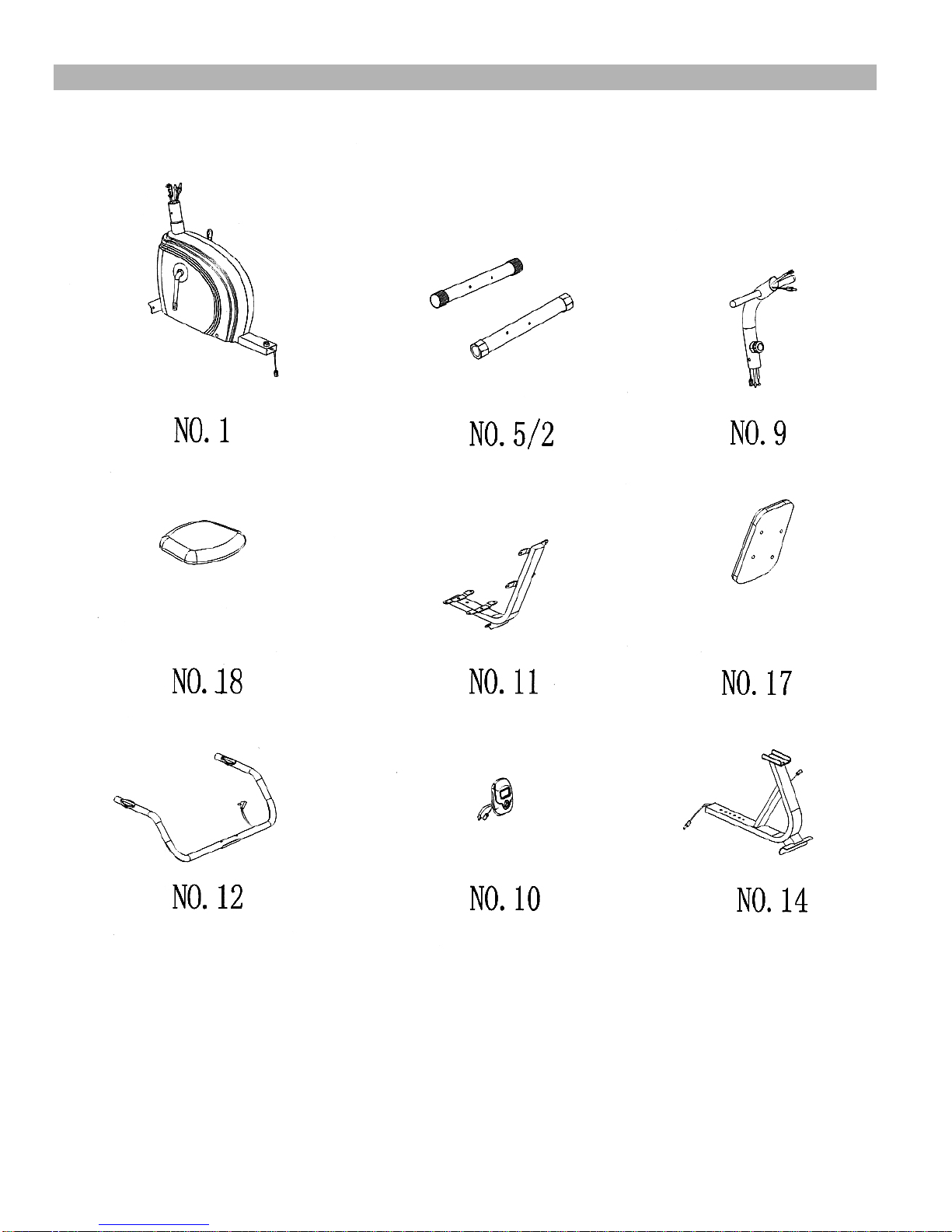

NS-908R COMPONENTS FOR ASSEMBLY

©IMPEX INC. www.impex-fitness.com6

ASSEMBLY INSTRUCTION

•Tools Required For Assembling the Machine: One Crossing Wrench and Allen Wrench,

provided by manufacturer.

•NOTE: It is strongly recommended that two or more people assemble this machine to

avoid possible injury.

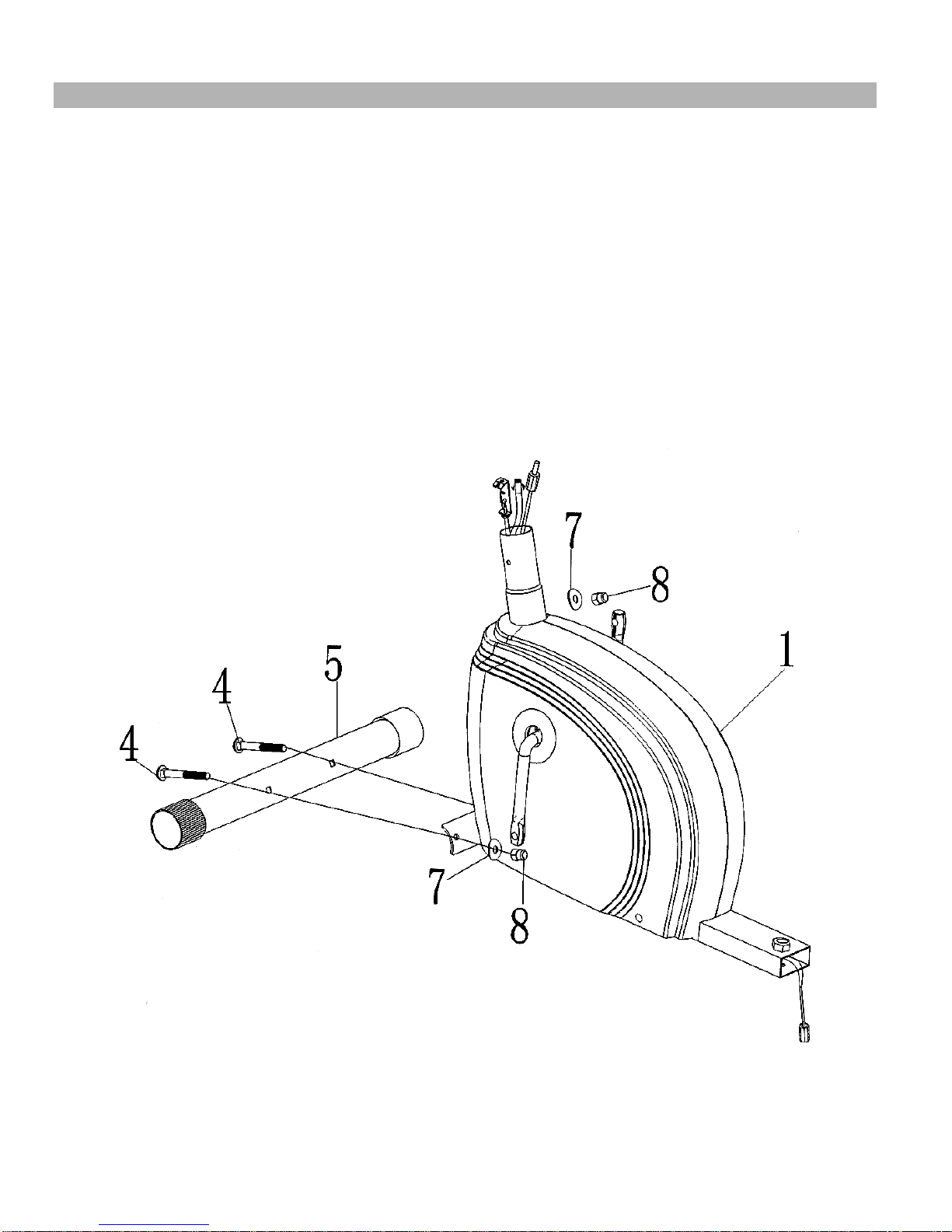

STEP-1

A.) Attach the Front Stabilizer (#5) to the Main Frame (#1). Secure it with two M8 x 2 3/8” Carriage Bolts

(#4), two Ø 5/8” Curved Washers (#7), and two Acorn Nuts (#8).

DIAGRAM 1

©IMPEX INC. www.impex-fitness.com7

STEP 2

A.) Note: Extra help may be needed to hold the Front Post (#4) while connecting the

tension cables and computer wires.

B.) Attach the Front Post (#9) to the Main Frame (#1). Connect the Middle Sensor Wire

(#34) from Main Frame to the Middle Sensor Wire (#33) from the bottom of Front Post.

C.)Connect the Lower Computer Wire (#22) from Main Frame to the Middle Computer

Wire (#23) from the Front Post.

D.)Pull the tension connector from the Upper Tension Cable (#16) and slide in between

the opening on the connector holder on the Lower Tension Cable (#21) from Main

Frame. Pull the Upper Tension Cable Upward and slide the wire through the slot on

the bracket.

E.) Drop down the Upper Tension Cable so the fitting sits firmly on top of the bracket.

F.) Secure the Front Post to Main Frame with four M8 x 5/8” Allen Bolts (#24) and four Ø

5/8” Curved Washers (#7).

G.)Connect the Middle Sensor Wire (#33) from Front Post to the Upper Sensor Wire (#32)

from the Computer (#10). Connect the Middle Computer Wire (#23) from Front Post to

Upper Computer Wire (#31) from Computer. Attach the Computer on to the Front Post.

DIAGRAM 2

©IMPEX INC. www.impex-fitness.com8

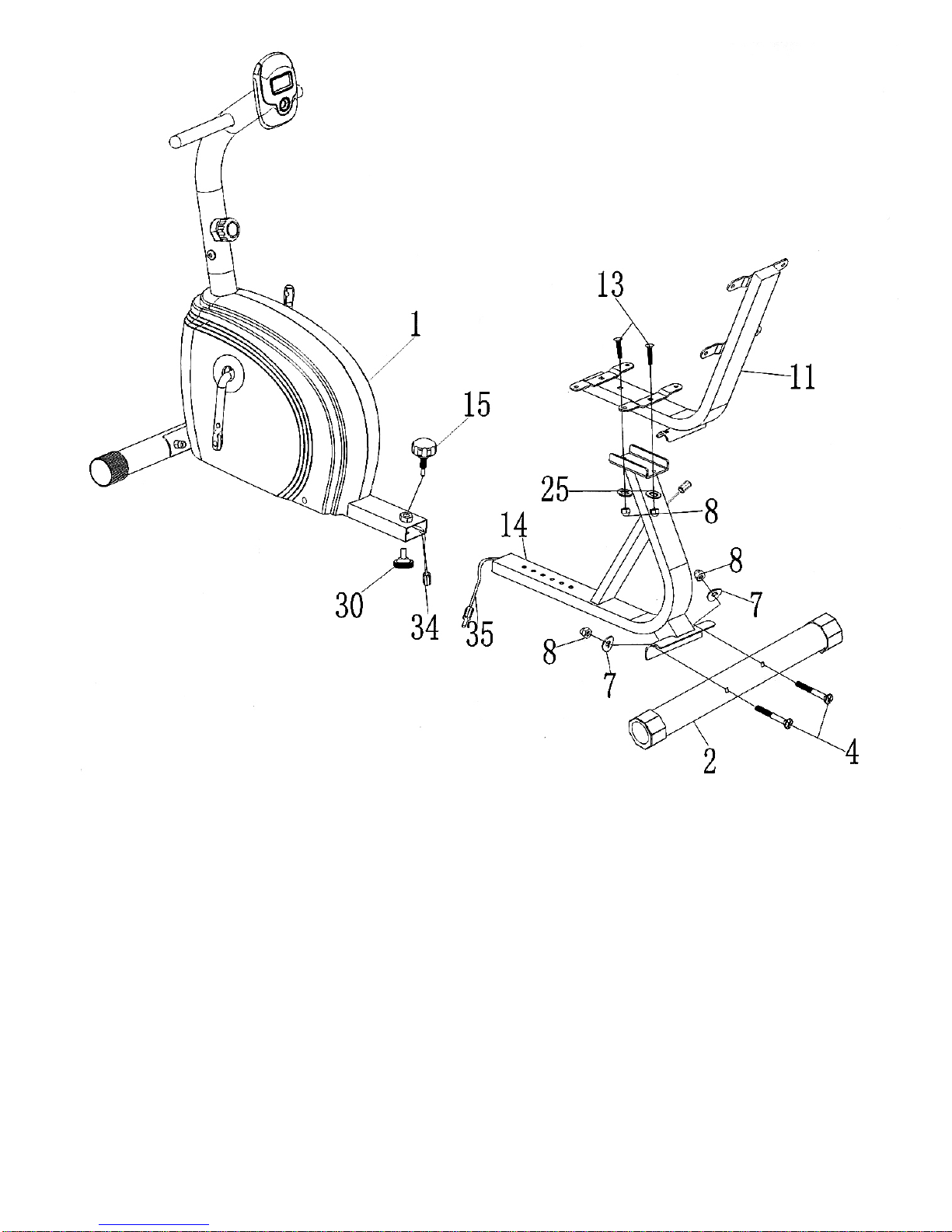

STEP 3

A.) Connect the Middle Sensor Wire (#34) from Main Frame (#1) to the Middle Sensor Wire (#35)

from the Sliding Frame (#14).

B.) Insert the Sliding Frame (#14) into the Main Frame (#1). Thread the Quick Release Knob (#15)

through selected hole on Main Frame into Sliding Frame to lock it in position. Thread a Leverage

Knob (#30) into the Sliding Frame from bottom. The Leverage Knob needs to touch the floor.

C.)Attach the Rear Stabilizer (#2) to Main Frame. Secure them together with two M8 x 2 3/8”

Carriage Bolts (#4), two Ø 5/8” Curved Washers (#7), and two M8 Acorn Nuts (#8).

D.)Place Seat Support (#11) to Sliding Frame. Secure them together with two M8 x 1 5/8” Carriage

Bolts (#13), two Ø 5/8” Washers (#25), and two M8 Acorn Nuts (#8). DIAGRAM 3

©IMPEX INC. www.impex-fitness.com9

STEP 4

A.) Attach the Backrest Board (#17) to Seat Support (#11). Secure it with four M8 x 5/8”

Allen Bolts (#24).

B.) Attach the Seat Pad (#18) to Seat Support. Secure it with four M8 x 5/8” Allen Bolts

(#24). DIAGRAM 4
