Impex NS-1003U Instrucciones de instalación y funcionamiento
NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Pack
Assembly Instruction
Parts List
Warranty
Ordering Parts
Model
NS-1003U
Retain This
Manual for
Reference
110518
ASSEMBLY &
OWNER'S
MANUAL
Magnetic-Resistance
Upright Bike
NS-1003U
IMPEX®INC.
2801 S. Towne Ave, Pomona, CA 91766
Tel: (800) 999-8899 Fax: (626) 961-9966
www.impex-fitness.com
Meijer.com
TABLE OF CONTENTS
BEFORE YOU BEGIN...................................................................................…. 1
IMPORTANT SAFETY NOTICES..................................................................…. 2
WARNING LABEL PLACEMENT……………………………………………………. 3
HARDWARE PACK……….....…....................................................................…. 4
ASSEMBLY INSTRUCTIONS........................................................................…. 6
EXPLODED DIAGRAM………………………………………………………………. 11
PARTS LIST...................................................................................................… 12
CARE, MAINTENANCE, AND STORAGE………………………………………… 13
OPERATING NOTES………………………………………………………………… 13
COMPUTER…………………………………………………………………………… 14
EXERCISE GUIDELINES……………………………………………………………. 15
WARRANTY.................................................................................................…. 17
ORDERING PARTS.....................................................................................….. 17
BEFORE YOU BEGIN
Thank you for selecting the MARCY Magnetic-Resistance Upright Bike NS-1003U by
IMPEX®INC. For your safety and benefit, read this manual carefully before using the
bike. As a manufacturer, we are committed to provide you complete customer
satisfaction. If you have any questions, or find there are missing or damaged parts, we
guarantee you complete satisfaction through direct assistance from our factory. To
avoid unnecessary delays, please call our TOLL-FREE customer service number. Our
Customer Service Agents will provide immediate assistance to you.
Toll-Free Customer Service Number
1-800-999-8899
Mon. - Fri. 9 a.m. - 5 p.m. PST
www.impex-fitness.com
© IMPEX INC. 1
Meijer.com
© IMPEX INC. 2
IMPORTANT SAFETY NOTICE
PRECAUTIONS
This exercise machine is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire manual
before you assemble or operate your machine. In particular, note the following safety
precautions:
1. Keep children and pets away from the machine at all times. DO NOT leave
children unattended in the same room with the machine.
2. Only one person at a time should use the machine.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal symptoms,
STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.
4. Position the machine on a clear, leveled surface. DO NOT use the machine near water
or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear robes or
other clothing that could become caught in the machine. Running or aerobic shoes are
also required when using the machine.
7. Use the machine only for its intended use as described in this manual. DO NOT use
attachments not recommended by the manufacturer.
8. Do not place any sharp object around the machine.
9. Disabled person should not use the machine without a qualified person or physician in
attendance.
10. Before using the machine to exercise, always do stretching exercises to properly warm
up.
11. Never operate the machine if the machine is not functioning properly.
12. Read all warnings posted on the exercise bike.
13. Inspect the exercise bike for worn or loose component prior to use. Tighten/replace any
loose or wore components prior to use.
14. Care should be taken in mounting or dismounting the exercise bike.
15. This exercise bike is for consumer and home use only.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE
OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES
NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE
SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS.
Meijer.com

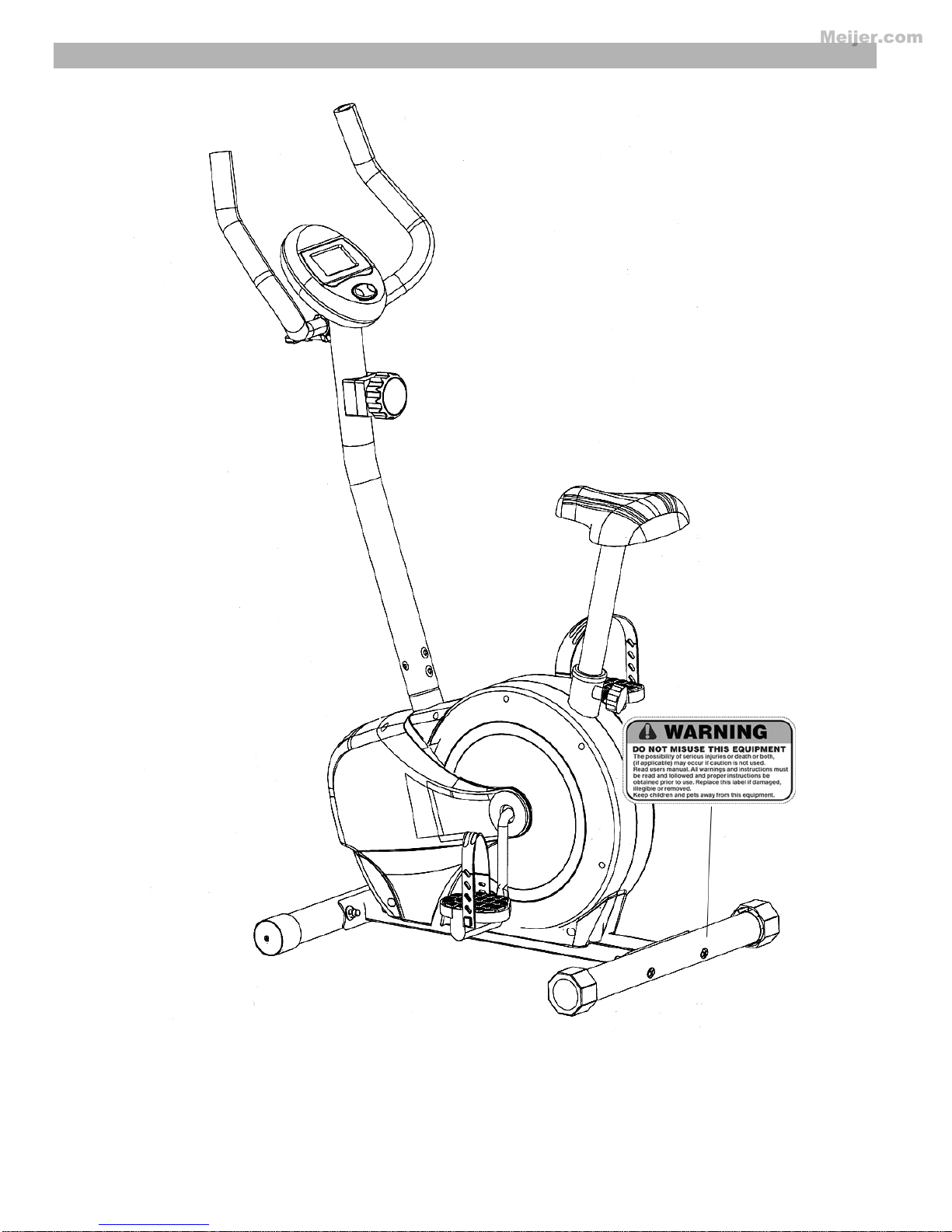

WARNING LABEL PLACEMENT
The Warning Labels and Caution Label shown here have been placed on the Rear Stabilizer, Main Frame.
If the labels are missing or illegible, please call customer service at 1-800-999-8899 for replacement. Apply the
labels in location shown.
© IMPEX INC. 3
Meijer.com

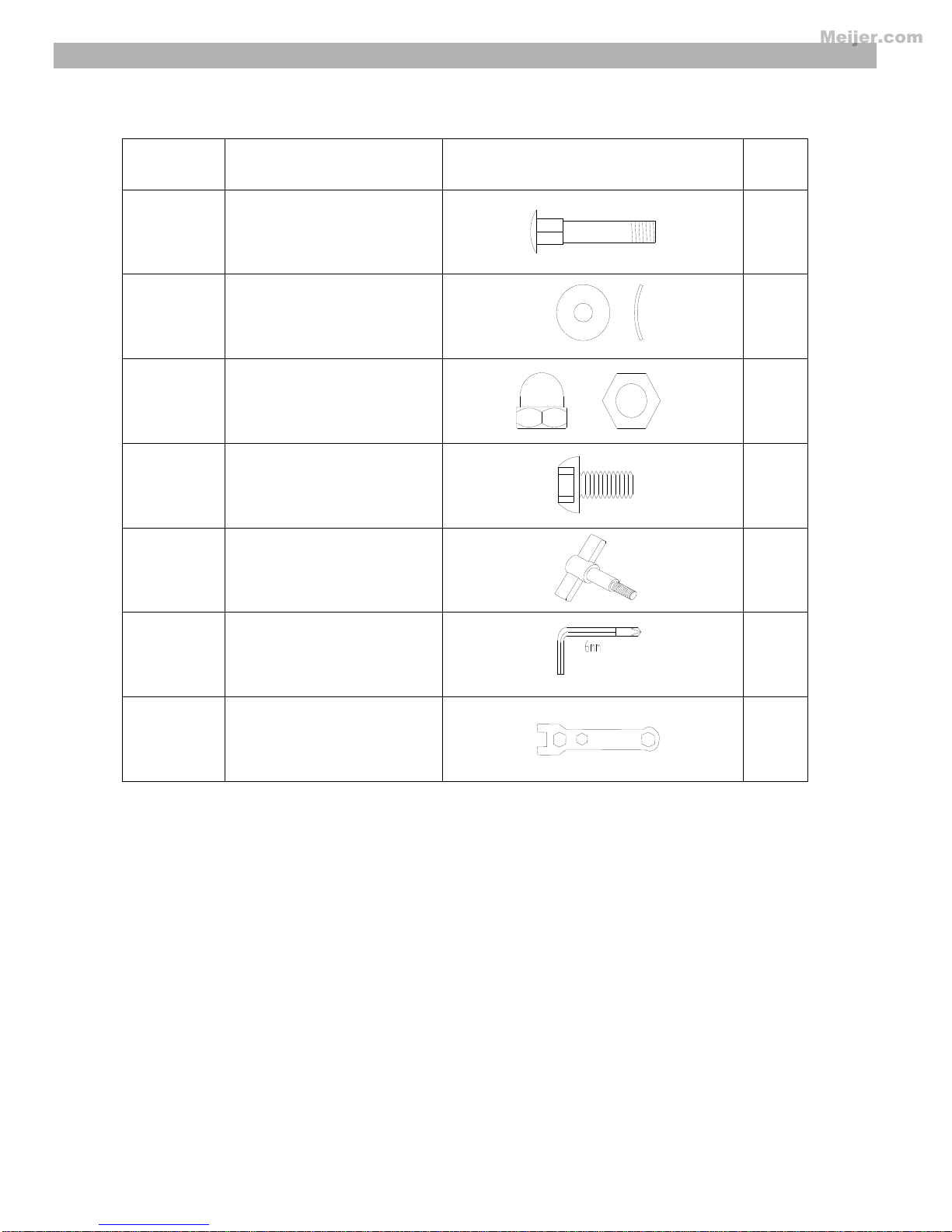

HARDWARE PACK
NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.
No. Description Identifier Q’ty
15 Carriage Bolt M8 x 2
3/8” 4
16 Curved Washer Ø 5/8”
8
17 M8 Acorn Nut 4
18 Allen Bolt M8 x 5/8“
4
26 T-shaped Lock Knob
1
#6 Allen Wrench 1
Crossing Wrench 1
© IMPEX INC. 4
Meijer.com

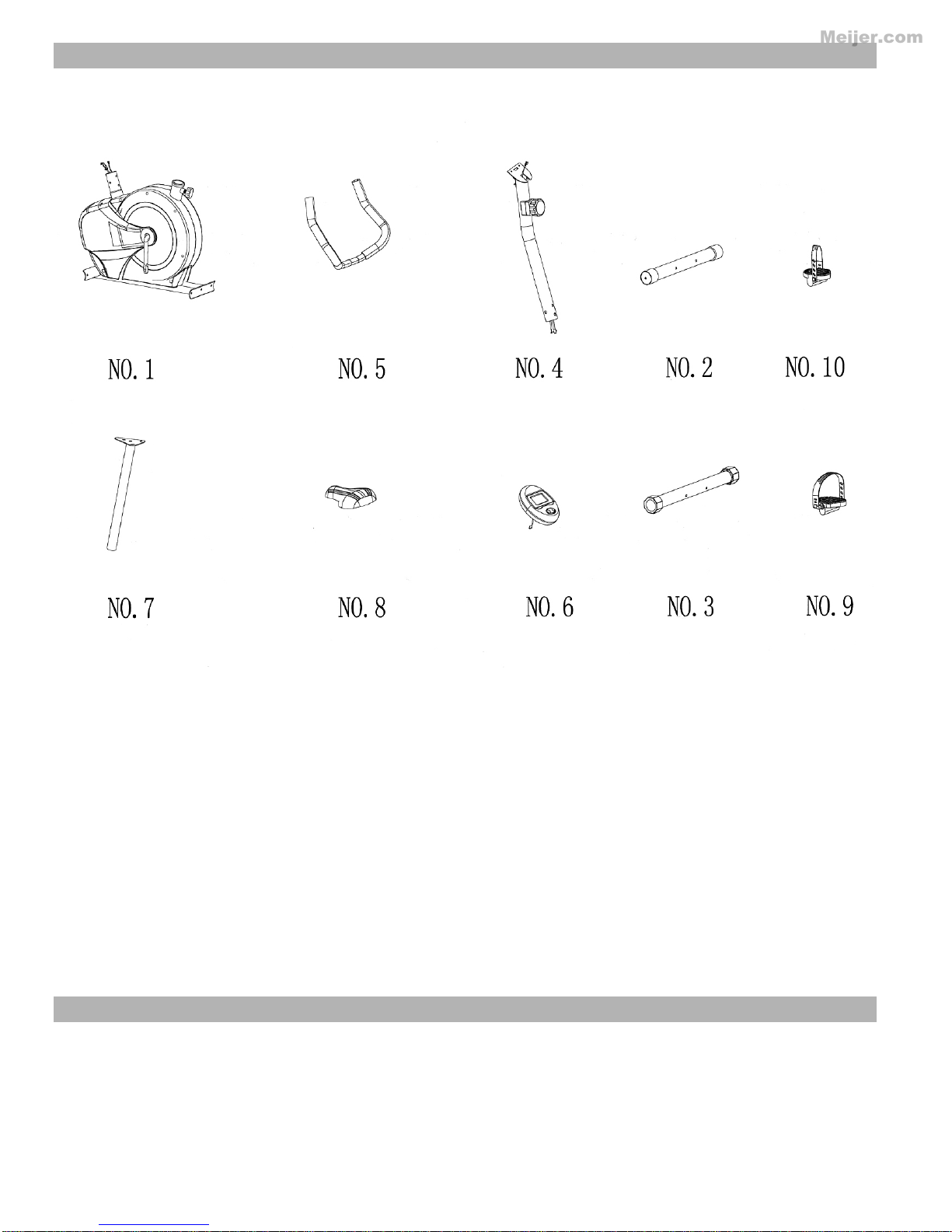

COMPONENTS FOR ASSEMBLY
ASSEMBLY INSTRUCTION
Tools Required For Assembling the Machine: One Crossing Wrench and Allen Wrench,
provided by manufacturer.
NOTE: It is strongly recommended that two or more people assemble this machine to
avoid possible injury.
© IMPEX INC. 5
Meijer.com

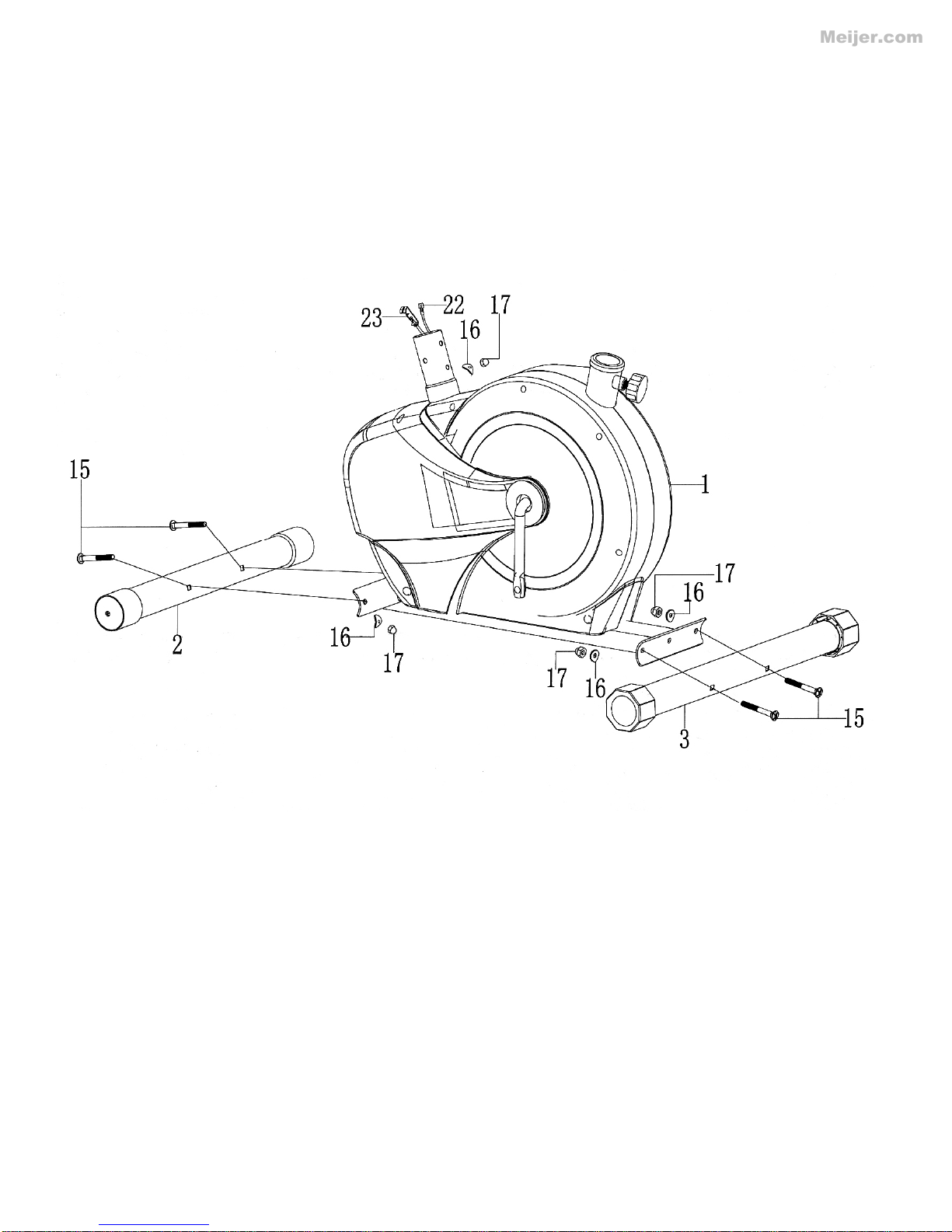

STEP-1
A.) Do not tighten Bolts until instructed to do so.
B.) Attach the Front Stabilizer (#2) to the Main Frame (#1). Secure it with two M8 x 2 3/8” Carriage Bolts
(#15), two Ø 5/8” Curved Washers (#16), and two Acorn Nuts (#17).
C.) Attach the Rear Stabilizer (#3) to the Main Frame (#1). Secure it with two M8 x 2 3/8” Carriage Bolts
(#15), two Ø 5/8” Curved Washers (#16), and two Acorn Nuts (#17).
D.) Securely tighten all Bolts.

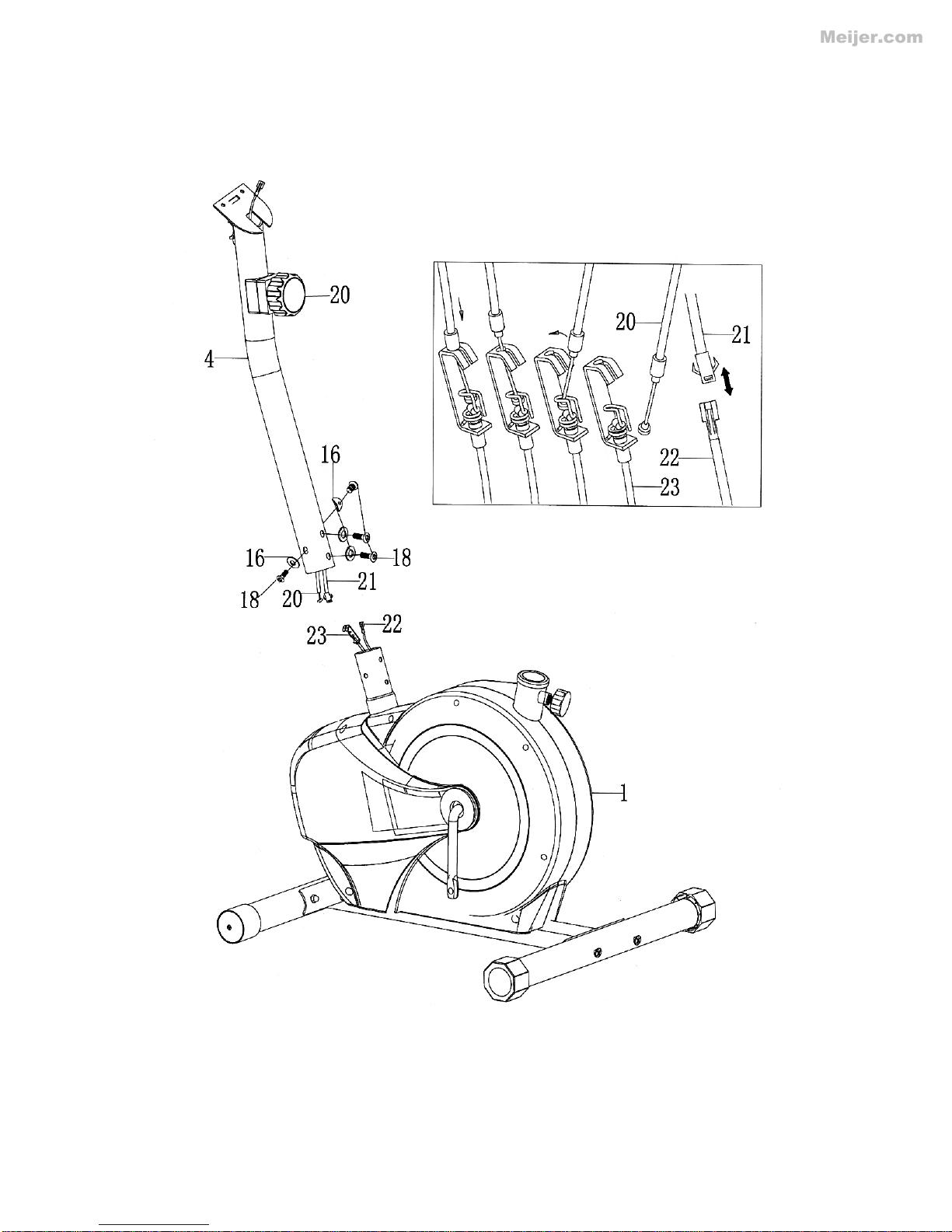

STEP 2
A.) NOTE: Extra help may be needed to hold the Front Post (#4) while connecting the cables
and wires.
B.) Attach the Front Post (#4) to the Main Frame (#1). Connect the Middle Computer Wire (#21) from
the bottom of the Front Post to the Lower Computer Wire (#22) from the Main Frame.
© IMPEX INC. 6
Meijer.com
C.) Pull the tension connector from the Upper Tension Cable (#20) and slide in between the opening
on the connector on the Lower Tension Cable (#23). Pull the Upper Tension Cable upward and
slide the wire through the slot on the bracket.
D.) Drop down the Upper Tension Cable so the fitting sits firmly on top of the bracket.
E.) Secure the Front Post to the Main Frame with four M8 x 5/8” Allen Bolts (#18) and four Ø 5/8”
Curved Washers (#16).
STEP 3
© IMPEX INC. 7
Meijer.com

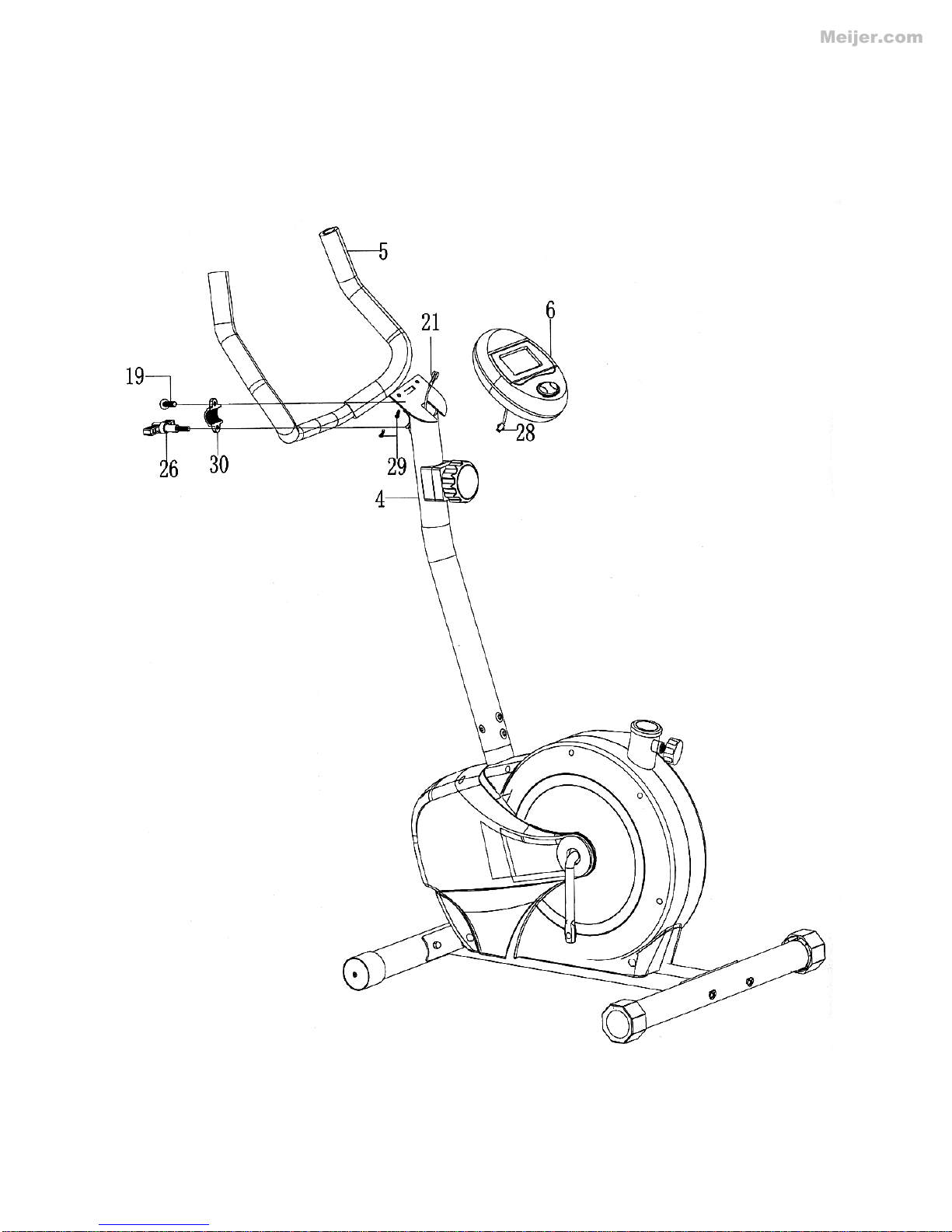

A.) Attach the Handle (#5) to the Front Post (#4). Secure it with one Bracket (#30), one M8 x ¾”
Allen Bolt (#19), and one T-shaped Lock Knob (#26).
B.) Connect Upper Computer Wire (#28) from Computer (#6) to the Middle Computer Wire (#21)
from Front Post.
C.) Remove the two M5 x 3/8” Philips Screws (#29) from Computer. Slide the Computer onto the
bracket on Front Post. Secure it with the two Screws.
STEP 4
© IMPEX INC. 8
Meijer.com

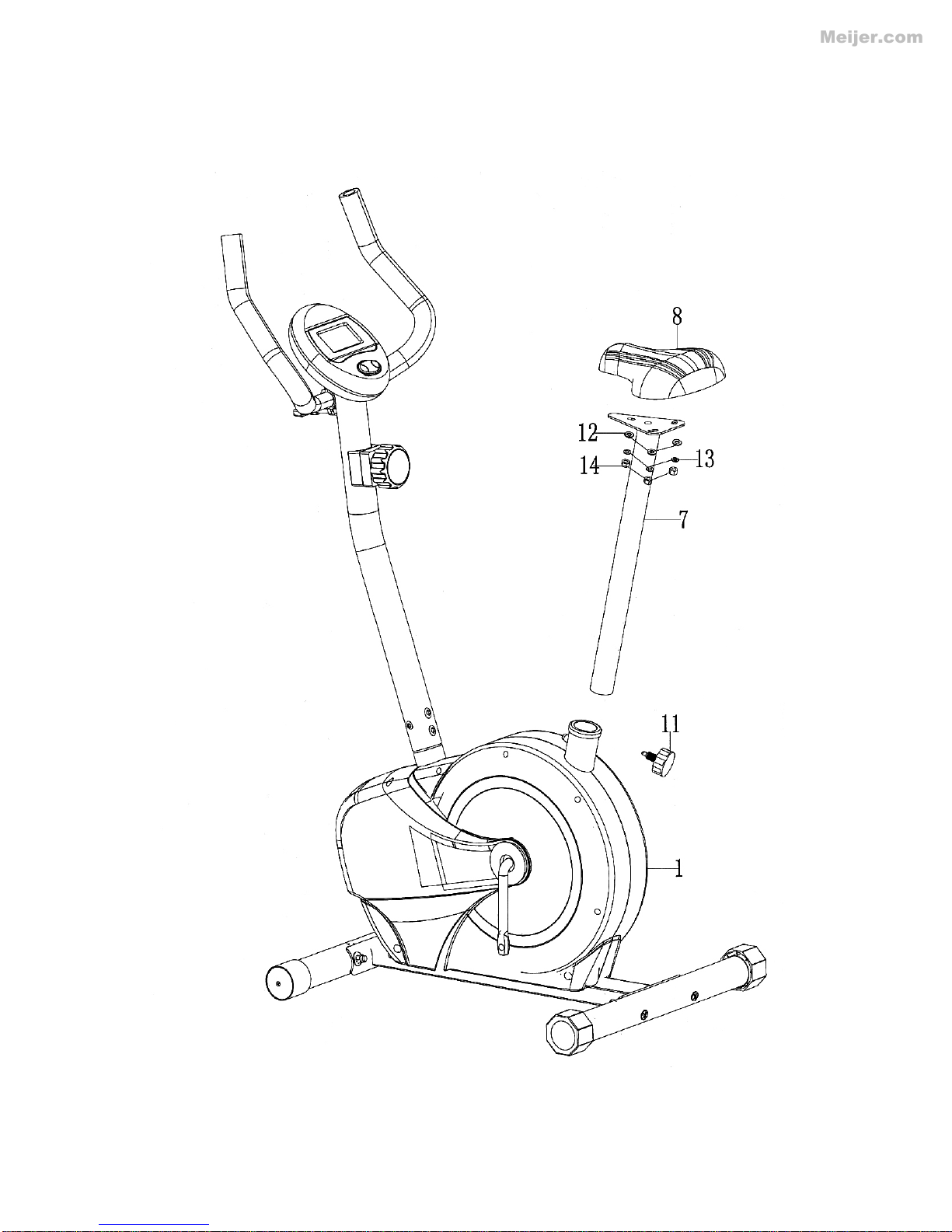

A.) Remove the three Ø 5/8” Washers (#12), three Ø 5/8” Lock Washers (#13), and three
M8 Aircraft Nuts (#14) from the Seat (#8).
B.) Attach the Seat to the Seat Post (#7). Secure it with three Ø 5/8” Washers (#12), three
Ø 5/8” Lock Washers (#13), and three M8 Aircraft Nuts (#14).
C.)Insert the Seat Post into the opening on Main Frame (#1). Thread the Lock Knob (#11)
through the hole on Seat Post to securely lock it at selected height.
STEP 5
© IMPEX INC. 9
Meijer.com
