IMILAB EC3 Outdoor Security Camera
User Manual
Read this manual carefully before use, and retain it for future reference.
EN DE ES FRIT RU
CONTENTS
English 01-17
18-34Deutsche
35-51Español
52-68Italiano
69-85Français
86-102Pусский
Product Introduction
Wall base
(can be rotated
to adjust the
camera angle)
SpeakerKnob
Reset button
Micro SD card slot
In this instruction manual, images of the device, accessories and user
interface are for illustrative purposes only and should only be used for
reference.
The actual device may differ from the illustrations due to product updates
and upgrades. Please refer to the actual device.
EN-01
LAN port
Power supply
Indicator
light
Antenna
Mic
Packing list: IMILAB EC3 Outdoor Security Camera, wall mounting pack,
power adapter, waterproofing tape for power/LAN cable，user manual
EN-02
Installing the Device
Assemble the camera as shown below. Then secure the camera to the metal
rod with a screw.
Note: The warranty does not cover any damage caused by improper
installation. Please follow the instructions.
Locking mechanism
Connecting screw
(1 spare screw is available in
the accessory pack)
1. Attach the positioning sticker on the desired installation location. Drill four
holes at the positions indicated on the sticker. Drilling diameter of around
6.0mm; drilling depth of around 30mm.
Mounting the device
Note: Please check that the Wi-Fi signal is strong enough before
mounting the device.
EN-03
2. Insert four plastic expansion nuts into
the holes.
3. Cover part of 2-in-1 power and
LAN cable with the base plate as
indicated.
EN-04
Note:
In order to prevent accidents and injuries, please secure the device firmly
onto the wall as illustrated. The wall on which the device is mounted must
have a loading capacity of at least 3 times the weight of the device.
Do not install the device near a heat source, such as an air-conditioner
compressor, air vent of a range hood or air vent of a gas water heater.
As the camera can be rotated horizontally, please pay attention to the safe
turning distance during installation. Do not install the device at a location
where its horizontal movement would be impeded.
4. Put the base plate on the wall.
Ensure that the 2-in-1 power and
LAN cable goes straight down.
Secure the base plate by inserting
the screws into the expansion nuts.
Top view
50mm < 50mm
EN-05
The camera has a power supply port and a LAN port. Waterproofing
must be done on both these ports.
1. Wrap the power supply port with the waterproofing tape as shown
below.
2. Wrap the LAN port with the waterproofing tape or a waterproofing
sleeve.
The LAN port can be wrapped with the waterproofing tape in the same way
as the power supply port.
For instructions on the use of a waterproofing sleeve, visit the IMiLab
WeChat account.
Waterproofing kit
The distance between the base plate and the wall should be at least 50mm to
allow for a safety turning distance. Any gap of less than 50mm will result in
an obstruction to the camera's movement.
Using a waterproofing sleeve
on the LAN port
Using the waterproofing tape
on the power supply port
Wrapping with
the waterproofing tape
EN-06
Connecting the Device
Turn on the camera
Step 1: Insert the power supply cable into the camera's power supply port.
Connect the other end of the power supply cable to a power source.
Step 2: When connected to a power supply, the indicator light will show
the camera's status. When the indicator light is yellow, the camera is being
turned on; when the indicator light is flashing yellow, it is waiting to be
connected.

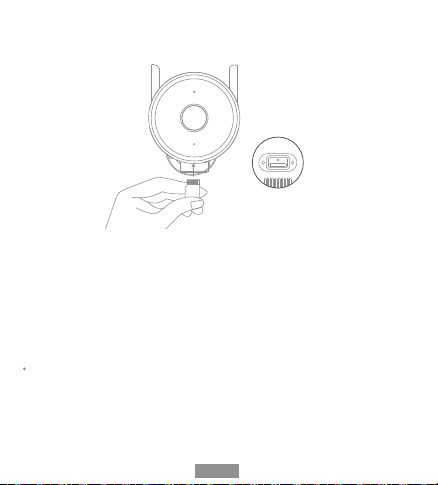

Insert a micro SD card
Ensure that the camera is disconnected from the power supply. Use a
screwdriver to remove the protective case and expose the micro SD card
slot.
The contact points of the micro SD card should be facing the same
direction as the camera. Insert the micro SD card into the slot.
Wrapping with the waterproofing tape
Scan the QR code below to follow the IMiLab WeChat account. Public WeChat
account.
Public WeChat
account
EN-07
Restoring factory settings
Press and hold the reset button to restore the factory settings. The content
inside the micro SD card will not be deleted.
Note:
When inserting or removing the micro SD card, please disconnect the camera
from the power supply. Please use a micro SD card from a reputable
manufacturer. The recommended read and write speed of the micro SD card
is at least U1/Class 10.
MicroSD
Micro SD card slot
EN-08
