Operating instructions

Retro-reflective sensor with IO-Link

OGP

80282424 / 00 01 / 2019

Contents

1 Preliminary note��3

1�1 Symbols used ��3

2 Safety instructions ��3

3 Functions and features ��3

4 Installation��4

5 Electrical connection��4

5�1 PNP ��4

5�2 NPN ��4

6 Settings��5

6�1 Set via IO-Link ��5

6�1�1 Set sensitivity with prismatic reflector / reflective tape and object��5

6�1�2 Set maximum sensitivity ��6

7 Operation��6

8 Maintenance, repair, disposal��6

1 Preliminary note

1.1 Symbols used

►Instruction

> Reaction, result

[…] Designation of keys, buttons or indications

→Cross-reference

Information

Supplementary note�

Important note

Non-compliance may result in malfunction or interference�

2 Safety instructions

• Read this document before setting up the product and keep it during the entire

service life�

• The product must be suitable for the corresponding applications and

environmental conditions without any restrictions�

• Only use the product for its intended purpose (→ 3 Functions and features)�

• If the operating instructions or the technical data are not adhered to, personal

injury and/or damage to property may occur�

• The manufacturer assumes no liability or warranty for any consequences

caused by tampering with the product or incorrect use by the operator�

• Installation, electrical connection, set-up, operation and maintenance of the

product must be carried out by qualified personnel authorised by the machine

operator�

• Protect units and cables against damage�

3 Functions and features

In conjunction with a prismatic reflector or reflective tape the retro-reflective

sensor detects objects and materials without contact and indicates their presence

by a switching signal�

For the range see the type label�

4 Installation

►Fit the prismatic reflector or the reflective tape behind the object to be detected�

Align the retro-reflective sensor to it and secure it to a bracket�

> Maximum range only with accurate alignment�

5 Electrical connection

The unit must be connected by a qualified electrician�

►The national and international regulations for the installation of

electrical equipment must be adhered to�

►Ensure voltage supply to EN 50178�

►Disconnect power�

►Connect the unit as follows:

5.1 PNP











Pin 1 = L+ (10...30 V DC)

Pin 3 = L-

Pin 4 = load (PNP, 200 mA) / IO-Link

(Pin 2 = not connected)

5.2 NPN











Pin 1 = L+ (10...30 V DC)

Pin 3 = L-

Pin 4 = load (NPN, 200 mA) / IO-Link

(Pin 2 = not connected)

6 Settings

6.1 Set via IO-Link

This unit has an IO-Link communication interface which enables direct access to

process and diagnostic data� In addition it is possible to set the parameters of the

unit while it is in operation� Operation of the unit via the IO-Link interface requires

an IO-Link master�

With a PC, suitable IO-Link software and an IO-Link adapter cable communication

is possible while the system is not in operation�

The IODDs necessary for the configuration of the unit, detailed information about

process data structure, diagnostic information, parameter addresses and the

necessary information about the required IO-Link hardware and software can be

found at www�ifm�com�

6.1.1 Set sensitivity with prismatic reflector / reflective tape and object

►Start the LR DEVICE software�

► Align the retro-reflective sensor to the object (fig. 1).

►Select [Teach SP1 TP1] in the LR DEVICE software�

►Align the retro-reflective sensor to the prismatic reflector or reflective tape (fig�

2).

►Select [Teach SP1 TP2] in the LR DEVICE software�

Either the object can be set first and then the prismatic reflector / reflective

tape, or the other way around�

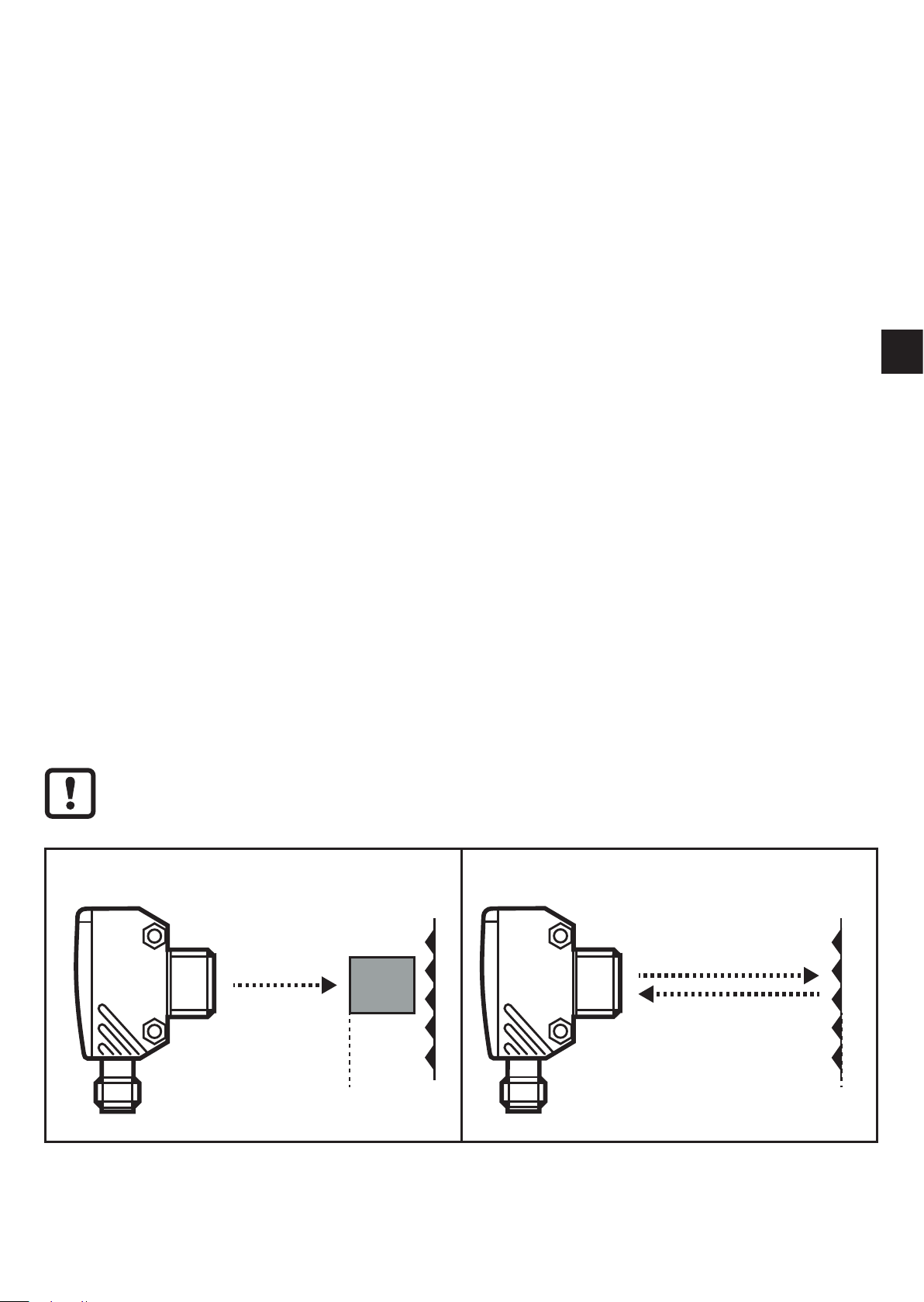

Fig� 1: Fig� 2:

TP1 TP2

TP1: teach point 1 TP2: teach point 2

6.1.2 Set maximum sensitivity

►Start the LR DEVICE software�

►Align the sensor so that no light is reflected�

►Select [Teach SP1 TP1] in the LR DEVICE software�

►Select [Teach SP1 TP2] in the LR DEVICE software�

7 Operation

►Check whether the unit operates correctly�

> The green LED is on when the unit is ready for operation�

> The yellow LED is on when the switching output is switched�

8 Maintenance, repair, disposal

►Keep the lens of the sensor free from soiling�

►For cleaning do not use any solvents or cleaning agents which could damage

the plastic parts�

►After use dispose of the unit in an environmentally friendly way in accordance

with the applicable national regulations�

Faulty sensors must only be repaired by the manufacturer�

Technical data and further information at www�ifm�com
