IEI Technology WSB-9454 Manual de usuario

PICMG 1.0 LGA775 Intel®Pentium®D CPU wih VGA / DVI,

Daul PCIE GbE, SATAII and Audio

WSB-9454

Quick Installation Guide

Version 1.0

Nov. 20, 2006

Package Contents

WSB-9454 package includes the following items:

 1 x WSB-9454 single board computer

 1 x mini jumper pack

 1 x ATA 66/100 flat cable

 1 x Dual RS232 cable

 1 x SATA Power cable

 2 x SATA cable

 1 x KB/MS Y cable

 1 x USB cable

 1 x Utility CD

 1 x QIG (quick installation guide)

All manuals and user guides at all-guides.com

all-guides.com

Specifications



CPU: LGA 775 Intel®Pentium®D/4/Celeron®D with 533/800/1066

MHz FSB

 System Chipset: Intel®945G + ICH7

 BIOS: AMI Flash BIOS

 System Memory

4x 240-pin Daul channel DDRII 400/533/667 MHz up to 4GB

 Ethernet: Daul Broadcom BCM5787 PCI express GbE

 I/O

I/O Interface

2 x RS232

7 x USB 2.0

1 x IDE

1 x LPT

2 x SATAII-300

1 x IrDA

1 x PS/2 for KB/MS

 Display:

VGA integrated in Intel®945G

DVI by silconimage SIL1362(WSB-9454DVI Only)



Digital I/O: 8 bit digital I/O, 4 input /4 output

 Audio: 5.1 Channel Audio Kit with Realtek ALC655



WTD: Software programable supports 1-255 sec. System reset



Power Supply: ATX Power

 Power Consumption:+5V@6.75A,+12V@7.24A

(Pentium®4 3.0GHz, DDR2 533MHz 1GB*4)-3D MARK



Temperature: 0 ~ 60°C( 32 ~ 140°F)

 Humidity: 5% ~ 95% non-condensing

 Dimension: (L)338mm x (W)122mm

 Weight: GW: 1.2Kg

All manuals and user guides at all-guides.com

Ordering Information

WSB-9454-R10

PICMG1,0 Intel®Pentium®D 1066MHz processor, VGA, Daul PCIE GbE,

and SATAII

WSB-9454DVI-R10

PICMG1,0 Intel®Pentium®D 1066MHz processor, VGA/DVI, Daul PCIE GbE,

and SATAII

AC-KIT08R-R10

5.1 Channel Audio Kit with Realtek ALC655

CF-520-RS: CPU Clooer

32200-000017-RS: FDD cable

19800-000049-RS: LPT cable

CF-775A-RS: CPU cooler

Jumpers setting and Connectors

J_CMOS1 : Clear CMOS Setup

J_CMOS1 DESCRIPTION

1-2

(default)*

Keep CMOS Setup

(Normal Operation)

Short 2-3 Clear CMOS Setup

USB01, USB23, USB45: Internal USB Connector

USB01, USB23, USB45

PIN DESCRIPTION PIN DESCRIPTION

1 VCC 2 GND

3 DATA- 4 DATA+

5 DATA+ 6 DATA-

7 GND 8 VCC

IR1: IrDA connector

PIN DESCRIPTION

1 VCC

2 NC

3 IR-RX

4 GND

5 IR-TX

CPU_FAN1 : CPU Fan

Connector

PIN DESCRIPTION

1 Ground

2 +12V

3 Rotation Signal

4 Control

All manuals and user guides at all-guides.com

FDD1: FDC Connector

PIN DESCRIPTION PIN DESCRIPTION

1 GND 2 REDUCE WRITE

3 GND 4 N/C

5 N/C 6 N/C

7 GND 8 INDEX#

9 GND 10 MOTOR ENABLE A#

11 GND 12 DRIVE SELECT B#

13 GND 14 DRIVE SELECT A#

15 GND 16 MOTOR ENABLE B#

17 GND 18 DIRECTION#

19 GND 20 STEP#

21 GND 22 WRITE DATA#

23 GND 24 WRITE GATE#

25 GND 26 TRACK 0#

27 GND 28 WRITE PROTECT#

29 GND 30 READ DATA#

31 GND 32 SIDE 1 SELECT#

33 GND 34 DISK CHANGE#

COM1,COM2 : 10-pin external connector

Connector Ports Address Interrupt

COM1 COM1 3F8 IRQ4

COM2 COM2 2F8 IRQ3

COM1,COM2 : Internal Serial Port Connector

PIN DESCRIPTION

1 DATA CARRIER DETECT (DCD)

2 RECEIVEDATA (RXD)

3 TRANSMIT DATA (TXD)

4 DATA TERMINAL READY (DTR)

5 GND (GND)

6 DATA SET READY (DSR)

7 REQUEST TO SEND (RTS)

8 CLEAR TO SEND (CTS)

9 RING INDICATOR (RI)

10 GND (GND)

All manuals and user guides at all-guides.com

LPT1 : Parallel Port Connector

PIN DESCRIPTION PIN DESCRIPTION

1 STROBE# 14 AUTO FORM FEED #

2 DATA0 15 ERROR#

3 DATA1 16 INITIALIZE#

4 DATA2 17 PRINTER SELECT LN#

5 DATA3 18 GND

6 DATA4 19 GND

7 DATA5 20 GND

8 DATA6 21 GND

9 DATA7 22 GND

10 ACKNOWLEDGE# 23 GND

11 BUSY 24 GND

12 PAPER EMPTY 25 GND

13 PRINTER SELECT 26 N/C

CPU12V1 : CPU POWER Connector

ATX-12V1 (CPU)

PIN DESCRIPTION PIN DESCRIPTION

1 GND 2 GND

3 +12V 4 +12V

DIO1 : Digital Input / Output Connector

PIN DESCRIPTION PIN DESCRIPTION

1 Ground 2 VCC

3 Output 0 4 Output 1

5 Output 2 6 Output 3

7 Input 0 8 Input 1

9 Input 2 10 Input 3

F_PANEL1 : External Switches and Indicators panel

PIN DESCRIPTION PIN DESCRIPTION

1 VCC 2 VCC

3 N/C 4 N/C

Power LED

5 GROUND 6 N/C

7 5VSB 8 Speaker

Speaker

PWRBTN 9 PWRBTN+ 10 N/C

11 VCC 12 Reset-

HDDLED 13 HDLED- 14 GND

RESET

All manuals and user guides at all-guides.com

J_AUDIO1: AC’97 Connector

PIN DESCRIPTION PIN DESCRIPTION

1 SYNC 2 BITCLK

3 SDOUT 4 PCBEEP

5 SDIN 6 RST#

7 VCC 8 GND

9 +12V

KB1: 5-pin Mini-DIN

Keyboard Connector

PIN DESCRIPTION

1 Keyboard Clock

2 Keyboard Data

3 N/C

4 GND

5 VCC

DVI1 : DVI Connector

DVI Connector

PIN DESCRIPTION PIN DESCRIPTION

1 Data 2- 14 VCC

2 Data 2+ 15 GND

3 GND 16 Hot Plug Detect.

4 N/C 17 Data 0-

5 N/C 18 Data 0+

6 DDC Clock 19 GND

7 DDC Data 20 N/C

8 N/C 21 N/C

9 Data 1- 22 GND

10 Data 1+ 23 Clock +

11 GND 24 Clock -

12 N/C 25 GND

13 N/C

All manuals and user guides at all-guides.com

all-guides.com

PIDE1: IDE Interface Connector

PIN DESCRIPTION PIN DESCRIPTION

1 RESET# 2 GND

3 DATA 7 4 DATA 8

5 DATA 6 6 DATA 9

7 DATA 5 8 DATA 10

9 DATA 4 10 DATA 11

11 DATA 3 12 DATA 12

13 DATA 2 14 DATA 13

15 DATA 1 16 DATA 14

17 DATA 0 18 DATA 15

19 GND 20 N/C

21 IDE DRQ 22 GND

23 IOW# 24 GND

25 IOR# 26 GND

27 IDE CHRDY 28 BALE – DEFAULT

29 IDE DACK 30 GND

31 INTERRUPT 32 N/C

33 SA1 34 PDIAG#

35 SA0 36 SA2

37 HDC CS0# 38 HDC CS1#

39 HDD ACTIVE# 40 GND

All manuals and user guides at all-guides.com

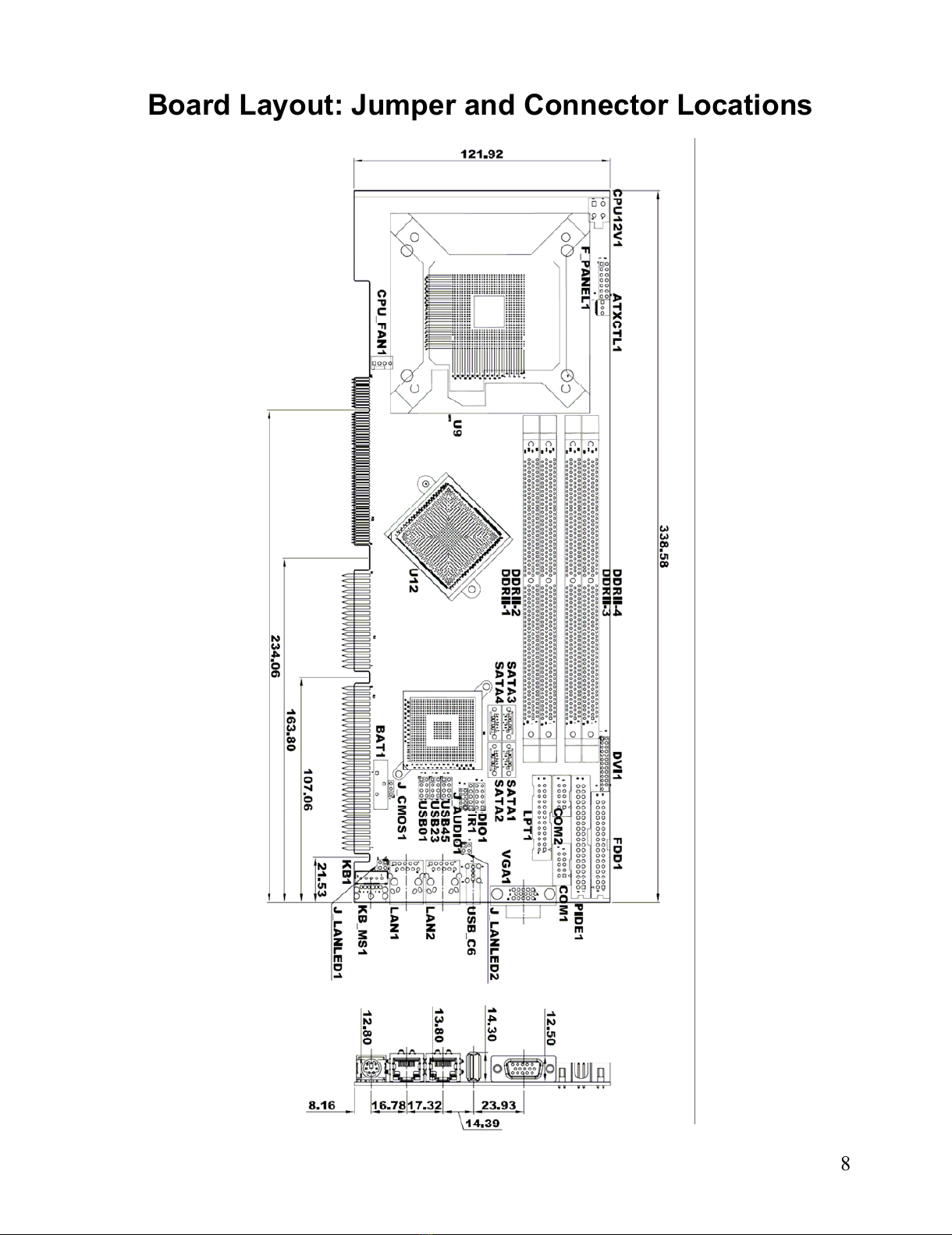

Board Layout: Jumper and Connector Locations
