VP3300/VP3300C/VP3300E

User Manual

80149509-001 Rev. D

3/30/2018

ID TECH

10721 Walker Street

Cypress, CA 90630

USA

This document, as well as the software and hardware described in it, is furnished

under license and may be used or copied online in accordance with the terms of such

license. The content of this document is furnished for information use only, is subject

to change without notice, and should not be construed as a commitment by ID TECH.

While every effort has been made to ensure the accuracy of the information provided,

ID TECH assumes no responsibility or liability for any unintentional errors or

inaccuracies that may appear in this document. Except as permitted by such license, no

part of this publication may be reproduced or transmitted by electronic, mechanical,

recording, or otherwise, or translated into any language form without the express

written consent of ID TECH.

ID TECH and ViVOpay are trademarks or registered trademarks of ID TECH.

Warranty Disclaimer

The services and hardware are provided "as is" and "as-available" and the use of the

services and hardware are at its own risk. ID TECH does not make, and hereby

disclaims, any and all other express or implied warranties, including, but not limited to,

warranties of merchantability, fitness for a particular purpose, title, and any warranties

arising from a course of dealing, usage, or trade practice. ID TECH does not warrant

that the services or hardware will be uninterrupted, error-free, or completely secure.

FCC Regulatory Compliance

This device complies with Part 15 of the FCC Rules:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that

may cause undesired operation of the device.

Notices: Class B Equipment

This equipment has been tested and found to comply with the limits for a Class B digital

device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation.

This device complies with part 15 of the FCC rules. Operation is subject to two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and the receiver.

Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications to the VP3300, VP3300C, or VP3300E not expressly

approved by ID TECH could void the user's authority to operate the device.

Cautions and Warnings

Warning: Avoid close proximity to radio

transmitters, which may reduce the capabilities of

the reader.

Introduction

The ViVOPay VP3300 is ID TECH's family of ultra-compact, EMV L1/L2-certified contactless

card readers, designed for low cost, high reliability, and maximum compatibility with

existing contactless payment technologies (including Apple Pay, Android Pay, and Samsung

Pay).

The VP3300 family includes models with and without contact-EMV capability, as well as with

and without magnetic swipe reader (MSR) functionality. (See the chart shown further

below.) The economical VP3300C, which offers contactless-transaction capability without

contact-EMV or MSR, provides an extremely cost-effective way for merchants to add

tap-and-go capability to existing payment options, without the need to replace other

hardware. Likewise, for merchants who already have MSR capability but need to add

contact-EMV and NFC, the VP3300E offers an economical way to do so.

The VP3300 series incorporates the proven EMV L2 kernel of ID TECH's popular UniPay III

card reader. Developers can integrate VP3300-series products into EMV-ready terminal

systems with minimal effort using ID TECH's Universal SDK, available for Windows, Android,

or iOS.

Major Features of VP3300 Family

Micro-USB port for communications and power.

Magnetic stripe support (VP3300 only): ISO 7810/ISO 7811, Hi-Co+Lo-Co Magnetic,

JIS1/JIS2.

MSR (VP3300 only) is bidirectional, reading up to 3 tracks of data at once.

ICC support (VP3300 and VP3300E): EMV Level 1 and EMV L2 approvals. All L1 & L2 on

the device.

Contactless transaction support via Near Field Communication (NFC): all models.

LED status indicator.

Audio feedback.

Field upgradable firmware.

Standby mode for low power consumption.

Compact and ergonomic design to integrate with a variety of devices.

Available with a sturdy stand, for tabletop use.

TDES and AES 128 encryption support.

DUKPT key management.

Software Development Kits for Windows, Android, iOS.

One-year manufacturer's warranty.

Feature

VP3300

VP3300C

VP3300E

Contactless reader (NFC capability)



ICC reader with landing contacts and

EMV L1 and L2 certification



3-track MSR (magstripe reading)



EMVCo Contactless L1 and major card

brand contactless certifications (L2’s)



Compact Size



4 green LEDs for the contactless

indication



Audio feedback to signal good/bad card

reads, etc.



TDES and AES encryption algorithms



Supports ID TECH standard TR31 (and

optional TR34) Remote Key Injection



Supports multiple key slots



RoHS and REACH compliant



1 year manufacturer warranty



Magnetic Stripe Features (VP3300 only)

ISO 7810 / ISO 7811

AAMVA format

JIS I / II

Single / Dual / Triple Track Support

Bi-directional reading

Samsung Pay MST

ICC Contact Card Features (VP3300, VP3300E)

EMVCo Contact Level 1 & 2 compliant.

Contactless (NFC) Features:

ISO 14443 Type A&B

ISO 18092 (P2P)

MasterCard® MCL (Formerly PayPass)

Visa payWave/VCPS

Visa IRWIN

Discover® DPAS

American Express® ExpressPay

MIFARE

Apple Pay

Apple VAS Loyalty

Samsung Pay NFC & MST

Android Pay

Google SmartTap Loyalty

Before You Start Using VP3300 products

Devices in the VP3300 family are compact micro-USB devices for handling contactless

transactions. (See chart above for differences between models.) Your VP3300-series device

is designed to operate in conjunction with certified third party payment software and

compatible hosts, such as USB-equipped tablets, PCs, and smartphones. Before you connect

VP3300 to the host, install and activate the software application service according to the

instructions provided by your payment application service or software provider, then

connect the VP3300 to the host through a micro-USB cable (not included).

Electrical Power

State

Current Draw

Idle

230 mA

Contact EMV

230 mA

MSR swipe

280 mA

Contactless EMV

530 mA

Transactions per battery charge:

250 MSR + 125 EMV + 125 EMV CTLS transactions (Total 500 transactions) per charge.

LED Status and Audible Beeper During Transactions and Operation

Device Status

4 LED’s

Audible Beeper

Run Mode

Left LED Flash 300ms on/5s off

Contactless Read Successful

All 4 LEDs flash Once

1 longer beep

Contactless Read Failed

2 short beeps

ICC is being Processed

Left LED flashes: 500ms on/off, DO

NOT remove card

Magnetic Stripe Read Successful

All 4 LEDs flash Once

1 longer beep

Magnetic Stripe Read Failed

2 short beeps

Physical Specifications (VP3300, VP3300C, VP3300E)

Operation and Storage Environment

No.

Item

Specification

Physical Dimensions

64mm x 49mm x 14.5mm(LxWxH)

Structure Material

Plastic, PC UL 94V-0

Texture

MT11010

Weight

50g

Item

Specification

Note

Operating Temperature

0 °C to 55 °C

1. Non-condensing.

2. Product operation temperature is

limited to the range for the reason of

the constraint of Li-Battery

specification.

Storage Temperature

-20 °C to 60 °C

1. Non-condensing.

2. Product storage temperature is

limited to the range for the reason of

Other Agency Approvals and Compliances

CE (EN55022/EN55024, Class- B)

FCC (Part 15, Class-B)

RoHS (DIRECTIVE 2011/65/EU)

REACH

EMV Contact L1&L2

EMV Contactless L1

For Software Developers: Software Development Support

VP3300 devices are designed to be compatible with a wide range of third party payment

applications. ID TECH offers a Universal SDK (available for iOS, Android, or Windows) to

enable rapid application development with any model of VP3300 as the target device. The

languages supported include Objective C (on iOS), Java (on Android), and C# (on Windows).

The Universal SDK includes rich, powerful libraries that make communication with VP3300

comparatively easy while greatly facilitating debugging.

Normally, development of applications that take advantage of VP3300 capabilities can be

done in a high-level language like Java or C# (using convenience objects and data

structures), obviating the need to send hex-code commands directly via USB-HID.

Nevertheless, if you need to communicate with the device via audio jack or via USB-HID, it is

possible to do so. For a command reference for VP3300-series products, consult the NEO

Interface Developers Guide (IDG), P/N 80139403-001.

Demo App

The Universal SDK comes with a rich, fully featured demo app. Complete source code for the

demo app is included with the SDK.

the constraint of Li-Battery

specification.

Operating Humidity

5% to 95%

Non-condensing

Storage Humidity

5% to 95%

Non-condensing

To use the demo app: On Windows, plug your VP3300-series device into the host using a

USB-to-micro-USB cable (not included), then double-click the UniversalSDKDemo.exe file

and allow a few seconds for the main window to appear (see illustration below).

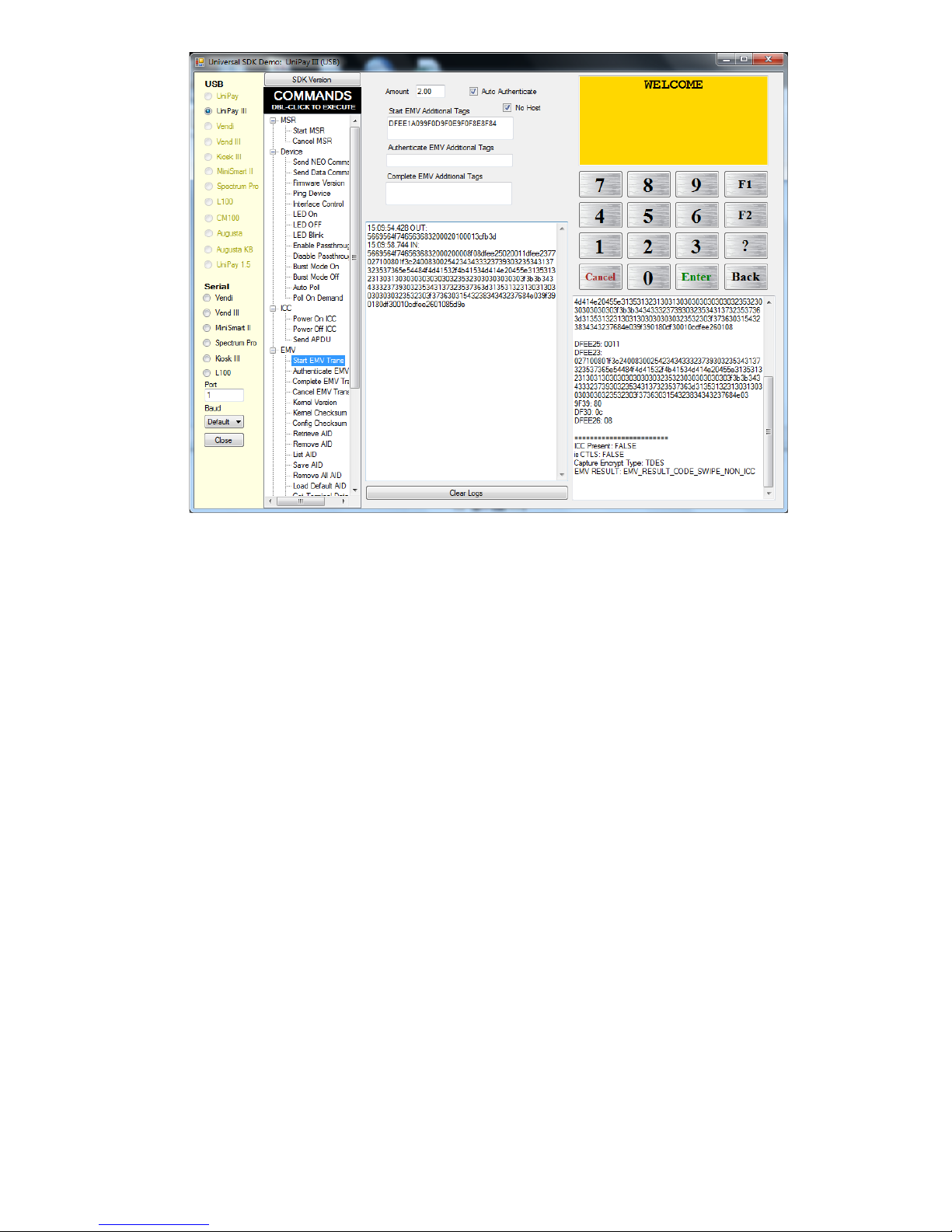

The Demo App displays available commands in a command tree, as shown above.

Single-click on a command to populate the center panel of the window with optional

settings relevant to the command (e.g., "Amount" and "Start EMV Additional Tags" above).

In some cases, text fields will appear, allowing you to enter custom values. When you are

ready to execute the command in question, double-click it in the command tree. The

command executes in real time and a data trace appears automatically in the center and/or

right-hand panels. (Use the Clear Logs button to clear both panels.)
