ICP DAS USA I-7061 Manual de usuario

I-7061 12-channel Relay Output DAQ Module - QuickStart (Jul/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

I-7061

12-channel Relay Output Data Acquisition

Module

Quick Start Guide

Product Website:

https://www.icpdas-usa.com/i_7061.html

http://www.icpdas-usa.com/dcon_utility_pro.html

1. Introduction

The 7061 series provides 12 power relay output channels and the 7067

series provides 7 signal relay output channels. There are options for

configuring power-on and safe values. 4 kV ESD protection and 3750 VDC

intra-module isolation are also provided to enhance the noise protection

capabilities in industrial environment. The “D” versions of the 7061 series

provide 12 LED indicators that can be used to monitor the status of the

relay output channels. The “M” versions of each series support both the

Modbus RTU and DCON protocols, which can be configured via software.

The 7061 series are the ideal solution for high power applications.

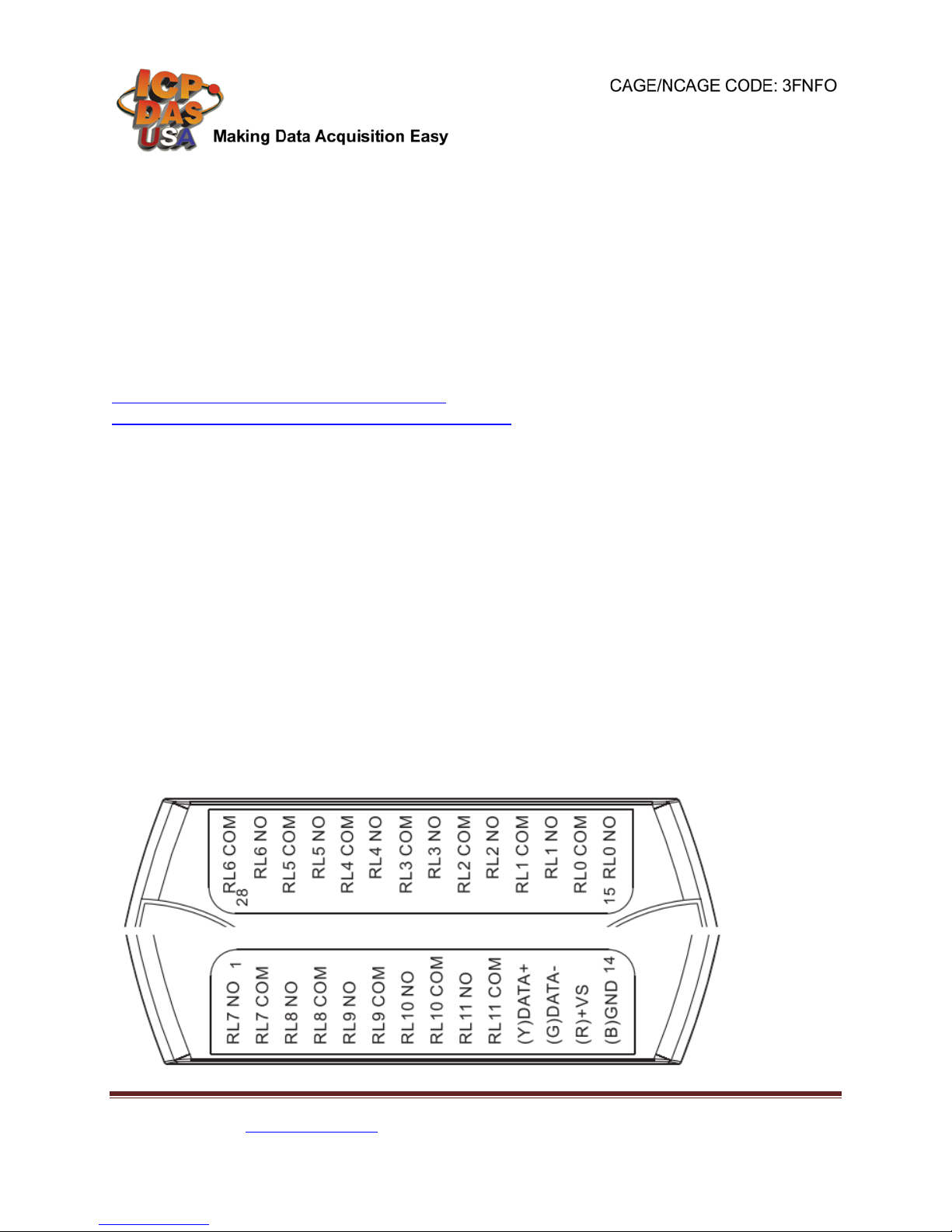

2. Terminal Assignment

I-7061 12-channel Relay Output DAQ Module - QuickStart (Jul/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

3. Block/ Wiring Diagram

4. Default Settings

Default settings for the I-7061D DIO modules are as follows:

。

Module Address: 01

。

DIO Type: Type 40

。

Baud Rate: 9600 bps

。

Checksum disabled

I-7061 12-channel Relay Output DAQ Module - QuickStart (Jul/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

5. Configuration

To install the module, follow the steps below:

1. Connect the analog output.

2. Connect the module to the RS-485 network using the DATA+ and DATA- terminals. If

the host is only equipped with an RS-232 interface, then an RS-232 to RS-485

converter will be required.

3. Connect the module to the power supply using the +Vs and GND terminals. Note that

the voltage supplied should be in the range of +10 to +30V DC.

I-7061 12-channel Relay Output DAQ Module - QuickStart (Jul/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

4. Open DCON utility pro

click on COM port(first icon).

It can select multi-options such as Baud Rate, Protocol, Checksum, and Format to

search module. The default settings for the module can be found in Section 3. Click OK

after selecting the COM port setting.

I-7061 12-channel Relay Output DAQ Module - QuickStart (Jul/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

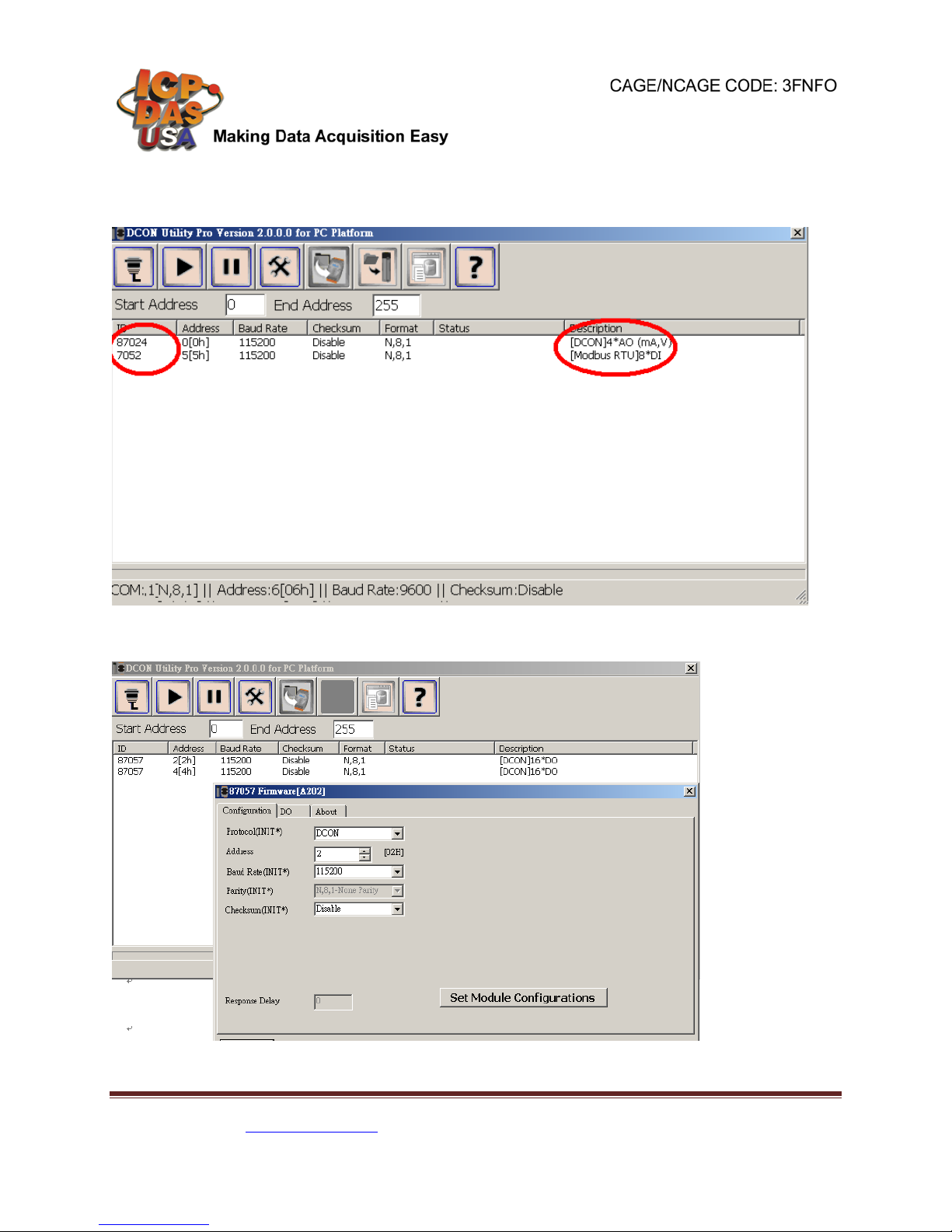

5. DCON utility pro will search for the selected COM port according the setting

previously set. DCON Utility Pro supports DCON and Modbus protocol for all ICPDAS

and the others modules.

6. Configuration I/O module setting on PC

I-7061 12-channel Relay Output DAQ Module - QuickStart (Jul/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

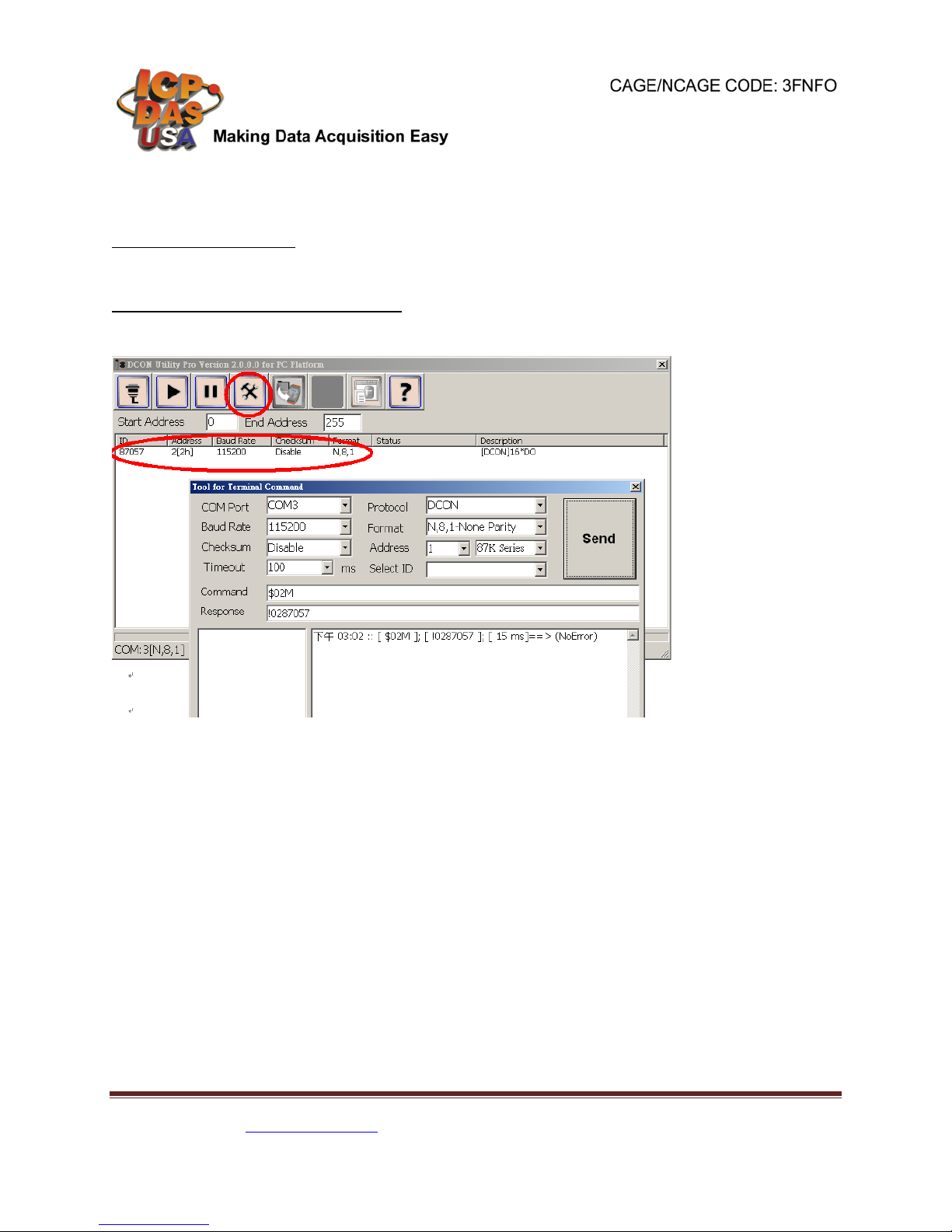

7. For I-7000 modules, DCON utility pro terminal can send command to the module.

See user manual Sections 2 for details command.

Configure the module: sending the %AANNTTCCFF command. See user manual

Section 2 for details.

Read data from the input channels: send either the #AA or #AAN command to the

module.

I-7061 12-channel Relay Output DAQ Module - QuickStart (Jul/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

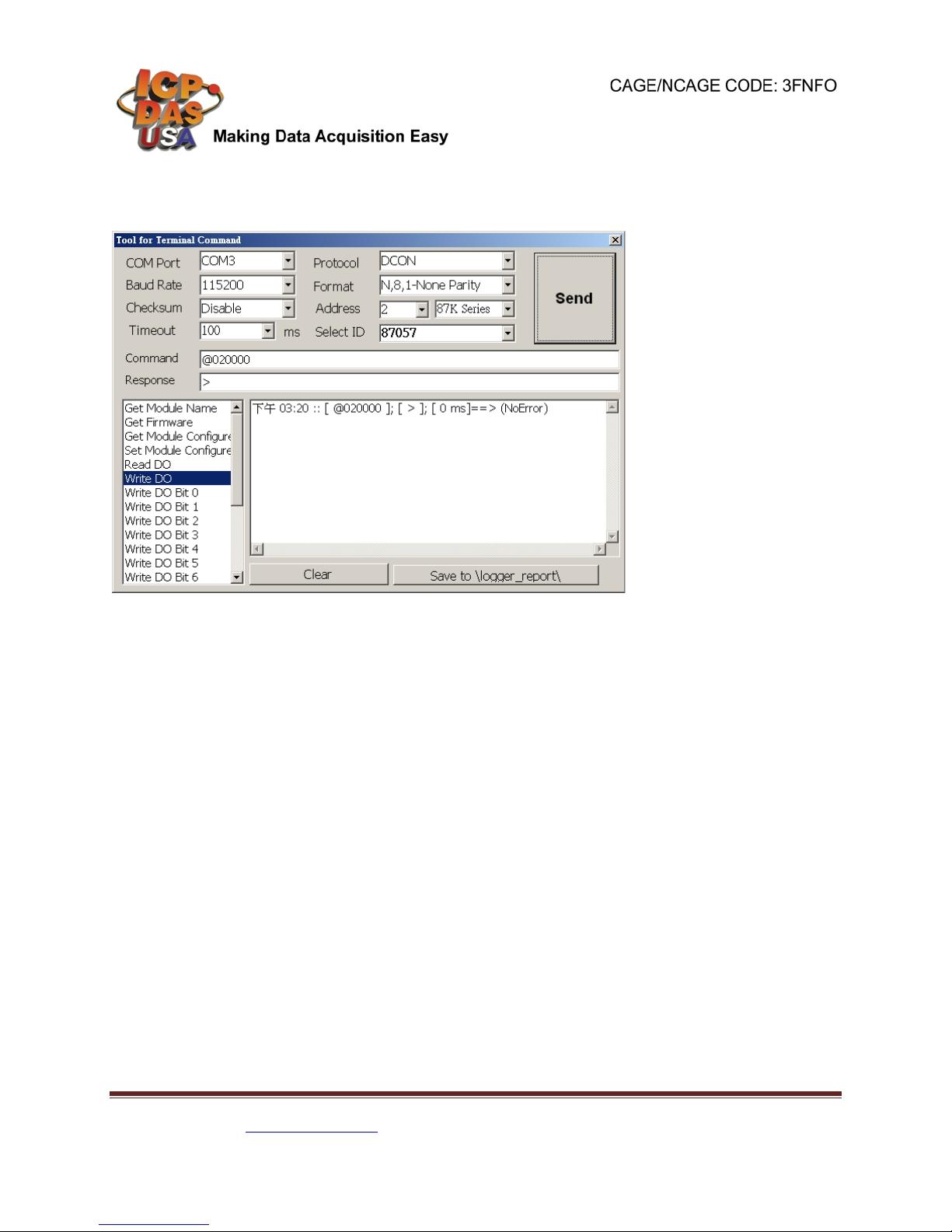

8. If user doesn’t know command, user can select Address and ID, it will show some

refer commands as below. User can select necessary command to test or debug

modules.
